EverFocus ECOR264-4X1 User manual

User Manual

-4

-9

-1

1.4 FRONT PANEL

Your primary interaction with your new DVR will be through the Front Panel buttons and their

corresponding buttons on the included IR Remote Control. Take a moment to learn where the keys are as

the remainder of the manual will refer to them often.

Figure 1-1 Front Panel

1) Remote Control Receiver: Receiver for IR remote control.

2) USB 2.0 (front)

 For connecting USB-Flash-Drive to copy/archive video or for firmware upgrades.

3) DVD+RW: DVD+RW burner for DVD model. (D models only) (Replaced by hot swap drive on

“R” models).

4) Channel keys 1~16 (1~9, 1~4): Press channel key (CH1~CH16) / (CH1~CH9) / (CH1~CH4) to display

that channel in full screen view.

5) ◄I /◄◄: Fast reverse playback or step reverse playback depending on playback mode.

6) I I / ◄: Reverse playback or pause

■

Stop playback

8) ►/ I I: Forward playback or pause

9) ►►/I►: Fast Forward playback or step forward playback depending on playback mode.







10) View: Press this key to switch between 4x, PiP (Picture In Picture),full screen, 9x, 10x,

13x and 16x.

Note: PIP display is not available in playback mode.

11) SEQ: Press this key to enter the auto sequential switching mode. The sequence dwell

time can be set in “Display Setting” tab of the Menu. For more detail about SEQ,

please see “Section 4.9.2 Display Setting-Main M/T SEQ”.

12) Display: P r e s s t h i s k e y t o s w i t c h d i s p l a y o f c h a n n e l s a n d status bar.

13) Monitor: Switch between Main monitor and Call monitor.

14) Zoom: In full screen mode, 2x electronic zoom. Zoom screen can be moved through

arrow keys. Pressing the zoom key again switches the electronic zoom off.

15) Search: Press this key to enter Search Menu. For more detail about the Search function,

please see “Section 3.12 Search”.

16) Menu/ESC: Press this key to enter/exit MAIN SETUP MENU.

17) Copy: Press this key to enter Copy Menu. For more detail about Copy function, please

see “Section 3.13Copy”.

18) Enter/ Arrow keys: Instead of or in combination with a mouse, you can use these keys to change

the Menu settings.

19) Power LED: This LED ON indicates Power on.

20) HDD LED: This LED ON indicates HDD active.

21) Alarm LED: This LED ON indicates Alarm active.

22) Network LED: This LED ON indicates Network active.

23) Record LED: This LED ON indicates Record active.

2MOUSE AND FRONT PANEL OPERATION

ECOR264 DVRs support multiple sources to control the DVR. It can be controlled with a mouse, the front

panel, an EKB500, and the handheld IR remote control.

This chapter will cover the basic operation using the mouse and the front panel buttons.

2.1 GENERAL USB MOUSE OPERATION

2.1.1 How to select a channel / Enable audio

1. In a view consisting of more than one channel, users can select a channel by clicking once on the

desired channel screen. The selected screen will be highlighted by a white frame.

2. Double clicking on a channel screen will display full screen for this channel.

3. To enable audio out, click the audio icon (ex: ) at lower side of the screen. This system has only

one audio out. Click this button to enable or disable the audio-out mode.

2.1.2 OSD Root Menu

1. Right-click the mouse to obtain the DVR menu bar (see Figure 2-1 OSD Root Menu ). When you move

the mouse over each icon, its title will be displayed at the top of the control bar.

Figure 2-1 OSD Root Menu

2. Click on any icon to perform that action. These actions are covered in detail in Chapter 3.

3. Click the “X” in the top-right corner to close the DVR control bar.

Chapter

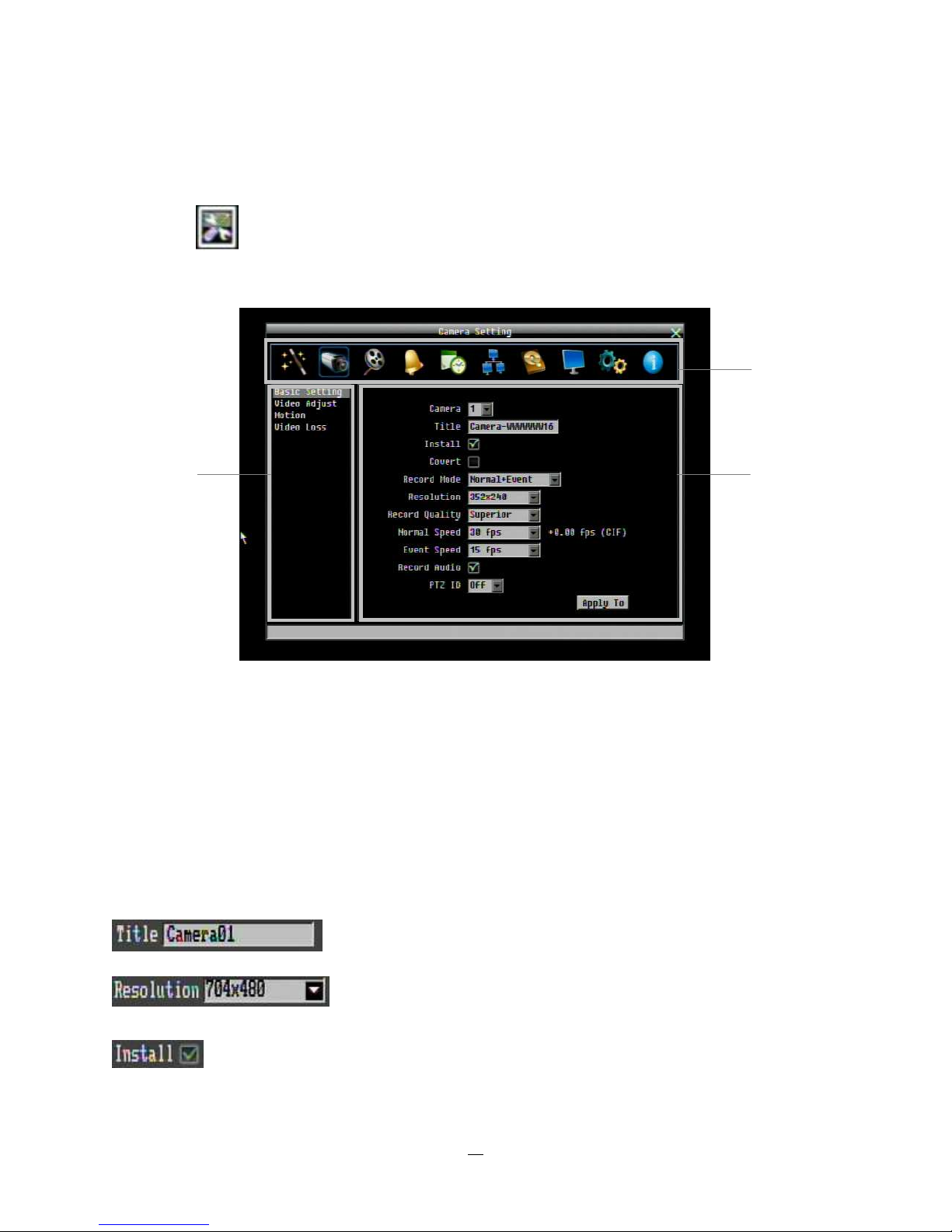

2.1.3 Operation in the Configuration Menus

Click on the icon to access the Configuration Menu.

The Configuration menu screens (shown in Figure 2-2 OSD Menu) are divided into 3 main sections.

Figure 2-2 OSD Menu

1. In section 1, there are ten setup options available. Move the mouse over an icon and click to select it.

2. In section 2, the choices for the selected icon will be displayed. Click on a choice to select it.

3. In section 3, all the options for the selected choice will be available. Click on a field to make changes.

2.1.4 Field Input Options

The following are examples of different types of fields available in the Configuration menu.

Textbox: Click on the box and an on-screen keyboard will appear*. (see

note about the on-screen keyboard below)

Dropdown box: Click on the down arrow to see all selections, then

directly click on an option to select it.

Check box: Click on the box to enable it (checked) or disable it (unchecked).

Button: Click the button to execute the function.

Bar: Click and hold on the bar to adjust the set point Left or Right.

* Note about on-screen keyboard:

Click on a button to input that character.

The buttons on the right and bottom have the following functions:

Space Enter a space

Caps Switch to capital letters

Delete the letter

Confirm the selection

Move to right

Move to left

2.2 General Front Panel Operation

2.2.1 How to select a channel / Enable audio

1. In a view consisting of more than one channel, press the arrow keys (Up/Down/Right/Left) to scroll

through each channel that is displayed. The selected channel will be highlighted by white frame.

Pressing the “left” or “right” arrow when the last/first camera (1,4, 9 or 16) is highlighted will select all

cameras.

2. While channel #1 is selected, press the “Enter” button to turn Audio On/ Off.

2.2.2 OSD Root Menu

1. Press “Menu” key to display the DVR menu bar. Use the left/right arrows to scroll over each icon. The

title for each icon will be displayed on top of the menu bar.

2. Press “Enter” key on any icon to perform that action. These actions are covered in detail in Chapter 3

3. Press “Menu” to close the DVR menu bar.

2.2.3 Front Panel Key Review

The basic principle of front panel operation is to use arrow keys to navigate among the menu items. Use

the “Enter” key to confirm a selection or enter the next level menu. Press the “Menu” key to enter the Main

Menu or exit from the current level of the menu.

2.2.4 Operation in Configuration Menu

Press “Menu”, use the arrow keys to highlight the “Configuration” icon, and press “Enter” with

“Configuration” icon highlighted to bring up the Configuration menu.

NOTE: If the require password option is active, you will need to log in first. Refer to “Section 3.2 LOGIN” for

information on logging in. The menu (shown in

Figure 2-3 OSD Menu

) is divided into 3 main sections.

Figure 2-3 OSD Menu

1. In section 1, there are ten setup options available. Use arrow keys to highlight an icon and press “Enter”

to select it.

2. In section 2, the main choices for the selected icon will be displayed. Use Up/Down arrow keys to

highlight a choice and press “Enter” to select it.

3. In section 3, all the options for the selected choice will be available here. Use arrow keys to move

between items and press “Enter” to make changes to that item.

Note: press the “Menu” button to go back to the previous menu section/level.

2.2.5 Field Input Options

Textbox: Press Enter key and an on-screen keyboard will appear*. (see

note about on-screen keyboard below)

Dropdown box: Press “Enter” key to show the available options. Use

arrow keys to highlight the desired option and press “Enter” again to select it.

Check box: Press “Enter” key on a setting to enable it (checked) or disable it (unchecked).

Button: Press “Enter” key to execute the function.

Bar: Press “Enter” key to activate the slider, then use arrow keys to adjust the setting.

Press “Enter” again to finalize the changes.

* Note about on-screen keyboard:

Use the arrow buttons to highlight each character and press the “Enter” key on the front panel to input the

selected characters. When finished, highlight “Done” and press the “Enter” key on the front panel to

confirm. The buttons on the right and bottom have the following functions:

Space Enter a space

Caps Switch to capital letters

Delete the letter

Confirm the selection

Move to right

Move to left

3. GENERAL DVR OPERATIONS

This chapter introduces the operations on major functions including playback, layout change, sequence,

triplex operations, copy, and search.

3.1 RECORD

By default, the DVR will always be in record mode. When the DVR is turned on, it will start to record. The

exceptions are:

1. DVR will not record any uninstalled cameras (Refer to Section 4.3.1 for more details)

2. If a schedule is active, the DVR will follow the record settings of the schedule.

3.2 LOGIN

In order to access ECOR264 options, users may be asked to log in for authority identification. To log in,

follow these steps.

1. Right click on the screen or press the Menu Key to display the Main Menu

2. Choose or click (or press “Enter” key) on the Configuration icon to bring up the following screen:

Figure 3-1 Login page

3. Select the user name from the drop-down list and input the password. The defaults are:

User name: admin (lower case)

Password: 11111111

Chapter
