EverFocus VANGUARD 16x8H Plus User manual
VANGUARD 16x8H Plus
16CH, H.265, 4K Hybrid DVR
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: March 2019
All the images including product pictures or screen shots in this document are for example only. The images may
vary depending on the product and software version. Information contained in this document is subject to
change without notice.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan
TEL: +886 2 26622338 FAX: +886 2 26623632 www.everfocus.com.tw marketing@everfocus.com.tw
1
1. Overview

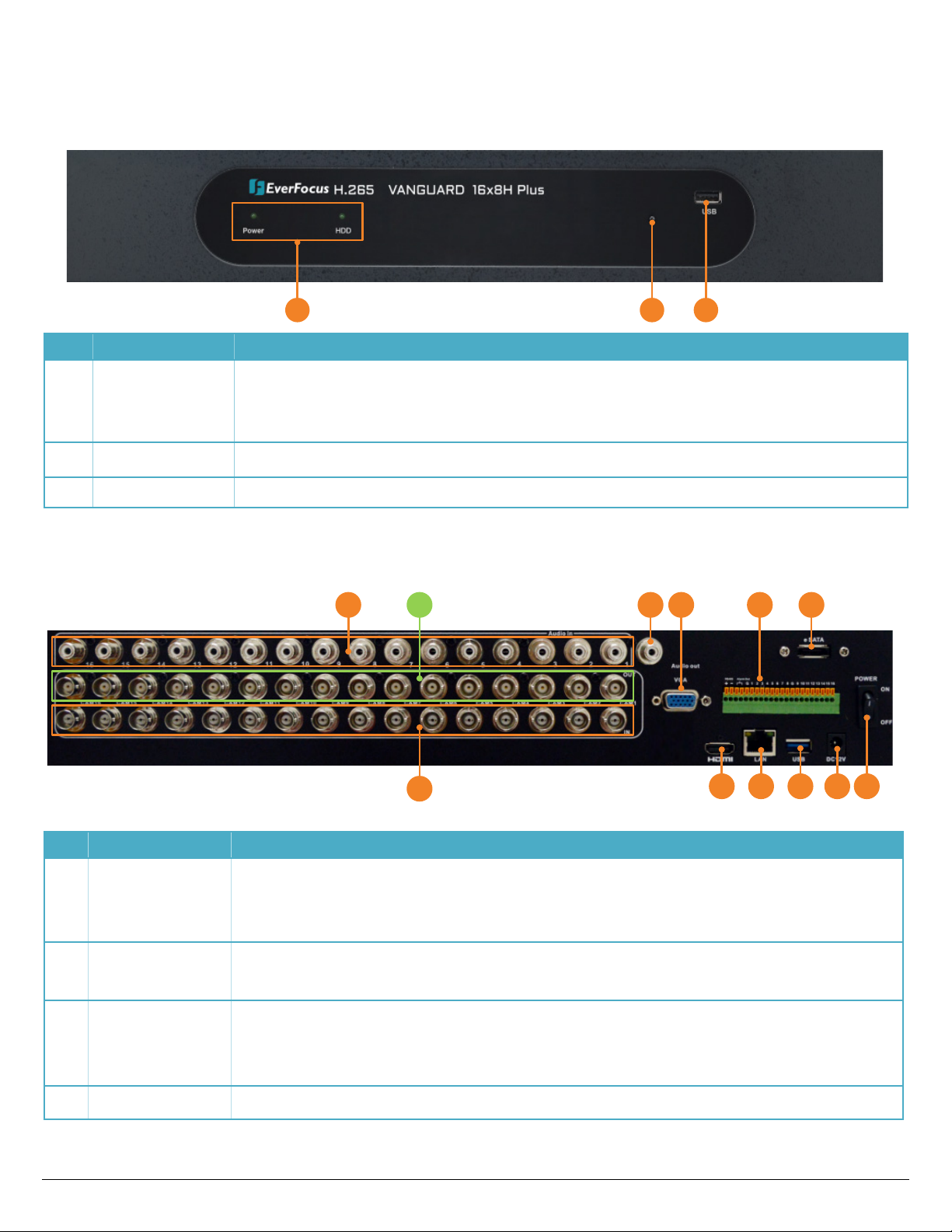

1.1 Front Panel
1 2 3
No.
Name
Description
1 LED Indicator
Power: When power is on, the LED will continue lighting in green.
HDD: When power is on, the LED will continue lighting in red. When HDD
is reading/writing data, the LED will flashes red.
2 IR Receiver Receiver for signals from the IR remote control.
3
USB2.0 Port
USB2.0 port for connecting to a mouse or an external storage device.
1.2 Rear Panel
7
1 2
8 9 10 11 12
3 4 5 6
No
Name
Description
1 Audio Input
Connects to audio input devices, such as microphones. Note that the
microphones with a (built-in) amplifier and external power supply are
required.
2 Loop Video
Output 1~16
You can also optionally connect the monitors to each Loop Video Output
to display the video of the corresponding channel.
3 Audio Output
Connects to an audio output device, such as speakers. Note that the
speakers with a (built-in) amplifier and external power supply are
required.
4 VGA Port Connects to a monitor using a VGA cable.
2
5
Terminal
Block
The Terminal Block provides 16 alarm inputs, 1 alarm output and RS-485
connection (see 3.1 Terminal Block).
6 e-SATA Connects to an external e-SATA storage device.
7 Video Input Connects the AHD/TVI/SD cameras to the Video Input.
8 HDMI Port Connects to a monitor using a HDMI cable.
9 LAN Connects to the Network.
10 USB2.0 Port The USB2.0 port for connecting to a mouse or external storage device.
11 Power Port Connects to a 12VDC power source.
12 Power Switch Press to turn on or off the power.
1.3 Dimensions
430mm / 16.93"
79.5mm/3.13"
399.3mm / 15.72"
1.4 Packing List
•
DVR x 1
•Power Cord x 1
•Mouse x 1
•HDD Bracket x 4
•Screw Pack x 1 (Sliver Screw x 16, Washer
Head Screw x 8, M3 (φ6.8) Screw x 4)
•Quick Installation Guide x 1
•Rack Ear x 2
•CD x 1 (Please see Note 3.)
•IR Remote Control x 1 (with two AAA
batteries) *Please see Note 4.
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your
local EverFocus office or agents for more information. Please also keep the shipping carton
for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
3. The CD contains the IP Utility software, User Manual and Quick Installation Guide.
4. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
a. Use only two AAA dry cell batteries.
b. Do not dispose of the batteries in a fire as it may explode.
3
2. Basic Installation
2.1 Hard Disk Installation
You can install up to four 3.5” HDDs. The maximum capacity of each HDD is 8TB.
1. Make sure the DVR is power-off. Unscrew the ten housing screws on the DVR, and remove
the housing cover from the DVR.
2. Find the SATA cable inside the DVR, and connect the SATA cable to the SATA port on the HDD
(left image). Find the internal power cable, and connect the internal power cable to the HDD
(right image).
3. Place the HDDs inside the DVR, screw the HDDs from the bottom side of the DVR using the
supplied Screws. After installing the HDDs, screw the housing cover back to the DVR.
2.2 Hard Disk Compatibility List
Please go to the product page (Download) on EverFocus’ Website www.everfocus.com.tw to see
the latest Storage Compatibility List. It’s recommended to use the hard disk models listed on the
Storage Compatibility List to ensure your hard disks are compatible.
Note: If using two or more hard disks, please choose the hard disks with the same capacity.
4
2.3 Rack Mount
To install rack ears on the DVR:
1. Unscrew the four M3 (φ6.8) screws on both side of the DVR.
2. Use the supplied two rack ears and the above screws for rack mount installation on both side.
3. Basic Connection
Mouse
Power
supply
8
4
Line Level
Audio Out
IP Camera
Camera 1~16
2
Line Level
Audio Input
Monitor
(HDMI / VGA)
Web Remote
Client
VANGUARD
CMS
7
35
6
1
3.5" HDD
Network
1. To record videos, install 3.5” HDD(s) to the DVR. Please refer to 2.1 Hard Disk Installation.
2. Connect the TVI/AHD/SD cameras to the BNC ports.
3. Connect microphones to the audio input ports to transmit audio from the camera to the DVR.
Note that the microphones with a (built-in) amplifier and external power supply are
required.
4. To view videos at local site, connect a monitor to the HDMI or VGA port using the HDMI or
VGA cable supplied by the monitor manufacturer.
5. To listen to the audio from device side, connect speakers to the audio output. Note that the
speakers with a (built-in) amplifier and external power supply are required.
6. Use a standard RJ-45 CAT5 Ethernet cable to connect the DVR to the network and then
optionally connect IP cameras to the DVR.
7. Optionally connect a mouse to the DVR to control the system. You can also control the
system using the supplied IR Remote Control).
8. Use the supplied Power Cord and Adaptor to connect the DVR to the power outlet.
5
3.1 Terminal Block
VANGUARD 16x8 Plus provides 16 alarm inputs, 1 alarm output and 1 RS-485.
4. Turning On / Off the Power
Before powering on the DVR, please make sure the internal HDD have been installed properly.
Once you have completed the basic cable connections, you are ready to turn on the DVR.
Simply plug in the power source and then press the Power Switch on the rear panel of the DVR.
The POWER LED will light up if power is normal and the DVR will enter the System Initialization
process.
When the process is done, it’s required to set up a password for the administrator account
immediately in order to protect your privacy.
To turn off the power, click the Shutdown button on the Exit page (OSD menu > Exit >
Shutdown) and then press the Power Switch on the rear panel of the DVR.
6
5. P2P Function
The P2P function allows users to add DVRs to the eFVMS App through QR code.
1. Install EverFocus eFVMS App. For Android users, go to Google Play Store. For iOS users, go to
Apple Store. After the installation process is complete, start eFVMS App.
EverFocus eFVMS eFVMS by EverFocus
2. To add a DVR through P2P, tap Menu > Device List, and then tap the “+” button on the
upper-right corner.
3. Scan the DVR’s QR code on the System Info page of the DVR OSD menu. Input the DVR ID,
password and Media Port 8000. Tap the Save button.
7
……
4. The DVR is now added and connected to the App. You can start accessing the DVR.
P/N: 4605VAN1602004B
