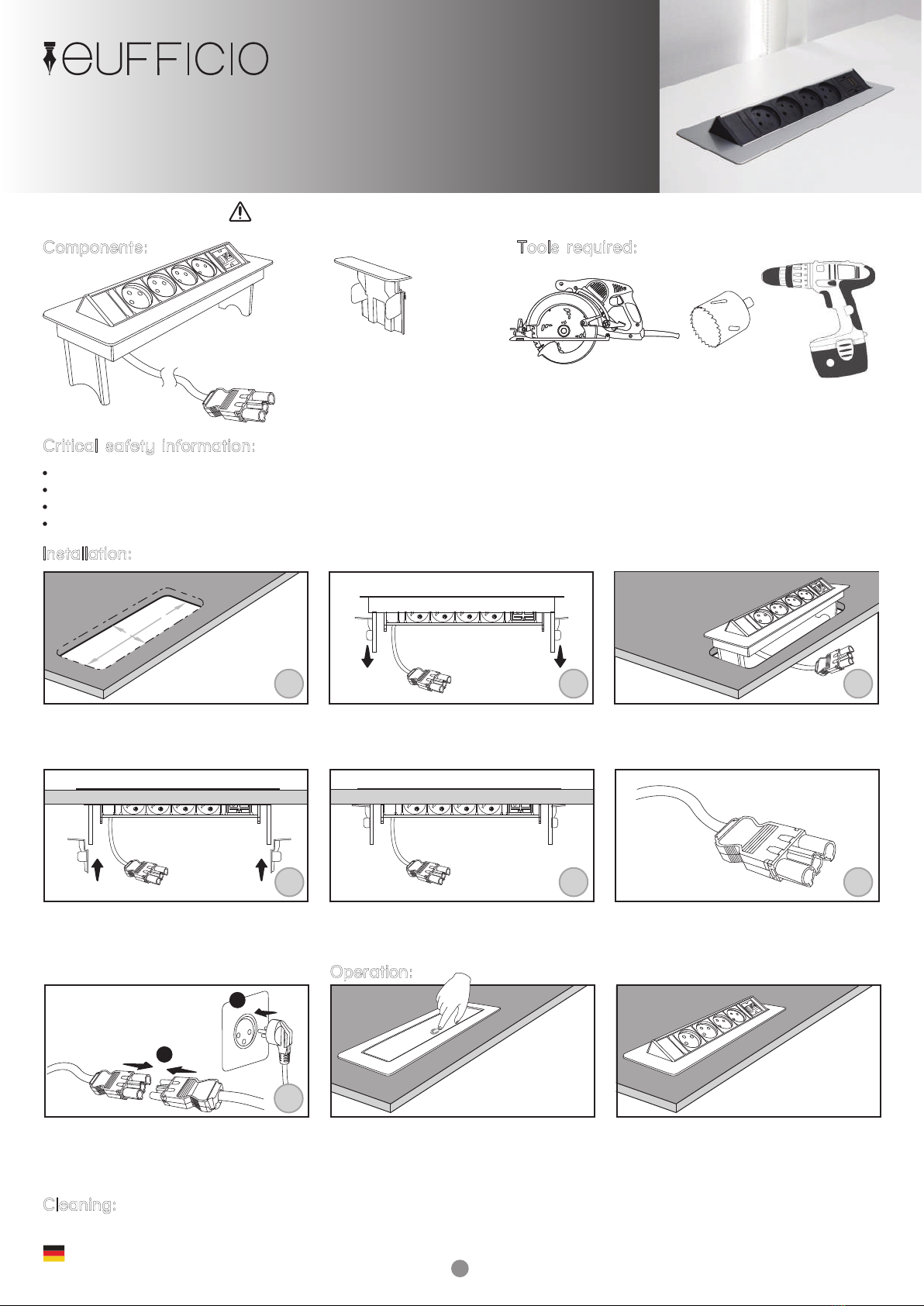

Eufficio Innera Leisure ISRAEL User manual
Components:
Critical safety information:
Cleaning:
Tools required:
2 x Locking
Handle
1 x Innera Leisure
Prior of use, please examine and verify that the product is not defected. Please do not install or operate if there is a defect of any kind.
If in any case you are facing misunderstanding of installation procedure, the installation should be carried out by certified electrician
Make sure you are installing the product on smooth straight surface. Do not install in any case that the surface is not straight or if there are levels differences.
Make sure water will not penetrate into the unit. In any case please make sure you are installing the unit, where proper leakage protection device is connected.
The product can be cleaned by a soft and dry fabric. Please do not use moisture, abrasives materials,solvents or any detergents which can be conductive
Drill hole into the surface according to the
INSTALLATION TABLE on page 2. Please verify
your purchased item's model No and drill the hole
according to the model's cutout dimensions.
Insert the
Innera Leisure
into the hole.Remove the locking Handles by pulling & Pushing
it down the rail before you are Inserting the
Innera
Leisure
into the hole.
Tight the locking handles by install it on the rails
and push it up to the surface. Connect the GST Male connector to power
and the
Innera Leisure
is ready for use.
Tight the handles strongly to the surface and
verify the
Innera Leisure
is firmed and cannot be
rotated.
For use, press the cover.
REMARK: In case you need to connect the
Innera Leisure to a standard socket, you should buy
a starter cable separately which not included in this
Kit and connect it according to illustration above.
The Innera Leisure is ready for use
L
W
A B C
DEF
Installation:
Operation:
1
2
G
Power DrillPower Saw Hole Cutter
Innera Leisure
ISRAEL
Design & Electric
www.eufficio.com
Engineered in Germany
ATTENTION:
Read the instructions prior to installation.
INSTALLATION INSTRUCTIONS
1
Innera Leisure
ISRAEL
Design & Electric
www.eufficio.com
Engineered in Germany
INSTALLATION INSTRUCTIONS
INSTALLATION TABLE:
0727363256751
0769978898100
0769978898094
0769978898087
0769978898070
0769978898056
0769978898049
0769978898032
0769978898025
0727363256874
0727363256867
3 IL sockets & 2.4A USBx2 Charge
2 IL sockets & 6 keystones
3 IL sockets & 4 keystones
4 IL sockets & 2 keystones
5 IL sockets
3 IL sockets & 2 keystones
4 IL sockets
2 IL sockets & 2 keystones
3 IL sockets
2 IL sockets
2 IL sockets
IL-53C2
IL-52
IL-53
IL-54
IL-55
IL-43
IL-44
IL-32
IL-33
IL-22
IL-22
320
320
320
320
320
268
268
225
225
182
182
92
92
92
92
92
92
92
92
92
92
92
Catalog No DescriptionModel
White
Black
White
Silver
Silver
Silver
Silver
Silver
Silver
White
Black
Color
2
Cutout Hole
Length mm (L) Width mm (W)
L
W
L
W
1mm Radius
This manual suits for next models
