ETC ColorSource Linear Pearl User manual

ETC Installation Guide

ColorSource®Linear Pearl v1.7

Corporate Headquarters



Middleton, Wisconsin, USA



Tel +608 831 4116

Service (Americas)



[email protected]

London, UK



Tel +44 (0)20 8896 1000



Service: (UK) [email protected]

Rome, IT



Tel +39 (06) 32 111 683



Service: (UK) [email protected]

Holzkirchen, DE



Tel +49 (80 24) 47 00-0



Service: (DE) [email protected]

Hong Kong



Tel +852 2799 1220



Service: (Asia) [email protected]

Web: etcconnect.com



Product information and

specifications subject to change.



ETC intends this document to be provided in its entirety.



US Patents

8,384,294 . 8,403,523 . 8,593,074 . 8,633,649 . 8,723,450 . 8,878,455 . 9,041,308



EU Patents 2638781 . 6020110157302



All other patents pending.

7414M2120-1.7



Rev A



Released 2018-04

Overview

The ColorSource Linear Pearl is an affordable LED fixture that provides a

bright, variable white light.

The fixture is available in three lengths:

• ColorSource Linear 1 (0.5 meter)

• ColorSource Linear 2 (1 meter)

• ColorSource Linear 4 (2 meter)

Note:

Features described in this document require the latest

version of software. For information on updating fixture

software, see Updating the fixture software on page 16.

ColorSource Linear 1

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 2 of 20 ETC

Safety

Read the entire manual before using this equipment.

Environment

The ColorSource Linear Pearl operates in ambient temperatures of 0°C–40°C

and comes with a variable-speed fan.

CAUTION:

• Risk of eye injury. Do not stare directly into the light.

• Do not operate in proximity to flammable materials.

WARNING:

Disconnect the fixture from power and DMX and allow

it to cool before performing any cleaning and

maintenance.

Note:

The ColorSource Linear Pearl is for indoor use only.

Note:

• Maximum recommended ambient operating

temperature: Ta = 40°C (104°F)

• Maximum anticipated external surface temperature

at 40°C ambient: Tmax = 80°C (176°F)

• External temperatures after 5 minutes of full-

brightness operation at 25°C (77°F) ambient: 36°C

(97°F) for Linear 1 and Linear 2; 37°C (99°F) for

Linear 4

• External Temperature (steady state achieved) at

25°C (77°F): 58°C (136°F) for Linear 1; 53°C (127°F) for

Linear 2 and Linear 4

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 3 of 20 ETC

Electrical

• Operates between 100V and 240VAC at a frequency of 50/60Hz.

• Maximum power consumption:

- Linear 1: 120W

- Linear 2: 240W

- Linear 4: 480W

• Up to 9 cells (0.5 m segments) may be linked via power thru connector.

• Up to 10 cells (0.5 m segments) total per circuit when used with an

R20 Relay Module or Unison Echo®Relay Panel. Consult breaker trip

curves when used with other equipment. Requires power from a non-

dimmable source.

• Inrush (Linear 1/Linear 2/Linear 4):

- 120V: 35A/35.6A/67.5A (first half-cycle)

- 240V: 49A/85.6A/153A (first half-cycle)

Typical power consumption

Linear 1 100V 120V 230V

Idle Power/Current 1.51W/0.03A 1.49W/0.03A 1.36W/0.03A

Direct at Full/Current 114.6W/1.15A 113.6W/0.95A 111.6W/0.50A

Linear 2 100V 120V 230V

Idle Power/Current 2.87W/0.06A 3.01W/0.06A 2.58W/0.06A

Direct at Full/Current

221W/2.22A 218.6W/1.83A

214.1W/.96A

Linear 4 100V 120V 230V

Idle Power/Current 5.33W/0.11A 5.32W/0.11A 4.66W/0.11A

Direct at Full/Current 447W/4.53A 443.8W/3.74A 431W/1.92A

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 4 of 20 ETC

Accessories

You can use several half-meter optional accessories with ColorSource Linear

Pearl fixtures, including:

• Secondary lenses (horizontal, vertical, and round)

• Barn doors (7414K1020)

• Louver (7414K1019)

For information on installing secondary lenses, see

Installing secondary lenses

page 17

Accessories for Linear 2 and Linear 4

For the Linear 2 and Linear 4 fixtures, order one accessory for each 0.5 meter

segment (cell) of the fixture. For example, for a Linear 2 fixture, order two

barn door accessory kits to fit the full length of the fixture.

Spacers for secondary lenses are included with the fixture. Use these spacers

to hold the accessories in position when multiple lenses are used in the

Linear 2 and Linear 4 fixtures. The spacers are positioned between the

0.5 meter lenses.

Contact your local dealer for more information.

Installation

Mounting

The ColorSource Linear Pearl ships with a pair of floor trunnions for

mounting.

You also have the option of using C-clamps with the trunnions to hang the

fixture. Attach the C-clamps to the holes in the trunnion feet (see figure on

page 5

The ColorSource Linear 1 has two additional mounting options. Contact your

local dealer for more information.

• Yoke with C-clamp (7414K1017)

• Double yoke with C-clamp for mounting two fixtures (7414K1018)

Note:

Ensure that the trunnions are installed with the feet

inward so that fixtures can be lined up end-to-end, if

needed.

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 5 of 20 ETC

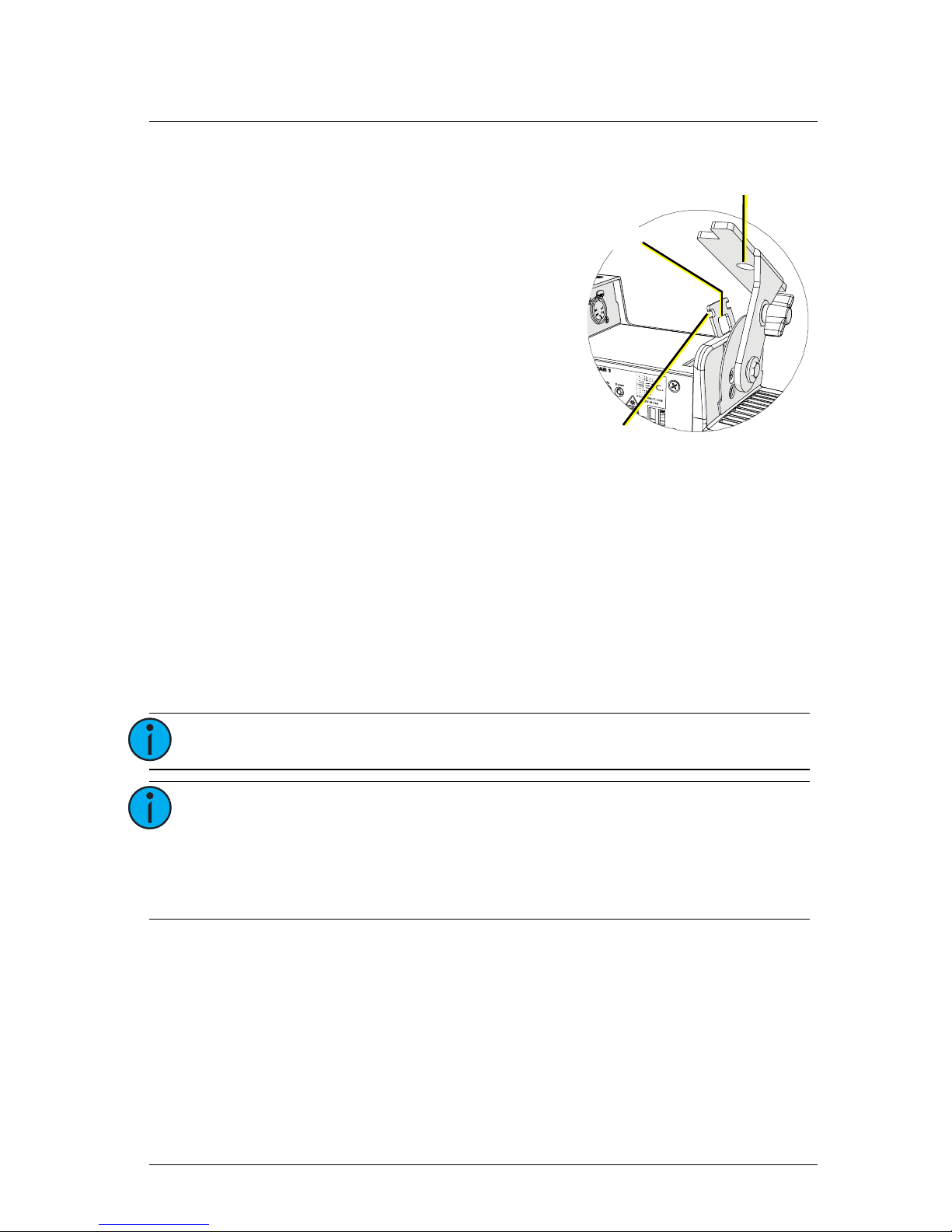

Safety cable

Two safety cable anchor points are

provided on the fixture housing.

The anchor points also include two

cutouts that can be used for cable

strain relief.

Connectors

•Power: Two powerCON®

connectors for power in and

thru

•Data (DMX512/RDM): Two

five-pin XLR connectors

two RJ45 connectors for data

in and thru

Conversion cables are available from ETC. Please contact your ETC customer

service representative and request part number W6538 for RJ45 to female

XLR or part number W6539 for RJ45 to male XLR.

Connector locations

•Linear 1: Power connectors on one side of the fixture and data

connectors on the other

•Linear 2 and Linear 4: Power and data connectors on each end (to

facilitate daisy-chaining)

Note:

This fixture is not Ethernet/data network compatible.

Note:

The ColorSource Linear Pearl is not self terminating. You

must terminate the last fixture in line with a 120 Ohm

resistor. XLR terminators are not available from ETC.

To purchase an RJ45 terminator, please contact ETC

customer service and request part number N4086.

Safety cable

anchor point

C-clamp

attachment

point

Cutout for

cable strain relief

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 6 of 20 ETC

Setting up the fixture

See the fixture illustrations below and on the following page for reference.

1: Plug power cord into the powerCON In connector on the rear of the

fixture.

2: Make any power-thru cable connections prior to applying a power

source.

3: Make any DMX connections, and if the fixture is the last in a DMX line,

terminate the fixture. See

Connectors

page 5

4: Plug power cord into power source.

Data in

and thru

connectors

User interface

(display)

Power in

and thru

connectors

Mode button

Up and

Down

buttons

Trunnion

locking

knob

Trunnion

locking knob

Linear 1

Mode button

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 7 of 20 ETC

Powering up

1: Press any button to wake the display. The display shows the DMX

address. See

Setting the DMX address

page 8

2: Press the Mode button to access the Presets menu. See

Setting presets

page 14

Adjusting the tilt

The fixture can be tilted up and down as needed.

1: Loosen, but do not remove the two trunnion locking knobs.

2: Tilt the fixture to the desired angle.

3: Tighten the trunnion locking knobs.

User interface

The user interface allows you to set the start

address of the fixture, access the stand-alone

presets, set the DMX control mode, and set the

Grouping mode (Linear 2 and Linear 4 fixtures

only).

• After 5 seconds of inactivity when DMX is

present, the display goes dark.

• The DMX address will blink when no DMX

is present and a preset or sequence is not

active. The inactivity time-out is disabled

while in a data loss state.

Power and data

connectors are

paired on each

side to facilitate

daisy-chaining

Up and Down

buttons

User interface

(display)

Mode button

Grouping button

and LED indicators

Linear 2 and Linear 4

Linear 1

shown

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 8 of 20 ETC

Mode button

Pressing the Mode button activates the Presets menu; the last active preset

plays automatically. Pressing the Mode button a second time deactivates the

selected preset. The display will revert to show the DMX start address.

• If DMX data is present, the current preset plays in the background and

DMX data continues to take priority.

• If DMX data is lost and a preset is active in the background, the last

selected preset automatically plays.

Setting the DMX address

1: Press any button to wake the display. The display shows the DMX

address.

2: Use the Up and Down buttons to select the DMX address for the

fixture.

You can also use RDM for DMX addressing. See

Using RDM

page 19

Changing the DMX control mode

You can set the DMX control mode for the fixture to one of three available

mode options.

1: Press any button to wake the display. The display shows the DMX

address.

2: Press and hold the Mode button for 3 seconds. The display shows the

current DMX control mode.

3: Press the Up and Down buttons to change the DMX control mode.

•: Variable color temperature (intensity or color temperature).

This is the default mode.

•: Direct emitter control (intensity, warm white, cool white,

strobe).

•: 1-channel mode controls the intensity of preset 1 (defaults to

3000K White).

4: Press the Mode button to confirm your selection.

The display will automatically return to the DMX address after 10 seconds of

inactivity, and edits to the DMX control mode will not be saved. This cancels

unsaved changes.

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 9 of 20 ETC

Setting the Grouping mode

The ColorSource Linear 2 and the

ColorSource Linear 4 fixtures have

two Grouping modes:

•Group: Entire array functions as

a single fixture.

•Cell: Each 0.5 m segment (or

“cell”) of the array functions as

a distinct fixture with a

separate DMX start address.

To set the Grouping mode, press the

Grouping button until the LED

indicator for the chosen mode

illuminates.

In Cell mode, each cell is assigned a DMX address based on the DMX address

of the fixture (see

Setting the DMX address

page 8

) and the current DMX

control mode (see

Changing the DMX control mode

page 8

). For example,

if you set the DMX address on the fixture to 100, set the DMX mode to

Variable Color Temperature, and set the Grouping mode to Cell, the starting

DMX address of the first cell will be 100 and the starting DMX address of the

second cell will be 102.

DMX control channels

Linear 1 and Linear 2/Linear 4 in Group mode

*Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase

the strobe rate from 1 per second up to 33 per second.

DMX

Channel



(Variable

Color Temperature)



(Direct)



(1 Channel)

1 Intensity Intensity Intensity

2 Color temperature Warm white

3Cool white

4Strobe*

Group and Cell

LED indicators

Grouping

button

ETC Installation Guide

ColorSource Linear Pearl v1.7

ColorSource Linear Pearl v1.7 Page 10 of 20 ETC

Linear 2 in Cell mode

*Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase

the strobe rate from 1 per second up to 33 per second.

DMX

Channel



(Variable

Color Temperature)



(Direct)



(1 Channel)

Cell 1

Intensity

Cell 1

Intensity

2 Color temperature Warm white

Intensity

Cell 2

Intensity Cool white

4Color temperature Strobe*

Cell 2

Intensity

6Warm white

7Cool white

Strobe*

Table of contents

Other ETC Dj Equipment manuals

ETC

ETC Irideon FPZ User manual

ETC

ETC Source Four XT HID Zoom User manual

ETC

ETC ColorSource Spot User manual

ETC

ETC SolaPix 19 XT User manual

ETC

ETC Source Four XT HID Zoom Grid Louver User manual

ETC

ETC Source Four jr User manual

ETC

ETC Source Four PAR User manual

ETC

ETC S4WRDCII User manual

ETC

ETC Desire D40 User manual

ETC

ETC High End Systems SolaPix 19 User manual

ETC

ETC ColorSource CYC User manual

ETC

ETC Source Four LED Series User manual

ETC

ETC ColorSource Spot Pearl v1.7 User manual

ETC

ETC High End Systems SolaWash 1000 User manual

ETC

ETC ColorSource PAR User manual

ETC

ETC Source Four PAR EA User manual

ETC

ETC F-Drive R12 Series User manual

ETC

ETC Desire series User manual

ETC

ETC Desire XTI Series User manual

ETC

ETC Desire series User manual

ETC

ETC ColorSource Spot jr v2.0 User manual

ETC

ETC Source Four jr User manual

ETC

ETC ColorSource Spot V 1.0 User manual

ETC

ETC CE Source Four Configuration guide

Popular Dj Equipment manuals by other brands

ALPHA LITE

ALPHA LITE ALPHA 1500 User manual book

Chauvet

Chauvet OVATION E-930VW Quick reference guide

Zumtobel

Zumtobel APHRODITE Home Instructions for use

Snow Masters

Snow Masters Zig Oscillator user manual

EuroLite

EuroLite 50530554 user manual

Beamz

Beamz BUV243 user manual

thomann

thomann Stairville DJ Lase 40-G MK-III user manual

Eagletone

Eagletone 6 Eyes Flower user manual

EuroLite

EuroLite FLD-1508 user manual

Technical Pro

Technical Pro LG8xSEA user manual

JB Systems

JB Systems Lounge Laser DMX Operation manual

Lightmaxx

Lightmaxx Vega Halo 90 user manual

Elation

Elation FUZE WASH Z350 user manual

Maverick

Maverick MK3 WASH Quick reference guide

Infinity

Infinity TF-260C7 Fresnel manual

Chauvet

Chauvet EVE E-50Z Quick reference guide

Eliminator Lighting

Eliminator Lighting E 138 manual

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC user manual
