Ericsson 2203 Operating and installation instructions

Radio Description

Radio 2203

Description

180/1551-LZA 701 6001/1 Uen AC

be reproduced in any form without the written permission of the copyright

owner.

Disclaimer

The contents of this document are subject to revision without notice due to

continued progress in methodology, design and manufacturing. Ericsson shall

have no liability for any error or damage of any kind resulting from the use of

this document.

Trademark List

All trademarks mentioned herein are the property of their respective owners.

These are shown in the document Trademark Information.

180/1551-LZA 701 6001/1 Uen AC | 2017-11-08

Contents

1Introduction 1

1.1 Warranty Seal 1

2Product Overview 2

2.1 Main Features 3

2.2 Optional Equipment 4

3Technical Data 5

3.1 Installation Recommendations 10

3.2 Space Requirements 12

3.3 Acoustic Noise 21

3.4 Environmental Characteristics 21

3.5 Power Characteristics 23

3.6 System Characteristics 25

4Hardware Architecture 27

4.1 Support 29

4.2 Radio Core 29

4.3 Antenna 31

4.4 Omnidirectional Antennas 31

4.5 Cover 31

4.6 Optical Indicators 31

5Connection Interfaces 34

5.1 Support 34

5.2 Radio Core 39

6Standards and Regulations 42

6.1 Regulatory Approval 42

6.2 Other Standards and Regulations 46

Contents

180/1551-LZA 701 6001/1 Uen AC | 2017-11-08

Radio Description

180/1551-LZA 701 6001/1 Uen AC | 2017-11-08

1 Introduction

This document describes Radio 2203.

1.1 Warranty Seal

The product is equipped with a warranty seal sticker.

Note: Seals that have been implemented by Ericsson must not be broken or

removed, as it otherwise voids warranty.

Introduction

180/1551-LZA 701 6001/1 Uen AC | 2017-11-08 1

2 Product Overview

The radio expands coverage and performance in denser urban areas, where

the use of small handheld devices demand high capacity on the operators

networks. It is designed to be located in cities and in demanding radio

environments.

The radio is part of a modular radio building concept that enables a variety of

installation alternatives that is also easy to expand. Flexible mounting

solutions are provided using rails and pole clamps. The small size of the radio

together with the flexible mounting solutions reduces the site volume. The

lower weight also improves the handling of the radio.

The radio can be connected in a star or cascade configuration using optical

cable links. An optic cable connects the radio to the main unit, or to an

expanded Radio System.

Radio Description

2180/1551-LZA 701 6001/1 Uen AC | 2017-11-08

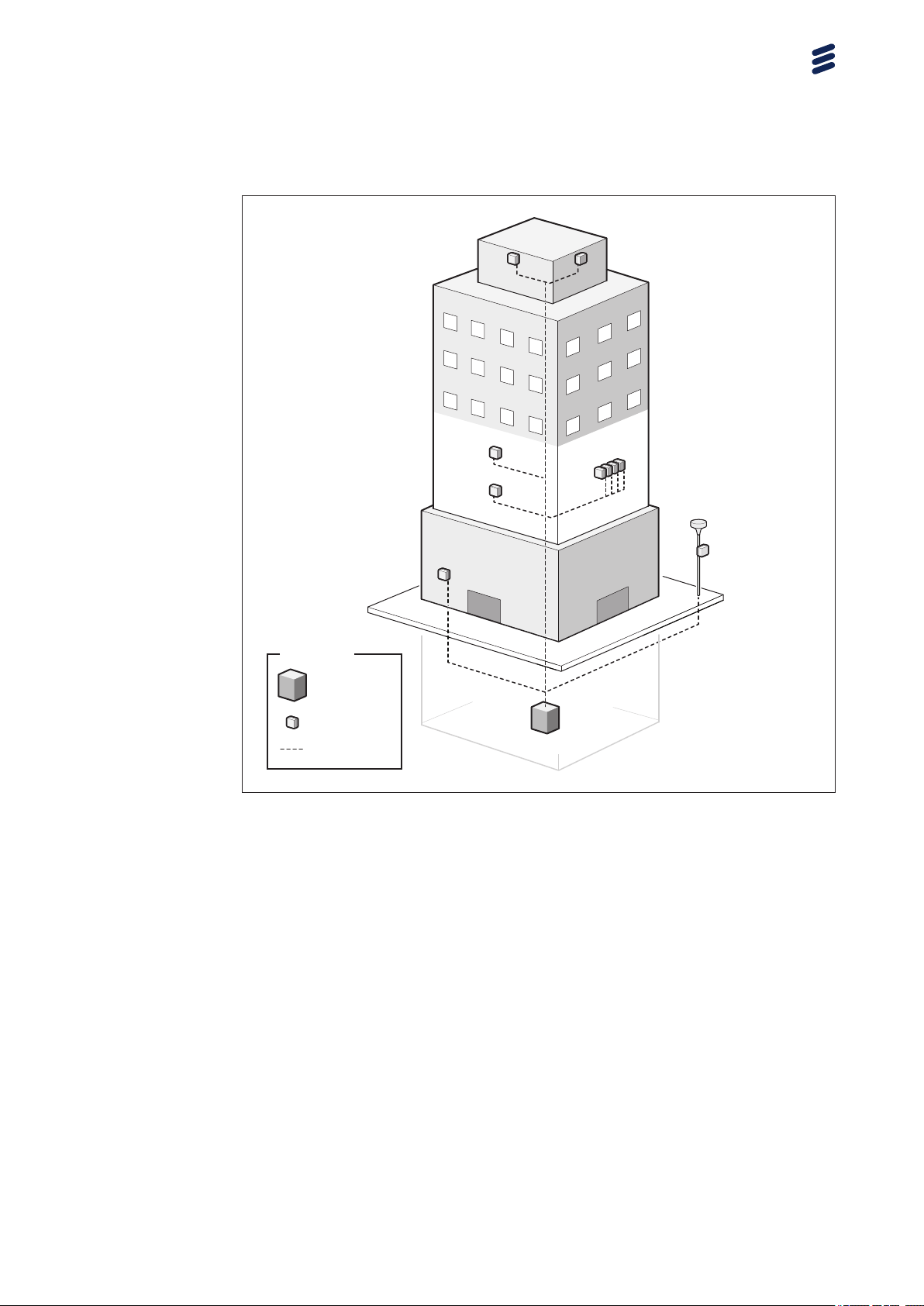

Legends

Main unit

Ge7612B

Radio

Optical cable

Figure 1 Radio Installations

2.1 Main Features

The following are the main features of the radio:

•Wideband Code Division Multiple Access (WCDMA)

•Long Term Evolution Frequency Division Duplex (LTE FDD)

•Duplex transmitter/receiver (2TX/2RX) branches with 5 W per branch

•Up to 9.8 Gbps CPRI (optical)

•4x4 MIMO by installing two Radio 2203 with external or integrated

directional antenna

Product Overview

180/1551-LZA 701 6001/1 Uen AC | 2017-11-08 3

•Complies with 3GPP base station classes Medium Range (MR); relevant

standards are listed in Radio Standards Compliance on page 44.

2.2 Optional Equipment

The optional equipment for the radio is the following:

•External antenna equipment

•Integrated directional antenna

•Omnidirectional antennas

•Rail installation equipment

Radio Description

4180/1551-LZA 701 6001/1 Uen AC | 2017-11-08

3 Technical Data

Note: Table 1 lists regulatory approved configurations. The listed standards

on a specific frequency band may not be generally available on all

markets. Contact the local Ericsson responsible for details.

Table 1 Radio 2203 Technical Data

Description Value

Maximum nominal

output power(1)

2 x 5 W

Number of carriers(1) WCDMA: One to four carriers

LTE: One to three carriers

Mixed mode: Two to five carriers

Frequency(2) 1920–1980 MHz uplink

2110–2170 MHz downlink

B1 for WCDMA and LTE

1850–1910 MHz uplink

1930–1990 MHz downlink

B2(3) for WCDMA and LTE

1710–1785 MHz uplink

1805–1880 MHz downlink

B3 for LTE

1744–1784 MHz uplink

1839–1879 MHz downlink

B3C for WCDMA and LTE

824–849 MHz uplink

869–894 MHz downlink

B5 for WCDMA and LTE

2500–2570 MHz uplink

2620–2690 MHz downlink

B7 for LTE

880–915 MHz uplink

925–960 MHz downlink

Technical Data

180/1551-LZA 701 6001/1 Uen AC | 2017-11-08 5

Description Value

B8 for WCDMA and LTE

1850–1915 MHz uplink

1930–1995 MHz downlink

B25(3) for WCDMA and LTE

1710–1780 MHz uplink

2110–2180 MHz downlink

B66A for WCDMA and LTE

Dimensions with Cover, Single Radio

Height 200 mm

Width 200 mm

Depth 100 mm

Dimensions with Cover, Dual Radio

Height 435 mm

Width 200 mm

Depth 105 mm

Dimensions with Antenna, Single Radio

Height 200 mm

Width 200 mm

Depth of Radio 2203 119 mm

Depth of Radio 2203 B5 129 mm

Depth of Radio 2203 B8 129 mm

Dimensions with Antenna, Dual Radio

Height 435 mm

Width 200 mm

Depth of Radio 2203 124 mm

Depth of Radio 2203 B8 134 mm

Weight with Cover, Single Radio

Radio 2203 4.5 kg

Weight with Cover, Dual Radio

Radio 2203 9.4 kg

Weight with Antenna, Single Radio

Radio 2203 4.9 kg

Weight with Antenna, Dual Radio

Radio 2203 9.8 kg

Radio Description

6180/1551-LZA 701 6001/1 Uen AC | 2017-11-08
