80114-351 07.16

CRYOSURGERY

QUICK GUIDE

ERBECRYO®2

This quick guide is no substitute for briefing and user manual. This quick guide does not include any safety notes. Make yourself familiar

with the safety notes in the user manuals.

Necessary operating steps

1. Open the bottle valve.

2. Check the seal of all connections. No gas may escape.

1. Immerse the instrument tip to a depth of approx. 5 cm.

2. If bubbles develop during immersion, eliminate the bubbles by

moving the instrument tip back and forth quickly in the water.

3. Activate ERBECRYO 2 for approx. 5 seconds.

At a sufficient level of freezing performance, a clearly visible, homoge-

neous ball of ice must form at the tip of the instrument. No gas bubbles

should escape.

Never use an instrument if the freezing performance is inadequate or

if the instrument is not leak-tight. If an instrument is not leak-tight,

there is a risk of a gas embolism.

1. Position the instrument.

2. Press the footswitch. The Freeze mode icon is shown on the dis-

play.

3. Carry out the required application.

4. Note the timer setting with the optical and acoustic signals in each

case.

Release the footswitch.

!

1Opening the gas bottle

2Switch on the device

3Connecting the instrument

4Checking the reusability of the instrument

5Checking the function and seal of the instrument

6Freezing

7Thawing

VWHULOHZDWHURU

1D&OVROXWLRQ

DSSUR[Ɠ&

All manuals and user guides at all-guides.com

all-guides.com

© Erbe Elektromedizin GmbH Contacts worldwide: see erbe-med.com Hotline Germany: +49 7071 755 123

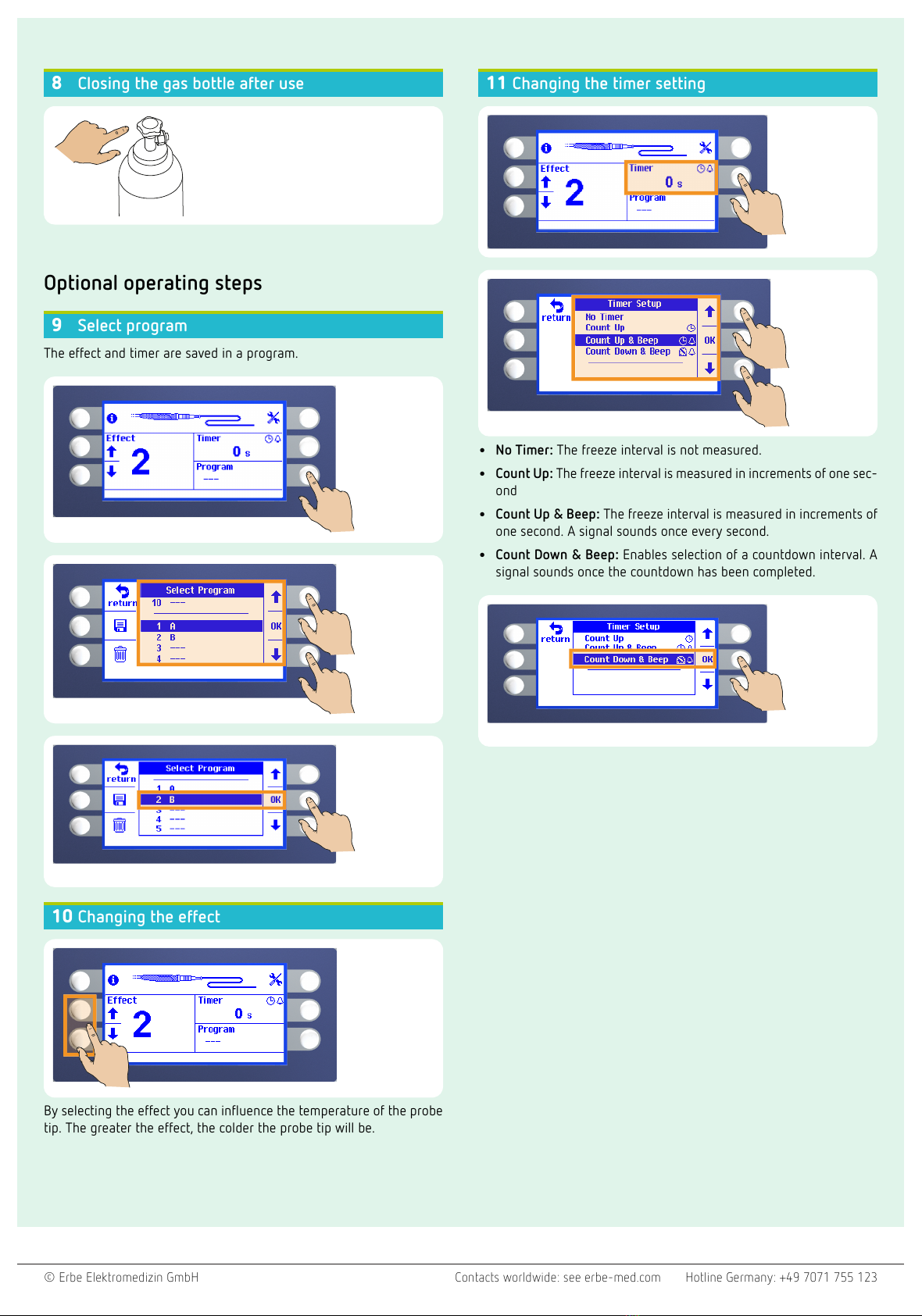

Optional operating steps

The effect and timer are saved in a program.

By selecting the effect you can influence the temperature of the probe

tip. The greater the effect, the colder the probe tip will be.

•No Timer: The freeze interval is not measured.

•Count Up: The freeze interval is measured in increments of one sec-

ond

•Count Up & Beep: The freeze interval is measured in increments of

one second. A signal sounds once every second.

•Count Down & Beep: Enables selection of a countdown interval. A

signal sounds once the countdown has been completed.

8Closing the gas bottle after use

9Select program

10 Changing the effect

11 Changing the timer setting
