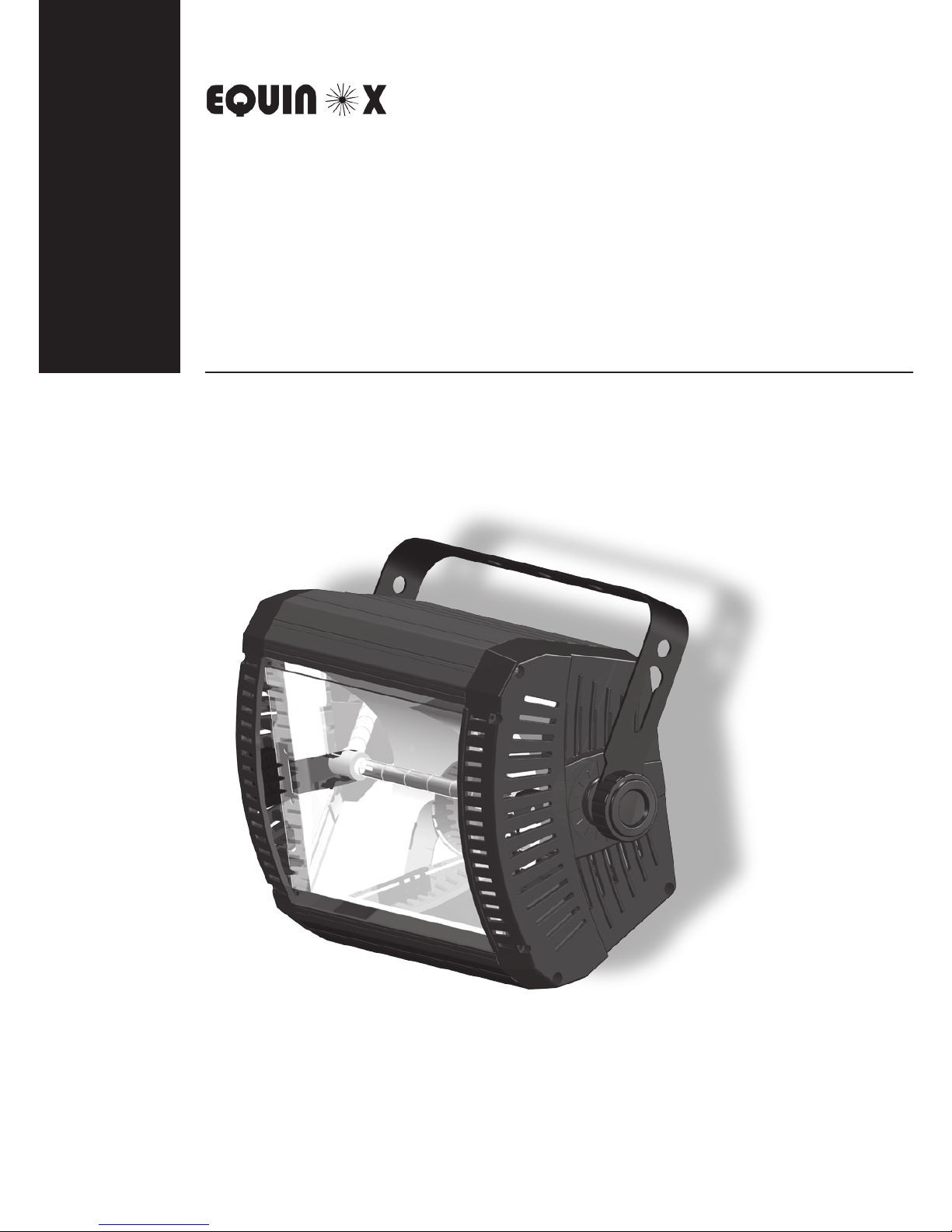

Equinox Systems SF-300 User manual
RAYS STROBES
(SF-300/SF-300D)
User manual
Version 1.0
ENGLISH
Warning 1
Important 2
Rock Strobe (SF-300/300D) 3
Features 3
Inspection 4
Setting Up 4
Remote Control Operation SF-300 5
DMX Control Operation SF-300D 6
Troubleshooting 7
Lamp Replacement 9
Figure 1 SF-300 Functions 11
Figure 2 SF-300D Functions 12
Appendix–1 DMX Dip Switch Value Guide 13
Hanging-Bracket Installation (SF-300/300D) 14
Product Specifications 14
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
Read the manual
Indoor use only
This symbol indicating separate collection for electrical and
electronic equipment
CONTENTS
1
Warning!
This product involves electric voltage,
chemicals, glass, etc. Observe safety
precautions.
• Disconnect mains power supply before
removing glass plate or servicing.
• Let unit cool before handling. Keep away from
liquids and flammables.
• Do not mount on flammable surface. Keep
distance of 30 cm to illuminated surface.
• Keep distance of one meter between this
product and other electrical products.
• Do not look directly at lamp flash. Avoid direct
skin exposure.
• Strobe tubes contain poisonous chemicals.
Discard used strobe tubes appropriately. Keep
out of reach of children and animals.
• This appliance must be earthed (grounded).
Secure front cover before connecting to mains
power supply.
• Keep air vents clear to avoid overheating.
Product contains no user serviceable parts.
Refer servicing to qualified technicians only.
2
Important

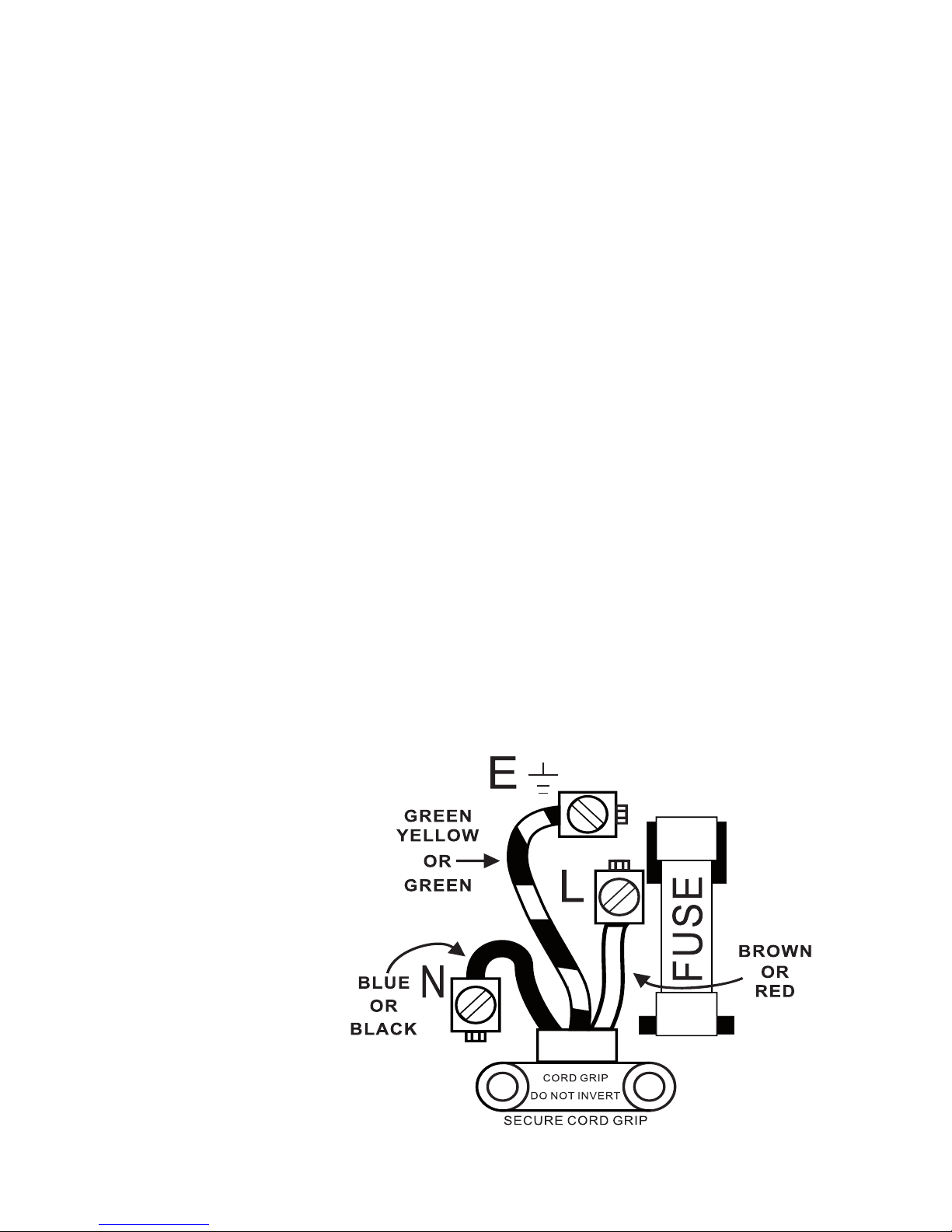

This apparatus is fitted with a BS 1363 13Amp
plug, fitted with a BS 1362 5A fuse. Replace the
fuse with same rating.
The wires in the mains lead are colored in
accordance with the following code:
BLUE----“NEUTRAL” (N)
BROWN----“LIVE” (L)
GREEN----“EARTHED” (E)
1. The blue wire must be connected to the
terminal, which is marked with the letter “N”
or colored BLACK.
2. The brown wire must be connected to the
terminal, which is marked with the letter “L”
or colored RED.
3. The green wire must be connected to the
terminal, which is marked with the letter “E”
or colored GREEN.
3
Rays Strobe (SF-300/SF-300D)
Rays Strobe is an indispensable standard accessory for medium and
large ballrooms. With I-type xenon lamp, Rays Strobe can emit a 300
watt powerful flashes by a flashing rate of 1-18 times per second.
Synchronous control can be achieved with input of analog signal. The
unprecedented design of elegant streamline profile greatly attracts
the public. Freewheeling adjustment function of flashing rate and
powerfully rapid flashes excites the atmosphere. Rays Strobe can
be of analogical control or of DMX signal control. For SF-300, it can
be used either with the one-channel strobe controller (SF-01CX)
or with the four-channel strobe controller (SF-34CX) to control the
flashing rate. For SF-300D, it can be used with different kinds of
DMX controllers for programming, or be used with DS-1 simple digital
controller to provide simple operation mode that saves a lot of time.
Features
SF-300
• Manual or remote (analog) control Speed.
• Attractive, heat dissipating case.
• Precision engineering, components.
• Long-life strobe tube.
SF-300D
• DMX512 control Speed.
• Manual control Speed.
• Thermal safety switch.
• Attractive, heat dissipating case.
• Precision engineering, components.
• Long-life strobe tube.
4
Inspection
Every Rays Strobe (SF-300/300D) is thoroughly tested at the
factory and shipped in perfect condition. Please notify your dealer
immediately if damage occurred during shipping.
Setting Up
Rays Strobe (SF-300/300D) is shipped complete, ready to use. The
bracket is installed before shipping, the unit can be hung in any
position. Simply use a 20kg rated or stronger C clamp to attach the
bracket to firm trussing. Allow enough space on all sides for proper
cooling.
Manual Control Operation
SF-300
1. Plug strobe power cord into appropriate mains power supply.
2. Turn the flash speed knob (See figure 1) on unit back to adjust the
flash speed.
SF-300D (All Dip 1-9 “OFF”)
1. Plug strobe power cord into appropriate mains power supply.
2. Turn the flash speed knob (See figure 2) on unit back to adjust the
flash speed.
5
Remote Control Operation SF-300
For best result, use SF-01CX or SF-34CX controllers. Abide by
controller user manual specifications regarding the number of
strobes that can be linked to one controller.
1. Plug one end of a mono (not stereo) microphone signal cable with
standard 1/4-inch mono microphone jacks (4 of figure 1) into the
signal input connector on back of unit. Plug the other end of the
cable into the signal output socket on the controller.
2. If desired, connect another strobe: Plug one end of another signal
cable in to the signal output socket (4 of figure 1) on the back of
the first strobe; plug the other end of the signal cable to the signal
input socket on the back of the second strobe. Follow the same
procedure to link more strobes, if desired.
3. Set all strobe manual control knobs to the OFF (no flash) position.
4. Refer to your strobe controller user manual for operating.
6
DMX Control Operation SF-300D
(Any of DMX Dip 1-9 “ON”)
Use DMX Dip switches 1-9 to set the unit to the desired
DMX512 address. Refer to the DMX chart in Appendix-1.
1. Connect the DMX 512 controller cable to the input socket (6
of figure 2) of the strobe unit. Make sure the signal cable polarity
is correct. Connect power lines. Your SF-300D is now ready for
operation with your DMX controller.
2. To use single trigger: go to “STOP” first, then to “TRIGGER”, one
flash results. Do the same process repeatedly for repeated single
flash.
7
Troubleshooting
Rays Strobes (SF-300/300D) are designed for years of trouble-
free use. However, incorrect voltage, power surges, or other
mishaps cause equipment failure. If such problems do occur,
always refer servicing to qualified technicians.
SF-300
- Problem: The strobe doesn't flash on manual control.
Solution:
• Check power connections. Plug the mains power cord into proper
power supply socket.
• Check fuse, replace fuse only with the same type and size. Retry
strobe flash under manual control.
• Lamp may be broken, replace the lamp. If not, electronic
component (triac or trigger coil) may need replacing. Refer servicing
to a qualified technician.
-Problem: The strobe doesn't flash on remote control.
Solution:
• Disconnect remote control cable. Test strobe under manual control.
Follow instruction above.
• If strobe flashes in manual control but not under remote control,
replace the signal cable. Use a cable that has worked properly with
other strobes.
If strobe still doesn't flash under remote control, check to see
if other strobes operate properly with this controller. Refer
servicing of strobe and controller to a qualified technician.
8
SF-300D
-Problem: Strobe does not flash when it should.
Solution:
• Check DMX signal. Is the DMX dip switch setting correct?
• Get a working DMX strobe and signal cable. Link properly to
controller. Test. If this strobe flashes properly, the first strobe is
malfunctioning.
• Check fuse, replace fuse only with the same type and size. Retry
strobe flash under manual control.
