Epson U675 - TM Color Dot-matrix Printer User manual

TMTM--U675U675--011011

Troubleshooting Guide.Troubleshooting Guide.

Please use the following flowcharts to help you to diagnose what is wrong

with your printer.

When the flowcharts call for a product to be returned to PC-PoS, please

contact PC-PoS before the unit is sent back.

Some of the following flowcharts discuss changing the Dip switch settings

so that they are appropriate for the intended application. If you are not fully

conversant with doing this then either contact your local dealer or contact

the PC-PoS technical support department nearest to you.

These flowcharts are intended as a basic fault-finding guide only and we do

not encourage any repair to the internal mechanisms or electronic

components by non-PC-PoS technical staff as this will render the warranty

invalid. If you have any questions regarding this matter then please contact

PC-PoS.

The Basic Guide.

Start

Is the POWER

LED lit?

Power On

Go to

part 1.

Is the

PAPER OUT

LED lit?

Yes

Is the ERROR

LED lit?

Yes

Go to part

Yes

Is the ERROR

LED flashing?

Go to part 4. (See

also at the end of

this guide)

Yes

Execute the self-test

(See part 4for details on how to do this).

Is the self-test

normal?

Is the printout

normal?

Terminal sends print data

Go to

part 7.

END

Yes

Is the paper roll

not loaded or

near roll end?

Load roll paper.

OK?

END

Yes

Go to

part 6.

Go to part 2.

Is Paper Loading

Correctly?

Go to part

Yes

Is the SLIP LED

lit or Flashing?

Go to part

Yes

Part 1.

Power LED does not light.

Start

Is the power supply

cable connected

properly?

Connect power supply cable properly. To

make certain this is done, remove the

connector completely and re-insert.

OK?

Is the Power supply

OK? I.E has it been

tested on another

device?

Connect supply to another known

working printer and test it.

PSU

OK?

Check Fuse in mains plug and check for damage to

cable or connector. Re-test the Power Supply on

another unit before proceeding. If you had to

change the fuse and start the main flow-chart again.

PSU

OK?

Return unit to PC-PoS.

Beyond Local Repair.

END

Yes

Part 2.

Paper Out LED is lit.

Yes

Start

Turn the printer off for 30

seconds and then turn back

on again.

OK?

END

Yes

Is the cover

closed correctly?

Close the cover correctly. The best way to do

this is to open the cover and then closing it

again fully making certain to feed the paper

properly.

OK?

END

Yes

Return unit to PC-PoS.

Beyond Local Repair.

END

Part 3.

SLIP LED lit or flashing.

Yes

Start

Turn the printer off for 30

seconds and then turn back

on again.

OK?

END

Yes

Is the cover

closed correctly?

Close the cover correctly.

The best way to do this is to open the cover

and then closing it again fully.

OK?

END

Yes

Return unit to PC-PoS.

Beyond Local Repair.

END

Part 4.

Error LED is Lit or Flashing.

Start

Are the connectors to

the printer hooked up

correctly?

Hook up connectors correctly.

The easiest way to do this is to remove

the connectors, while the power is off,

and re-connect them.

OK?

END

Yes

Is the paper type

selected correctly by

DIP switch?

Turn the printer power off and change the DIP switch

settings to the proper setting for the type of paper

being used. (See the end of this document for the

appropriate settings)

OK?

END

Yes

Has the printer

recovered from

the error?

Reset the printer by switching it

off for at least 30 seconds.

Wait for the print head

temperature to drop if excessive.

Return unit to PC-PoS.

Beyond Local Repair.

END

Yes

Part 4.

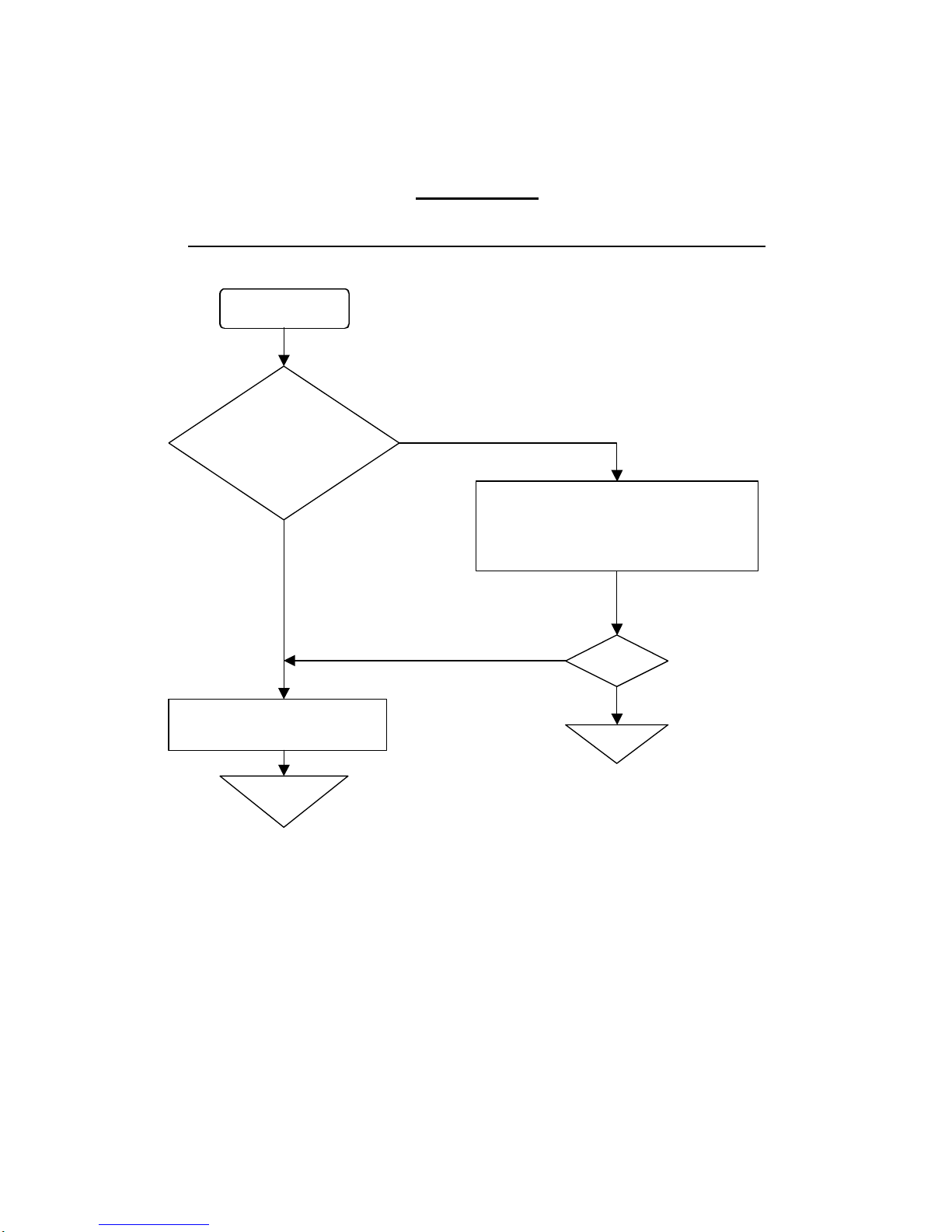

Paper is not Loading Correctly.

Yes

Start

Is paper jammed

in the paper inlet

path or anywhere

in the printer?

Remove the paper jam. The best way to do

this is to take out ALL paper rolls from the

printer and then clean the inside to make

certain that all debris is removed. Re-load

paper when finished and re-test.

OK?

END

Yes

Return unit to PC-PoS.

Beyond Local Repair.

END

Part 6.

Self-test is not normal.

The Self-Test.

To initiate the self-test for the RECEIPT part of the printer, follow these instructions:

1. Make certain there is either a paper roll or a label roll inserted and loaded into the

printer before starting.

2. Turn off the printer using the power button.

3. Turn the printer on while keeping the FEED button depressed. The self-test

should now start and the information printed will give the status of the printer.

4. When the test print is complete, the following will be on the last line of print,

“Self-test printing, Please press FEED button.” The PAPER OUT LED flashes to

indicate the standby condition.

5. Press the FEED button to continue the self-test or switch the printer off and then

back on again to resume normal printing.

To initiate the self-test for the SLIP part of the printer, follow these instructions:

1. Turn off the printer using the power button.

2. Turn the printer on while keeping the RELEASE button depressed. The SLIP

LED should now be flashing. Insert a piece of paper into the slip printing area

then printing will commence and the information printed will give the status of

the printer.

3. When printing is complete, the SLIP LED will be flashing. To continue the self-

test, insert more paper in the slip part of the printer or switch off and back on

again to resume normal printing.

Part 6 cont.

Self-test is not normal.

Start

Does the printer

operate at all?

Is the cover

closed properly?

Close cover properly.

OK?

END

Yes

Return unit to PC-PoS.

Beyond Local Repair.

Printing is carried out, but

print quality is deficient or

paper feeding is not normal.

Is the Ink Ribbon

installed correctly?

Does it

have enough

ink?

OK?

END

Yes

Install print ribbon correctly or

change print ribbon for a new one.

Return unit to PC-PoS.

Beyond Local Repair.

Yes

Part 7A (Serial Version)

Data from host is not printed normally.

Start

Set SW1 of DIP switch bank 1 to OFF.

Send data from host to printer.

Is “?” printed?

Are RS-232 interface

parameters set to

identical values at host

printer? Make settings identical

OK?

END

Yes

Does interface

cable match

specifications?

Replace with a proper

cable

OK?

END

Yes

Is the interface

cable damaged or

broken?

Replace interface

cable.

OK?

END

Yes

Return unit to PC-PoS.

Beyond Local Repair.

Yes
