SERVICE MANUAL

Introduction

This manual details the steps necessary to replace many components on the LX810. It is not intended to

be a comprehensive manual for replacing all parts on the LX810. Instead it is broken down into modules or

assemblies. The manual explains how to replace the entire assembly, not specific parts on each assembly.

The assemblies included in the manual are the ones most likely to be damaged or need replacement after

extensive use.

You will need only a few tools to complete these repairs. A T10 Torx screwdriver, a Phillips #1 screwdriver

and a straight screwdriver are required. Long shank screwdrivers work best. For ease of use, the

screwdrivers should be magnetized.

Section Page

1. Removing the Top Cover ……………………………………………………………………………………… 2

2. Replacing the Printer Module ……………………………………………………………………………….... 4

3. Removing the Front Cover……………………………………………………………………………………...12

4. Replacing the Label Clamp Assembly…………………………………………………………………………14

5. Replacing the Ink Pads………………………………………………………………………………………….18

A. Replacing the Center Air Filter………………………………………………………………………...18

B. Replacing the left and right side Ink Pads……………………………………………………………19

6. Replacing the Feed Motor………………………………………………………………………………………21

7. Replacing the Main Board………………………………………………………………………………………23

8. Replacing the Loop Sensor……………………………………………………………………………………..25

9. Removing a Jam in the Label Sensor……………………………………………………………………….. 26

Appendix A – Parts List………………………………………………………………………………………….. 27

- 2 -

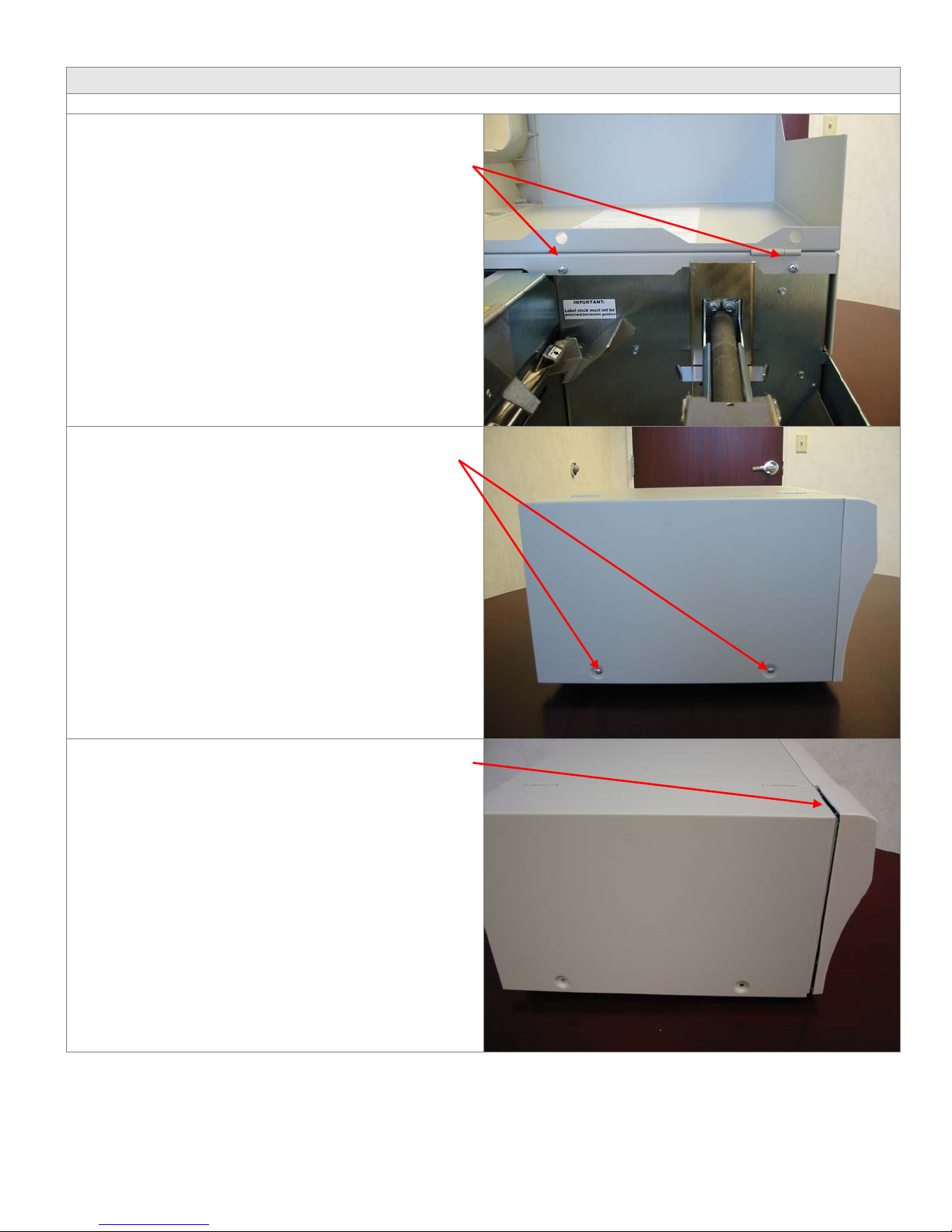

Section 1: Removing the Top Cover

1. Open the Top Cover.

2. Remove two Phillips Head screws as shown.

3. Close the Top Cover.

4. Remove two Phillips Head screws as shown.

5. Pull the Top Cover back until you see a gap as

shown.

- 3 -

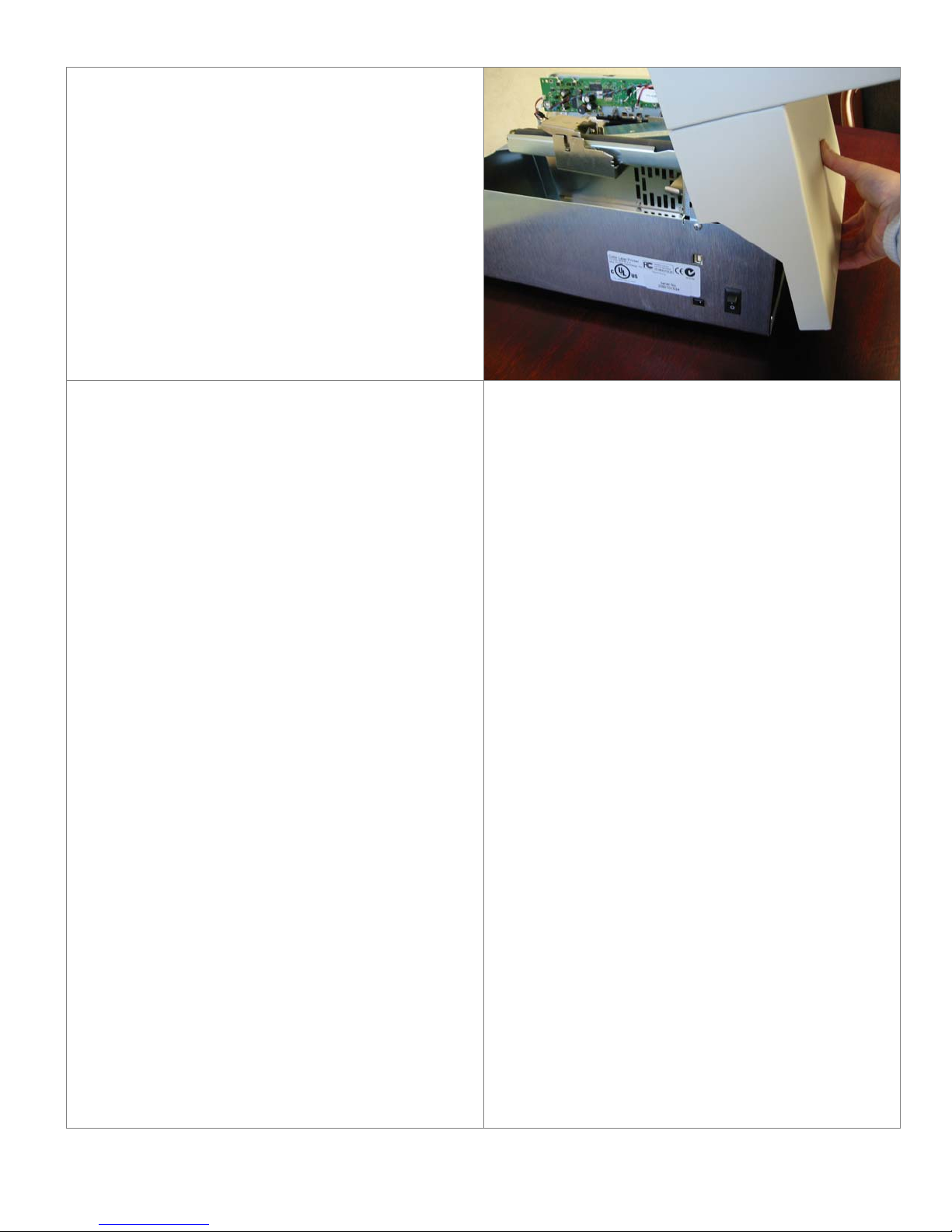

6. Open the Top Cover.

7. Grab the cover by the bottom and tilt it upward.

8. Pull the cover from the base.

- 4 -

Section 2: Replacing the Print Module

•Part Number 660200

1. Remove the Top Cover. Refer to Section 1 for

instructions.

2. Remove two T10 Torx screws as shown.

3. Remove the USB Cable from the Main Board.

4. Remove three Phillips screws as shown.

5. Remove the USB Connection.

6. Remove the metal Board Cover.

(Steps 4-6 are not necessary for units with

Serial Numbers greater than 2050300000. It is

necessary to remove this cover on earlier models

because it allows access to a screw that is not present

on later models)

- 5 -

7. Remove two screws from the Star Wheel Plate

Assembly.

8. Remove the Assembly.

9. Remove three T10 torx screws from Upper

Clamp Plate.

10. Remove Upper Clamp Plate.

11. Remove Exit Shaft.

- 6 -

12. Use a flat screwdriver to gently pry the shaft up

enough to grab it with your finger (Step 12).

13. Grab the shaft with your left hand.

14. Press down on the far right side of the shaft with

your right hand and pull up and to the left in the middle

until the shaft is free from its mounting holes.

15. Unhook the shaft from the belt on the left side.

- 7 -

16. Disconnect the connections J14 (Lex Power) and

J5 (Lex Ctrl) from the main board.

17. Remove J14 and J5 wires from the wire harness.

18. Remove the motor wires from the wire harness.

- 8 -

19. Move the print carriage to the middle of the print

area to access the print module screws.

20. Remove right Print Module mount screw.

21. Loosen this screw.

(This step is not necessary for units with

Serial Numbers greater than 2050300000)

- 9 -

22. Remove two left side mount screws.

23. Slide the module forward slightly and tip

the front portion up in order to remove it from the

printer.

The parts shown to the right were removed and should

be reinstalled in reverse order.

Note: Print Module is shown with metal Board Cover

removed. The new Print Module will have the Board

Cover attached. It will be necessary to remove this

cover in order to install the new module for units with

serial numbers less than 2050300000.

When replacing the print module take note of the

screw and notched pins and the corresponding screw

notch and tabs on both sides of the print module. The

tabs should be placed into the notched pins on

both sides of the Print Module.

Screw.

Right Side Notched Pin.

- 10 -

Screw Notch.

Right Side Tab.

Left Side Notched Pin.

Right Side Tab.
