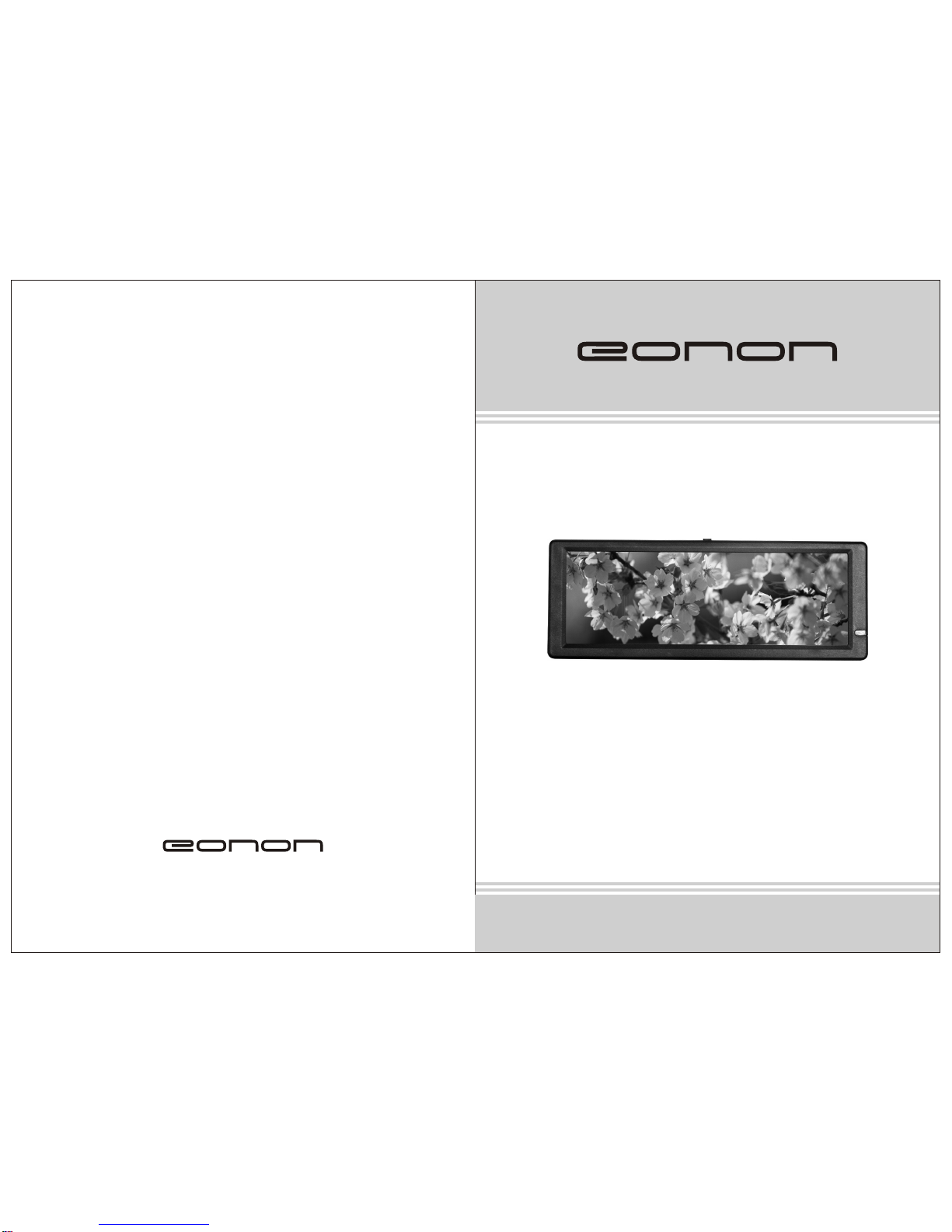

Eonon L0401M User manual
www.eonon.com
Model: L0401001M
Please read this manual before using and
save this manual for future reference.
User manual
12
AV
MENU
P.P
TFT LCD MONITOR
4
5
6
7
1
2
38
10.2" TFT LCD COLOR MONITOR
Monitor
Remote controller
(1) Decrease Button
(2) No Function
(3) Timer switch
(4) Power switch
(5) AV switch
(6) Increase Button
(7) Menu
(8) Display effect selection
Connections
Parameters
Display size: 10.2"
Display format: 25:8
Power supply: DC 12V
Picture resolution: 800(W) RGB 240(H)
Fuse 2A
Red 12V
Black Grounding
Green Reverse control line
Yellow Video 1
Yellow Video 2
Remote control reception window
