EGK-LW20L00 Operating Manual

Important safety information

Read this manual before attempting to install the device! Failure to observe

recommendations included in this manual may be dangerous or cause a violation of the

law. The manufacturer will not be held responsible for any loss or damage resulting from

not following the instructions of this operating manual.

Do not dismantle or modify in any way.

The device is not intended to be used as a reference sensor, and enginko Srl will not be held

liable for any damage which may result from inaccurate readings.

Avoid mechanical stress

Do not use any detergent or alcohol to clean the device.

Disposal information for users

Pursuant to and in accordance with Article 14 of the Directive 2012/19/EU of the

European Parliament on waste electrical and electronic equipment (WEEE), and

pursuant to and in accordance with Article 20 of the Directive 2013/56/EU of the

European Parliament on batteries and accumulators and waste batteries.

The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful

life, the product must be collected separately from other waste.

Please note that the lithium batteries must be removed from the equipment before it is given as

waste and disposed separately. To remove the batteries refer to the speciﬁcations in the user manual.

For additional information and how to carry out disposal, please contact the certiﬁed disposal service

providers.

1. Description

The EGK-LW20L00 is a battery powered sensor intended for level measurement up to 7 meters. The

device sends collected data over the LoRaWAN® network.

Last update: 2022/05/17 11:56 manual_egk-lw20l00 http://www.enginko.com/support/doku.php?id=manual_egk-lw20l00&rev=1652781405

http://www.enginko.com/support/ Printed on 2022/12/08 23:13

2. Overview

2.1 Technical data

CPU ARM Cortex M4

Class A LoRaWAN® 1.0.2 , EU868

OTAA/ABP activation

Level range 350 ÷ 7000mm, resolution 1mm, accuracy TBD

Field of View: ±15°

Non contact level detection up to 7mt

Embedded antenna

Magnetic start-up

Time interval based or thresholds based uplink 1)

Embedded accelerometer for tilt status 2)

Primary battery with no harmful substances, replacement possible

Pole or surface mount

5 years life time with SF12 and max Tx power, 48 Uplinks messages per day

Transmission @ 868 MHZ, 14dBm max.

BLE 5.0 interface for conﬁguration, data reading and FW upgrade

Remote conﬁguration 3)

Storage temperature -30°C ÷ +80°C

Working temperature -30°C ÷ +70°C

Dimensions: 64.5×58.5×44.7mm

Protection grade: IP67

Weight: 95g

2022/12/08 23:13 3/27 manual_egk-lw20l00

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

2.2 Installation

To ensure correct operation and reliable and consistent level measurements, install the EGK-LW20L00

sensor in front of the target whose distance need to be measured. Screws are provided. Mounting

could be vertical or horizontal, depending on the application.

The device measures the distance to the closest target on its ﬁeld of view. It works with diﬀerent

materials, for example water level in rivers or ﬂooded streets, snow height, waste or grains level in

bins or silos.

The measure is performed periodically according to parameter Period [min].

Custom brackets available on request.

2.2.1 Wall mount

For mounting onto wall, use the provided plate:

Last update: 2022/05/17 11:56 manual_egk-lw20l00 http://www.enginko.com/support/doku.php?id=manual_egk-lw20l00&rev=1652781405

http://www.enginko.com/support/ Printed on 2022/12/08 23:13

2.2.2 Pole mount

For installation on poles, pillars or posts use the included bracket and fasteners:

2.2.3 LoRa Tool

To deploy the sensor, download the latest LoRa Tool Android App to setup LoRaWAN® credentials

and other preferences :

2022/12/08 23:13 5/27 manual_egk-lw20l00

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

2.2.4 Connection

Enable the Bluetooth on the smartphobne and open the App:

once the sensors list appears (as BLE MAC address), select the sensor you need to conﬁgure:

and read it:

Last update: 2022/05/17 11:56 manual_egk-lw20l00 http://www.enginko.com/support/doku.php?id=manual_egk-lw20l00&rev=1652781405

http://www.enginko.com/support/ Printed on 2022/12/08 23:13

2.3 Power ON/OFF

The sensor is shipped completely oﬀ to prevent battery consumption during storage. It is therefore

necessary to carry out a ﬁrst power-on prior to commissioning.

To power on the sensor: lay the magnet at the bottom of the provided tool into the area shown in the

ﬁgure:

2022/12/08 23:13 7/27 manual_egk-lw20l00

e n g i n k o . s u p p o r t . c e n t e r - http://www.enginko.com/support/

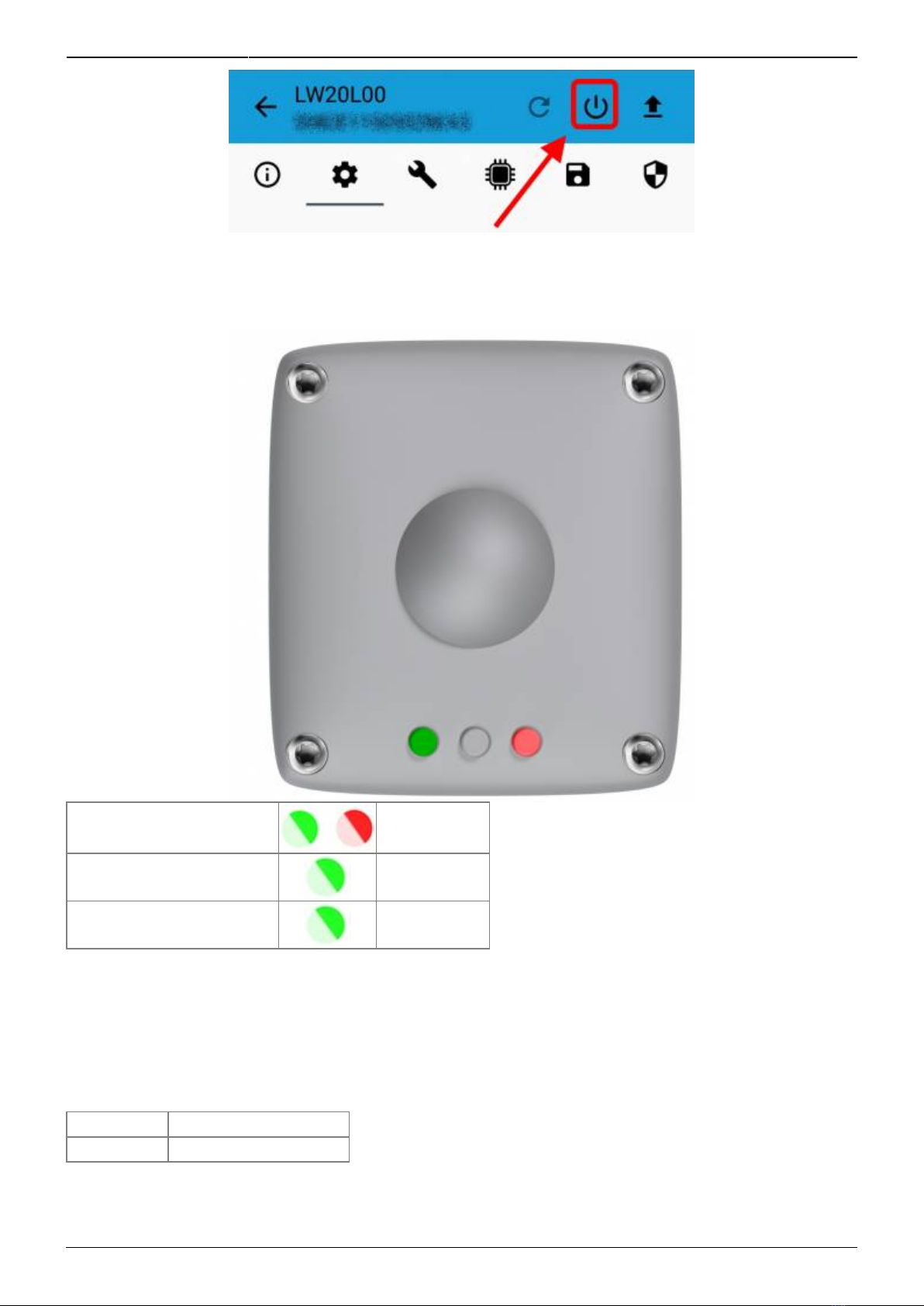

Successful power on is signaled by the ﬂashing of the 3 LEDs.

In case of long period of inactivity, if necessary, is possible to shut-oﬀ again the sensor to prevent

battery consumption, via downlink or with LoRa Tool App:

Last update: 2022/05/17 11:56 manual_egk-lw20l00 http://www.enginko.com/support/doku.php?id=manual_egk-lw20l00&rev=1652781405

http://www.enginko.com/support/ Printed on 2022/12/08 23:13

2.4 System leds

LoRaWAN® not conﬁgured Slow ﬂashing

Joining Quick ﬂashing

Sending Quick ﬂashing

2.5 Battery

This sensor contains lithium battery, which must be disposed of separately.

EGK-LW20L00 is provided with a battery pack:

Code Description

EGK-1S2PCR 4800mAh battery pack

This is the estimated battery life (in years) in the worst conditions:
