EnerSys ODYSSEY EXTREME PC310 User manual

Technical Manual

EIGHTH EDITION

Publication No: EN-ODY-TM-0002 - February 2015

www.odysseybattery.com

Publication No: EN-ODY-TM-0002 - February 2015

www.odysseybattery.com

ODYSSEY®Battery Technical Manual – Eighth Edition

TABLE OF CONTENTS

Introduction 3

Why use ODYSSEY®batteries? 3

Extended discharge characteristics 4

Performance data tables 4

Cycle Life and Depth of Discharge (DOD) 11

Float Life 11

ODYSSEY®battery storage and deep discharge recovery 11

(A) How do I know the state of charge (SOC) of the battery? 11

(B) How long can the battery be stored? 12

(1) German DIN standard test for overdischarge recovery 12

(2) High temperature discharged storage test 12

Parasitic loads 13

Shock, impact and vibration testing 13

(A) Caterpillar™ 100-hour vibration test 13

(B) Shock and vibration test per IEC 61373, Sections 8-10 13

Charging ODYSSEY®batteries 13

(A) Selecting the right charger for your battery 14

(B) Selecting battery type on your charger 15

Rapid charging of ODYSSEY®batteries 15

Load test procedure 16

ODYSSEY®batteries in no-idle applications 16

Parallel connections 17

Ventilation 17

Concluding remarks 17

Frequently asked SLI battery questions 18

Preface to the Eighth Edition

As with previous manuals, this latest

edition of the ODYSSEY®Battery

technical manual includes detailed

performance data for the complete

line of ODYSSEY®batteries. Updated

test data will help ensure selection

of the correct battery for every

application.

In addition, this manual includes

an expanded section on charging

requirements for ODYSSEY batteries.

This includes detailed information

about the three-step charge proﬁle

that will restore a fully discharged

battery to optimum power in about

6 to 8 hours.

You may notice that we’ve updated

the look of ODYSSEY batteries

to differentiate this premium line

in the marketplace. You’ll be

pleased to know that beneath

the surface is the same industry-

leading technology, including Thin

Plate Pure Lead (TPPL) construction,

that has made ODYSSEY batteries

the choice of knowledgeable

automotive technicians and

consumers nationwide.

www.odysseybattery.com 3

Publication No: EN-ODY-TM-0002 - February 2015

INTRODUCTION

The ODYSSEY

battery ingeniously uses Absorbed Glass Mat (AGM) Valve Regulated Lead Acid (VRLA) technology to offer,

in one package, the characteristics of two separate batteries. It can deep cycle as well as deliver serious cranking power.

Traditional battery designs allow them to either deep cycle or provide high amperage discharges for applications such as engine

starting. The ODYSSEY battery can support applications in either category. ODYSSEY batteries are capable of providing engine

cranking pulses of up to 2,250A (PC2250) for 5 seconds at 25ºC as well as deliver 400 charge/discharge cycles to 80% depth of

discharge (DOD) when properly charged. A typical starting, lighting and ignition (SLI) battery, for example, is designed to provide

short-duration, high-amperage pulses; it performs poorly when repeatedly taken down to deep depths of discharge or if they are

placed on a continuous trickle charge, such as when they are used to crank a backup generator. A traditional battery resembles

either a sprinter or a long distance runner; an ODYSSEY battery will do both – provide short duration high amperage pulses or low

rate, long duration drains.

WHY USE ODYSSEY®BATTERIES?

Guaranteed longer service life

With an 8- to 12-year design life in ﬂoat (emergency power) applications at 25ºC and a 3- to 10-year service life depending on the

nature of the non-ﬂoat applications, ODYSSEY batteries save you time and money because you do not have to replace them as

often. Unlike other AGM VRLA batteries, the ODYSSEY battery is capable of delivering up to 400 cycles when

discharged to 80% DOD and properly charged.

Longer storage life

Unlike conventional batteries that need a recharge every 6 to 12 weeks, a fully charged ODYSSEY battery can be stored

for up to 2 years at 25ºC from a full state of charge. At lower temperatures, storage times will be even longer.

Deep discharge recovery

The ease with which an ODYSSEY battery can recover from a deep discharge is extraordinary. A later section on storage and

recharge criteria discusses test data on this important topic.

Superior cranking and fast charge capability

The cranking power of ODYSSEY batteries is superior to that of equally sized conventional batteries, even when the temperature is

as low as -40ºC. In addition, with simple constant voltage charging there is no need to limit the inrush current, allowing the battery

to be rapidly charged. Please see the section titled Rapid charging of ODYSSEY batteries for more details on this feature.

Easy shipping

The AGM valve-regulated design of the ODYSSEY battery eliminates the need for vent tubes; further, no battery watering is

required and there is no fear of acid burns or damage to expensive chrome or paint. Because of the starved electrolyte design,

the ODYSSEY battery has been proven to meet the US Department of Transportation (USDOT) criteria for a non-spillable battery.

They can be shipped by road, air or sea.

Tough construction

The rugged construction of the ODYSSEY battery makes it suitable for use in a variety of environments ranging from marine to

trucks and powersports applications.

Mounting ﬂexibility

Installing the ODYSSEY battery in any orientation other than inverted does not affect any performance attribute. There is also no

fear of acid spillage.

Superior vibration resistance

ODYSSEY batteries have passed a variety of rigorous tests that demonstrate their ruggedness and exceptional tolerance of

mechanical abuse. Please see the section titled Shock, Impact and Vibration testing for more details on these tests.

Ready out of the box

ODYSSEY batteries ship from the factory fully charged. If the battery’s open circuit voltage is higher than 12.65V, simply install it

in your vehicle and you are ready to go; if below 12.65V boost charge the battery following the instructions in this manual or the

owner’s manual. For optimum reliability, a boost charge prior to installation is recommended, regardless of the battery’s open

circuit voltage (OCV).

Publication No: EN-ODY-TM-0002 - February 2015

www.odysseybattery.com

PC310 performance data at 25°C, per 12V module

Watts

1000

100

0.1

0.01 0.1 1 10 100

Hours to 10.02V @ 25ºC

Watts or amps per 12V unit

Amps

2 min 738 80.8 2.7 24.6 613.2 20.4 273.3 9.1

5 min 473 43.2 3.6 39.4 393.3 32.8 175.3 14.6

10 min 312 26.0 4.4 53.1 259.4 44.1 115.6 19.7

15 min 236 19.0 4.8 59.0 196.0 49.0 87.4 21.8

20 min 191 15.0 5.0 62.9 158.4 52.3 70.6 23.3

30 min 139 10.8 5.4 69.3 115.1 57.6 51.3 25.7

45 min 98 7.6 5.7 73.9 81.8 61.4 36.5 27.4

1 hr 76 6.0 6.0 76.4 63.5 63.5 28.3 28.3

2 hr 41 3.2 6.5 81.0 33.7 67.3 15.0 30.0

3 hr 28 2.3 6.8 82.8 22.9 68.8 10.2 30.7

4 hr 21 1.8 7.0 83.7 17.4 69.6 7.8 31.0

5 hr 17 1.4 7.2 84.5 14.0 70.2 6.3 31.3

8 hr 11 0.9 7.6 86.1 8.9 71.5 4.0 31.9

10 hr 9 0.8 7.8 86.8 7.2 72.1 3.2 32.2

20 hr 5 0.4 8.6 90.5 3.8 75.2 1.7 33.5

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

PC370 performance data at 25°C, per 12V module

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

1000

100

0.01 0.1 1 10 100

Watts Amps

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 1320 127.1 4.2 44.0 612.2 20.4 231.6 7.7

5 min 768 70.7 5.9 64.0 356.2 29.7 134.7 11.2

10 min 485 43.6 7.3 80.9 225.1 37.5 85.2 14.2

15 min 365 32.4 8.1 91.4 169.5 42.4 64.1 16.0

20 min 297 26.1 8.7 99.0 137.8 45.9 52.1 17.4

30 min 220 19.1 9.6 109.8 101.9 50.9 38.5 19.3

45 min 161 13.8 10.4 120.6 74.6 55.9 28.2 21.2

1 hr 128 10.9 10.9 127.8 59.3 59.3 22.4 22.4

2 hr 73 6.1 12.2 145.2 33.7 67.3 12.7 25.5

3 hr 51 4.3 12.9 153.7 23.8 71.3 9.0 27.0

4 hr 40 3.3 13.3 159.6 18.5 74.0 7.0 28.0

5 hr 33 2.7 13.7 163.8 15.2 76.0 5.7 28.7

8 hr 21 1.8 14.4 171.8 10.0 79.7 3.8 30.1

10 hr 18 1.5 14.5 175.2 8.1 81.3 3.1 30.7

20 hr 9 0.8 15.2 183.6 4.3 85.2 1.6 32.2

EXTENDED DISCHARGE CHARACTERISTICS

In addition to its excellent pulse discharge capabilities, the ODYSSEY®battery can deliver many deep discharge cycles,

yet another area where the ODYSSEY battery outperforms a conventional SLI battery, which can deliver only a few deep

discharge cycles.

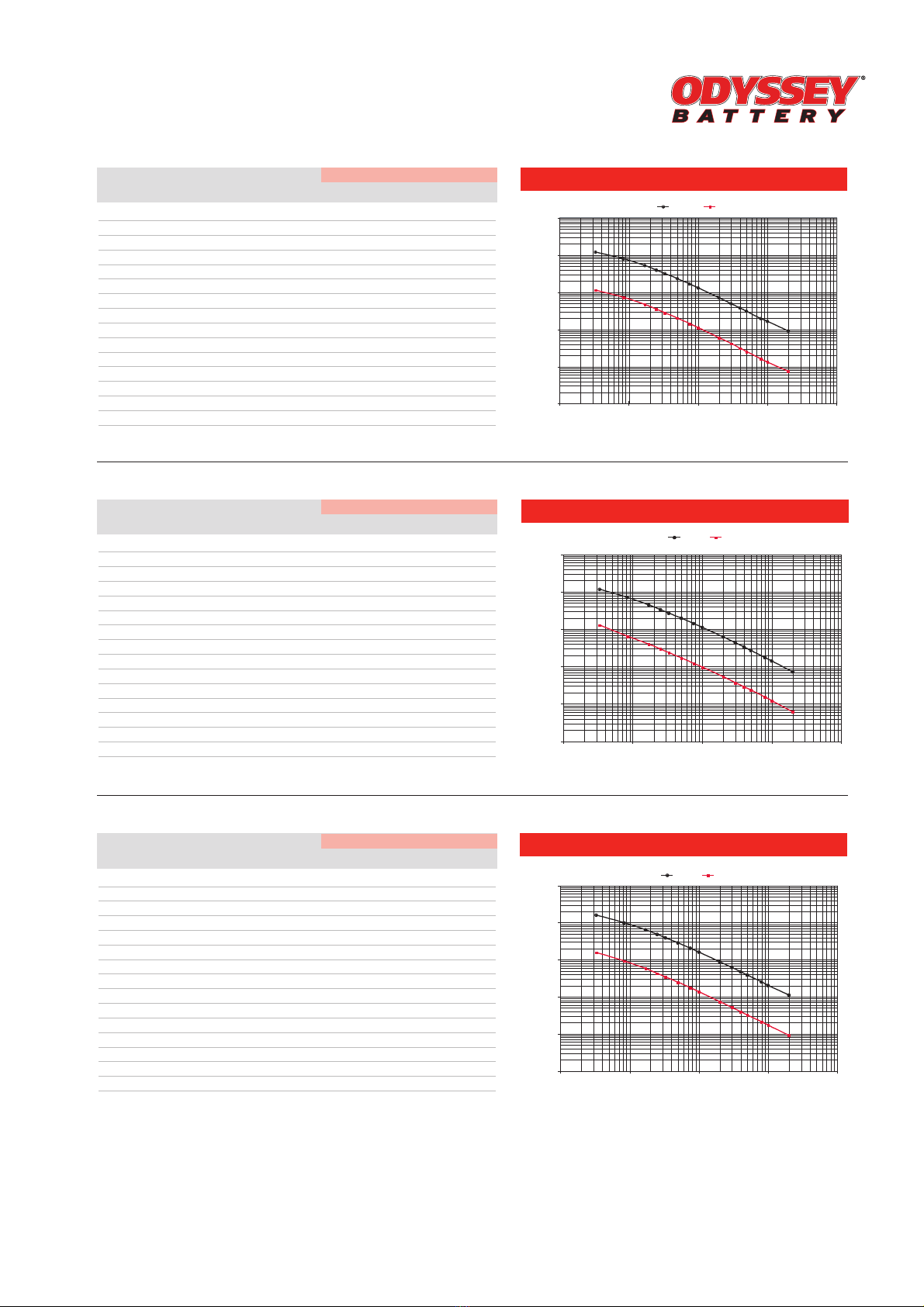

The following twenty graphs show detailed discharge characteristics of the entire ODYSSEY battery line. The end of discharge

voltage in each case is 10.02V per battery or 1.67 volts per cell (VPC). Each graph shows both constant current (CC) and

constant power (CP) discharge curves at 25ºC. The table next to each graph shows the corresponding energy and power

densities. The battery run times extend from 2 minutes to 20 hours.

www.odysseybattery.com 5

Publication No: EN-ODY-TM-0002 - February 2015

Watts or amps per 12V unit

10000

1000

100

0.1

0.01 0.1 1 10 100

Hours to 10.02V @ 25ºC

Watts Amps

PC545 performance data at

25°C

, per 12V module

2 min 1361 128.1 4.3 45.3 680.8 22.7 238.7 8.0

5 min 648 64.4 5.4 54.0 324.2 27.0 113.7 9.5

10 min 415 39.6 6.7 70.6 207.8 35.3 72.8 12.4

15 min 313 29.2 7.3 78.2 156.4 39.1 54.8 13.7

20 min 254 23.5 7.8 83.8 127.0 41.9 44.5 14.7

30 min 187 16.9 8.5 93.3 93.4 46.7 32.7 16.4

45 min 136 12.2 9.2 101.7 67.9 50.9 23.8 17.8

1 hr 107 9.6 9.6 107.4 53.7 53.7 18.8 18.8

2 hr 60 5.3 10.6 120.0 30.0 60.0 10.5 21.1

3 hr 42 3.7 11.1 126.0 21.0 63.1 7.4 22.1

4 hr 32 2.9 11.6 129.6 16.2 64.9 5.7 22.7

5 hr 26 2.3 11.5 132.0 13.2 66.1 4.6 23.2

8 hr 17 1.5 12.0 134.4 8.4 67.3 3.0 23.6

10 hr 14 1.2 12.0 138.0 6.9 69.1 2.4 24.2

20 hr 7 0.7 14.0 144.0 3.6 72.1 1.3 25.3

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

PC535 performance data at

25°C

per 12V module

Watts or amps per 12V unit

10000

1000

100

0.1

Watts Amps

Hours to 10.02V @ 25ºC

0.01 0.1 1 10 100

2 min 1182 112.0 3.40 35.5 450.7 13.5 218.9 6.6

5 min 786 71.9 5.75 62.9 299.7 24.0 145.6 11.6

10 min 517 46.3 7.90 87.9 197.2 33.5 98.8 16.3

15 min 391 34.5 8.60 97.7 148.9 37.2 72.3 18.1

20 min 316 27.7 9.10 104.4 120.6 39.8 58.6 19.3

30 min 230 20.0 10.0 115.2 87.9 43.9 42.7 21.3

45 min 165 14.2 10.7 123.8 62.9 47.2 30.6 22.9

1 hr 129 11.0 11.0 129.0 49.2 49.2 23.9 23.9

2 hr 70 5.9 11.8 140.4 26.8 53.5 13.0 26.0

3 hr 49 4.1 12.3 145.4 18.5 55.5 9.0 26.9

4 hr 37 3.1 12.4 149.3 14.2 56.9 6.9 27.6

5 hr 31 2.5 12.5 152.4 11.6 58.1 5.6 28.2

8 hr 19 1.7 13.6 159.4 7.6 60.8 3.7 29.5

10 hr 16 1.3 13.0 163.2 6.2 62.2 3.0 30.2

20 hr 9 0.74 14.8 178.8 3.4 68.2 1.7 33.1

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

10000

1000

100

0.1

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

Watts Amps

0.01 0.1 1 10 100

PC625 performance data at

25°C

, per 12V module

2 min 1582 154.7 5.2 52.7 536.1 17.9 255.1 8.5

5 min 986 91.6 7.6 82.2 334.4 27.9 159.1 13.3

10 min 635 57.1 9.5 105.9 215.4 35.9 102.5 17.1

15 min 478 42.3 10.6 119.4 161.9 40.5 77.0 19.3

20 min 385 33.8 11.3 128.4 130.6 43.5 62.1 20.7

30 min 281 24.4 12.2 140.7 95.4 47.7 45.4 22.7

45 min 202 17.4 13.1 151.7 68.5 51.4 32.6 24.5

1 hr 159 13.6 13.6 159.0 53.9 53.9 25.7 25.7

2 hr 87 7.3 14.6 174.0 29.5 59.0 14.0 28.1

3 hr 61 5.1 15.3 181.8 20.5 61.6 9.8 29.3

4 hr 47 3.9 15.6 187.2 15.9 63.5 7.6 30.2

5 hr 38 3.2 16.0 192.0 13.0 65.1 6.2 31.0

8 hr 25 2.1 16.8 201.6 8.5 68.3 4.1 32.5

10 hr 20 1.7 17.0 204.0 6.9 69.2 3.3 32.9

20 hr 11 0.9 18.0 216.0 3.7 73.2 1.7 34.8

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

Publication No: EN-ODY-TM-0002 - February 2015

www.odysseybattery.com

PC925 performance data at

25°C

, per 12V module

Watts or amps per 12V unit

10000

1000

100

Watts Amps

0.01 0.1 1 10 100

Hours to 10.02V @ 25ºC

2 min 2381 224.8 7.5 79.3 615.8 20.5 201.8 6.7

5 min 1446 142.8 11.9 120.5 374.0 31.2 122.5 10.2

10 min 954 90.6 15.4 162.2 246.8 42.0 80.9 13.7

15 min 726 67.4 16.9 181.5 187.8 46.9 61.5 15.4

20 min 592 54.2 17.9 195.2 153.0 50.5 50.1 16.5

30 min 436 39.2 19.6 217.8 112.7 56.3 36.9 18.5

45 min 316 28.1 21.1 236.7 81.6 61.2 26.8 20.1

1 hr 250 21.9 21.9 249.6 64.6 64.6 21.2 21.2

2 hr 138 11.9 23.8 276.0 35.7 71.4 11.7 23.4

3 hr 96 8.3 24.9 288.0 24.8 74.5 8.1 24.4

4 hr 74 6.4 25.6 297.6 19.2 77.0 6.3 25.2

5 hr 61 5.2 26.0 303.0 15.7 78.4 5.1 25.7

8 hr 40 3.4 27.2 316.8 10.2 81.9 3.4 26.9

10 hr 32 2.8 27.5 324.0 8.4 83.8 2.8 27.5

20 hr 17 1.5 30.0 348.0 4.5 90.0 1.5 29.5

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

PC680 performance data at

25°C

, per 12V module

Watts or amps per 12V unit

10000

1000

100

0.1

Watts Amps

Hours to 10.02V @ 25ºC

0.01 0.1 1 10 100

2 min 1486 143.0 4.8 49.5 601.4 20.0 212.3 7.1

5 min 792 78.8 6.6 66.0 320.5 26.7 113.1 9.4

10 min 512 49.3 8.4 87.1 207.3 35.3 73.2 12.4

15 min 389 36.7 9.2 97.4 157.6 39.4 55.6 13.9

20 min 318 29.6 9.8 104.9 128.7 42.5 45.4 15.0

30 min 236 21.6 10.8 118.2 95.7 47.8 33.8 16.9

45 min 173 15.6 11.7 130.1 70.2 52.6 24.8 18.6

1 hr 138 12.3 12.3 138.0 55.8 55.8 19.7 19.7

2 hr 79 6.9 13.8 157.2 31.8 63.6 11.2 22.5

3 hr 56 4.8 14.4 166.5 22.5 67.4 7.9 23.8

4 hr 43 3.7 14.8 172.8 17.5 69.9 6.2 24.7

5 hr 35 3.0 15.0 177.0 14.3 71.6 5.1 25.3

8 hr 23 2.0 16.0 187.2 9.5 75.8 3.3 26.7

10 hr 19 1.6 16.0 192.0 7.8 77.7 2.7 27.4

20 hr 10 0.8 16.0 204.0 4.1 82.6 1.5 29.1

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

100

1000

10000

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

0.01 0.1 1 10 100

Watts Amps

PC950 performance data at

25°C

, per 12V module

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 2794 268.3 8.9 93.1 755.0 25.2 310.4 10.3

5 min 1745 161.3 13.4 145.4 471.6 39.3 193.9 16.2

10 min 1126 101.4 16.9 187.7 304.4 50.7 125.1 20.9

15 min 848 75.3 18.8 212.0 229.1 57.3 94.2 23.6

20 min 686 60.3 20.1 228.6 185.4 61.8 76.2 25.4

30 min 502 43.6 21.8 250.8 135.6 67.8 55.7 27.9

45 min 362 31.1 23.3 271.4 97.8 73.3 40.2 30.2

1 hr 284 24.3 24.3 284.4 76.9 76.9 31.6 31.6

2 hr 157 13.2 26.4 313.2 42.3 84.6 17.4 34.8

3 hr 110 9.2 27.6 329.4 29.7 89.0 12.2 36.6

4 hr 85 7.1 28.4 338.4 22.9 91.5 9.4 37.6

5 hr 70 5.8 29.0 348.0 18.8 94.1 7.7 38.7

8 hr 46 3.8 30.4 364.8 12.3 98.6 5.1 40.5

10 hr 37 3.2 32.0 372.0 10.1 100.5 4.1 41.3

20 hr 20 1.7 34.0 408.0 5.5 110.3 2.3 45.3

www.odysseybattery.com 7

Publication No: EN-ODY-TM-0002 - February 2015

PC1100 performance data at 25°C, per 12V module

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

0.01 0.1 1 10 100

1000

100

0.1

Watts Amps

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 3307 326.8 10.9 110.2 668.1 22.3 264.6 8.8

5 min 2333 219.5 18.3 194.4 471.3 39.3 186.6 15.6

10 min 1575 143.2 23.9 262.5 318.2 53.0 126.0 21.0

15 min 1200 107.2 26.8 300.0 242.4 60.6 96.0 24.0

20 min 974 86.1 28.7 324.8 196.8 65.6 78.0 26.0

30 min 713 62.0 31.0 356.7 144.1 72.1 57.1 28.5

45 min 513 44.0 33.0 384.8 103.6 77.7 41.0 30.8

1 hr 403 34.3 34.3 402.6 81.3 81.3 32.2 32.2

2 hr 221 18.5 37.0 441.6 44.6 89.2 17.7 35.3

3 hr 154 12.9 38.7 462.6 31.2 93.5 12.3 37.0

4 hr 120 10.0 40.0 480.0 24.2 97.0 9.6 38.4

5 hr 99 8.2 41.0 495.0 20.0 100.0 7.9 39.6

8 hr 66 5.5 44.0 528.0 13.3 106.7 5.3 42.2

10 hr 55 4.6 46.0 552.0 11.2 111.5 4.4 44.2

20 hr 32 2.7 54.0 648.0 6.5 130.9 2.6 51.8

PC1200 performance data at 25°C, per 12V module

Watts or amps per 12V unit

Watts Amps

Hours to 10.02V @ 25ºC

0.01 0.1 1 10 100

10000

1000

100

2 min 3580 337.9 11.3 119.2 613.0 20.4 205.8 6.9

5 min 1992 199.1 16.6 165.9 341.1 28.4 114.5 9.5

10 min 1338 127.9 21.7 227.5 229.1 38.9 76.9 13.1

15 min 1026 96.0 24.0 256.5 175.7 43.9 59.0 14.7

20 min 840 77.5 25.6 277.2 143.8 47.5 48.3 15.9

30 min 624 56.6 28.3 312.0 106.8 53.4 35.9 17.9

45 min 458 40.8 30.6 343.4 78.4 58.8 26.3 19.7

1 hr 364 32.1 32.1 363.6 62.3 62.3 20.9 20.9

2 hr 203 17.7 35.4 406.8 34.8 69.7 11.7 23.4

3 hr 143 12.3 36.9 428.4 24.5 73.4 8.2 24.6

4 hr 110 9.5 38.0 441.6 18.9 75.6 6.3 25.4

5 hr 91 7.7 38.5 453.0 15.5 77.6 5.2 26.0

8 hr 59 5.0 40.0 475.2 10.2 81.4 3.4 27.3

10 hr 48 4.1 41.0 480.0 8.2 82.2 2.8 27.6

20 hr 25 2.2 44.0 504.0 4.3 86.3 1.5 29.0

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 3982 384.3 12.8 132.7 396.6 13.2 192.4 6.4

5 min 2846 264.8 22.1 237.2 283.5 23.6 137.5 11.5

10 min 1993 180.8 30.1 332.1 198.5 33.1 96.3 16.0

15 min 1561 139.7 34.9 390.3 155.5 38.9 75.4 18.9

20 min 1294 114.8 38.3 431.4 128.9 43.0 62.5 20.8

30 min 976 85.5 42.8 487.9 97.2 48.6 47.1 23.6

45 min 722 62.6 46.9 541.2 71.9 53.9 34.9 26.1

1 hr 577 49.7 49.7 576.6 57.4 57.4 27.9 27.9

2 hr 326 27.7 55.4 652.1 32.5 64.9 15.8 31.5

3 hr 230 19.4 58.3 689.8 22.9 68.7 11.1 33.3

4 hr 179 15.0 60.1 714.0 17.8 71.1 8.6 34.5

5 hr 146 12.3 61.5 731.6 14.6 72.9 7.1 35.3

8 hr 96 8.0 64.2 766.2 9.5 76.3 4.6 37.0

10 hr 78 6.5 65.5 782.0 7.8 77.9 3.8 37.8

20 hr 42 3.5 69.9 832.1 4.1 82.9 2.0 40.2

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

Watts Amps

0.01 0.1 1 10 100

10000

1000

100

PC1220 performance data at 25°C, per 12V module

Publication No: EN-ODY-TM-0002 - February 2015

www.odysseybattery.com

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 5477 527.2 17.6 182.6 438.2 14.6 199.9 6.7

5 min 3758 349.4 29.1 313.2 300.7 25.1 137.2 11.4

10 min 2602 235.8 39.3 433.6 208.1 34.7 94.9 15.8

15 min 2037 182.0 45.5 509.3 163.0 40.7 74.3 18.6

20 min 1692 149.8 49.9 564.0 135.4 45.1 61.7 20.6

30 min 1282 112.1 56.0 641.0 102.6 51.3 46.8 23.4

45 min 955 82.5 61.9 716.2 76.4 57.3 34.9 26.1

1 hr 768 65.8 65.8 767.6 61.4 61.4 28.0 28.0

2 hr 441 37.3 74.5 881.7 35.3 70.5 16.1 32.2

3 hr 314 26.4 79.1 940.8 25.1 75.3 11.4 34.3

4 hr 245 20.5 82.0 979.2 19.6 78.3 8.9 35.7

5 hr 201 16.8 84.2 1006.9 16.1 80.5 7.3 36.7

8 hr 133 11.1 88.5 1059.8 10.6 84.8 4.8 38.7

10 hr 108 9.0 90.5 1082.7 8.7 86.6 4.0 39.5

20 hr 57 4.8 96.5 1146.8 4.6 91.7 2.1 41.9

PC1350 performance data at

25°C

, per 12V module

100

1000

10000

0.01 0.10 1 10

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

100

Watts Amps

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 5308 499.5 16.5 175.2 576.1 19.0 233.8 7.7

5 min 3440 315.8 26.2 285.5 373.3 31.0 151.5 12.6

10 min 2261 203.0 33.9 377.7 245.4 41.0 99.6 16.6

15 min 1716 151.9 38.0 428.9 186.2 46.5 75.6 18.9

20 min 1393 122.2 40.7 463.9 151.2 50.3 61.4 20.4

30 min 1023 88.6 44.3 511.5 111.0 55.5 45.1 22.5

45 min 739 63.3 47.4 554.5 80.2 60.2 32.6 24.4

1 hr 583 49.4 49.4 582.5 63.2 63.2 25.7 25.7

2 hr 321 26.8 53.6 641.2 34.8 69.6 14.1 28.2

3 hr 224 18.6 55.7 671.0 24.3 72.8 9.9 29.6

4 hr 173 14.3 57.2 690.5 18.7 74.9 7.6 30.4

5 hr 141 11.7 58.4 705.4 15.3 76.5 6.2 31.1

8 hr 92 7.6 61.0 736.6 10.0 79.9 4.1 32.4

10 hr 75 6.2 62.5 751.9 8.2 81.6 3.3 33.1

20 hr 40 3.4 67.9 805.5 4.4 87.4 1.8 35.5

25-PC1400 & 35-PC1400 performance data at

25°C

per 12V module

100

1000

10000

0.01 0.1 1 10

Watts or amps per 12V unit

Hours to 10.02V @

25ºC

Watts Amps

100

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 4562 432.9 14.3 150.5 531.5 17.5 221.4 7.3

5 min 2936 266.5 22.1 243.7 342.1 28.4 142.5 11.8

10 min 1919 169.6 28.3 320.5 223.6 37.3 93.2 15.6

15 min 1451 126.6 31.7 362.8 169.1 42.3 70.4 17.6

20 min 1176 101.8 33.9 391.6 137.0 45.6 57.1 19.0

30 min 862 73.8 36.9 430.8 100.4 50.2 41.8 20.9

45 min 622 52.8 39.6 466.4 72.5 54.3 30.2 22.6

1 hr 490 41.4 41.4 489.8 57.1 57.1 23.8 23.8

2 hr 270 22.6 45.3 540.2 31.5 62.9 13.1 26.2

3 hr 189 15.8 47.4 567.1 22.0 66.1 9.2 27.5

4 hr 146 12.2 48.8 585.7 17.1 68.2 7.1 28.4

5 hr 120 10.0 50.0 600.6 14.0 70.0 5.8 29.2

8 hr 79 6.6 52.7 633.2 9.2 73.8 3.8 30.7

10 hr 65 5.4 54.1 650.1 7.6 75.7 3.2 31.6

20 hr 36 3.0 59.4 713.5 4.2 83.1 1.7 34.6

75/86-PC1230 performance data at

25°C

, per 12V module

100

1000

10000

0.01 0.1 1 10

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

100

Watts Amps

www.odysseybattery.com 9

Publication No: EN-ODY-TM-0002 - February 2015

34-PC1500, 34R-PC1500, 34M-PC1500, 34/78-PC1500

performance data at

25°C

, per 12V module

Watts or amps per 12V unit

10000

1000

100

Watts Amps

0.01 0.1 1 10 100

Hours to 10.02V @ 25ºC

2 min 5228 494.8 16.3 172.5 538.1 17.8 209.9 6.9

5 min 3337 304.4 25.3 277.0 343.5 28.5 134.0 11.1

10 min 2175 193.6 32.3 363.3 223.9 37.4 87.4 14.6

15 min 1644 144.5 36.1 411.0 169.2 42.3 66.0 16.5

20 min 1332 116.1 38.7 443.7 137.2 45.7 53.5 17.8

30 min 977 84.2 42.1 488.4 100.5 50.3 39.2 19.6

45 min 706 60.3 45.2 529.3 72.6 54.5 28.3 21.3

1 hr 556 47.3 47.3 556.2 57.3 57.3 22.3 22.3

2 hr 307 25.9 51.7 615.0 31.7 63.3 12.3 24.7

3 hr 215 18.1 54.2 646.5 22.2 66.5 8.7 26.0

4 hr 167 14.0 56.0 668.4 17.2 68.8 6.7 26.8

5 hr 137 11.5 57.4 685.4 14.1 70.6 5.5 27.5

8 hr 90 7.6 60.6 723.1 9.3 74.4 3.6 29.0

10 hr 74 6.2 62.3 742.5 7.6 76.4 3.0 29.8

20 hr 41 3.3 65.0 814.0 4.2 83.8 1.6 32.7

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

atts or amps per 12V unit

10000

1000

100

Hours to 10.02V @ 25ºC

Watts Amps

0.01 0.1 1 10 100

PC1700 performance data at

25°C

, per 12V module

2 min 5942 569.8 19.0 197.9 607.0 20.2 215.3 7.2

5 min 3636 337.6 28.1 279.9 343.3 28.6 121.7 10.1

10 min 2411 218.5 37.2 384.5 231.1 39.3 82.0 13.9

15 min 1833 163.8 41.0 433.5 177.2 44.3 62.8 15.7

20 min 1490 132.6 43.7 467.3 144.7 47.7 51.3 16.9

30 min 1091 96.0 48.0 522.0 106.7 53.3 37.8 18.9

45 min 786 68.6 51.4 567.0 77.2 57.9 27.4 20.5

1 hr 615 53.6 53.6 594.6 60.8 60.8 21.5 21.5

2 hr 333 28.9 57.8 648.0 33.1 66.2 11.7 23.5

3 hr 229 19.9 59.6 671.4 22.9 68.6 8.1 24.3

4 hr 175 15.2 61.0 684.0 17.5 69.9 6.2 24.8

5 hr 142 12.4 61.8 693.0 14.2 70.8 5.0 25.1

8 hr 90 8.0 63.6 705.6 9.0 72.1 3.2 25.6

10 hr 73 6.5 64.5 714.0 7.3 72.9 2.6 25.9

20 hr 37 3.4 67.9 732.0 3.7 74.8 1.3 26.5

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

100

1000

10000

0.01 0.1 1 10

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

Watts Amps

100

65-PC1750 performance data at

25°C

, per 12V module

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/litre Wh/litre W/kg Wh/kg

2 min 5890 565.9 18.7 194.4 567.9 18.7 224.0 7.4

5 min 3770 334.2 27.7 312.9 363.5 30.2 143.3 11.9

10 min 2440 210.9 35.2 407.4 235.2 39.3 92.8 15.5

15 min 1832 157.7 39.4 458.0 176.6 44.2 69.7 17.4

20 min 1477 127.2 42.4 491.9 142.4 47.4 56.2 18.7

30 min 1076 93.0 46.5 537.9 103.7 51.9 40.9 20.5

45 min 771 67.2 50.4 578.1 74.3 55.7 29.3 22.0

1 hr 605 53.0 53.0 604.6 58.2 58.3 23.0 23.0

2 hr 355 29.4 58.9 709.2 34.2 68.4 13.5 27.0

3 hr 252 20.7 62.0 756.0 24.3 72.9 9.6 28.7

4 hr 196 16.0 64.1 785.0 18.9 75.7 7.5 29.8

5 hr 161 13.1 65.7 804.6 15.5 77.6 6.1 30.6

8 hr 105 8.6 69.1 838.5 10.1 80.9 4.0 31.9

10 hr 85 7.1 70.6 850.3 8.2 82.0 3.2 32.3

20 hr 46 3.8 75.7 912.6 4.4 88.0 1.7 34.7

Publication No: EN-ODY-TM-0002 - February 2015

www.odysseybattery.com

100

1000

10000

0.01 0.1 1 10

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

Watts Amps

100

31-PC2150 & 31M-PC2150 performance data at

25°C

per 12V module

Watts or amps per 12V unit

10000

1000

100

Watts Amps

Hours to 10.02V @ 25ºC

0.01 0.1 1 10 100

PC2250 performance data at

25°C

, per 12V module

2 min 7090 671.6 22.4 236.1 1143.0 14.8 181.8 6.1

5 min 4820 443.8 37.0 401.5 301.2 25.1 123.6 10.3

10 min 3291 296.4 50.4 559.5 205.6 35.0 84.4 14.4

15 min 2553 227.1 56.8 638.3 159.5 39.9 65.5 16.4

20 min 2107 185.8 61.3 695.3 131.7 43.5 54.0 17.8

30 min 1583 137.9 69.0 791.5 98.9 49.5 40.6 20.3

45 min 1170 100.9 75.7 877.5 73.1 54.8 30.0 22.5

1 hr 937 80.2 80.2 937.0 58.6 58.6 24.0 24.0

2 hr 536 45.2 90.4 1072.0 33.5 67.0 13.7 27.5

3 hr 382 32.0 96.0 1146.0 23.9 71.6 9.8 29.4

4 hr 299 25.0 100.0 1196.0 18.7 74.7 7.7 30.7

5 hr 247 20.6 103.0 1235.0 15.4 77.2 6.3 31.7

8 hr 165 13.8 110.4 1320.0 10.3 82.5 4.2 33.9

10 hr 137 11.4 114.0 1370.0 8.6 85.6 3.5 35.1

20 hr 76 6.3 126.0 1520.0 4.75 95.0 2.0 39.0

Time Watts Amps Capacity Energy

(W) (A) (Ah) (Wh) W/liter Wh/liter W/kg Wh/kg

ENERGY AND POWER DENSITIES

PC1800-FT performance data at

25°C

, per 12V module

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/liter Wh/liter W/kg Wh/Kg

2 min 4422 491.4 16.4 147.4 199.6 6.7 73.7 2.5

5 min 4422 491.2 40.9 368.5 199.6 16.6 73.7 6.1

10 min 4422 454.7 75.8 737.0 199.6 33.3 73.7 12.3

15 min 3984 373.3 93.3 996.0 179.8 44.9 66.4 16.6

20 min 3384 312.7 104.2 1128.0 152.7 50.9 56.4 18.8

30 min 2610 238.3 119.2 1305.0 117.8 58.9 43.5 21.8

45 min 1968 177.8 133.4 1476.0 88.8 66.6 32.8 24.6

1 hr 1590 143.1 143.1 1590.0 71.8 71.8 26.5 26.5

2 hr 936 82.2 164.4 1872.0 42.2 84.5 15.6 31.2

3 hr 666 58.3 174.9 1998.0 30.1 90.2 11.1 33.3

4 hr 522 45.4 181.6 2088.0 23.6 94.2 8.7 34.8

5 hr 426 37.3 186.5 2130.0 19.2 96.1 7.1 35.5

8 hr 282 24.6 196.8 2256.0 12.7 101.8 4.7 37.6

10 hr 234 20.2 202.0 2340.0 10.6 105.6 3.9 39.0

20 hr 126 10.9 218.0 2520.0 5.7 113.7 2.1 42.0

100

1000

10000

0.01 0.10 1 10

Watts or amps per 12V unit

Hours to 10.02V @ 25ºC

100

Watts Amps

Time Watts

(W)

Amps

(A)

Capacity

(Ah)

Energy

(Wh)

ENERGY AND POWER DENSITIES

W/liter Wh/liter W/kg Wh/Kg

2 min 7025 678.5 22.4 231.8 515.3 17.0 199.0 6.6

5 min 4740 438.5 36.4 393.4 347.7 28.9 134.3 11.1

10 min 3176 285.9 47.7 530.4 233.0 38.9 90.0 15.0

15 min 2428 215.5 53.9 607.0 178.1 44.5 68.8 17.2

20 min 1980 174.1 58.0 659.2 145.2 48.4 56.1 18.7

30 min 1460 127.0 63.5 730.0 107.1 53.5 41.4 20.7

45 min 1059 91.2 68.4 793.9 77.6 58.2 30.0 22.5

1 hr 835 71.5 71.5 835.2 61.3 61.3 23.7 23.7

2 hr 461 39.0 78.0 922.2 33.8 67.7 13.1 26.1

3 hr 322 27.1 81.4 966.8 23.6 70.9 9.1 27.4

4 hr 249 20.9 83.8 996.8 18.3 73.1 7.1 28.2

5 hr 204 17.1 85.6 1020.0 15.0 74.8 5.8 28.9

8 hr 134 11.2 89.7 1070.4 9.8 78.5 3.8 30.3

10 hr 110 9.2 91.9 1095.9 8.0 80.4 3.1 31.0

20 hr 60 5.0 100.3 1191.9 4.4 87.4 1.7 33.8

Other manuals for ODYSSEY EXTREME PC310

This manual suits for next models

Table of contents

Other EnerSys Camera Accessories manuals

EnerSys

EnerSys Outback Power EnergyCell 1000XLC User manual

EnerSys

EnerSys PowerSafe VM Series User manual

EnerSys

EnerSys DataSafe 12HX205-FR Manual

EnerSys

EnerSys DataSafe XE Series User manual

EnerSys

EnerSys PowerSafe VM Series User manual

EnerSys

EnerSys NexSys CORE ATEX User manual

EnerSys

EnerSys Oerlikon Evolution User manual

EnerSys

EnerSys PowerSafe VX Manual

EnerSys

EnerSys PowerSafe mP Series Setup guide

EnerSys

EnerSys RL Series User manual

EnerSys

EnerSys Nexsys 12NXS26 Troubleshooting guide

EnerSys

EnerSys PowerSafe SBS Series User manual

EnerSys

EnerSys 7624308001-003 User manual

EnerSys

EnerSys BA27-01 User manual

EnerSys

EnerSys TP Series Troubleshooting guide

EnerSys

EnerSys DataSafe HX+ User manual

EnerSys

EnerSys ODYSSEY EXTREME PC310 User manual

EnerSys

EnerSys PowerSafe DDm Instruction manual

EnerSys

EnerSys PowerSafe SBS Series User manual

EnerSys

EnerSys OutBack POWER NorthStar NSB BLUE+ Series User manual

EnerSys

EnerSys Oerlikon Perfect Plus User manual

EnerSys

EnerSys NexSys iON 24-L1-20-4.7 User manual

EnerSys

EnerSys PowerSafe OPzS User manual

EnerSys

EnerSys NexSys User manual

Popular Camera Accessories manuals by other brands

Viltrox

Viltrox EF-NEX Mount instructions

Calumet

Calumet 7100 Series CK7114 operating instructions

Ropox

Ropox 4Single Series User manual and installation instructions

Cambo

Cambo Wide DS Digital Series Main operating instructions

Samsung

Samsung SHG-120 Specification sheet

Ryobi

Ryobi BPL-1820 Owner's operating manual

Aegis

Aegis ABL-36020P user manual

Pentax

Pentax Data Back Fc operating manual

Fantasea

Fantasea EyeGrabber F Series instruction manual

Honeywell

Honeywell HDZ20HD user manual

EGO

EGO BA1400T Operator's manual

Sima

Sima SRW-62 user guide

Shape

Shape A7SSMKIT Assembly manual

Slide Kamera

Slide Kamera HST-2 user manual

Power works

Power works 2902613 Original instructions

SES

SES SE-2047-2 user manual

Olympus

Olympus PT-EP05L instruction manual

Starlite

Starlite OctoDome nxt instructions
