Emerson 1F86U-42WF User manual

Sensi

Wi-Fi Thermostat

INSTALLATION GUIDE

Models: 1F86U-42WF, UP500W

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 2

Installation guide

Downloading the Sensi app 3

Creating a Sensi account 3

Installing the Sensi thermostat 4

Connecting the Sensi thermostat 8

Notes 10

CONTENTS

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 3

You will need

Gather this information before you begin installation for a

smoother walk through.

• Sensi Password

• Wi-Fi Network Name/SSID

*Make sure this is a 2.4GHz network.

• Wi-Fi Network Password

• Screwdriver

• Hardware in Sensi Wi-Fi thermostat packaging

Download the Sensi app

The Sensi Wi-Fi Thermostat is a Wi-Fi enabled device. To install and conﬁgure

your thermostat correctly, you must use the Sensi app. To start the installation

process, download the Sensi app to your smart phone or tablet. It is a free

download. The Sensi app requires the following Operating System (OS)

software to download:

• Android (Google Play) version 4.2 or later

• iOS (Apple) version 10.0 or later

*Note that in the iOS store, the Sensi App will ONLY appear on an “iPhone only”

search. On an iPad, change the search criteria in the App Store.

Create an account

When you download the Sensi app, you will be prompted to create an

account. This is required to access your thermostat remotely and use

all the features Sensi offers. Use a valid email address and a password

of your choosing to create an account. Remember this email address

and password. Your Sensi thermostat will be linked to this email

address once it is registered.

DOWNLOADING THE APP AND CREATING AN ACCOUNT

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 4

Installation

Once you have downloaded the Sensi app, and have created an account,

you are ready to install the thermostat to your wall and connect it to Wi-Fi.

If no thermostats are registered yet, the Sensi app will prompt you to

add a thermostat.

First, choose which thermostat you purchased. The Sensi Wi-Fi Programmable

Thermostat option is for the following model numbers:

• 1F86U-42WF

• UP500W

Note: You can check your model number on the back of the thermostat faceplate.

Install path

After creating an account, signing in and choosing your model, the app will

ask you whether or not the thermostat is already on the wall. You will either

choose “No, it needs to be installed,” or “Yes, it is on the wall.”

The ﬁrst option will walk through the entire installation process. If you did

not have this thermostat professionally installed, choose this option.

The second option is for connecting your thermostat to Wi-Fi only. If you

have had a professional install your thermostat, and you just need to connect

the Sensi thermostat to your home Wi-Fi network, choose this option.

No, it needs to be installed.

This option will walk you through the entire installation process, including

identifying and connecting your wiring, as well as connecting to Wi-Fi. The

Sensi app will walk through a step-by-step process for installation.

Gather tools

and package contents

Gather all the necessary tools for installation.

INSTALLING THE SENSI THERMOSTAT

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 5

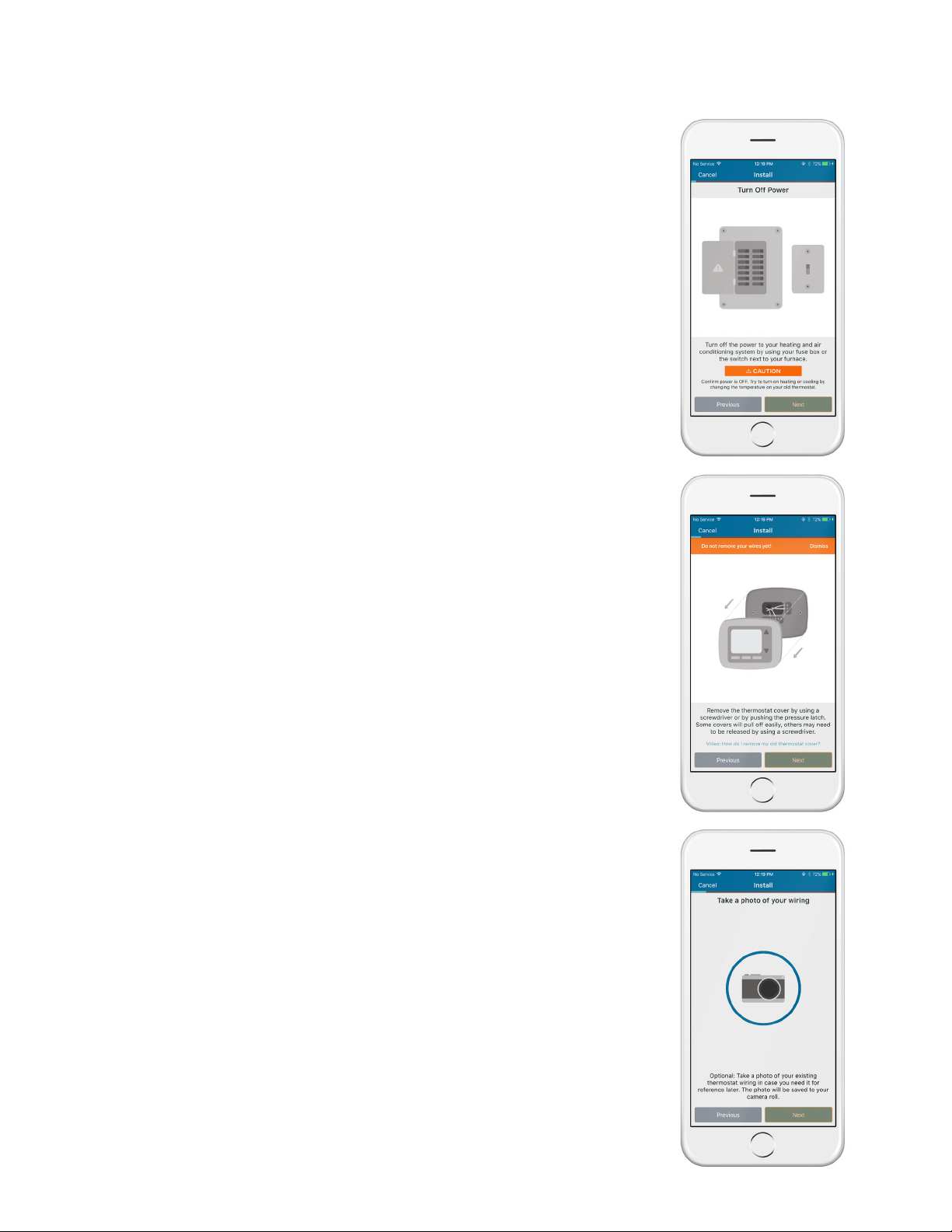

Turn off power

Turn off the power to your heating and air conditioning system

before handling your thermostat wires.

Remove old thermostat cover

Remove the cover using a screwdriver or by pushing the pressure

latch. Some covers pull off while others need to be released

using a screwdriver.

Photograph your wiring

THIS IS IMPORTANT. The Sensi app will prompt you to take a picture

of your existing thermostat and old wiring in case you need it later.

This can be helpful for troubleshooting with our technical support

team if necessary. The picture you take will be saved to your camera

roll or photo gallery.

INSTALLING THE SENSI THERMOSTAT

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 6

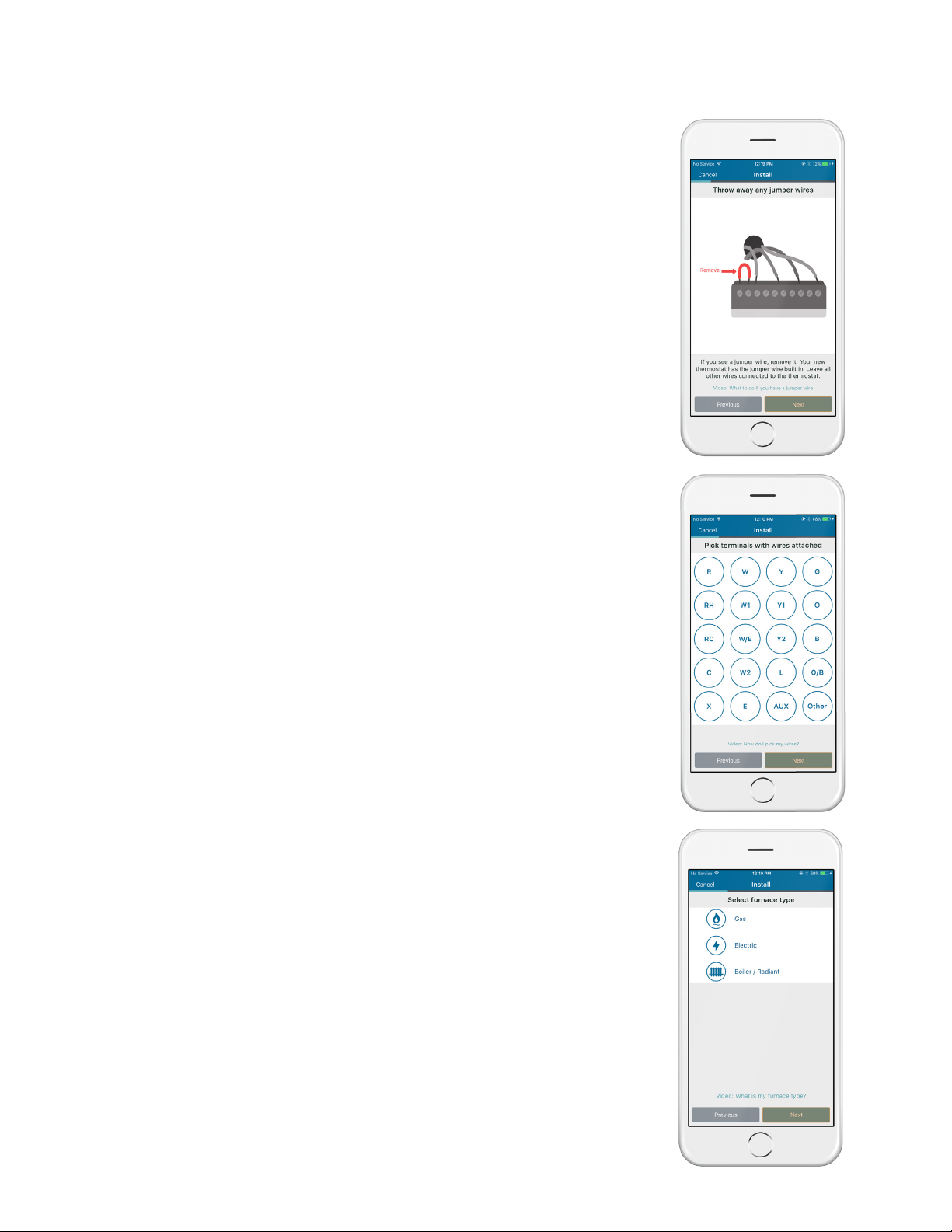

Throw away any jumper wires

Sensi has a jumper wire built into it, and you will not need

any jumper wires from your old unit.

Choose wire terminals

Choose the terminal labels that have wires attached to them

on your old thermostat here. The app will tell you if you

have a valid conﬁguration.

If you are getting an invalid conﬁguration message you can learn

more about compatibility at sensicomfort.com/compatibility.

System type

Select what type of system you have.

INSTALLING THE SENSI THERMOSTAT

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 7

Label your wires

Using the provided wire label stickers, label your wires

by removing one wire at a time.

Disconnect wires

and remove base

After all of your wires are labelled, remove the old thermo-

stat base from the wall.

Install sensi base

Use the provided mounting screws and secure the Sensi

base to the wall.

Connect the Wires

Once the Sensi base is mounted and secured on the wall,

insert the wires into the terminals. Simply push the wires

into the terminal slots. Use a screwdriver to secure each

wire in place

Attach cover

Push the front display onto the thermostat base.

Turn on power

Turn the power to your system back on.

INSTALLING THE SENSI THERMOSTAT

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 8

CONNECTING THE SENSI THERMOSTAT

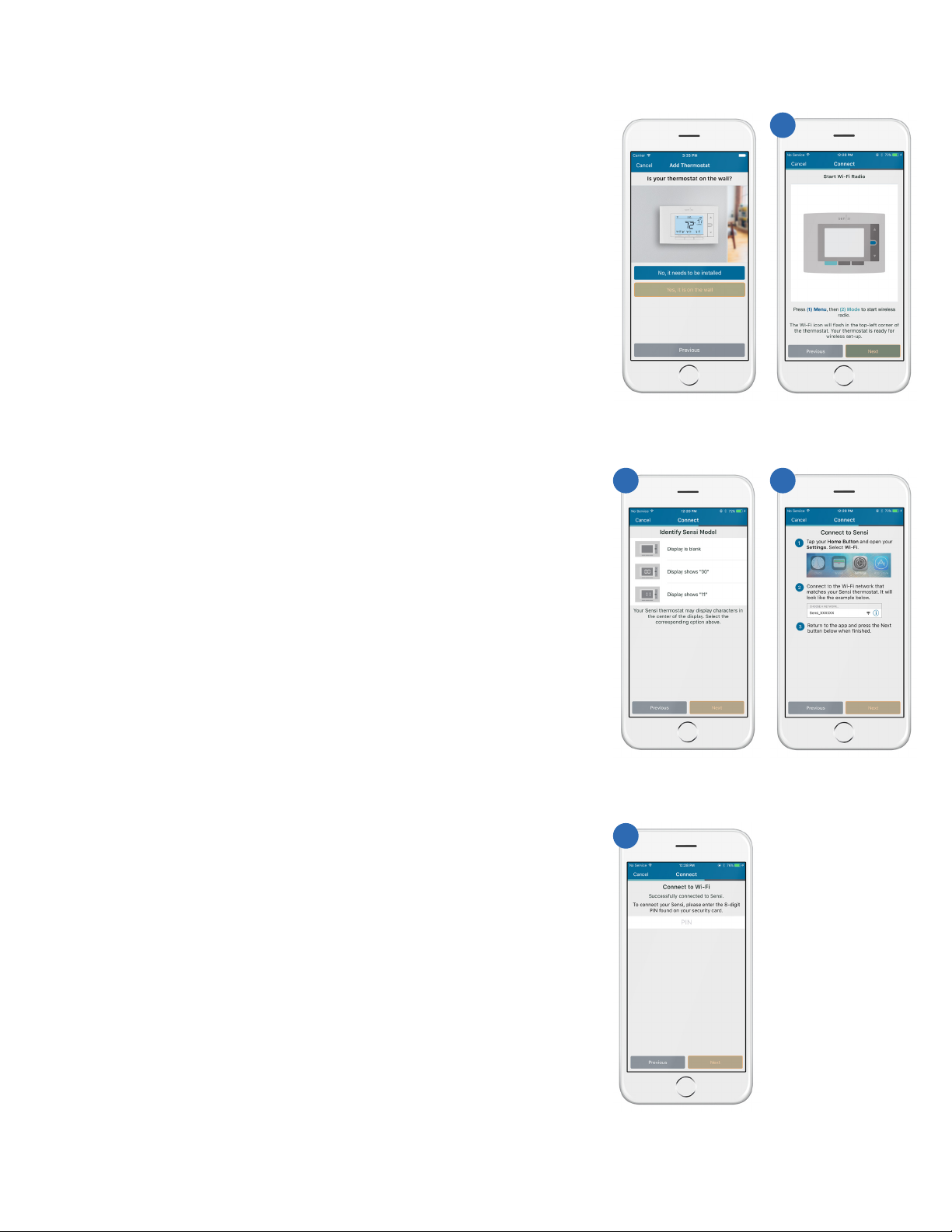

Connecting to wi-ﬁ

This portion of the installation guide covers how to connect

your thermostat to Wi-Fi. If you chose the ﬁrst option, “No,

it needs to be installed,” the app will provide instructions for

installing and wiring your thermostat before you connect to

Wi-Fi. If you chose, “Yes, it is on the wall,” the app will jump

right into connecting your thermostat to Wi-Fi.

1. PRESS MENU, THEN CONNECT

The Wi-Fi signal will ﬂash in the upper left hand corner

of the thermostat.

In the app, press “Next” to continue. *Do not press “Next” on

the thermostat.

2. IDENTIFY SENSI THERMOSTAT

Select what option your thermostat displays. Once you see a

checkbox next to your selection, press “Next” to continue.

3. CONNECT YOUR iOS DEVICE 10.0 OR LATER

Go into your iPhone’s/iPad’s Wi-Fi Settings, and you’ll see a list

of available networks. Select the Sensi network. Once you get

the blue check mark next to the “Sensi”network return to the

Sensi app. Press the “Next” button to continue.

Note: To connect to Wi-Fi using an Android device move to step 4.

A. SENSI PASSWORD

Input the Sensi password that came in the packaging

as the Sensi PIN. If you lost the card, this code can be

found on the back of the thermostat face plate. Press

“Next” to continue. Skip to step 4.

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 9

CONNECTING THE SENSI THERMOSTAT

4. CONNECTING USING AN ANDROID DEVICE

Tap on the blue “Connect my Sensi to Wi-Fi” button in the app.

This takes you to your phone’s Wi-Fi network list. You will see

a Sensi network in the list of available networks. Tap the Sensi

network, and connect to it.

After you’ve successfully connected to the network, tap your

phone’s back button to return to the Sensi app. Press the

“Next” button at the bottom of the app to continue.

A. SENSI PASSWORD

Input the Sensi password as the 8-digit PIN found on

the back of the welcome guide or the back of the ther-

mostat faceplate.

5. SELECT YOUR WIFI NETWORK

Select your home Wi-Fi network from a list of available

networks. Note that this network must be 2.4GHz or Sensi

thermostat will not be able to connect to it. If you have your

network hidden, make it visible for installation purposes.

Press “Next” to continue.

6. ENTER YOUR NETWORK PASSWORD

Type in the password for your home Wi-Fi network. Press

“Next” after you’ve input the password to continue.

Name thermostat

You can select a name or choose a custom name for

your thermostat. Press “Next” to continue.

After successfully connecting Sensi, the app will prompt you to

option or ﬁll in your street address, city, state, zip code, coun-

try and time zone manually. Press “Next” to continue.

SensiTM Wi-Fi Programmable Thermostat | INSTALLATION GUIDE 10

Contractor information

If a contractor professionally installed your thermostat, and

registered as a Sensi partner, they have the option to input

their phone number here. If there is not a registered number

available, simply hit “Next” to continue.

Start using sensi

Congratulations on successfully installing Sensi. Press “Start

Using Sensi Thermostat” to open the main screen of the app.

CONNECTING THE SENSI THERMOSTAT
