Electrolux W4240H User manual

PROFESSIONAL LAUNDRY

W4240H W4300H

27/60 33/75

240/8.5 300/10.6

795 / 31 5/16 795 / 31 5/16

890 820

350 300

19.4 19.4

x x

36 38

293+13 / 77.4+3.4 388+19 / 102.5+5

0.5 0.45

Clarus Control

Compass Control

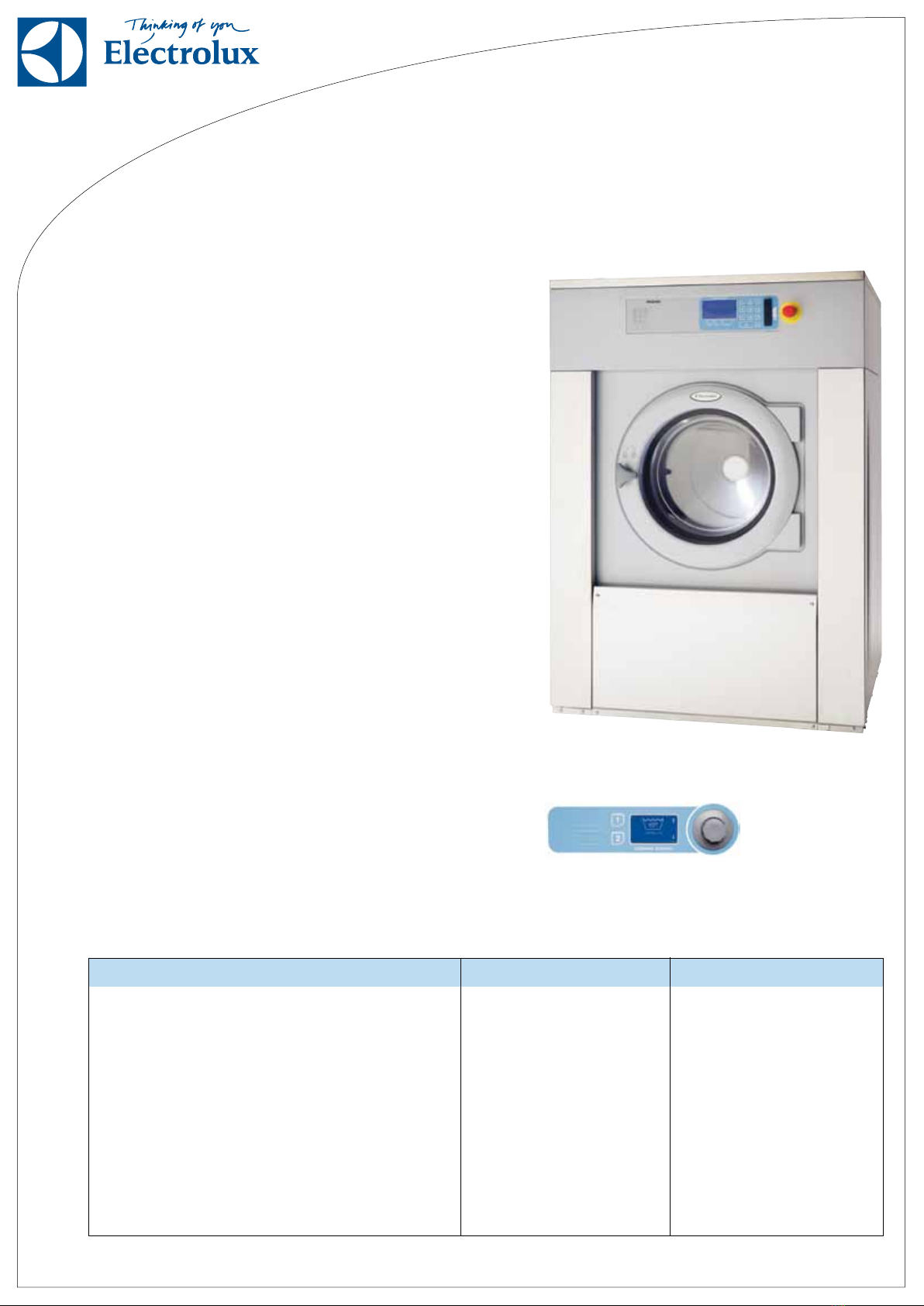

Washer extractors

W4240H, W4300H

Features and beneﬁts

• High extraction force for efﬁcient dewatering

• Available with two types of program controls:

Compass Control with:

– Large display and one dial for easy program selection

– Language selection

– Two Quick Start buttons for frequently used wash programs

– Wash program packages optimized on Economy,

Performance and Time

Clarus Control with:

– Fully programmable microprocessor

– All relevant wash parameters can be programmed

– Programming from key pad or downloading via memory card

• AWS – Automatic Weighing System:

– The machine weighs the linen and adjusts the amount of water

and energy according to the load. This leads to considerable

savings in case the machine is not fully loaded

• Extremely low water and energy consumption – see table below

• Four compartment soap box for manual dosing of powder or liquid

detergent

• Stainless steel front panel and grey side panels

• Large door opening for easy loading/unloading

• Low noise level, for pleasant working environment

• SuperBalanceTM guarantees the correct extraction force

Main options

• Automatic liquid detergent supply

(optional I/O board for Compass Control)

• IS – Integrated Saving – actual load will be shown in the display

(Clarus Control only)

• Stainless steel side panel (Clarus Control only)

• Connection to payment system or coin meter

(Compass Control only)

Certiﬁed in accordance with ISO 9001 and ISO 14001 and approved IP 24D. Certiﬁed in accordance with UL/ETL standards.

Main speciﬁcations

Max. capacity kg/lb

Drum, volume litre/ft3

diameter ø mm/inch

Extraction rpm

G-factor

Heating alternatives, electricity kW

steam

non-heated

Consumption data ”WARM” * (3S03)

Total time min

Water consumption (cold+hot) litre/gallon

Energy consumption (motor) kWh

* Water temperature 59°F cold water and 149°F hot water.

5378

5377

5379

Share more of our thinking at www.electrolux.com

W4240H W4300H

20.9(63) 19.4(63)

3.0(15) 2.1(15)

3/4 3/4

30-90 30-90

60/15 60/15

75/3 75/3

170/45 170/45

1/2 1/2

7-40 7-40

5 5

14.8 13.7

5.2 ± 1.0 6.2 ± 1.3

1158 ± 221 1390 ± 280

78 76

67 69

85 83

5 5

400/882 556/1226

448/988 575/1268

1.79/63.2 2.1/74.2

x x

1020 / 40 3/16 1020 / 40 3/16

915 / 36 1060 / 41 3/4

1445 / 56 7/8 1445 / 56 7/8

500 / 19 11/16 500 / 19 11/16

955 / 37 5/8 1135 / 44 11/16

1155 / 45 1/2 1155 / 45 1/2

100 / 3 15/16 100 / 3 15/16

1360 / 53 9/16 1360 / 53 9/16

215 / 8 7/16 215 / 8 7/16

1320 / 51 15/16 1320 / 51 15/16

300 / 11 13/16 300 / 11 13/16

380 / 14 15/16 380 / 14 15/16

100 / 3 5/6 100 / 3 5/6

360 / 14 3/16 360 / 14 3/16

510 / 20 1/16 335 / 13 3/16

www.electroluxusa.com/laundrysystems

Front

Right side

Rear side

Art. No. 438901958/2012.04.26

We reserve the right to alter speciﬁcations without notice.

Electrical connections*

Heating Voltage

El. 208-240V 3AC 60 Hz kW(A)

Steam 208-240V 1AC 60 Hz kW(A)

or 100-120V 1AC 60 Hz kW(A)

non-heated

Water and steam connection

Water valves inch

Water pressure psi

Capacity at 45 psi l/min / gallon/min

Drain valve ø mm/inch

Draining capacity l/min / gallon/min

Steam valve inch

Steam pressure psi

Liquid detergent supplies

Floor requirements

Frequency of the dynamic force Hz

Floor load at max extraction kN

lbs force

Sound levels

Sound pressure level** dB(A)

Sound power level (IEC 60704-2-4)

wash dB(A)

extraction dB(A)

Heat emission

% of installed power, max

Shipping data

Weight net, kg/lbs

crated, kg/lbs

Shipping volume m3/ft3

Accessories

Steel base frame

Water re-use tank (Clarus Control)

Hose kits for water or steam

Fluff collector

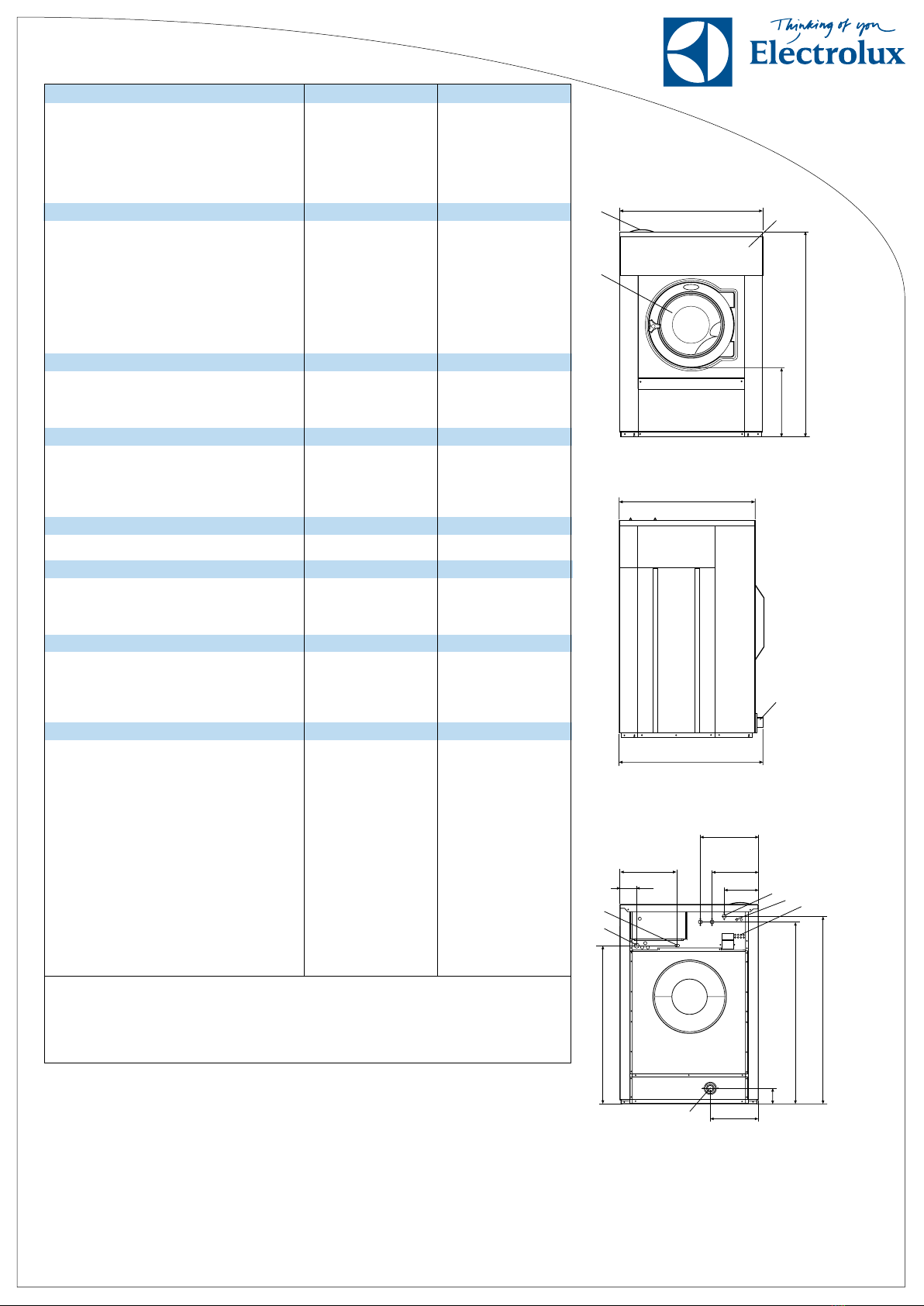

Dimensions in mm/inch

A Width

B Depth

C Height

1 Electrical connections

2 Cold water

3 Hot water

4 Steam connection

5 Drain

6 Liquid supply connections

7 Control panel

8 Soap box

9 Door opening ø 435 mm / 17 1/8 inch

* Other voltages available, see installation manual.

** Approx. value at operators position in a mid-size laundry room.

This manual suits for next models
