WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Children of less than 3 years should be kept away
unless continuously supervised.
•Keep all packaging away from children.
•Keep all detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Obey the maximum load volume of 8 kg (refer to the
“Programme chart” chapter).
•The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
ENGLISH 3
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you
move the appliance again you must
block the drum.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C or where it is exposed to the
weather.
• Make sure that the floor where you
install the appliance is flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
• Do not install the appliance where the
appliance door can not be fully
opened.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Only for UK and Ireland: The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use a 13 amp ASTA
(BS 1362) fuse.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Make sure not to cause damage to
the water hoses.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
• The first time you use the appliance,
make sure that there is no leakage.
www.electrolux.com4
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• Use this appliance in a household
only.
• Obey the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that you remove all metal
objects from the laundry.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
• Do not touch the glass of the door
while a programme operates. The
glass can be hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1
2
3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for the appliance level
3.2 Fixing plate kit
(4055171146)
Available from your authorized dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
ENGLISH 5
4. CONTROL PANEL
4.1 Control panel description
Jeans
Wool/Handwash
Delicates
Synthetics
Cottons
Refresh
Synthetics
Cottons
Duvet
Spin/Drain
Rinse
On/Off
14 Min.
Cottons Eco
UltraWash 60’
Start/Pause
TimeManager
Temperature
Spin
Delay Start
Easy Iron Extra Rinse
Prewash
53 4
1011
8
7
9
6
1 2
1On Off button (On/Off)
2Programme knob
3Spin reduction touchpad (Spin)
4Temperature touchpad
(Temperature)
5Display
6Prewash touchpad (Prewash)
7Delay start touchpad (Delay Start)
8Extra rinse touchpad (Extra
Rinse)
9Easy iron touchpad (Easy Iron)
10 Start/Pause touchpad (Start/
Pause)
11 Time Manager touchpads
(Time Manager)
4.2 Display
A B C D
E
FG
A) The Temperature area:
: Temperature indicator
: Cold water indicator
B) : Time Manager indicator.
C) The time area:
•: the programme duration
• : the delay start
• : the alarm codes
• : the message of error
•: the programme is completed.
D) : the child safety lock indicator.
E) Washing indicators:
• : the washing phase
• : the rinses phase
www.electrolux.com6
• : the spin phase
• : the steam phase
• : the Extra rinse permanent
option.
F) The spin area:
• : the Spin speed indicator
• : the No Spin indicator
• : the Rinse Hold indicator
• : the Extra Silent indicator.
G) : the Door locked indicator
5. PROGRAMMES
5.1 Programme Chart

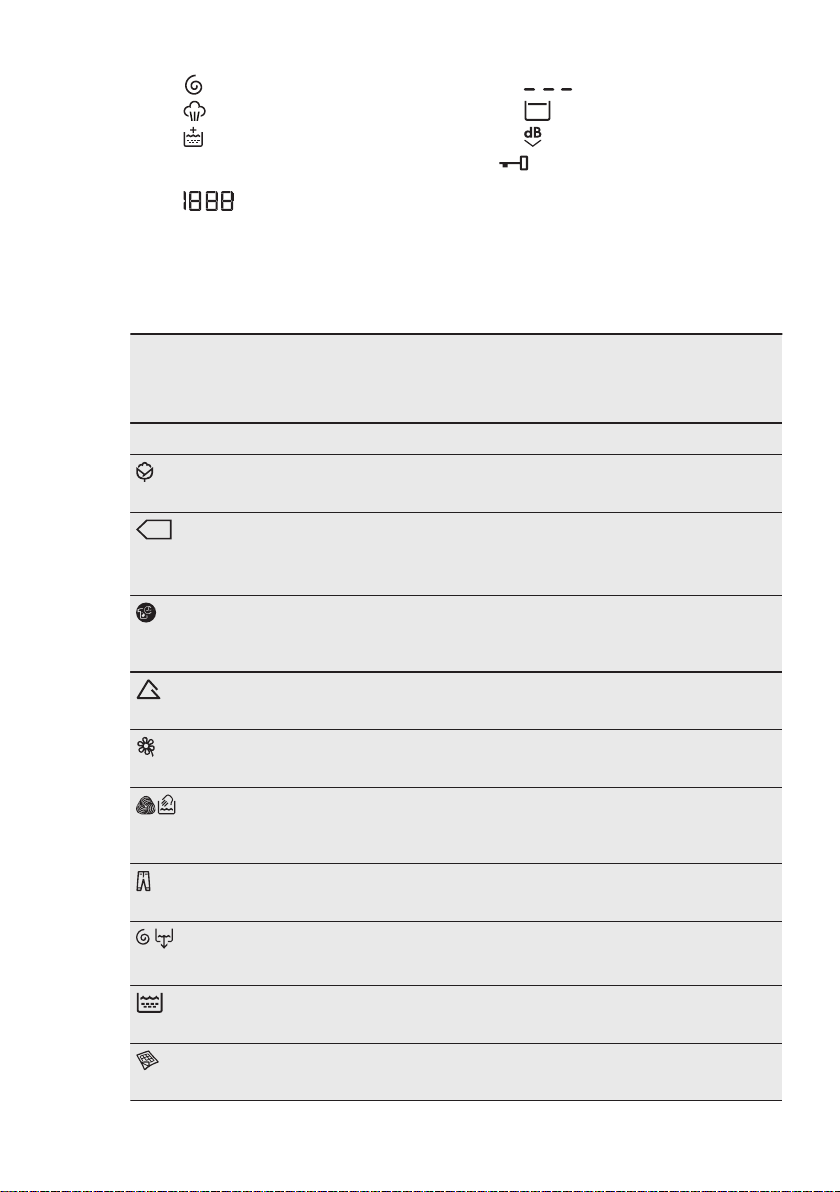

Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
Washing programmes
Cottons
90°C - Cold
8 kg
1600 rpm
White cotton and coloured cotton. Normal soil
and light soil.
Cottons
Eco1)
60°C - 40°C
8 kg
1600 rpm
White cotton and colour-fast cotton. Normal
soil. The energy consumption decreases and the
time of the washing programme is extended.
UltraWash
60'
60°C - 30°C
5 kg
1600 rpm
Complete programme for cotton items ensuring
good washing performances in a short time.
Synthetics
60°C - Cold
4 kg
1200 rpm
Synthetic items or mixed fabric items. Normal
soil.
Delicates
40°C - Cold
4 kg
1200 rpm
Delicate fabrics as acrylics, viscose, polyest‐
er items. Normal soil.
Wool/
Handwash
40°C - Cold
2 kg
1200 rpm
Machine washable wool, hand washable wool
and delicate fabrics with «hand washing» care
symbol.2)
Jeans
60°C - Cold
8 kg
1200 rpm
Items in denim and jersey. Also for dark col‐
oured items.
Spin/
Drain3)
8 kg
1600 rpm
To spin the laundry and to drain the water in the
drum. All fabrics.
Rinse
Cold
8 kg
1600 rpm
To rinse and spin the laundry. All fabrics.
Duvet
60°C - 30°C
3 kg
800 rpm
Special programme for one synthetic blanket,
duvet, bedspread and so on.
ENGLISH 7
Programme
Temperature
range
Maximum
load
Maximum
spin speed
Programme description
(Type of load and soil level)
14 Min
30°C
1.5 kg
800 rpm
Synthetic and mixed fabric items. Light soil and
items to freshen up.
Steam programmes4)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry more soft.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• items where it is not specified on the care label as being suitable for tumble dry‐
ing.
• all items with plastic, metal, wooden parts or alike.
Refresh
40°C
1.5 kg Steam programme for cotton and synthetic
items. This cycle removes odours from the laun‐
dry.5)
Synthet‐
ics
40°C
1.5 kg Steam programme for synthetic items. This cy‐
cle helps to dewrinkle the laundry.
Cottons
40°C
1.5 kg Steam programme for cottons. This cycle helps
to dewrinkle the laundry.
1) Standard programmes for the Energy Label consumption values. According to regu‐
lation 1061/2010, these programmes are respectively the «Standard 60°C cotton pro‐
gramme» and the «Standard 40°C cotton programme». They are the most efficient pro‐
grammes in terms of combined energy and water consumption for washing normally soiled
cotton laundry.
The water temperature of the washing phase may differ from the temperature
declared for the selected programme.
2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the
drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the
appliance.
3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the
only drain phase is available.
4) If you set a Steam programme with dried laundry, at the end of the cycle the laundry
could be humid. It is better to expose the items to the fresh air for about 10 minutes to let
the humidity dry. When the programme is completed, quickly remove the laundry from the
drum. After a steam cycle, items may to be ironed anyway, but with less effort!
5) Steam does not remove animal odours.
www.electrolux.com8
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
1) ■ ■ ■
■ ■ ■ ■ ■
■ ■
■ ■ ■ ■
1) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the
only drain phase is available.
5.2 Woolmark Apparel Care -
Green
The wool wash cycle of this machine has
been approved by The Woolmark
Company for the washing of wool
garments labelled as «hand wash»
provided that the garments are washed
according to the instructions issued by
the manufacturer of this washing
machine. Follow the garment care label
for drying and other laundry instructions.
M1361
In UK, Eire, Hong Kong and India the
Woolmark symbol is a certification
trademark.
6. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the
data: the quantity and type of laundry, the water and ambient tempera‐
ture.
ENGLISH 9
At programme start the display shows the duration programme for the
maximum load capacity.
During the washing phase the programme duration is automatically cal‐
culated and can be greatly reduced if the laundry load is lower than the
maximum load capacity (e.g. Cotton 60°C, maximum load capacity 8 kg,
the programme duration exceeds 2 hours; real load 1 kg, the programme
duration don’t reach 1 hour).
When the appliance is calculating the real programme duration a dot
blinks in the display.
Programmes Load
(kg)
Energy
consump‐
tion (kWh)
Water con‐
sumption
(litre)
Approxi‐
mate pro‐
gramme
duration
(minutes)
Remaining
moisture
(%)1)
Cottons 60 °C 8 1.54 85 210 44
Cottons 40 °C 8 0.90 85 200 44
Synthetics 40 °C 4 0.70 55 155 35
Delicates 40 °C 4 0.60 59 89 35
Wool/Handwash
30 °C 2) 2 0.35 58 60 30
Standard cotton programmes
Standard 60 °C
cotton 8 0.64 54 183 44
Standard 60 °C
cotton 4 0.51 46 165 44
Standard 40 °C
cotton 4 0.52 46 161 44
1) At the end of spin phase.
2) Not available for some models.
Off Mode (W) Left On Mode (W)
0,48 0,48
The information given in the chart above are in compliance with the EU Commission
regulation 1015/2010 implementing directive 2009/125/EC.
7. OPTIONS
7.1 Temperature
Set this option to change the default
temperature.
Indicator = cold water.
The display shows the set temperature.
www.electrolux.com10
Table of contents
Other Electrolux Washer manuals
Electrolux
Electrolux EWFLS70J IW Service manual
Electrolux
Electrolux EW6T5226C5 User manual
Electrolux
Electrolux EWT 1100 User manual
Electrolux
Electrolux Front load washer User manual
Electrolux
Electrolux W475N User manual
Electrolux
Electrolux FOM 71 CLS User manual
Electrolux
Electrolux EWG 12450 W User manual
Electrolux
Electrolux EWC 1150 User manual
Electrolux
Electrolux EW6T4261 User manual
Electrolux
Electrolux EWT 1215 User manual
Electrolux
Electrolux EWF 6120 W User User manual
Electrolux
Electrolux W555H User manual
Electrolux
Electrolux EWF12935S User manual
Electrolux
Electrolux EWS 125416 A User manual
Electrolux
Electrolux EWS 1030 User manual
Electrolux
Electrolux EWF 12270W User manual
Electrolux
Electrolux W465H User manual
Electrolux
Electrolux EWT 136551 W User manual
Electrolux
Electrolux EW 1547 F Quick guide
Electrolux
Electrolux WASL5T300 User manual
Popular Washer manuals by other brands
Tricity Bendix
Tricity Bendix AW 1000 W Operating & installation instructions
Panasonic
Panasonic NA-F60L5WRB operating instructions
GE
GE WSLP1500 Dimensions and installation information
Bosch
Bosch WAN2829BSN User manual and installation instructions
LG
LG TV2516DV3B owner's manual
LG
LG TH2517DSAV owner's manual
