Electrolux EWN 14991 S User manual

User Manual

EWN 14991 W - EWN 14991 S

Washing Machine

132972250 EN.qxd 16/01/2008 10.53 Pagina 1

132972250 EN.qxd 16/01/2008 10.53 Pagina 2

electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will

provide you with lots of pleasure in the future. The Electrolux ambition is to offer a

wide variety of quality products that make your life more comfortable. You find

some examples on the cover in this manual. Please take a few minutes to study

this manual so that you can take advantage of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-

Mind. Good luck!

132972250 EN.qxd 16/01/2008 10.53 Pagina 3

4 contents electrolux

Contents

Safety information..............................5

Product description ...........................7

Control panel.....................................8

Use....................................................9

Washing hints ..................................22

International wash code symbol ......25

Washing programme ..................26-27

Programme information ...................29

Care and cleaning ...........................30

Something not working....................34

Techical data ...................................38

Consumption values ........................39

Installation .......................................40

Environment concerns.....................46

Guarantee conditions ......................47

Customer service centres................49

The following symbols are used in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

132972250 EN.qxd 16/01/2008 10.53 Pagina 4

safety information electrolux 5

Safety Information

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and safety

features. Save these instructions

and make sure that they remain

with the appliance if it is moved or

sold, so that everyone using it

through its life will be properly

informed on appliance use and

safety.

General safety

●It is dangerous to alter the

specifications or attempt to modify

this product in any way.

●During high temperature wash

programmes the door glass may get

hot. Do not touch it!

●Make sure that small pets do not

climb into the drum. To avoid this,

please check into the drum before

using.

●Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

●Only use the advised quantities of

fabric softener and detergent.

Damage to the fabric can ensue if

you over-fill. Refer to the

manufacturer’s recommendations of

quantities.

●Wash small items such as socks,

laces, washable belts etc in a

washing bag or pillow case as it is

possible for such items to slip down

between the tub and the inner drum.

●Do not use your washing machine to

wash articles with whalebones,

material without hems or torn

material.

●Always unplug the appliance and

turn off the water supply after use,

clean and maintenance.

●Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

●This appliance is provided with a

white drum light. It is class 1, in

accordance with IEC 60825-1:1993

+ A1:1997 + A2:2001 standard.

Should the appliance drum light

need to be replaced, this must be

carried out by a Service Centre.

Installation

●This appliance is heavy. Care should

be taken when moving it.

●When unpacking the appliance,

check that it is not damaged. If in

doubt, do not use it and contact the

Service Centre.

●All packing and transit bolts must be

removed before use. Serious

damage can occur to the product

and to property if this is not adhered

to. See relevant section in the user

manual.

●After having installed the appliance,

check that it is not standing on the

inlet and drain hose and the worktop

is not pressing the electrical supply

cable.

●If the machine is situated on a

carpeted floor, please adjust the feet

132972250 EN.qxd 16/01/2008 10.53 Pagina 5

6 safety information electrolux

in order to allow air to circulate freely

●Always be sure, that there is no

water leakage from hoses and their

connections after the installation.

●If the appliance is installed in a

location subject to frost, please read

the “dangers of freezing”chapter.

●Any plumbing work required to install

this appliance should be carried out

by a qualified plumber or competent

person.

●Any electrical work required to install

this appliance should be carried out

by a qualified electrician or

competent person.

Use

●This appliance is designed for

domestic use. It must not be used

for purposes other than those for

which it was designed.

●Only wash fabrics which are

designed to be machine washed.

Follow the instructions on each

garment label.

●Do not overload the appliance. See

the relevant section in the user

manual.

●Before washing, ensure that all

pockets are empty and buttons and

zips are fastened. Avoid washing

frayed or torn articles and treat

stains such as paint, ink, rust, and

grass before washing. Underwired

bras must NOT be machine washed.

●Garments which have been in

contact with volatile petroleum

products should not be machine

washed. If volatile cleaning fluids are

used, care should be taken to

ensure that the fluid is removed from

the garment before placing in the

machine.

●Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

●Never use the washing machine if

the power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the washing machine is

accessible.

Child safety

●This washing machine is not

intended for use by young children

or infirm persons without

supervision.

●Young children should be supervised

to ensure that they do not play with

the appliance.

●The packaging components (e.g.

plastic film, polystyrene) can be

dangerous to children - danger of

suffocation! Keep them out of

children’s reach

●Keep all detergents in a safe place

out of children’s reach.

●Make sure that children or pets do

not climb into the drum. To avoid this

the machine incorporates special

feature. To activate this device, rotate

the button (without pressing it) inside

the door clockwise until the groove

is horizontal. If necessary use a coin.

To disable this device and restore

the possibility of closing the door,

rotate the button anti-clockwise until

the groove is vertical.

P1076

132972250 EN.qxd 16/01/2008 10.53 Pagina 6

electrolux product description 7

Product description

Detergent dispenser drawer

Control panel

Door opening handle

Drum light

Drain pump

Adjustable feet

Prewash

Wash

Fabric Softener

EWN 14991 W

Start/

Pause

Time

Manager

Temp . Spin OK

Option

Cottons

Economy

rain

Handwash

Spin

Rinses

Blanket

Synthetics

Cottons Time

Manager

Sensitive

plus

elicates

Favourite

Silk

14 min

Specials

1 2

EN001

Detergent dispenser drawer

Your new appliance meets all modern requirements for effective treatment of laundry

with low water, energy and detergent consumption.

The New Jet system allows total use of detergent and reduces water consumption

so saving energy.

132972250 EN.qxd 16/01/2008 10.53 Pagina 7

8electrolux control panel

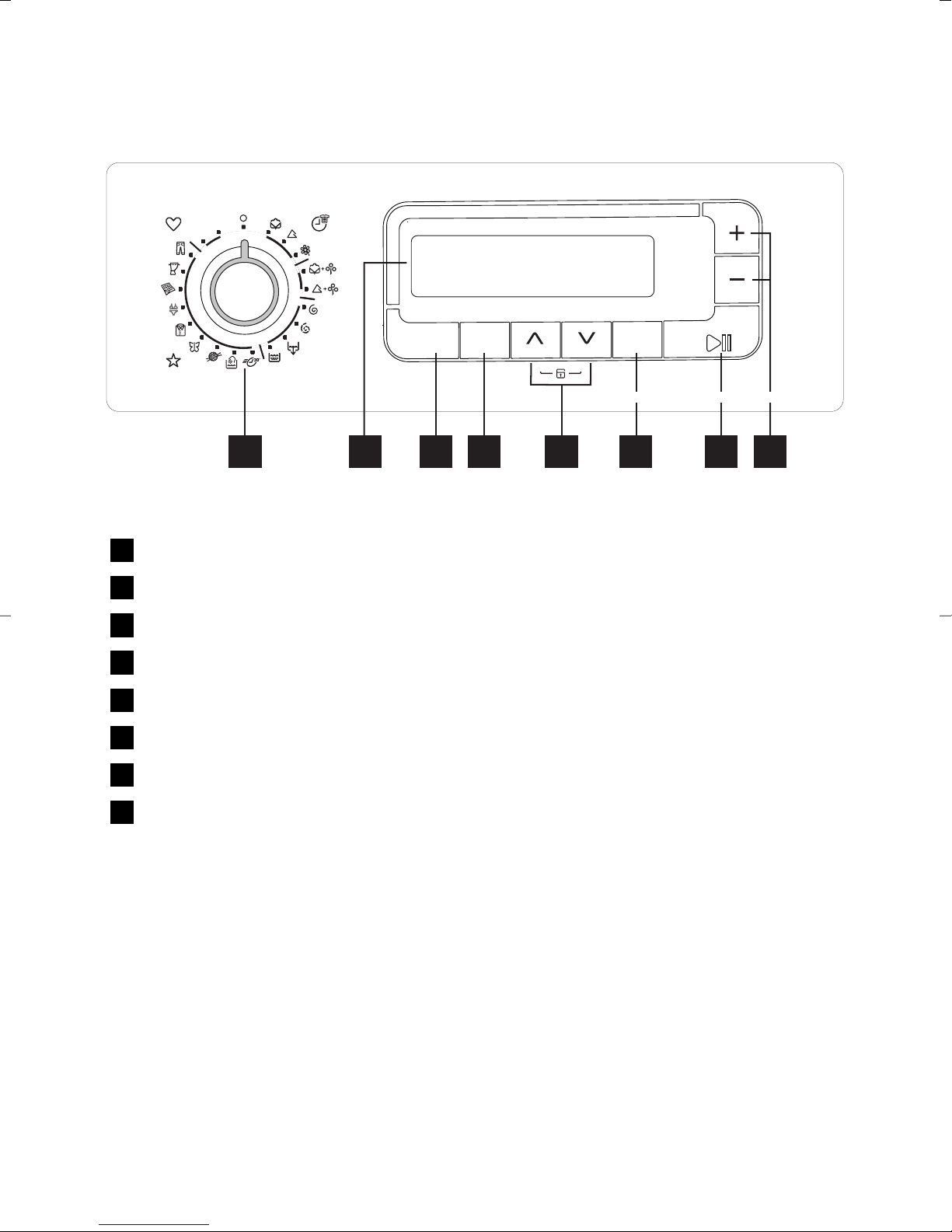

Control panel

Programme selector dial

Display

Temperature button

Spin reduction button

Options buttons

Confirm button

Start/Pause button

Time manger buttons

1 4 5 73 6 82

Start/

Pause

Time

Manager

Temp. Spin OK

Option

EWN 14991 W

8Kg irect Spray

Favourite

Special

Time

Manager

132972250 EN.qxd 16/01/2008 10.53 Pagina 8

use electrolux 9

Use

First Use

●Ensure that the electrical and water

connections comply with the

installation instructions.

●Remove the polystryrene block and

any material from the drum.

●Run a cotton cycle at 95°C, without

any laundry in the machine, to

remove any manufacturing residue

from the drum and tub.

Setting the language

When switching on the appliance for the

first time, by turning the programme

selector dial, you must set the language in

which you want the indicators in the

display to appear. When the appliance is

switched on again all indicators in the

display will appear in this language.

Important!

If the display is not showing any language,

the appliance has already been switched

on once. In such case, if you would

change the language setting, press at the

same time Tem p . and Spin buttons for 6

seconds to activate the menu language.

By pressing the Option buttons

you can scroll all the available languages.

Press the Ok button twice to confirm your

choice.

Setting the time

After having chosen the language you

must set the time prior to the first wash

and when changing to and from daylight

savings time.

The clock setting permits you to

modify/set up the current time. It is

important to keep it updated as the

current END Cycle Time depends on it.

With a short/single time pressure of the

Option buttons, the time varies

minute by minute. With a continue

pressure of the same buttons, the time

varies 10 minutes by 10 minutes.

Press the Ok button to fix the current time.

Daily Use

Customize your appliance

This appliance is provided of a «settings»

menu that allows you to modify the

factory settings as you want.

When you switch on the machine, by

turning the programme selector dial,

press the Option buttons to

activate the Options menu. By pressing

again the same buttons you can move

through all the available options till when

you locate the Settings menu. Press

Ok to access in the menu. Use again

Option buttons to scroll all the

settings and press Ok button to confirm

your choice.

Setting the sound volume

The sound setting permits you to modify

the volume of the sound emitter. By

pressing the Option buttons,

you can choose between different

volume levels from 0to 9(0 = no sound;

9 = max.).

Press Ok button to confirm your choice.

Setting the brightness

The Brightness setting allows you to

modify the backlight intensity of the

display.

By pressing the Option buttons,

you can increase or decrease the

brightness.

132972250 EN.qxd 16/01/2008 10.53 Pagina 9

10 electrolux use

You can choose between different levels

from 0to 9(0 = min. - 9 = max.).

Press Ok button to confirm your choice.

Setting the contrast

The Contrast setting allows you to

modify the optical characteristic of the

display.

By pressing the Option buttons,

you can increase or decrease the

contrast.

You can choose between different levels

from 0to 9(0 = min. - 9 = max.).

Press Ok button to confirm your choice.

Reset settings

The Reset Settings setting function

allows you to re-apply the factory

settings.

Press Ok button to activate this

function.

Press Ok button to confirm your choice.

Return to main menu

This setting function allows you to return

to the options menu.

Locate the Back option by

pressing the Option .

Press Ok button to confirm your choice.

Acoustic signals

The machine is provided of an acoustic

device, which sounds in the following

cases:

●when the appliance is switched on

●by pressing the Start/Pause button

●at the end of the cycle

●in the event of operating problems

If you want disable the acoustic

signals, except for the event of

operating problems, please refer to

the previous chapter «setting the

sound volume».

Child lock: your appliance is

provided of CHILD SAFETY LOCK,

which permits you to leave the

appliance not supervised with the door

closed without having the worry that

children might be injured by or cause

damage to the appliance.

Set this option before pressing the

Start/Pause and after having selected

the required programme wash.

This function remains enable also when

the washing machine is not working.

Setting Child lock option:

• press the Option buttons to

activate the options menu

• by pressing the Up or Down

locate the Child lock option

• press the Ok button to enable this

option. The corresponding icon

changes your status from Off to On

and the following message appears

on the display: «Press and

together for 5 seconds to unlock

machine.».

• by pressing Temp. or Spin button the

display returns the default status.

Press and together together

for 5 seconds to unlock machine.

Temp. Spin Option Ok

Time

manager

Start/

Pause

Chlid lock

End Time

Save Favourite

Off On

132972250 EN.qxd 16/01/2008 10.53 Pagina 10

Other manuals for EWN 14991 S

This manual suits for next models

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux EW6FN528WU User manual

Electrolux

Electrolux WE 170 P User manual

Electrolux

Electrolux EWF 10570 W User manual

Electrolux

Electrolux EWF 1698 HEW User manual

Electrolux

Electrolux EIFLW55HIW - 27" Front-Load Washer User manual

Electrolux

Electrolux EW 1134 F Quick guide

Electrolux

Electrolux Affinity Setup guide

Electrolux

Electrolux EWF10746 User manual

Electrolux

Electrolux EW 770 F User manual

Electrolux

Electrolux EXWADRGTT1517 User manual

Electrolux

Electrolux EWS 106410 W User manual

Electrolux

Electrolux EW6F5943FB User manual

Electrolux

Electrolux LAVAMAT 42230 User manual

Electrolux

Electrolux EW6F5247G2 User manual

Electrolux

Electrolux EA2F6820CF User manual

Electrolux

Electrolux Lavamat 60800 Operation manual

Electrolux

Electrolux EWF8025DGWA User manual

Electrolux

Electrolux WWF7524N3WA User manual

Electrolux

Electrolux EWT1074M5WA User manual

Electrolux

Electrolux EWT 0862EWW User manual

Electrolux

Electrolux EWF 1287 HDW2 User manual

Electrolux

Electrolux EWF 1084BW User manual

Electrolux

Electrolux EWF 16781 W User manual

Electrolux

Electrolux EWF10841 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
