1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible if an incorrect installation and use causes

injuries and damages. Always keep the instructions with

the appliance for future reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

•Do not let children play with the appliance.

•Children of less than 3 years should be kept away

unless continuously supervised.

•Keep all packaging away from children.

•Keep all detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•Cleaning and user maintenance shall not be made by

children without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Obey the maximum load volume of 7 kg (refer to the

“Programme chart” chapter).

•The operating water pressure (minimum and maximum)

must be between 0,5 bar (0,05 MPa) and 8 bar (0,8

MPa).

•The ventilation openings in the base (if applicable) must

not be obstructed by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

ENGLISH 3

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

•Do not use water spray and steam to clean the

appliance.

•Clean the appliance with a moist soft cloth. Only use

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts. When you move

the appliance again you must block the

drum.

• Always be careful when you move the

appliance because it is heavy. Always

wear safety gloves.

• Do not install or use a damaged

appliance.

• Obey the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C or where it is exposed to the

weather.

• Make sure that the floor where you

install the appliance is flat, stable, heat

resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

carpet.

• Do not install the appliance where the

appliance door can not be fully

opened.

2.2 Electrical Connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

mains plug and to the mains cable.

Should the mains cable need to be

replaced, this must be carried out by

our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Only for UK and Ireland: The appliance

has a 13 amp mains plug. If it is

necessary to change the fuse in the

mains plug, use a 13 amp ASTA (BS

1362) fuse.

• This appliance complies with the E.E.C.

Directives.

2.3 Water connection

• Make sure not to cause damage to the

water hoses.

• Before you connect the appliance to

new pipes or pipes not used for a long

time, let the water flow until it is clean.

• The first time you use the appliance,

make sure that there is no leakage.

www.electrolux.com4

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• Use this appliance in a household only.

• Obey the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that you remove all metal

objects from the laundry.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

• Do not touch the glass of the door

while a programme operates. The

glass can be hot.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

3. PRODUCT DESCRIPTION

3.1 Appliance overview

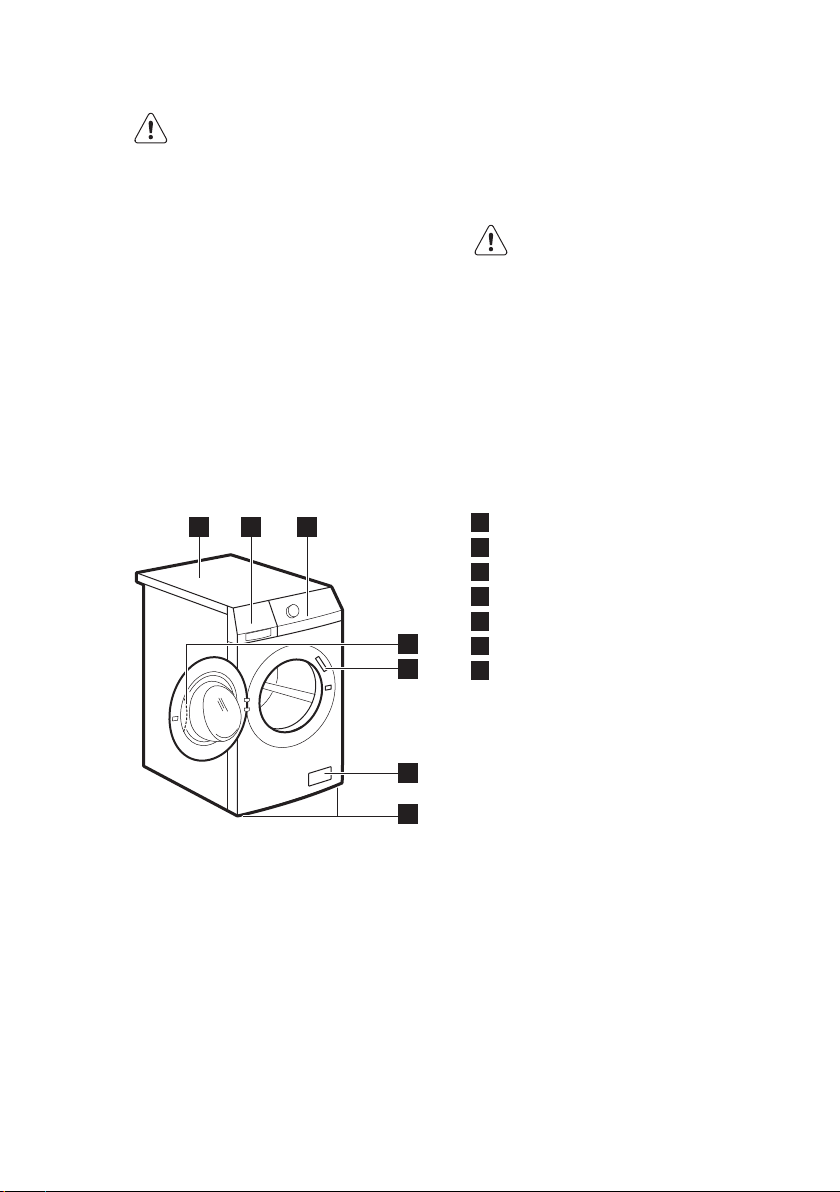

1 2 3

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Rating plate

6Drain pump filter

7Feet for the appliance level

3.2 Fixing plate kit (4055171146)

Available from your authorized dealer.

If you install the appliance on a plinth,

secure the appliance in the fixing plates.

Read carefully the instructions supplied

with the accessory.

ENGLISH 5

4. CONTROL PANEL

4.1 Control panel description

repm

eru

épmeT

ner

egufirtneC

egar

ssE

letstiutratS

réf

fidtrapéD

jirvkjirtS

egas

elicaF

leopSartxE

sulPega

niR

sawr

egavalérP

regana

Mem

iT ezua

P/trat

uaP

/trapéD

Jeans

Wol/Handwas

Laine/Lavage à la main

Fijne Was

Délicats

Dekbed

Couette

Outdoor

Sport

Synthetica

Synthétiques

Katoen

Coton

Opfrissen

Rafraîchir

Synthetica

Synthétiques

Katoen/Coton

Centr./Pompen

Essorage/

Vidange

Spoelen

Rinçage

14 Min.

Aan/Uit Marche/Arrêt

Katoen Eco

Coton Eco

53 4

1011

1 2

1On Off button (Aan/Uit Marche/

Arrêt)

2Programme knob

3Spin reduction touchpad

(Centrifugeren - Essorage)

4Temperature touchpad

(Temperatuur - Température)

5Display

6Prewash touchpad (Voorwas -

Prélavage)

7Delay start touchpad (Startuitstel -

Départ différé)

8Extra rinse touchpad (Extra

Spoelen - Rinçage Plus)

9Easy iron touchpad (Strijkvrij -

Repassage Facile)

10 Start/Pause touchpad (Start/

Pauze - Départ/Pause)

11 Time Manager touchpads

(TimeManager)

www.electrolux.com6

4.2 Display

A B C D

A) The Temperature area:

: Temperature indicator

: Cold water indicator

B) : Time Manager indicator.

C) The time area:

• : the programme duration

• : the delay start

• : the alarm codes

• : the message of error

• : the programme is completed.

D) : the child safety lock indicator.

E) Washing indicators:

• : the washing phase

• : the rinses phase

• : the spin phase

• : the steam phase

• : the Extra rinse permanent

option.

F) The spin area:

• : the Spin speed indicator

• : the No Spin indicator

• : the Rinse Hold indicator

• : the Extra Silent indicator.

G) : the Door locked indicator

5. PROGRAMMES

5.1 Programme Chart

Programme

Temperature range

Maximum

load

Maximum

spin

speed

Programme description

(Type of load and soil level)

Washing programmes

Katoen - Coton

90°C - Cold

7 kg

1600 rpm

White cotton and coloured cotton. Normal

soil and light soil.

Katoen Eco - Co-

ton Eco1)

60°C - 40°C

7 kg

1600 rpm

White cotton and colour-fast cotton. Normal

soil. The energy consumption decreases and the

time of the washing programme is extended.

ENGLISH 7

Programme

Temperature range

Maximum

load

Maximum

spin

speed

Programme description

(Type of load and soil level)

Synthetica - Synthé-

tiques

60°C - Cold

3.5 kg

1200 rpm

Synthetic items or mixed fabric items. Nor-

mal soil.

Fijne Was - Délicats

40°C - Cold

3.5 kg

1200 rpm

Delicate fabrics as acrylics, viscose, poly-

ester items. Normal soil.

Wol/Handwas -

Laine/Lavage à la main

40°C - Cold

2 kg

1200 rpm

Machine washable wool, hand washable

wool and delicate fabrics with «hand wash-

ing» care symbol.2)

Jeans

60°C - Cold

7 kg

1200 rpm

Items in denim and jersey. Also for dark col-

oured items.

Spoelen - Rinçage 7 kg

1600 rpm

To rinse and spin the laundry. All fabrics.

Centr./Pompen -

Essorage/Vidange3)

7 kg

1600 rpm

To spin the laundry and to drain the water in the

drum. All fabrics.

Dekbed - Couette

60°C - 30°C

2 kg

800 rpm

Special programme for one synthetic blanket,

duvet, bedspread and so on.

Outdoor - Sport

30°C

2.5 kg

800 rpm

Synthetic and delicate items. Light soil items

or items to refresh.

14 min.

30°C

1.5 kg

800 rpm

Synthetic and mixed fabric items. Light soil

and items to freshen up.

Steam programmes4)

Steam can be used for dried, washed or worn once laundry. These programmes can

reduce creases and odours and make your laundry more soft.

Do not use any detergent. If necessary, remove stains by washing or using localized

stain removal.

Steam programmes do not perform any hygienic cycle.

Do not set a Steam programme with these types of items:

• items where it is not specified on the care label as being suitable for tumble drying.

• all items with plastic, metal, wooden parts or alike.

Stoom Opfrissem

-Vapeur Rafraîchir

40°C

1.5 kg Steam programme for cotton and synthetic

items. This cycle removes odours from the laun-

dry.5)

www.electrolux.com8

Programme

Temperature range

Maximum

load

Maximum

spin

speed

Programme description

(Type of load and soil level)

Stoom synthetica

- Vapeur Synthétiques

40°C

1.5 kg Steam programme for synthetic items. This cy-

cle helps to dewrinkle the laundry.

Stoom katoen -

Vapeur Coton

40°C

1.5 kg Steam programme for cottons. This cycle helps

to dewrinkle the laundry.

1) Standard programmes for the Energy Label consumption values. According to regu-

lation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme»

and the «Standard 40°C cotton programme». They are the most efficient programmes in terms

of combined energy and water consumption for washing normally soiled cotton laundry.

The water temperature of the washing phase may differ from the temperature de-

clared for the selected programme.

2) During this cycle the drum rotates slowly to ensure a gentle washing. It can seem that the

drum doesn't rotate or doesn't rotate properly. Consider this as a normal functioning of the ap-

pliance.

3) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

4) If you set a Steam programme with dried laundry, at the end of the cycle the laundry could

be humid. It is better to expose the items to the fresh air for about 10 minutes to let the humid-

ity dry. When the programme is completed, quickly remove the laundry from the drum. After a

steam cycle, items may to be ironed anyway, but with less effort!

5) Steam does not remove animal odours.

Programme options compatibility

Programme

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■

1) ■ ■ ■

■ ■

ENGLISH 9

Programme

■ ■ ■

■ ■ ■ ■

1) Set the spin speed. Make sure it agrees with the laundry. If you set No Spin option the only

drain phase is available.

6. CONSUMPTION VALUES

The data of this table are approximate. Different causes can change the

data: the quantity and type of laundry, the water and ambient temperature.

At programme start the display shows the duration programme for the

maximum load capacity.

During the washing phase the programme duration is automatically calcu-

lated and can be greatly reduced if the laundry load is lower than the maxi-

mum load capacity (e.g. Cotton 60°C, maximum load capacity 7 kg, the

programme duration exceeds 2 hours; real load 1 kg, the programme du-

ration don’t reach 1 hour).

When the appliance is calculating the real programme duration a dot blinks

in the display.

Programmes Load

(kg)

Energy

consump-

tion (kWh)

Water con-

sumption

(litre)

Approxi-

mate pro-

gramme

duration

(minutes)

Remaining

moisture

(%)1)

Katoen - Coton 60

°C 7 1.25 70 146 44

Katoen - Coton 40

°C 7 0.78 70 161 44

Synthetica - Syn-

thétiques 40 °C 3.5 0.47 50 171 35

Fijne Was - Délicats

40 °C 3.5 0.53 62 121 35

Wol/Handwas -

Laine/Lavage à la

main 30 °C

2 0.25 45 58 30

Standard cotton programmes

Standard 60 °C

cotton 7 0.72 47 232 44

www.electrolux.com10

Table of contents

Languages:

Other Electrolux Washer manuals

Electrolux

Electrolux EW7F6448W4 User manual

Electrolux

Electrolux WH 1075 User manual

Electrolux

Electrolux W555H User manual

Electrolux

Electrolux EWG 14550 W User manual

Electrolux

Electrolux EWF1141SESA User manual

Electrolux

Electrolux EW 510 F Quick guide

Electrolux

Electrolux EW6T4622DC User manual

Electrolux

Electrolux WASL 3 T User manual

Electrolux

Electrolux EWT 9120 W User manual

Electrolux

Electrolux EWF1030 User manual

Electrolux

Electrolux EWF 146410 A User manual

Electrolux

Electrolux EW 962 F User manual

Electrolux

Electrolux EWF 1698 HEW User manual

Electrolux

Electrolux WASL2E202 User manual

Electrolux

Electrolux EW6FN428BC User manual

Electrolux

Electrolux EWFLW65H - 27'' Front-Load Washer Operating manual

Electrolux

Electrolux EWF 169547 W User manual

Electrolux

Electrolux EWP10742 User manual

Electrolux

Electrolux EW2F672S User manual

Electrolux

Electrolux EIFLS60LSS0 User manual

Electrolux

Electrolux EWF 1687 HDW User manual

Electrolux

Electrolux WH34 User manual

Electrolux

Electrolux WH823 Instruction Manual

Electrolux

Electrolux Swissline SL EWF 1880 Operation manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
