Electrolux EWF 1476 GDW User manual
EWF 1476 GDW
EN Washing Machine User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMMES ................................................................................................ 8
6. CONSUMPTION VALUES................................................................................11
7. OPTIONS..........................................................................................................12
8. SETTINGS........................................................................................................13
9. BEFORE FIRST USE....................................................................................... 14
10. DAILY USE..................................................................................................... 14
11. HINTS AND TIPS........................................................................................... 18
12. CARE AND CLEANING..................................................................................19
13. TROUBLESHOOTING....................................................................................23
14. TECHNICAL DATA.........................................................................................25
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Children aged 3 years and under must be kept away
from this appliance when it is in operation at all times.
•Keep all packaging away from children and dispose of
it appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, this should
be activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•Do not change the specification of this appliance.
•Obey the maximum load volume of 7 kg (refer to the
“Programme chart” chapter).
•The operating water pressure (minimum and
maximum) must be between 0,5 bar (0,05 MPa) and 8
bar (0,8 MPa).
•The ventilation opening in the base must not be
covered by a carpet, mat, or any floor covering.
ENGLISH 3
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•Clean the appliance with a moist cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts in a safe place.
If the appliance is to be moved in
future they must be reattached to lock
the drum to prevent internal damage.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Do not install or use the appliance
where the temperature can be less
than 0°C or where it is exposed to the
weather.
• The floor area where the appliance is
to be installed must be flat, stable,
heat resistant and clean.
• Make sure that there is air circulation
between the appliance and the floor.
• Do not install the appliance directly
over the floor drain.
• Adjust the feet to have the necessary
space between the appliance and the
flooring.
• Do not install the appliance where the
appliance door cannot be fully
opened.
• Do not put a container to collect
possible water leakage under the
appliance. Contact the Authorised
Service Centre to ensure which
accessories can be used.
2.2 Electrical connection
• The appliance must be earthed.
• Always use a correctly installed
shockproof socket.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
www.electrolux.com4
• Do not touch the mains cable or the
mains plug with wet hands.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
2.4 Use
WARNING!
Risk of injury, electrical
shock, fire, burns or damage
to the appliance.
• This appliance is for household use
only.
• Follow the safety instructions on the
detergent packaging.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Make sure that all metal objects are
removed from the laundry.
• Do not wash fabrics which are heavily
soiled with oil, grease or other greasy
substances. It can damage rubber
parts of the washing machine.
Prewash such fabrics by hand before
loading them into the washing
machine.
• Do not touch the glass door while a
programme is in operation. The glass
can get hot.
2.5 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains electrical and water supplies.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the drum.
• Dispose of the appliance in
accordance with local requirements
for the disposal of Waste Electrical
and Electronic Equipment (WEEE).
ENGLISH 5
3. PRODUCT DESCRIPTION
3.1 Appliance overview
1 2 3
5
6
7
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Rating plate
6Drain pump filter
7Feet for levelling the appliance
3.2 How to activate the child
safety device
This device prevents children or pets
from being closed in the drum.
Turn the device clockwise, until the
groove is horizontal.
You cannot close the door.
To close the door, turn the device
anticlockwise until the groove is vertical.
3.3 Fixing plate kit
(4055171146)
Available from your authorised dealer.
If you install the appliance on a plinth,
secure the appliance in the fixing plates.
Read carefully the instructions supplied
with the accessory.
www.electrolux.com6

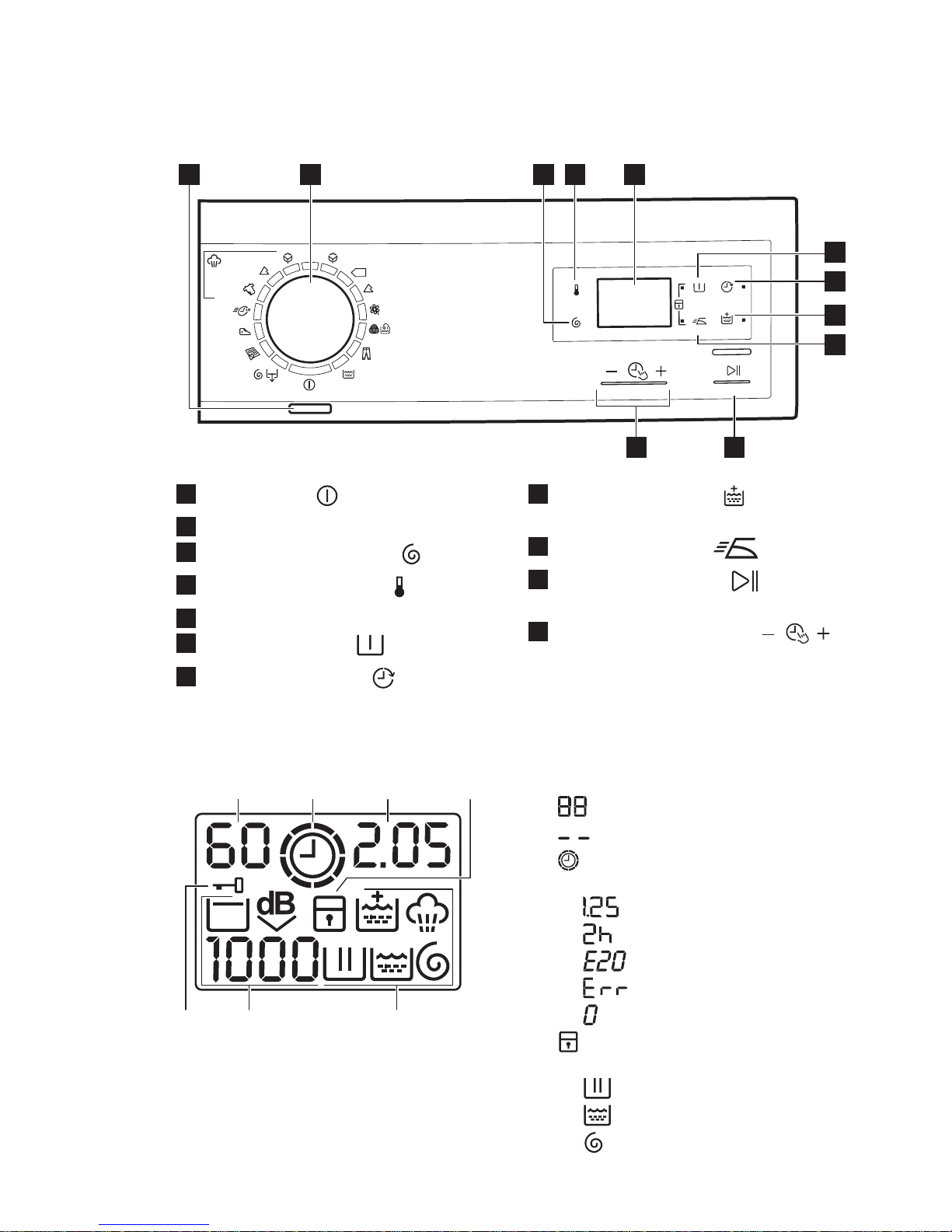

4. CONTROL PANEL
4.1 Control panel description
Start/Pauze
TimeManager
Jeans
Outdoor
Fijne Was
Synthetica
Katoen
Opfrissen
Synthetica
Katoen
Dekbed
Centrif./
Pompen
Spoelen
Aan/Uit
14 Min.
Wol/Handwas
Katoen Eco
Temp.
Centrif. Extra
Spoelen
Startuitstel
Strijkvrij
Voorwas
53 4
1011
8
7
9
6
1 2
1On/Off button (Aan/Uit)
2Programme knob
3Spin reduction touchpad (Centrif.)
4Temperature touchpad (Temp.)
5Display
6Prewash touchpad (Voorwas)
7Delay start touchpad (Startuitstel)
8Extra rinse touchpad (Extra
Spoelen)
9Easy iron touchpad (Strijkvrij)
10 Start/Pause touchpad (Start/
Pauze)
11 Time Manager touchpads
(TimeManager)
4.2 Display
A B C D
E
FG
A. The Temperature area:
: Temperature indicator
: Cold water indicator
B. : Time Manager indicator.
C. The time area:
•: the programme duration
• : the delay start
• : the alarm codes
• : the message of error
•: the programme is completed.
D. : the child safety lock indicator.
E. Washing indicators:
• : the washing phase
• : the rinses phase
• : the spin phase
ENGLISH 7
• : the steam phase
• : the Extra rinse permanent
option.
F. The spin area:
• : the Spin speed indicator
• : the No Spin indicator
• : the Rinse Hold indicator
• : the Extra Silent indicator.
G. : the Door locked indicator
• Indicator on: the appliance door is
locked. You cannot open the
door.
• Indicator flashing: the appliance
door is opening. Wait a few
minutes until the door unlocks.
• Indicator off: the appliance door is
unlocked. You can open the door.
5. PROGRAMMES
5.1 Programme Chart
Programme
Temperature range
Maximum
load
Maximum
spin
speed
Programme description
(Type of load and soil level)
Washing programmes
Katoen
90°C - Cold
7 kg
1400 rpm
White cotton and coloured cotton. Normal
soil and light soil.
Katoen Eco1)
60°C - 40°C
7 kg
1400 rpm
White cotton and fast-coloured cotton. Nor‐
mal soil. The energy consumption decreases
and the time of the washing programme is ex‐
tended.
Synthetica
60°C - Cold
3.5 kg
1200 rpm
Synthetic items or mixed fabric items. Nor‐
mal soil.
Fijne Was
40°C - Cold
3.5 kg
1200 rpm
Delicate fabrics such as acrylics, viscose
and mixed fabrics requiring a mild washing.
Normal soil.
Wol/Handwas
40°C - Cold
2 kg
1200 rpm
Machine washable wool, hand washable
wool and other fabrics with «hand washing»
care symbol2).
Jeans
60°C - Cold
7 kg
1200 rpm
Items in denim and jersey. Also for dark col‐
oured items.
Spoelen 7 kg
1400 rpm
To rinse and spin the laundry. All fabrics, ex‐
cept woollens and very delicate fabrics. Re‐
duce the spin speed accordingly to the type of
laundry.
Centrif./Pompen3) 7 kg
1400 rpm
To spin the laundry and to drain the water in
the drum. All fabrics, except woollens and
delicate fabrics.
www.electrolux.com8
Programme
Temperature range
Maximum
load
Maximum
spin
speed
Programme description
(Type of load and soil level)
Dekbed
60°C - 30°C
2 kg
800 rpm
Special programme for one synthetic blanket,
duvet, bedspread and so on.
Outdoor
30°C
2.5 kg
800 rpm
Synthetic and delicate items. Light soil items
or items to refresh.
14 Min.
30°C
1.5 kg
800 rpm
Synthetic and mixed fabric items. Light soil
and items to freshen up.
Steam programmes4)
Steam can be used for dried, washed or worn once laundry. These programmes can
reduce creases and odours and make your laundry softer.
Do not use any detergent. If necessary, remove stains by washing or using localized
stain removal.
Steam programmes do not perform any hygienic cycle.
Do not set a Steam programme with these types of items:
• Items to be washed at a temperature lower than 40°C.
• Items where it is not specified on the care label as being suitable for tumble dry‐
ing.
• All items with plastic, metal, wooden parts or alike.
Opfrissen
40°C
1.5 kg Steam programme for cotton and synthetic
items. This cycle removes odours from the
laundry5).
Synthetica
40°C
1.5 kg Steam programme for synthetic items. This
cycle helps to dewrinkle the laundry.
ENGLISH 9
Programme
Temperature range
Maximum
load
Maximum
spin
speed
Programme description
(Type of load and soil level)
Katoen
40°C
1.5 kg Steam programme for cottons. This cycle
helps to dewrinkle the laundry.
1) Standard programmes for the Energy Label consumption values. According to regu‐
lation 1061/2010, these programmes are respectively the «Standard 60°C cotton pro‐
gramme» and the «Standard 40°C cotton programme». They are the most efficient pro‐
grammes in terms of combined energy and water consumption for washing normally soiled
cotton laundry.
The water temperature of the washing phase may differ from the temperature
declared for the selected programme.
2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the
drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
3) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set
the No Spin option then only the drain phase is available.
4) If you set a Steam programme with dried laundry, at the end of the cycle the laundry
could be humid. It is better to expose the items to the fresh air for about 10 minutes to let
the humidity dry. When the programme is completed, quickly remove the laundry from the
drum. After a steam cycle, items may be ironed however with less effort.
5) Steam does not remove animal odours.
Programme options compatibility
Programme
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
■ ■ ■ ■ ■ ■
■ ■ ■ ■ ■
1) ■ ■ ■
■ ■
■ ■ ■
www.electrolux.com10
Other manuals for EWF 1476 GDW
4
Table of contents
Other Electrolux Washer manuals
Electrolux
Electrolux EIFLS20QS Series User manual
Electrolux
Electrolux EW8T3R562 User manual
Electrolux
Electrolux MWX645RE User manual
Electrolux
Electrolux WT SL4 E 101 User manual
Electrolux
Electrolux EW2F7814FG User manual
Electrolux
Electrolux LAVAMAT 76659 User manual
Electrolux
Electrolux EWF 1476 GDW User manual
Electrolux
Electrolux EWF 14118 User manual
Electrolux
Electrolux EW 813 F Quick guide
Electrolux
Electrolux EWF14023 User manual
Electrolux
Electrolux EW 1230 F Quick guide
Electrolux
Electrolux W555H User manual
Electrolux
Electrolux EWF 1649 User manual
Electrolux
Electrolux EW 510 F Quick guide
Electrolux
Electrolux Frigidaire CTF140FS0 Manual
Electrolux
Electrolux EWF8042R7WB User manual
Electrolux
Electrolux EWF 14591 W User manual
Electrolux
Electrolux LP21Y User manual
Electrolux
Electrolux EWG 12440 W User manual
Electrolux
Electrolux EWP 0862 TDW User manual
Popular Washer manuals by other brands
Tricity Bendix
Tricity Bendix AW 1000 W Operating & installation instructions
Panasonic
Panasonic NA-F60L5WRB operating instructions
GE
GE WSLP1500 Dimensions and installation information
Bosch
Bosch WAN2829BSN User manual and installation instructions
LG
LG TV2516DV3B owner's manual
LG
LG TH2517DSAV owner's manual
