Electrolux EWF 1408 WDL User manual

EWF 1408 WDL

EN Washing Machine User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 6

5. PROGRAMMES ................................................................................................ 8

6. CONSUMPTION VALUES................................................................................10

7. OPTIONS..........................................................................................................11

8. SETTINGS........................................................................................................13

9. BEFORE FIRST USE....................................................................................... 13

10. DAILY USE..................................................................................................... 14

11. HINTS AND TIPS........................................................................................... 18

12. CARE AND CLEANING..................................................................................20

13. TROUBLESHOOTING....................................................................................24

14. EMERGENCY DOOR OPENING................................................................... 27

15. TECHNICAL DATA.........................................................................................27

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety- Gulf

Market

•This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

•Children should be supervised to ensure that they do

not play with the appliance.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Do not change the specification of this appliance.

•Do not exceed the maximum load of 10 kg (refer to the

"Programme chart" chapter).

•The operating water pressure at the water entry point

from the outlet connection must be between 0.5 bar

(0.05 MPa) and 8 bar (0.8 MPa).

•The ventilation opening in the base (if applicable) must

not be covered by a carpet, mat, or any floor covering.

ENGLISH 3

•The appliance must be connected to the water mains

using the new supplied hose sets, or other new hose

sets supplied by the Authorised Service Centre.

•Old hose sets must not be reused.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•Clean the appliance with a moist cloth. Use only

neutral detergents. Do not use abrasive products,

abrasive cleaning pads, solvents or metal objects.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Keep the transit bolts in a safe place.

If the appliance is to be moved in

future they must be reattached to lock

the drum to prevent internal damage.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use a damaged

appliance.

• Follow the installation instruction

supplied with the appliance.

• Do not install or use the appliance

where the temperature can be less

than 0°C or where it is exposed to the

weather.

• The floor area where the appliance is

to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Adjust the feet to have the necessary

space between the appliance and the

flooring.

• Do not install the appliance where the

appliance door cannot be fully

opened.

• Do not put a container to collect

possible water leakage under the

appliance. Contact the Authorised

Service Centre to ensure which

accessories can be used.

2.2 Electrical connection

• The appliance must be earthed.

• Always use a correctly installed

shockproof socket.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

www.electrolux.com4

access to the mains plug after the

installation.

• Do not touch the mains cable or the

mains plug with wet hands.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

2.4 Use

WARNING!

Risk of injury, electrical

shock, fire, burns or damage

to the appliance.

• This appliance is for household use

only.

• Follow the safety instructions on the

detergent packaging.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

• Make sure that all metal objects are

removed from the laundry.

• Do not touch the glass door while a

programme is in operation. The glass

can get hot.

2.5 Internal lights

WARNING!

Risk of injury.

• Visible LED radiation, do not look

directly into the beam.

• The LED lamp is dedicated to drum

lighting. This lamp cannot be reused

for other lighting purposes.

• To replace the internal light, contact

the Authorised Service Centre.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

ENGLISH 5

3. PRODUCT DESCRIPTION

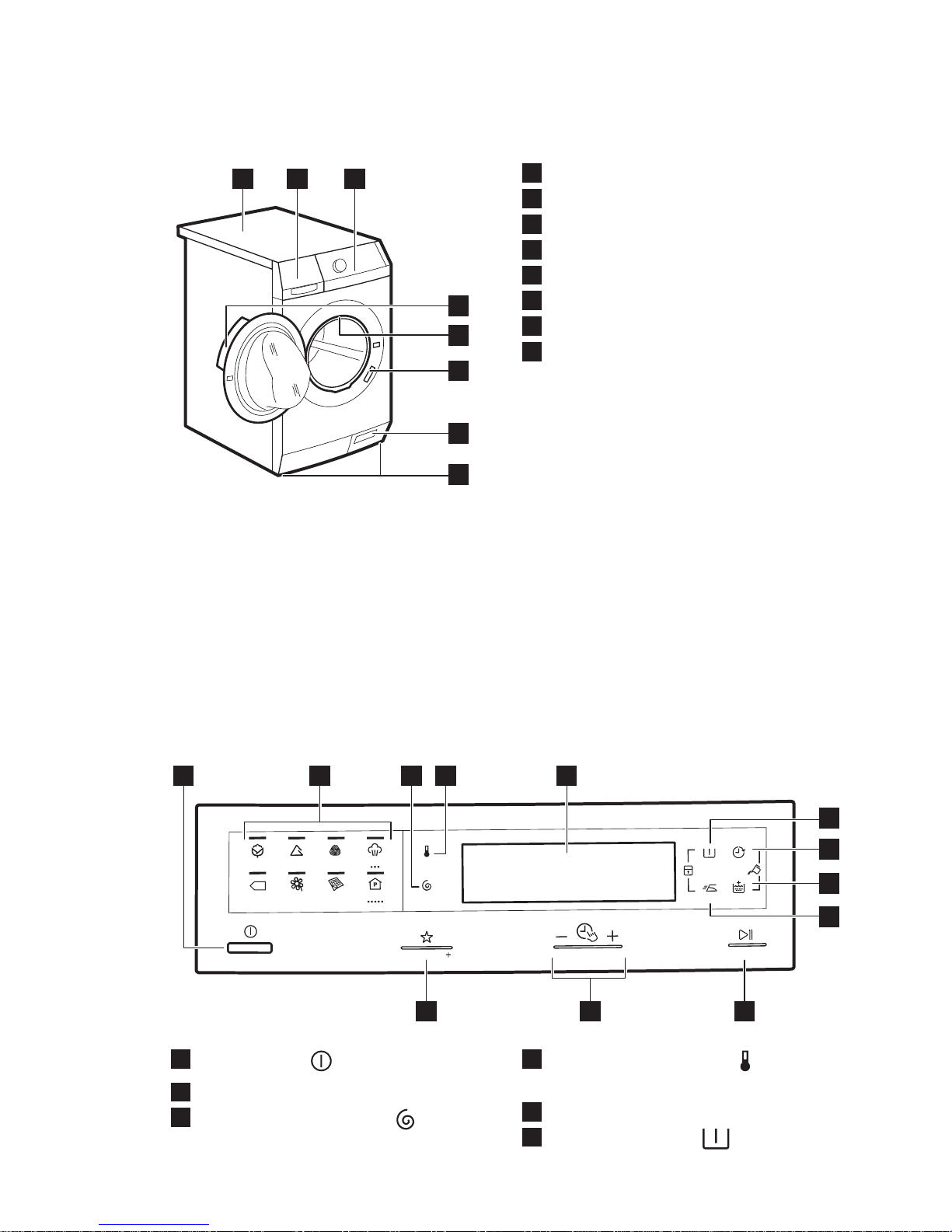

3.1 Appliance overview

1Worktop

2Detergent dispenser

3Control panel

4Door handle

5Internal light

6Rating plate

7Drain pump filter

8Feet for levelling the appliance

3.2 Fixing plate kit

(4055171146)

Available from your authorised dealer.

If you install the appliance on a plinth,

secure the appliance in the fixing plates.

Read carefully the instructions supplied

with the accessory.

4. CONTROL PANEL

4.1 Control panel description

Delay Start

Easy Iron

Extra Rinse

Prewash

Temp.

Spin

Others

Duvet

Steam

Wool/

Handwash

Synthetics

Cottons

Delicates

TimeManager

MyFavourite

AutoOff

Start/Pause

Cottons

Eco

53 4

1012 11

1 2

1On Off button (AutoOff)

2Programme touchpads

3Spin reduction touchpad (Spin)

4Temperature touchpad

(Temperature)

5Display

6Prewash touchpad (Prewash)

www.electrolux.com6

7Delay start touchpad (Delay Start)

8Extra rinse touchpad (Extra

Rinse)

9Easy iron touchpad (Easy Iron)

10 Start/Pause touchpad (Start/

Pause)

11 Time Manager touchpads

(TimeManager)

12 Favourite programme touchpad

(MyFavourite+)

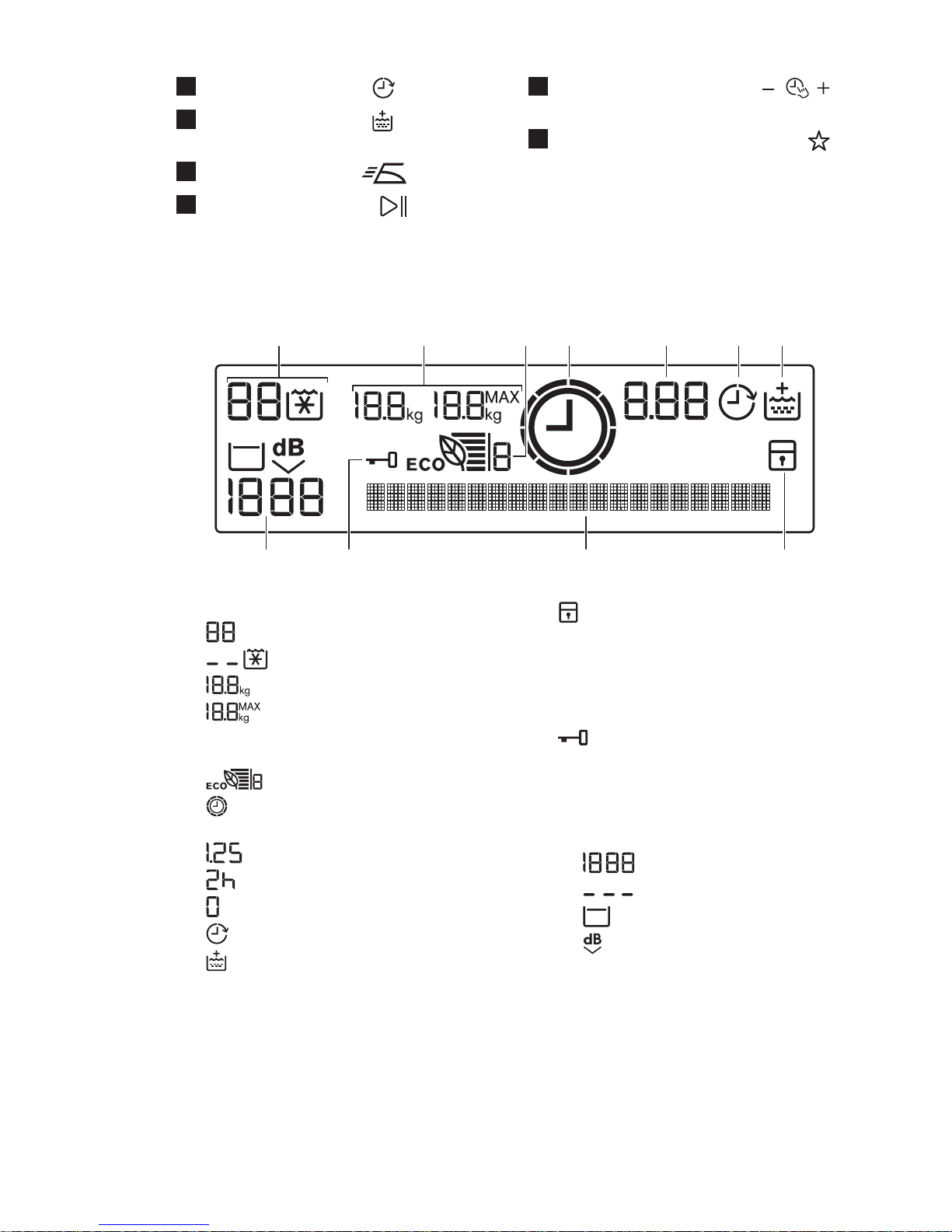

4.2 Display

AB C DEFG

A. The temperature area:

: Temperature indicator.

/ : Cold water indicators.

B. : Laundry weight indicator.

: Maximum load indicator.

The display shows these indicators

when the door is open.

C. : Eco Info indicator.

D. : Time Manager indicator.

E. The time area:

: The programme duration.

: The delay start.

: Programme is completed.

F. : Delay start indicator.

G. : Extra Rinse indicator.

H. : The indicator of child lock on

when you activate this device .

I. The text bar. The text bar shows the

programme status, alarm messages

and other messages that help you to

operate with the appliance.

J. : Door locked indicator.

You cannot open the appliance door

when the indicator is on.

You can open the door only when the

indicator goes off.

K. The spin area:

• : Spin speed indicator.

• : No Spin indicator.

• : Rinse Hold indicator.

• : Extra Silent indicator.

ENGLISH 7

5. PROGRAMMES

5.1 Programme Chart

Programme

Temperature range

Maximum load

Maximum spin

speed

Programme description

(Type of load and soil level)

Washing programmes

Press a programme touchpad one time to set the related programme:

Cottons

90°C - Cold

10 kg

1400 rpm

White cotton and coloured cotton. Nor‐

mal soil and light soil.

Cottons Eco

60° - 40° C

10 kg

1400 rpm

White cotton and fast-coloured cotton.

Normal soil. The energy consumption de‐

creases and the time of the washing pro‐

gramme is extended.

This programme at 60 °C is the reference

programme for energy label data, in com‐

pliance with UAE. S 5010 2:2013.

Synthetics

60° - Cold

4 kg

1200 rpm

Synthetic items or mixed fabric items.

Normal soil.

Delicates

40° - Cold

4 kg

1200 rpm

Delicate fabrics such as acrylics, vis‐

cose, polyester items. Normal soil.

Wool/Handwash

40° - Cold

2 kg

1200 rpm

Machine washable wool, hand washa‐

ble wool and delicate fabrics with «hand

washing» care symbol.1)

Duvet

60° - 30°

4 kg

800 rpm

Special programme for one synthetic

blanket, duvet, bedspread and so on.

Steam

Press again and again this touchpad until you set the desired programme:

Steam programmes2)

Steam can be used for dried, washed or worn once laundry. These programmes can

reduce creases and odours and make your laundry softer.

Do not use any detergent. If necessary, remove stains by washing or using localized

stain removal.

Steam programmes do not perform any hygienic cycle.

Do not set a Steam programme with these types of items:

• Items to be washed at a temperature lower than 40°C.

• Items where it is not specified on the care label as being suitable for tumble dry‐

ing.

• All items with plastic, metal, wooden parts or alike.

www.electrolux.com8

Programme

Temperature range

Maximum load

Maximum spin

speed

Programme description

(Type of load and soil level)

Steam Cottons 1.5 kg Steam programme for cottons. This cycle

helps to dewrinkle the laundry.

Steam Synthetics 1.5 kg Steam programme for synthetic items.

This cycle helps to dewrinkle the laundry.

Steam Refresh 1.5 kg Steam programme for cotton and syn‐

thetic items. This cycle removes odours

from the laundry.3)

Other programmes

Press again and again this touchpad until you set the desired programme:

14 min.

30°

1.5 kg

800 rpm

Synthetic and mixed fabric items. Light

soil and items to freshen up.

Sport Light

30°

2.5 kg

800 rpm

Synthetic and delicate items. Light soil

items or items to refresh.

Jeans

40° - Cold

10 kg

1200 rpm

Items in denim and jersey. Also for dark

coloured items.

Rinse 10 kg

1400 rpm

To rinse and spin the laundry. All fabrics,

except woollens and very delicate fabrics.

Reduce the spin speed accordingly to the

type of laundry.

Spin/Drain4) 10 kg

1400 rpm

To spin the laundry and to drain the water

in the drum. All fabrics, except woollens

and delicate fabrics.

1) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the

drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.

2) If you set a Steam programme with dried laundry, at the end of the cycle the laundry

could be humid. It is better to expose the items to the fresh air for about 10 minutes to let

the humidity dry. When the programme is completed, quickly remove the laundry from the

drum. After a steam cycle, items may be ironed however with less effort.

3) Steam does not remove animal odours.

4) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set

the No Spin option then only the drain phase is available.

Programme options compatibility

Programme

■ ■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■ ■ ■ ■

ENGLISH 9

Programme

■ ■ ■ ■ ■ ■ ■

■ ■ ■ ■ ■

■ ■

14 min. ■ ■ ■ ■

Sport Light ■ ■ ■

Jeans ■ ■ ■ ■ ■

Rinse ■ ■ ■ ■ ■

Spin/Drain1) ■ ■ ■

1) Set the spin speed. Make sure it is suitable for the type of fabric being washed. If you set

the No Spin option then only the drain phase is available.

5.2 Woolmark Apparel Care -

Blue

The wool wash cycle of this machine has

been approved by The Woolmark

Company for the washing of wool

garments labelled as «hand wash»

provided that the garments are washed

according to the instructions issued by

the manufacturer of this washing

machine. Follow the garment care label

for drying and other laundry instructions.

M1144

In UK, Eire, Hong Kong and India the

Woolmark symbol is a certification

trademark.

6. CONSUMPTION VALUES

The data in this table are approximate. Different variables can affect the

data: the quantity and type of laundry, the water and ambient tempera‐

ture.

www.electrolux.com10

Other manuals for EWF 1408 WDL

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux EWT 136511 W User manual

Electrolux

Electrolux Full Size Tumble Action Washer Manual

Electrolux

Electrolux EWT 11730 W User manual

Electrolux

Electrolux EWT 1362 EDW User manual

Electrolux

Electrolux IQ-TOUCH EIFLS55I IW User manual

Electrolux

Electrolux EWW1024P5MB User manual

Electrolux

Electrolux WH6-8CV User manual

Electrolux

Electrolux Zanussi ZWF 12280 W User manual

Electrolux

Electrolux WAL 6 E 201 User manual

Electrolux

Electrolux Swissline GL EWF 1182 Operation manual

Electrolux

Electrolux WE 170 V User manual

Electrolux

Electrolux ENV06 User manual

Electrolux

Electrolux 6000 User manual

Electrolux

Electrolux EWF 87210 W User manual

Electrolux

Electrolux EW2F4722AB User manual

Electrolux

Electrolux EWT654XW User manual

Electrolux

Electrolux EW7F1480BI User manual

Electrolux

Electrolux EWW8024D3WB User manual

Electrolux

Electrolux EWF 1494 DBW User manual

Electrolux

Electrolux EW 859 F User manual

Electrolux

Electrolux AWT 9120 W User manual

Electrolux

Electrolux ews 1042 edu User manual

Electrolux

Electrolux P6000 (Nexus) Series User manual

Electrolux

Electrolux WA GL4 E 201 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
