Electrolux EWF 12780 W User manual

User Manual

EWF 12780 W / EWF 14780 W

Washing Machine

132981910.qxd 31/08/2006 9.23 Pagina 1

132981910.qxd 31/08/2006 9.23 Pagina 2

3electrolux

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will

provide you with lots of pleasure in the future. The Electrolux ambition is to offer a

wide variety of quality products that make your life more comfortable. You find

some examples on the cover in this manual. Please take a few minutes to study

this manual so that you can take advantage of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-

Mind. Good luck!

132981910.qxd 31/08/2006 9.23 Pagina 3

4 contents electrolux

Contents

Safety information..............................5

Product description ...........................7

Control panel.....................................8

Use....................................................9

Washing hints ..................................17

International wash code symbol ......20

Washing programme ..................21-23

Programme information..............24-25

Care and cleaning ...........................26

Something not working....................29

Technical data .................................33

Consumption values ........................34

Installation .......................................36

Environment concerns.....................39

Guarantee conditions ......................40

Customer service centres................41

The following symbols are used in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

132981910.qxd 31/08/2006 9.23 Pagina 4

safety information electrolux 5

Safety Information

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and safety

features. Save these instructions

and make sure that they remain

with the appliance if it is moved or

sold, so that everyone using it

through its life will be properly

informed on appliance use and

safety.

General safety

●It is dangerous to alter the

specifications or attempt to modify

this product in any way.

●During high temperature wash

programmes the door glass may get

hot. Do not touch it!

●Make sure that small pets do not

climb into the drum. To avoid this,

please check into the drum before

using.

●Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

●Only use the advised quantities of

fabric softener and detergent.

Damage to the fabric can ensue if

you over-fill. Refer to the

manufacturer’s recommendations of

quantities.

●Wash small items such as socks,

laces, washable belts etc in a

washing bag or pillow case as it is

possible for such items to slip down

between the tub and the inner drum.

●Do not use your washing machine to

wash articles with whalebones,

material without hems or torn

material.

●Always unplug the appliance and

turn off the water supply after use,

clean and maintenance.

●Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

Installation

●This appliance is heavy. Care should

be taken when moving it.

●When unpacking the appliance,

check that it is not damaged. If in

doubt, do not use it and contact the

Service Centre.

●All packing and transit bolts must be

removed before use. Serious

damage can occur to the product

and to property if this is not adhered

to. See relevant section in the user

manual.

●After having installed the appliance,

check that it is not standing on the

inlet and drain hose and the worktop

is not pressing the electrical supply

cable.

●If the machine is situated on a

carpeted floor, please adjust the feet

in order to allow air to circulate freely

●Always be sure, that there is no

water leakage from hoses and their

connections after the installation.

132981910.qxd 31/08/2006 9.23 Pagina 5

6 safety information electrolux

●If the appliance is installed in a

location subject to frost, please read

the “dangers of freezing”chapter.

●Any plumbing work required to install

this appliance should be carried out

by a qualified plumber or competent

person.

●Any electrical work required to install

this appliance should be carried out

by a qualified electrician or

competent person.

Use

●This appliance is designed for

domestic use. It must not be used

for purposes other than those for

which it was designed.

●Only wash fabrics which are

designed to be machine washed.

Follow the instructions on each

garment label.

●Do not overload the appliance. See

the relevant section in the user

manual.

●Before washing, ensure that all

pockets are empty and buttons and

zips are fastened. Avoid washing

frayed or torn articles and treat

stains such as paint, ink, rust, and

grass before washing. Underwired

bras must NOT be machine washed.

●Garments which have been in

contact with volatile petroleum

products should not be machine

washed. If volatile cleaning fluids are

used, care should be taken to

ensure that the fluid is removed from

the garment before placing in the

machine.

●Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

●Never use the washing machine if

the power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the washing machine is

accessible.

Child safety

●This washing machine is not

intended for use by young children

or infirm persons without

supervision.

●Young children should be supervised

to ensure that they do not play with

the appliance.

●The packaging components (e.g.

plastic film, polystyrene) can be

dangerous to children - danger of

suffocation! Keep them out of

children’s reach

●Keep all detergents in a safe place

out of children’s reach.

●Make sure that children or pets do

not climb into the drum. To avoid this

the machine incorporates special

feature. To activate this device, rotate

the button (without pressing it) inside

the door clockwise until the groove

is horizontal. If necessary use a coin.

To disable this device and restore

the possibility of closing the door,

rotate the button anti-clockwise until

the groove is vertical.

P1131

132981910.qxd 31/08/2006 9.23 Pagina 6

electrolux product description 7

Product description

Detergent dispenser drawer

Control panel

Door opening handle

Drain pump

Adjustable feet

Prewash

Wash

Fabric Softener

Various programme charts in different

languages are supplied with the

appliance. One is on the front side of

the detergent dispenser drawer and

the others are attached into the user

manual assy. The chart in the drawer

can be easily be replaced: remove the

chart from the drawer by pulling it

towards the right and insert the chart

with the language required.

1 2

EWF 14780 W

7Kg Direct Spray

EN006

Detergent dispenser drawer

Your new appliance meets all modern requirements for effective treatment of laundry

with low water, energy and detergent consumption.

The New Jet system allows total use of detergent and reduces water consumption

so saving energy.

132981910.qxd 31/08/2006 9.23 Pagina 7

8electrolux control panel

Control panel

Programme selector dial

Temperature button

Spin reduction button

Easy Iron button

Extra rinse button

Delay button

Display

Start/Pause button

Time manger buttons

1 3 4 5 872 6 9

EWF 14780 W

132981910.qxd 31/08/2006 9.23 Pagina 8

use electrolux 9

Use

First Use

●Ensure that the electrical and water

connections comply with the

installation instructions.

●Remove the polystryrene block and

any material from the drum.

Daily Use

Acoustic signals

The machine is provided of an acoustic

device, which sounds in the following

cases:

●when selecting a wash programme

●when depressing the options buttons

●at the end of the cycle

●in the event of operating problems

By pressing the Easy Iron and Extra

rinse buttons simultaneously for

about 6 seconds, the acoustic signal is

deactivated (except for the events of

operating problems).

By pressing these 2 buttons again, the

the acoustic signal is reactivated.

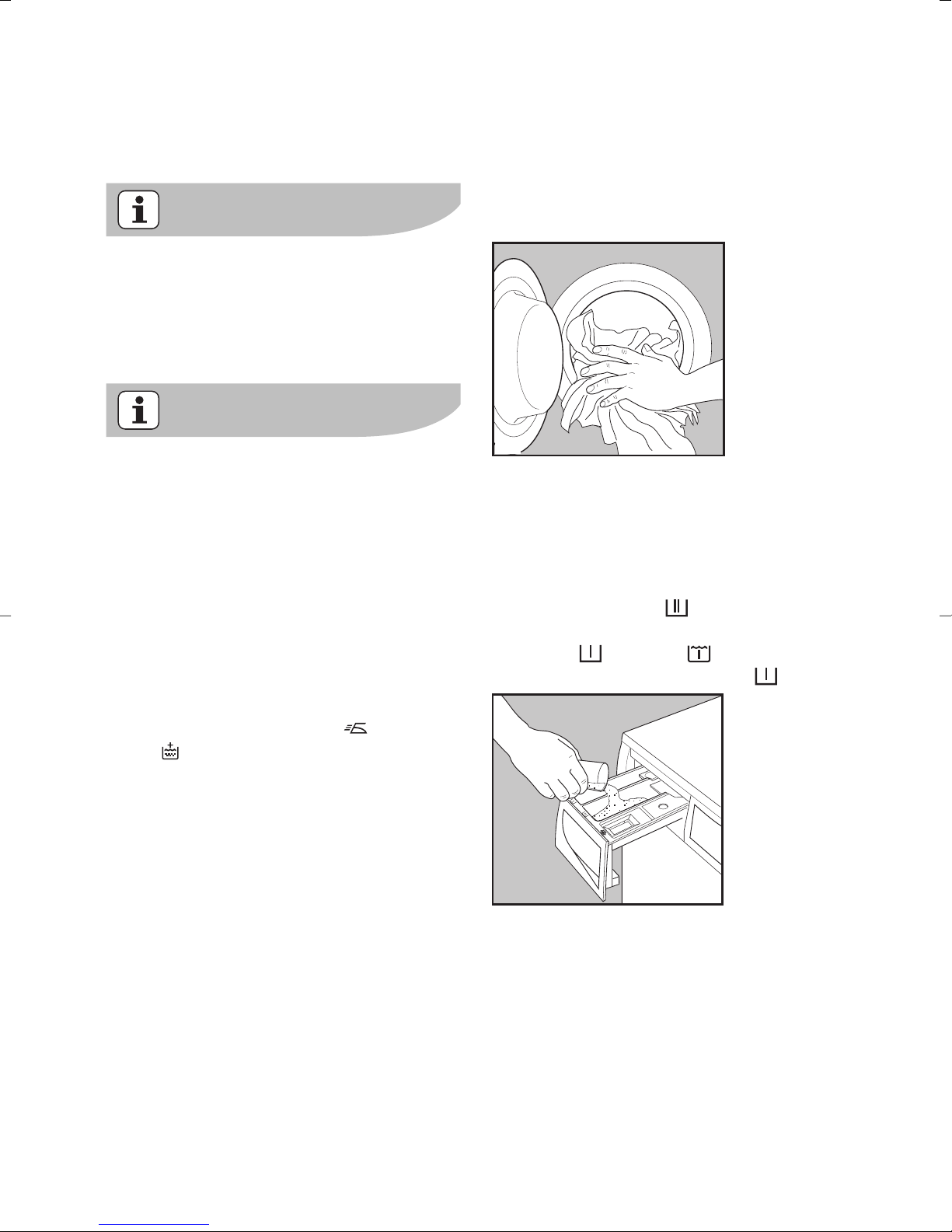

Load the laundry

Open the door by carefully pulling the

door handle outwards. Place the laundry

in the drum, one item at a time, shaking

them out as much as possible. Close

the door.

Measure out the detergent and the

fabric softener

Pull out the dispenser drawer until it

stops. Measure out the amount of

detergent required, pour it into the main

wash compartment and, if you wish

to carry out a programme with the

prewash or soak phase, pour it

into the compartment marked .

C0064

P0004

132981910.qxd 31/08/2006 9.23 Pagina 9

10 electrolux use

If required, pour fabric softener into the

compartment marked (the amount

used must not exceed the “MAX” mark

in the drawer). Close the drawer gently.

Select the required programme

Turn the programme selector dial to the

required programme. The buzzer sounds.

The washing machine will propose a

temperature and automatically select the

maximum spin value provided for the

programme you have chosen. You can

change these values by operating the

corresponding buttons. The Display

shows the following information about the

selected programme proposed:

temperature

spin speed

phase icons making up the

programme

soil degree

duration

The green Start/Pause light starts to flash.

1 2 3 4 5

C0065

The selector dial is divided into following

sections:

●Cottons

●Synthetics

●Delicates

●Wool , Handwash , Lingerie ,

Silk , Jeans and Soak .

●Special programmes: Rinses,

Drain, Spin and Delicate Spin .

The selector dial can be turned either

clockwise or anticlockwise. Position Oto

Reset programme/ Switching OFF of the

machine.

At the end of the programme the

selector dial must be turned to

position O, to switch the machine off.

Attention!

If you turn the programme selector dial

to another programme when the

machine is working, the red

Start/Pause pilot light will flash 3 times

and the message Err will appear on the

display to indicate a wrong selection.

The machine will not perform the new

selected programme.

Programme Option buttons

Depending on the programme, different

functions can be combined. These must

be selected after choosing the desired

programme and before depressing the

Start/Pause button.

132981910.qxd 31/08/2006 9.23 Pagina 10

Other manuals for EWF 12780 W

This manual suits for next models

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux EWF 1145 User manual

Electrolux

Electrolux WH 1100 User manual

Electrolux

Electrolux W555H User manual

Electrolux

Electrolux WASL 3 T 200 User manual

Electrolux

Electrolux EW6S227C User manual

Electrolux

Electrolux LAVAMAT 70030 User manual

Electrolux

Electrolux EWT1174M7WA User manual

Electrolux

Electrolux EWF12853S User manual

Electrolux

Electrolux EWF 1480 Operation manual

Electrolux

Electrolux EFLW427UIW User manual

Electrolux

Electrolux Swissline L EWF 1090 User manual

Electrolux

Electrolux EW7F348W User manual

Electrolux

Electrolux W5105H User manual

Electrolux

Electrolux EIFLS55IIW - 27" Front-Load Steam Washer Installation instructions

Electrolux

Electrolux EW7F447WIN User manual

Electrolux

Electrolux WH823 Instruction Manual

Electrolux

Electrolux WASL2E 200 User manual

Electrolux

Electrolux EWF8241SS5 User manual

Electrolux

Electrolux EWF 147540 W User manual

Electrolux

Electrolux EW2F2027R2 User manual

Electrolux

Electrolux EWF 1081 Operation manual

Electrolux

Electrolux EWF 10260 W User manual

Electrolux

Electrolux Wave-Touch EWFLW65HTS0 User manual

Electrolux

Electrolux EWF 167443 W User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
