Electrolux AWF 8120 W User manual

Notice d’utilisation

User Manual

Manual de usuario

AWF5120 W / AWF 8120 W

Lave-linge

Washing Machine

Lavadora

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 1

(*) Nous avons pensé à vous lors de la conception de ce produit.

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 2

Bienvenue dans le monde d'Electrolux

Nous vous remercions de la confiance que vous nous témoignez en choisissant un

appareil Electrolux qui, nous espérons vous accompagnera agréablement au fil du temps.

Au travers d'une large gamme de produits de qualité, la volonté d'Electrolux est de vous

rendre la vie plus agréable.

Vous pouvez en voir quelques exemples sur la couverture de cette notice.

Nous vous invitons à prendre quelques minutes pour découvrir ce guide qui vous

permettra de profiter au mieux de tous les avantages de votre nouvel appareil.

Nous vous assurons que son utilisation vous offrira jour après jour satisfaction et sérénité.

A bientôt.

Welcome to the world of Electrolux

Thank you for choosing a first class product from Electrolux, which hopefully will provide

you with lots of pleasure in the future. The Electrolux ambition is to offer a wide variety of

quality products that make your life more comfortable. You find some examples on the

cover in this manual. Please take a few minutes to study this manual so that you can take

advantage of the benefits of your new machine.

We promise that it will provide a superior User Experience delivering Ease-of-Mind. Good

luck!.

Bienvenido al mundo de Electrolux

Ha elegido un producto Electrolux de primera categoría, el cual, estamos seguros que en

adelante le proporcionará un gran disfrute. La ambición de Electrolux es ofrecer una amplia

gama de productos de calidad para hacer su vida un poco más placentera. Encontrará

algunos ejemplos en la cubierta de este libro. Por favor, tómese un tiempo en leer este

manual para poder beneficiarse de las ventajas de su nuevo aparato. Prometemos que le

proporcionará una experiencia inigualable como usuario, con plena tranquilidad. ¡Buena

Suerte!

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 3

32 contents

Contens

Safety information............................32

Product description .........................35

Control panel...................................36

Use..................................................37

Washing hints..................................42

International wash code symbol ......45

Washing programme .......................46

Care and cleaning ...........................47

Something not working....................50

Techical data ...................................53

Installation .......................................54

Environment concerns.....................57

Guarantee conditions ......................58

Safety Information

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and safety

features. Save these instructions

and make sure that they remain with

the appliance if it is moved or sold,

so that everyone using it through its

life will be properly informed on

appliance use and safety.

The following symbols are used in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 32

safety information 33

General safety

●It is dangerous to alter the

specifications or attempt to modify

this product in any way.

●During high temperature wash

programmes the door glass may get

hot. Do not touch it!

●Make sure that small pets do not

climb into the drum. To avoid this,

please check into the drum before

using.

●Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

●Only use the advised quantities of

fabric softener. Damage to the fabric

can ensue if you over-fill. Refer to the

manufacturer’s recommendations of

quantities.

●Wash small items such as socks,

laces, washable belts etc in a

washing bag or pillow case as it is

possible for such items to slip down

between the tub and the inner drum.

●Always unplug the appliance and

turn off the water supply after use,

clean and maintenance.

●Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

●Do not use your washing machine to

wash articles with whalebones,

material without hems or torn

material.

Installation

●This appliance is heavy. Care should

be taken when moving it.

●When unpacking the appliance,

check that it is not damaged. If in

doubt, do not use it and contact the

Service Centre.

●All packing and transit bolts must be

removed before use. Serious

damage can occur to the product

and to property if this is not adhered

to. See relevant section in the user

manual.

●Any plumbing work required to install

this appliance should be carried out

by a qualified plumber or competent

person.

●Any electrical work required to install

this appliance should be carried out

by a qualified electrician or

competent person.

●Care must be taken to ensure that

the appliance does not stand on the

electrical supply cable.

●If the machine is situated on a

carpeted floor, please adjust the feet

in order to allow air to circulate freely

●Always be sure, that there is no

water leakage from hoses and their

connections after the installation.

●After having installed the appliance,

check that it is not pressing or

standing on its electrical supply

cable, inlet hose and drain hose.

●If the appliance is installed in a

location subject to frost, please read

the “dangers of freezing”chapter.

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 33

34 safety information

Use

●This appliance is designed for

domestic use. It must not be used

for purposes other than those for

which it was designed.

●Only wash fabrics which are

designed to be machine washed.

Follow the instructions on each

garment label.

●Do not overload the appliance. See

the relevant section in the user

manual.

●Before washing, ensure that all

pockets are empty and buttons and

zips are fastened. Avoid washing

frayed or torn articles and treat

stains such as paint, ink, rust, and

grass before washing. Underwired

bras must NOT be machine washed.

●Garments which have been in

contact with volatile petroleum

products should not be machine

washed. If volatile cleaning fluids are

used, care should be taken to

ensure that the fluid is removed from

the garment before placing in the

machine.

●Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

●Never use the washing machine if

the power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the washing machine is

accessible.

Child safety

●This washing machine is not

intended for use by young children

or infirm persons without

supervision.

●Young children should be supervised

to ensure that they do not play with

the appliance.

●The packaging components (e.g.

plastic film, polystyrene) can be

dangerous to children - danger of

suffocation! Keep them out of

children’s reach

●Keep all detergents in a safe place

out of children’s reach.

●Make sure that children or pets do

not climb into the drum.

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 34

product description 35

Product description

Detergent dispenser drawer

Control panel

Door opening handle

Drain pump

Adjustable feet

Prewash

Wash

Fabric Softener

Detergent dispenser drawer

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 35

36 control panel

Control panel

Programme selector dial

Spin reduction knob

Temperature options button"

Options Button

Extra Rinse button

Start/Pause button

Programme progress display

Delay Start button

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 36

use 37

Use

First Use

●Ensure that the electrical and water

connections comply with the

installation instructions.

●Remove the polystryrene block and

any material from the drum.

●Pour 2 litres of water into the main

wash compartment of the

detergent drawer in order to activate

the ECO valve. Then run a cotton

cycle at 90°C, without any laundry in

the machine, to remove any

manufacturing residue from the drum

and tub. Pour 1/2 a measure of

detergent into the dispenser drawer

and start the machine.

Daily Use

Load the laundry

Open the door by carefully pulling the

door handle outwards. Place the laundry

in the drum, one item at a time, shaking

them out as much as possible. Close

the door.

P0004

Measure out the detergent and the

fabric softener

Pull out the dispenser drawer until it

stops. Measure out the amount of

detergent required, pour it into the main

wash compartment and, if you wish

to carry out the “prewash” phase, pour

it into the compartment marked .

If required, pour fabric softener into the

compartment marked (the amount

used must not exceed the “MAX” mark

in the drawer). Close the drawer gently.

Select the required programme

Turn the programme selector dial to the

required programme.

The light Start/Pause starts to flash.

The selector dial is divided into following

sections:

Cottons

Synthetics

Delicates

Hand wash

Special programmes: Rinses,

Drain and Spin.

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 37

38 use

The selector dial can be turned either

clockwise or anticlockwise. Position Oto

Reset programme/ Switching OFF of the

machine.

At the end of the programme the

selector dial must be turned to

position O, to switch the machine

off.

Attention!

If you turn the programme selector dial

to another programme when the

machine is working, the lights of the

programme progress display start to

flash. The machine will not perform the

new selected programme.

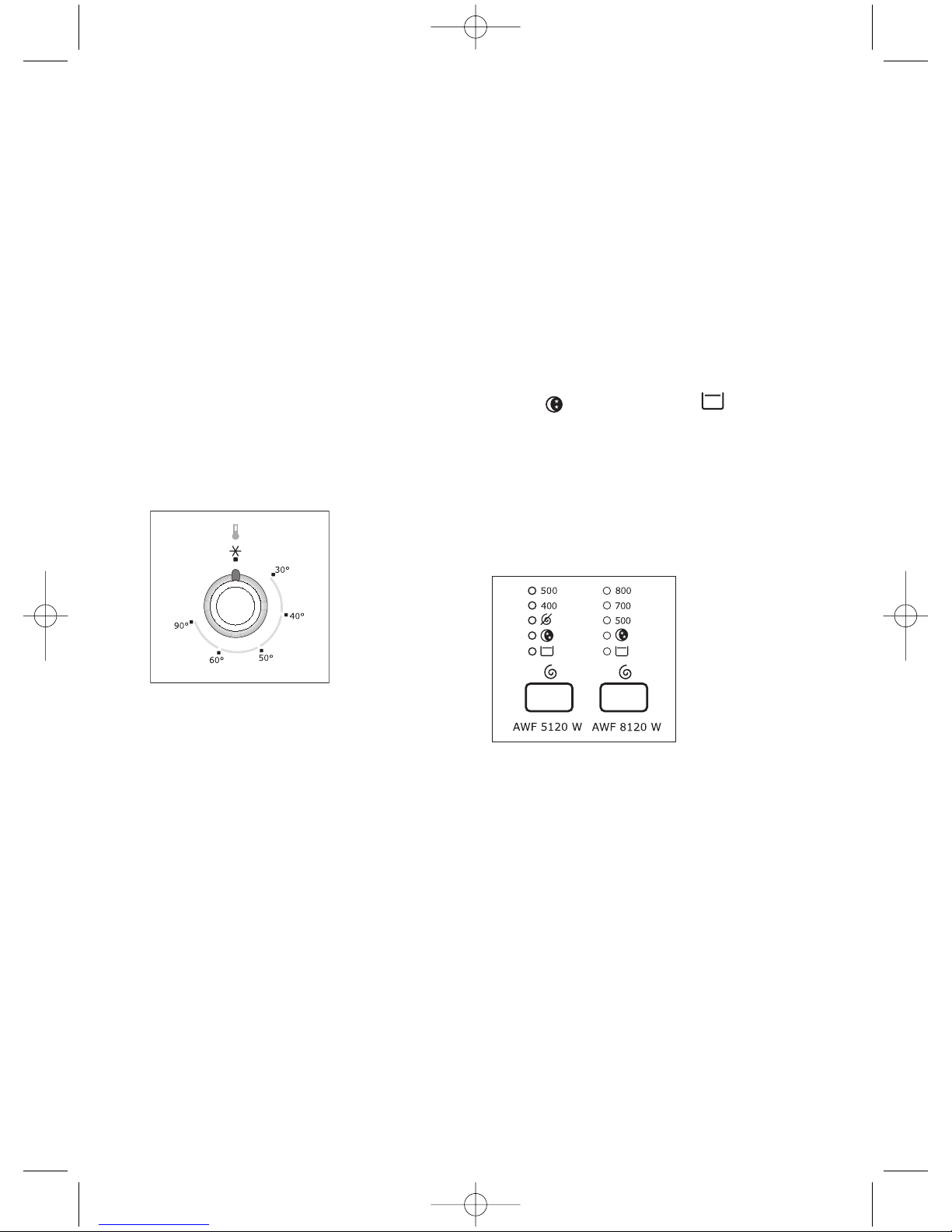

Select the required temperature

Turn the temperature selector dial to

select the washing temperature.

Maximum temperatures are 95°C for

cottons, 60°-50°C for synthetic fabrics,

40°C for delicate fabrics, wool and

fabrics to be hand-washed.

By selecting position (Cold) the machine

will wash with cold water. To be used for

extremely delicate items, such as

curtains

Programme Option buttons

Depending on the programme, different

functions can be combined. These must

be selected after choosing the desired

programme and before depressing the

Start/Pause button.

When these buttons are pressed, the

corresponding pilot lights come on.

When they are pressed again, the pilot

lights go out.

Select the spin speed or Night

Cycle or Rinse Hold option

Turn the spin speed selector on desired

position. You could also choose the

position “No spin”, (only for AWF5120W)

“Rinse Hold” or “Night Cycle”.

At the end of the program, the selector

dial must be turned to position O, to

switch the machine off.

In the all levels of spin, the sound is

reduced and your appliance could be

used at night without any

inconvenience, to take advantage of off-

peak rates. For Cotton program and

Synthetics, rinses were carried out with

more water.

126.2943.07…AWF5120-8120W.qxd 23/10/08 15:54 Página 38

This manual suits for next models

Table of contents

Other Electrolux Washer manuals

Electrolux

Electrolux EIFLW55HIW - 27" Front-Load Washer Instruction Manual

Electrolux

Electrolux EW6S426W User manual

Electrolux

Electrolux EWF 128420 W User manual

Electrolux

Electrolux EWF 14470 W User manual

Electrolux

Electrolux EWG 147410 W User manual

Electrolux

Electrolux EWF 12580 W User manual

Electrolux

Electrolux EW6F5722BB User manual

Electrolux

Electrolux EWF 1286 GDW User manual

Electrolux

Electrolux EW 1278 F User manual

Electrolux

Electrolux WASL5T300 User manual

Electrolux

Electrolux LTA13 User manual

Electrolux

Electrolux EWF 8586 User manual

Electrolux

Electrolux EW935S User manual

Electrolux

Electrolux EWT 1011 User manual

Electrolux

Electrolux EWF695 User manual

Electrolux

Electrolux EWP 0864 TDW User manual

Electrolux

Electrolux EWF 1470 User manual

Electrolux

Electrolux LAVAMAT 70030 User manual

Electrolux

Electrolux EIFLS55I - 27'' Front-Load Washer User manual

Electrolux

Electrolux EWM 1044 SEU User manual

Electrolux

Electrolux 970L4802 Series User manual

Electrolux

Electrolux EWT 1010 User manual

Electrolux

Electrolux EW1133 F Quick guide

Electrolux

Electrolux PW9 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
