Electrolux KOFGH40TW User manual

For quick access to manuals, how-to guides,

support and more through our photo

registration visit electrolux.com/register

Get the most out

of your appliance

KOFGH40TW

KOFGH40TX

EN Oven User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. INSTALLATION.................................................................................................. 7

4. PRODUCT DESCRIPTION................................................................................ 9

5. CONTROL PANEL............................................................................................. 9

6. BEFORE FIRST USE....................................................................................... 10

7. DAILY USE....................................................................................................... 10

8. CLOCK FUNCTIONS....................................................................................... 11

9. USING THE ACCESSORIES........................................................................... 13

10. ADDITIONAL FUNCTIONS............................................................................ 14

11. HINTS AND TIPS........................................................................................... 14

12. CARE AND CLEANING..................................................................................24

13. TROUBLESHOOTING....................................................................................27

14. ENERGY EFFICIENCY.................................................................................. 28

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damage that are the result

of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away from the appliance unless continuously

supervised.

•Children of less than 3 years of age should be kept

away from the appliance unless continuously

supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep children and pets away from the appliance when

it operates or when it cools down. Accessible parts

may become hot during use.

•If the appliance has a child safety device, it should be

activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•Only a qualified person must install this appliance and

replace the cable.

ENGLISH 3

•WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid

touching heating elements.

•Always use oven gloves to remove or put in

accessories or ovenware.

•Before carrying out any maintenance, disconnect the

appliance from the power supply.

•WARNING: Ensure that the appliance is switched off

before replacing the lamp to avoid the possibility of

electric shock.

•Do not use the appliance before installing it in the

built-in structure.

•Do not use a steam cleaner to clean the appliance.

•Do not use harsh abrasive cleaners or sharp metal

scrapers to clean the glass door since they can

scratch the surface, which may result in shattering of

the glass.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•To remove the shelf supports first pull the front of the

shelf support and then the rear end away from the

side walls. Install the shelf supports in the opposite

sequence.

•The means for disconnection must be incorporated in

the fixed wiring in accordance with the wiring rules.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not pull the appliance by the

handle.

• Install the appliance in a safe and

suitable place that meets installation

requirements.

• Keep the minimum distance from

other appliances and units.

www.electrolux.com4

• Before mounting the appliance, check

if the oven door opens without

restraint.

• The appliance is equipped with an

electric cooling system. It must be

operated with the electric power

supply.

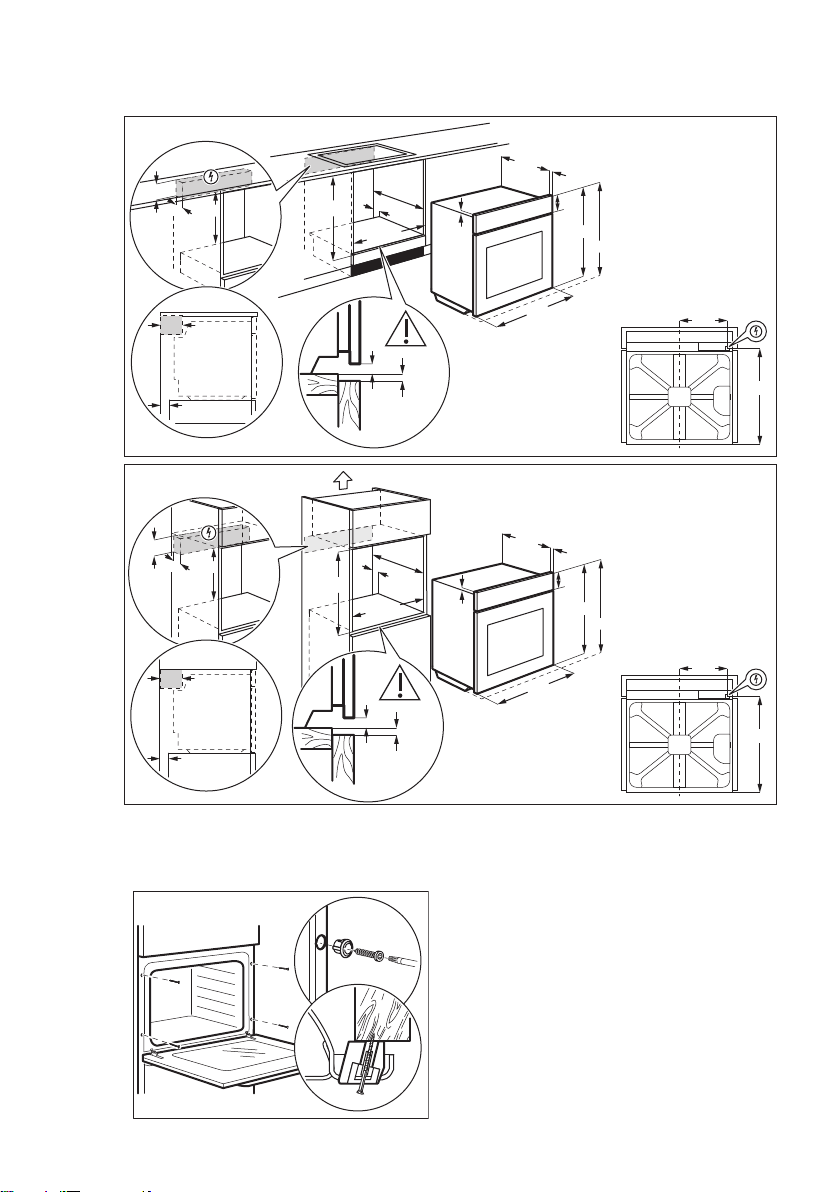

Cabinet minimum

height (Cabinet un‐

der the worktop

minimum height)

590 (600) mm

Cabinet width 560 mm

Cabinet depth 550 (550) mm

Height of the front of

the appliance

594 mm

Height of the back

of the appliance

576 mm

Width of the front of

the appliance

595 mm

Width of the back of

the appliance

559 mm

Depth of the appli‐

ance

569 mm

Built in depth of the

appliance

548 mm

Depth with open

door

1022 mm

Ventilation opening

minimum size.

Opening placed on

the bottom rear side

560x20 mm

Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• All electrical connections should be

made by a qualified electrician.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Do not let mains cables touch or

come near the appliance door or the

niche below the appliance, especially

when it operates or the door is hot.

• The shock protection of live and

insulated parts must be fastened in

such a way that it cannot be removed

without tools.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• If the mains socket is loose, do not

connect the mains plug.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Use only correct isolation devices: line

protecting cut-outs, fuses (screw type

fuses removed from the holder), earth

leakage trips and contactors.

• The electrical installation must have

an isolation device which lets you

disconnect the appliance from the

mains at all poles. The isolation

device must have a contact opening

width of minimum 3 mm.

• This appliance is supplied without a

main plug and a main cable.

Cable types applicable for installa‐

tion or replacement for Europe:

H07 RN-F, H05 RN-F, H05 RRF, H05

VV-F, H05 V2V2-F (T90), H05 BB-F

UK and Ireland only. This appliance is

fitted with a 13 A mains plug. If it is

necessary to change the mains plug

fuse, use only a 13 A ASTA (BS 1362)

fuse. Minimum size cable / flex: 1,5

mm² .

For the section of the cable refer to the

total power on the rating plate. You can

also refer to the table:

ENGLISH 5

Total power (W) Section of the ca‐

ble (mm²)

maximum 1380 3 x 0.75

maximum 2300 3 x 1

maximum 3680 3 x 1.5

The earth cord (green / yellow cable)

must be 2 cm longer than phase and

neutral cables (blue and brown cables).

Cable types applicable for installation

or replacement for UK only

Connec‐

tion via

Min. size

cable /

flex

Cable / flex

type / Fuse

Oven Con‐

trol Circuit

2,5 mm² PVC / PVC

twin and

earth / 15 A

min.

PVC / PVC

twin and

earth / 20 A

max.

2.3 Use

WARNING!

Risk of injury, burns and

electric shock or explosion.

• This appliance is for household use

only.

• Do not change the specification of this

appliance.

• Make sure that the ventilation

openings are not blocked.

• Do not let the appliance stay

unattended during operation.

• Deactivate the appliance after each

use.

• Be careful when you open the

appliance door while the appliance is

in operation. Hot air can release.

• Do not operate the appliance with wet

hands or when it has contact with

water.

• Do not apply pressure on the open

door.

• Do not use the appliance as a work

surface or as a storage surface.

• Open the appliance door carefully.

The use of ingredients with alcohol

can cause a mixture of alcohol and

air.

• Do not let sparks or open flames to

come in contact with the appliance

when you open the door.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

WARNING!

Risk of damage to the

appliance.

• To prevent damage or discoloration to

the enamel:

– do not put ovenware or other

objects in the appliance directly

on the bottom.

– do not put aluminium foil directly

on the bottom of cavity of the

appliance.

– do not put water directly into the

hot appliance.

– do not keep moist dishes and

food in the appliance after you

finish the cooking.

– be careful when you remove or

install the accessories.

• Discoloration of the enamel or

stainless steel has no effect on the

performance of the appliance.

• Use a deep pan for moist cakes. Fruit

juices cause stains that can be

permanent.

• This appliance is for cooking

purposes only. It must not be used for

other purposes, for example room

heating.

• Always cook with the oven door

closed.

• If the appliance is installed behind a

furniture panel (e.g. a door) make

sure the door is never closed when

the appliance operates. Heat and

moisture can build up behind a closed

furniture panel and cause subsequent

damage to the appliance, the housing

unit or the floor. Do not close the

furniture panel until the appliance has

cooled down completely after use.

www.electrolux.com6

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or

damage to the appliance.

• Before maintenance, deactivate the

appliance and disconnect the mains

plug from the mains socket.

• Make sure the appliance is cold.

There is the risk that the glass panels

can break.

• Replace immediately the door glass

panels when they are damaged.

Contact the Authorised Service

Centre.

• Be careful when you remove the door

from the appliance. The door is

heavy!

• Clean regularly the appliance to

prevent the deterioration of the

surface material.

• Clean the appliance with a moist soft

cloth. Use only neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal

objects.

• If you use an oven spray, follow the

safety instructions on its packaging.

2.5 Internal lighting

WARNING!

Risk of electric shock.

• The type of light bulb or halogen lamp

used for this appliance is for

household appliances only. Do not

use it for house lighting.

• Before replacing the lamp, disconnect

the appliance from the power supply.

• Use only lamps with the same

specifications.

2.6 Service

• To repair the appliance contact the

Authorised Service Centre.

• Use original spare parts only.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the appliance.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

ENGLISH 7

3.1 Building In

594

589

114

21548

595+-1

min. 550

600

min. 560

520

198

523

min. 550

595+-1

590

min. 560

594

589

114

21548

60 520

198

523

3.2 Securing the oven to the

cabinet

www.electrolux.com8

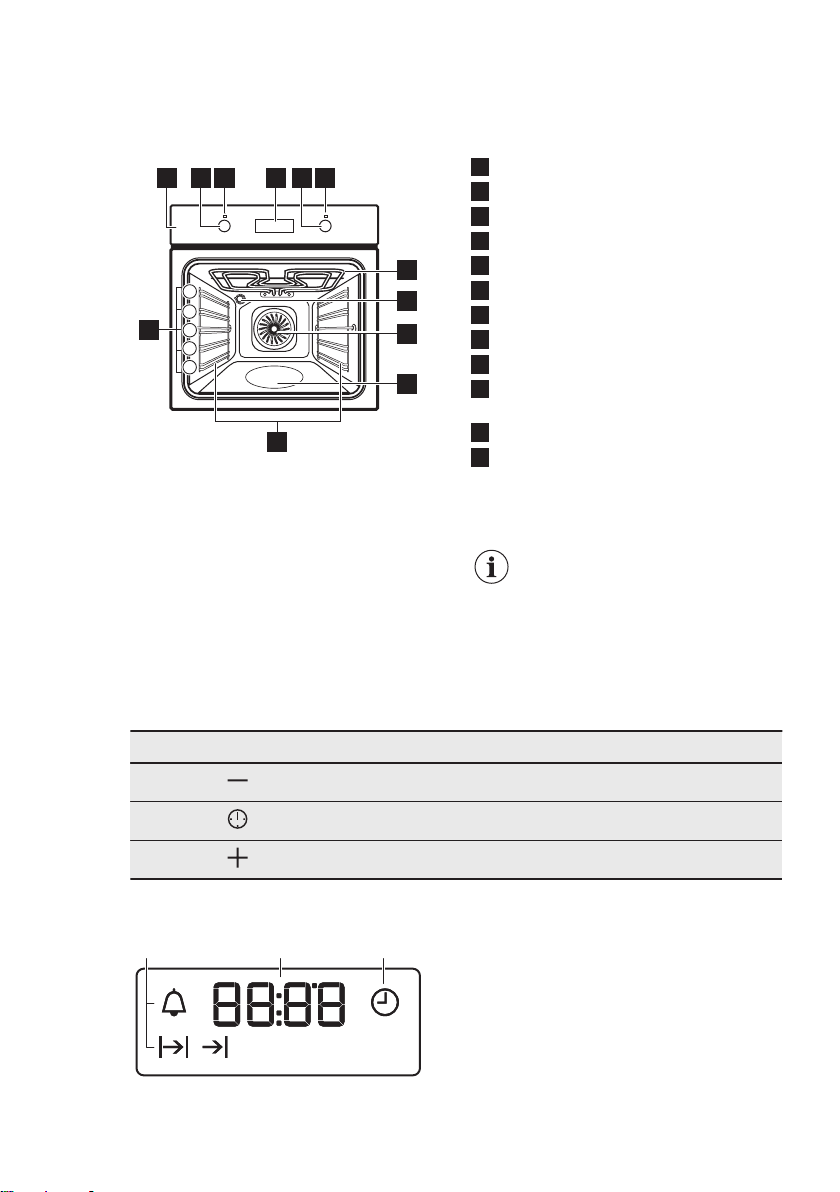

4. PRODUCT DESCRIPTION

4.1 General overview

12 9

331 64 52

1Control panel

2Knob for the heating functions

3Power lamp / symbol

4Display

5Control knob (for the temperature)

6Temperature indicator / symbol

7Heating element

8Lamp

9Fan

10 Cavity embossment - Aqua cleaning

container

11 Shelf support, removable

12 Shelf positions

4.2 Accessories

•Wire shelf

For cookware, cake tins, roasts.

•Grill- / Roasting pan

To bake and roast or as pan to collect

fat.

•Trivet

For roasting and grilling.

Use the trivet only with

the Grill- / roasting pan.

5. CONTROL PANEL

5.1 Buttons

Sensor field / Button Description

To set the time.

To set a clock function.

To set the time.

5.2 Display

A B C

A. Clock functions

B. Timer

C. Clock function

ENGLISH 9

6. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

To set the Time of day refer to "Clock

functions" chapter.

6.1 Initial Cleaning

Remove all accessories and removable

shelf supports from the oven.

Refer to "Care and cleaning" chapter.

Clean the oven and the accessories

before the first use.

Put the accessories and the removable

shelf supports back to their initial

position.

6.2 Preheating

Preheat the empty oven before first use.

1. Set the function . Set the

maximum temperature.

2. Let the oven operate for 1 hour.

3. Set the function . Set the

maximum temperature.

4. Let the oven operate for 15 minutes.

5. Set the function . Set the

maximum temperature.

6. Let the oven operate for 15 minutes.

7. Turn off the oven and let it cool

down.

Accessories can become hotter than

usual. The oven can emit an odour and

smoke. Make sure that the airflow in the

room is sufficient.

7. DAILY USE

WARNING!

Refer to Safety chapters.

7.1 Retractable knobs

To use the appliance press the knob.

The knob comes out.

7.2 Setting a heating function

1. Turn the knob for the heating

functions to select a heating function.

2. Turn the control knob to select the

temperature.

The lamp turns on when the oven

operates.

3. To turn off the oven, turn the knob for

the heating functions to the off

position.

7.3 Heating functions

Oven func‐

tion

Application

Off position

The oven is off.

Light

To turn on the lamp.

True Fan

Cooking

To bake on up to three

shelf positions at the

same time and to dry

food.

Set the temperature 20

- 40 °C lower than for

Conventional Cooking.

www.electrolux.com10

Other manuals for KOFGH40TW

This manual suits for next models

Table of contents

Other Electrolux Oven manuals

Electrolux

Electrolux EOB3000 User manual

Electrolux

Electrolux EOG 900 User manual

Electrolux

Electrolux KOEDP46X User manual

Electrolux

Electrolux EI24EW45LS User manual

Electrolux

Electrolux COMPETENCE E 6000 User manual

Electrolux

Electrolux B3191-5 User manual

Electrolux

Electrolux EOC8P21X User manual

Electrolux

Electrolux KOEBP31X User manual

Electrolux

Electrolux air-o-steam class B Electric Combi Oven 101 How to use

Electrolux

Electrolux EB7L5XDSP User manual

Electrolux

Electrolux EOD6335 User manual

Electrolux

Electrolux COMPETENCE E 1000 User manual

Electrolux

Electrolux EIKM6047 User manual

Electrolux

Electrolux KODFP46TX User manual

Electrolux

Electrolux OPEB2650B User manual

Electrolux

Electrolux EOB5751BA User manual

Electrolux

Electrolux EOB20000 User manual

Electrolux

Electrolux EOB5434AOX User manual

Electrolux

Electrolux EI27EW35JS2 User manual

Electrolux

Electrolux EOC5651CAX User manual

Electrolux

Electrolux EOB66714 User manual

Electrolux

Electrolux EW27EW65G S User manual

Electrolux

Electrolux EOC2401AOX User manual

Electrolux

Electrolux COP826X User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual

DeLonghi

DeLonghi XA660 Directions for use

AEG

AEG BEB331010M user manual
