Electrolux EOB2200BOX User manual
EOB2200BOX
EN Oven User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. INSTALLATION.................................................................................................. 7
4. PRODUCT DESCRIPTION................................................................................ 8
5. BEFORE FIRST USE......................................................................................... 8
6. DAILY USE......................................................................................................... 9
7. CLOCK FUNCTIONS....................................................................................... 10
8. USING THE ACCESSORIES........................................................................... 10
9. ADDITIONAL FUNCTIONS.............................................................................. 10
10. HINTS AND TIPS........................................................................................... 11
11. CARE AND CLEANING..................................................................................19
12. TROUBLESHOOTING....................................................................................22
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time. Welcome to
Electrolux.
Visit our website:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.cn
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
1. SAFETY INFORMATION
Please be sure to operate the appliance in accordance
with the supplied instructions otherwise safety incidents
may occur. Before the installation and use of the
appliance, carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
www.electrolux.com2
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Juveniles and vulnerable people safety
•The juveniles aged under 8 years shall not use this
appliance. This appliance can be used by juveniles
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction by their guardians with
relevant experience and knowledge concerning the
use of the appliance in a safe way and understand the
hazards involved.
•Juveniles and persons with reduced physical, sensory
or mental capabilities shall be kept away unless
continuously supervised by their guardians.
•Do not let juveniles play with the appliance.
•Keep detergents away from juveniles.
•Keep juveniles and pets away from the appliance
when it operates or cooling down. Accessible parts
become hot.
•Juveniles and persons with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge shall not carry out cleaning and user
maintenance of the appliance.
1.2 General Safety
•Only a qualified person must install this appliance and
replace the cable.
•WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
•Always use oven gloves to remove or put in
accessories or ovenware.
•Before carrying out any maintenance, disconnect the
appliance from the power supply.
ENGLISH 3
•WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
•Do not use the appliance before installing it in the
built-in structure.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
•If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from
other appliances and units.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
Cabinet minimum
height (Cabinet un‐
der the worktop
minimum height)
590 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of
the appliance
594 mm
Height of the back
of the appliance
576 mm
Width of the front of
the appliance
595 mm
Width of the back of
the appliance
559 mm
Depth of the appli‐
ance
569 mm
Built in depth of the
appliance
548 mm
Depth with open
door
1022 mm
Ventilation opening
minimum size.
Opening placed on
the bottom rear side
560x20 mm
www.electrolux.com4
Mains supply cable
length. Cable is
placed in the right
corner of the back
side
1500 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Do not let mains cables touch or
come near the appliance door or the
niche below the appliance, especially
when it operates or the door is hot.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
• This appliance is supplied with a main
plug and a main cable.
Cable types applicable for installa‐
tion or replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05
VV-F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
Total power (W) Section of the ca‐
ble (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
2.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• This appliance is for household use
only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
ENGLISH 5
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
2.5 Internal lighting
WARNING!
Risk of electric shock.
• The type of light bulb or halogen lamp
used for this appliance is for
household appliances only. Do not
use it for house lighting.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
www.electrolux.com6
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Building In
18
594
589
114
21548
595+-1
min. 550
20
600
min. 560
3
5
60
20
80
520
60
198
523
min. 550
20
595+-1
18
590
min. 560
594
589
114
21548
3
5
70
60 520
60
20
198
523
ENGLISH 7
3.2 Securing the oven to the
cabinet
4. PRODUCT DESCRIPTION
4.1 General overview
21 53 4
7
6
8
9
5
4
3
2
1
10
1Control panel
2Knob for the heating functions
3Knob for the timer
4Control knob (for the temperature)
5Temperature indicator / symbol
6Heating element
7Lamp
8Fan
9Aqua cleaning container
10 Shelf positions
4.2 Accessories
•Wire shelf
For cookware, cake tins, roasts.
•Baking tray
For cakes and biscuits.
•Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
5.1 Initial Cleaning
Remove all accessories from the oven.
Refer to "Care and cleaning" chapter.
Clean the oven and the accessories
before the first use.
Put the accessories back to their initial
position.
5.2 Preheating
Preheat the empty oven before first use.
1. Set the function .Set the maximum
temperature.
2. Let the oven operate for 1 hour.
www.electrolux.com8
3. Set the function . Set the
maximum temperature.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool
down.
Accessories can become hotter than
usual. The oven can emit an odour and
smoke. Make sure that the airflow in the
room is sufficient.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Oven Functions
Oven
function
Application
Off posi‐
tion
The oven is off.
Fan Cook‐
ing
To roast or roast and bake
food with the same cook‐
ing temperature on more
than one shelf position,
without flavour transfer‐
ence.
Moist Bak‐
ing
This function is designed
to save energy during
cooking. For the cooking
instructions refer to "Hints
and tips" chapter, Moist
Baking. The oven door
should be closed during
cooking so that the func‐
tion is not interrupted and
to ensure that the oven op‐
erates with the highest en‐
ergy efficiency possible.
When you use this func‐
tion, the temperature in the
cavity may differ from the
set temperature. The heat‐
ing power may be reduced.
For general energy saving
recommendations refer to
"Energy Efficiency" chap‐
ter, Energy Saving. This
function was used to com‐
ply with the energy effi‐
ciency class according to
EN 60350-1.
Oven
function
Application
Bottom
Heat
To bake cakes with crispy
bottom and to preserve
food.
Grill
To grill flat food and to
toast bread.
Fast Grill‐
ing
To grill flat food in large
quantities and to toast
bread.
Pizza
Function
To bake pizza. To make in‐
tensive browning and a
crispy bottom. Set the tem‐
perature 230°C.
Conven‐
tional
Cooking /
Aqua
Clean
To bake and roast food on
one shelf position.
Refer to "Care and clean‐
ing" chapter for more infor‐
mation about: Aqua Clean.
6.2 Setting a heating function
1. Turn the knob for the heating
functions to select a heating function.
2. Turn the control knob to select the
temperature.
The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knob for
the heating functions to the off
position.
ENGLISH 9
7. CLOCK FUNCTIONS
7.1 Minute Minder + End of
Cooking
Use it to set an automatic switch-off time
for an oven function.
To operate the appliance
manually without a set time
period, turn the knob for the
timer to . The Minute
Minder + End of Cooking is
off.
1. Set an oven function and the
temperature.
2. Turn the knob for the timer as far as
it goes, then turn it to necessary time
period.
After the time period is completed, an
acoustic signal sounds. The appliance
deactivates.
Turn the knob for the oven functions and
the knob for the temperature to the off
position. Turn the knob for the timer to
.
8. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.

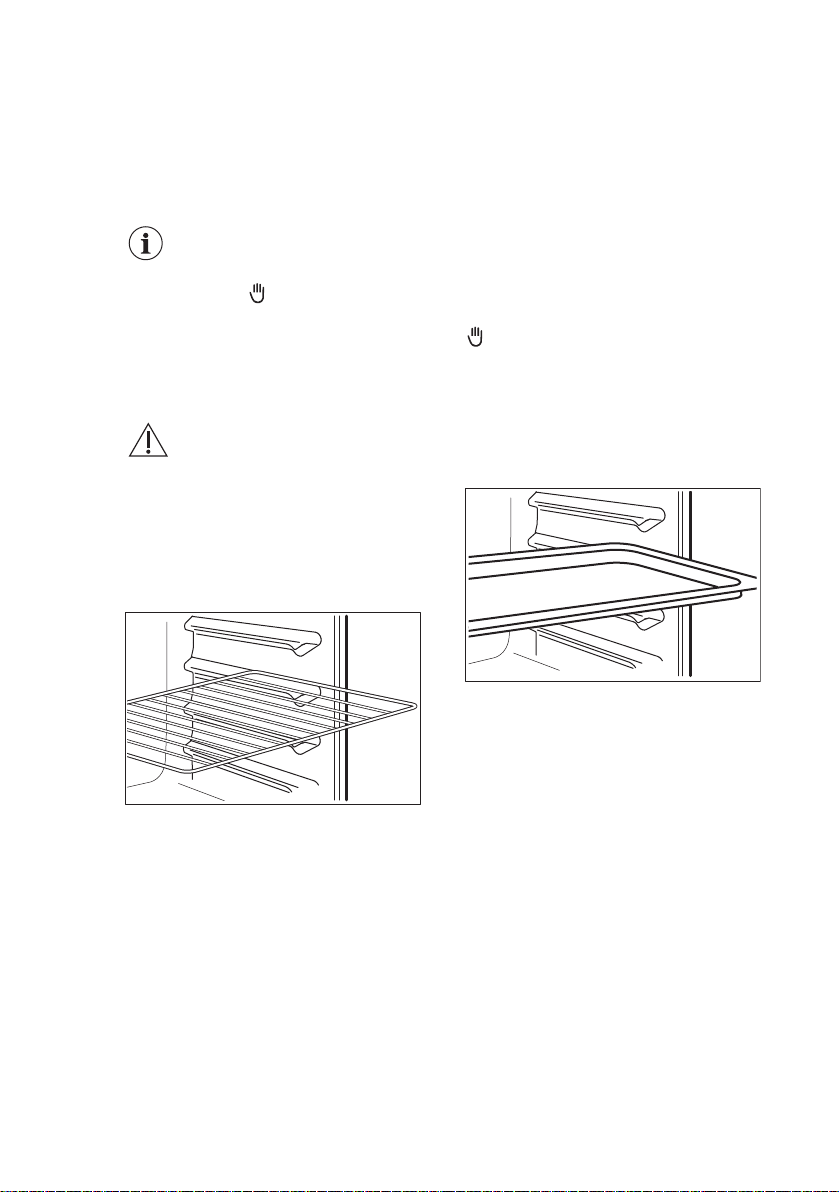

8.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray/ Deep pan:
Push the baking tray / deep pan between
the guide bars of the shelf support.
9. ADDITIONAL FUNCTIONS
9.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the
surfaces of the oven cool. If you turn off
the oven, the cooling fan can continue to
operate until the oven cools down.
9.2 Safety thermostat
Incorrect operation of the oven or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
www.electrolux.com10
Other manuals for EOB2200BOX
3
Table of contents
Other Electrolux Oven manuals
Electrolux
Electrolux EHL2BR User manual
Electrolux
Electrolux air-o-steam Touchline Natural Gas Combi Oven... User manual
Electrolux
Electrolux EBGL30 User manual
Electrolux
Electrolux EON63100 User manual
Electrolux
Electrolux EW27MC65JB Installation instructions
Electrolux
Electrolux EEC5700 User manual
Electrolux
Electrolux EBC GL9 User manual
Electrolux
Electrolux EOF6P46VX0 User manual
Electrolux
Electrolux EOF3H40X User manual
Electrolux
Electrolux B3191-5 User manual
Electrolux
Electrolux EOD5720AAX User manual
Electrolux
Electrolux ZCE 7551X User manual
Electrolux
Electrolux E30EW85EPS - Icon 30" Professional Series Electric Double... User manual
Electrolux
Electrolux EOK96030 User manual
Electrolux
Electrolux EOC6690 User manual
Electrolux
Electrolux EOF3H50BK User manual
Electrolux
Electrolux EOG 6330 User manual
Electrolux
Electrolux E3000-6 User manual
Electrolux
Electrolux RZB2110AAXC User manual
Electrolux
Electrolux EHL4 User manual
Popular Oven manuals by other brands
Bosch
Bosch HVA531NS0 instruction manual
NEFF
NEFF B44S32 5GB Series instruction manual
Combi
Combi BLODGETT BC142GDS Specifications
AEG
AEG COMPETENCE 311704300 Installation and operating instructions
Falcon
Falcon DOMINATOR PLUS G3106 Series Servicing instructions
Rational
Rational SCC WE 61G installation manual
