Electrolux WT730 TCW User manual

Flight Type Dishwashers

brochure Flight type 09/03 ING 24-01-2005 10:54 Pagina 1

General features

• Electrolux, the leading choice for catering

equipment, introduces its new line of flight type

dishwashers.

• Compact, ergonomic design and cost saving,

combined with perfect washing results, make the

Electrolux flight type dishwasher the best choice

for large canteens, in-flight catering, hospitals,

hotels and marine installations.

• Electrolux appliances have been designed using

a modular approach, allowing them to be

tailored to individual requirements.

brochure Flight type 09/03 ING 24-01-2005 10:54 Pagina 2

• All the new machines have well designed

functions making them easier to work with and

creating a pleasant working environment.

• The working environment in the dishwashing

area is improved with low temperatures, low

noise levels and reduced humidity.

• The new flight type dishwashers feature a

double skinned structure with thermal and

acoustic insulation (less than 70dB).

• Electrolux new generation of flight type

dishwashers has been engineered with tried and

tested technology.

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 3

Electrolux flight type dishwashers have

been carefully designed to offer long term

reliability, even in the most arduous

conditions.

Reliability:

• the panels and the inspection doors

have a double skin structure in order to

reduce noise and heat dispersion

• in order to completely avoid any

detergent corrosive action, the tank is

made of AISI 316 stainless steel

• all the main elements are made in AISI 304

stainless steel:

- baring structure

- feet

- internal and external panels

- inspection doors

- washing and rinsing arms

- filter plates and filter boxes

- screws

- side support for dishes

• all electric components, wash and rinse

pumps are tested to guarantee a long

lasting operation of the dishwasher

• Stainless steel washing pumps are

standard on version “A”, optional on “B” &

“C”. As standard, all the units are

equipped with low voltage (24 volt)

control panel to guarantee high safety

standards and long lasting reliability

Reliability

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 4

Electrolux flight type dishwashers have

been designed to be extremely accessible

and easy to use.

Accessibility:

• easier maintenance, thanks to the

accessibility from the front and sides of

the machine

• all the main working components are

placed on the front of the machine

• adjustments of the tension of the conveyor

belt can be made from the loading side

• the fingers in the conveyor are easily

replaceable

• electrical and water service connections

can be made from above or below

• the electric control box is clearly

organized and centrally located

• the ESD (Energy Saving Device) and

condenser unit are accessible via the

hinged top

Accessibility

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 5

Cleanability

The flight type dishwasher has been

specifically engineered to be easily

cleanable both internally and externally.

Internal cleanability:

• final wash & rinse area behind one large

balanced inspection door to allow an easy

access to the washing area

• drying zone with inspection door for

cleaning and removal of fallen items

• washing chamber without internal pipes

• internal screws in the wash chamber do

not project past the nuts

• the loading end is easily accessible for

cleaning and emptying of the large scrap box

• washing arms in stainless steel, easily

removable for daily control and cleaning

• double tank filters (flat and box) are

easily removable

• tank with round corners to make easy

periodical cleaning, avoiding the stagnation

of food remains

• sloping base to convey the dirty water

towards the drain

• optional cleaning ramp available in

loading sections above 700 mm in length

External cleanability:

• smooth external surfaces

• 200 mm height feet enable ease of

cleaning under the machine

• loading area without feet

• the back is completely closed so that the

machine can be placed against the wall

• IPX 5 water protection

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 6

Total control

The electronic control panel has been

designed not only to control the

dishwasher, but also to provide the

operator and engineer a host of useful

information that can improve the

efficiency and washing performance.

The new digital control panel with HACCP

integration and fault diagnosis system

is used to read the temperature of all

washing, rinsing and drying sections.

•if a fault occurs it will be indicated on

the control panel

• as an option it is possible to measure

the consumption of water and energy

• in the “Washing mode” pumps and drier

stop after one minute if no dishes are loaded

in the conveyor and start automatically

when dishes enter into the machine

• on request an integrated printer can be

installed on the machine, in order to print

out all the data about the washing

processes, displayed on the window

Power on

Low speed

DIN 50110 Window

2x16 digits Up/

down

Start

Info StopPower off High speed

Washing mode

The following information can be selected

and displayed in the window:

• washing efficiency • current alarms

• temperatures-actual and set values

• flow/speed/electrical power-actual

values (if measuring devices are installed)

• statistics-today’s washing • current

alarms-today’s washing

Stand by mode

The following information can be selected

and displayed in the window:

• temperatures: actual and set values

• flow limit settings • statistics-today’s

washing • alarms-today’s washing • time

left to service • HACCP protocol • print

protocol • clear protocol

Setup mode

In the setup mode the following fields can

be set: For the user • date and time

• choice of 12 languages • For the technician

with access code • temperatures can be

altered • timer • HACCP protocols (how

to print) • Water flows (option) • contact

time (between water and items)

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 7

1024

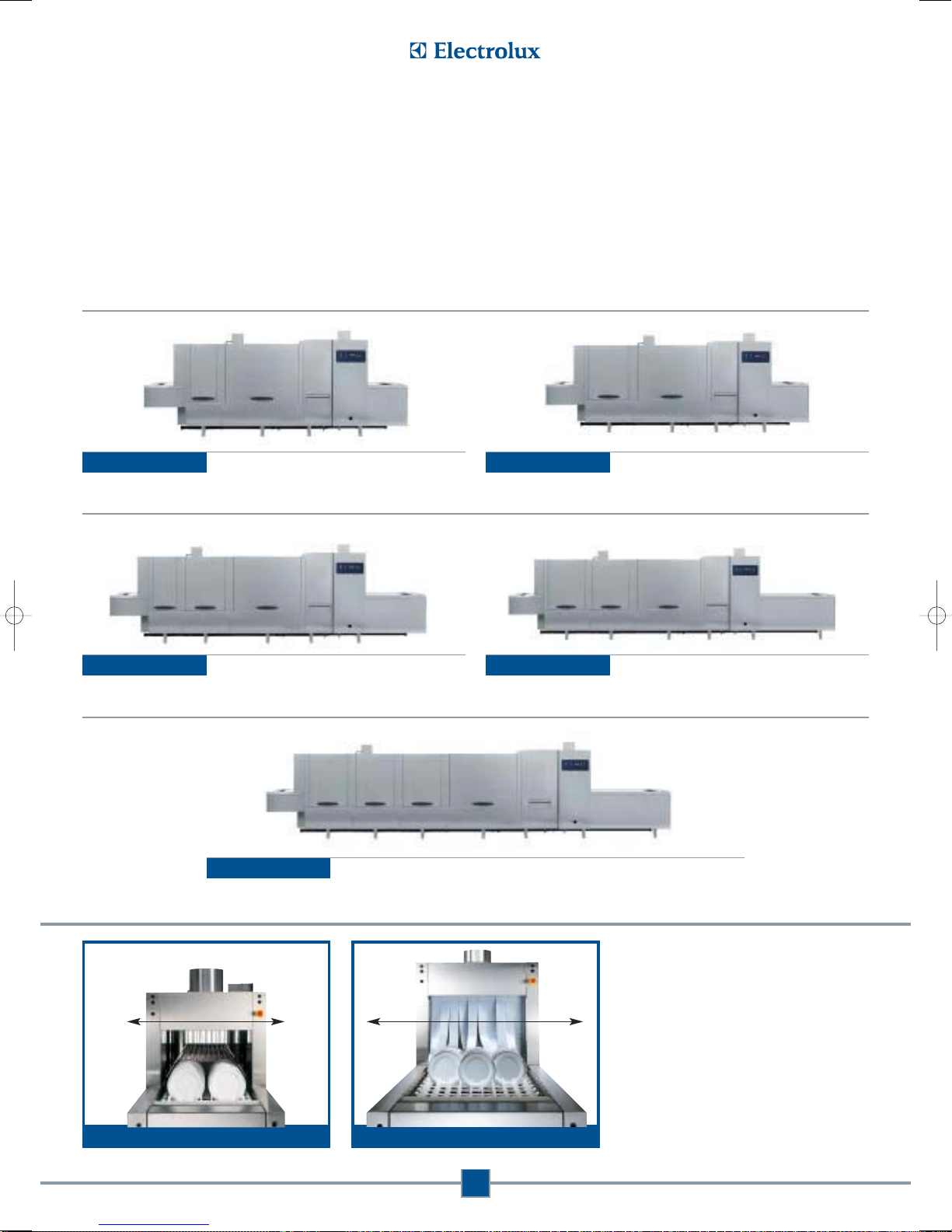

The product range

Optional wideGeneral purpose

880

WTF2 2 tank (standard pre-wash)

4500 mm length

3600 plates/hour

WTF2H 2 tank (heavy duty pre-wash)

4800 mm length

3600 plates/hour

WTF3 3 tank (standard pre-wash)

5800 mm length

5000 plates/hour

WTF3H 3 tank (heavy duty pre-wash)

6100 mm length

5000 plates/hour

WTF4H 4 tank (heavy duty pre-wash)

7400 mm length

7200 plates/hour

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 8

Version “A” Version “A”

• All models include a 1100 mm long

drying tunnel that incorporates an

inspection door to collect items that may

fall onto the belt

• The standard range is ideal for washing

items measuring up to 600 x 400 mm

wheareas the wide and high version can

wash 744 x 550 mm items

• The wide’n’high versions can take 3

plates instead of 2 for the standard version,

so the capacity is increased by 50%

• Version "A" incorporates an eco-scrap

arm that uses water from the ESD device

to immediately start to “soften” & “wet”

items immediately as they enter the

machine to wash items that have not

been pre-scrapped or when the machine is

used mainly on the fast speed

• Version “A” also incorporates as standard

high performance stainless steel wash

pumps to provide a stronger washing

action usually required to wash a lot of

gastronorm containers or when the

machine is used during heavy conditions

• All Flight type dishwashers are supplied

with a multipurpose belt.

The product range consists of 5 different sized

models available in 3 specificational levels to

provide the customer a wide range of machines

that can be even further personalized.

Version “A” – suitable for installations where

incoming water temperature is below 15 °C and

where usage is going to be particularly heavy

and incorporates energy saving device to reduce

power requirements by 20/30 kW/h.

No ventilation hood is required.

Version “B” – and suitable for installations

where incoming water temperature is below 15 °C

but where usage is going to be normal. No ventilation

hood required.

Version “C” – suitable for installations where

incoming water temperature is 55 °C. Ventilation

hood is required.

Version “A” Version “B” Version “C”

Drying Tunnel Drying Tunnel Drying Tunnel

Energy Saving Device Energy Saving Device

Heavy Duty Pump in stainless steel

Eco pre-scrap arm in prewash tank

brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 9

1 Loading section All models + versions

2 3 5

2 Pre wash

3 Wash with detergent

Options: heavy duty stainless steel pump 4.1 kW available for the standard pre-wash and wash tanks

Options: Lateral strainer and "Cross-over" loading section L = 2900 mm

Technical data

Optional lengths

Standard length

1200 mm

700 mm

1500 mm

1800 mm

2400 mm

3000 mm

4000 mm

Tank capacity l

WTF3WTF3WTF2HWTF2 WTF4H

Temperature °C

Pump power versions “B” and “C”

Pump power versions “A”

Heavy duty

107

30 - 50

2,7

Heavy duty

107

30 - 50

2,7

30 - 50

0,88

Heavy duty

107

30 - 50

2,7

30 - 50

0,88

Tank capacity l

Heating element kW

Temperature °C

Pump power versions “B” and “C”

Pump power versions “A”

4 Wash with detergent

Tank capacity l

WTF4H

Heating element kW

Temperature °C

Pump power versions “B” and “C”

Pump power versions “A”

Heavy duty

119

55 - 65

2,7

WTF3HWTF3 WTF4H

Heavy

duty

113

55 - 65

2,7

Heavy

duty

119

55 - 65

2,7

119

55 - 65

2,7

444

WTF2H

Heavy

duty

125

55 - 65

2,7

WTF2

125

55 - 65

2,7

brochure Flight type09/03 ING/1 14-02-2005 14:35 Pagina 10

This manual suits for next models

Table of contents

Other Electrolux Dishwasher manuals

Electrolux

Electrolux Zanussi DA 4441 User manual

Electrolux

Electrolux ESF5206LOW User manual

Electrolux

Electrolux GA45GLV User manual

Electrolux

Electrolux ESF8725RKX User manual

Electrolux

Electrolux DIVA User manual

Electrolux

Electrolux ESF6140 User manual

Electrolux

Electrolux BW 200 User manual

Electrolux

Electrolux EWDW6505GS - Dishwasher With 9 Wash Cycles User manual

Electrolux

Electrolux GA60GLICSP User manual

Electrolux

Electrolux EIDW6105 User manual

Electrolux

Electrolux ESS42220SW User manual

Electrolux

Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... User manual

Electrolux

Electrolux FAVORIT 50871 User manual

Electrolux

Electrolux EES68510L User manual

Electrolux

Electrolux ESF 45011 User manual

Electrolux

Electrolux ESF4600ROW User manual

Electrolux

Electrolux KEQC7200L User manual

Electrolux

Electrolux GA55LI102 User manual

Electrolux

Electrolux EIDW6105GS0 Operating manual

Electrolux

Electrolux ESL 7220RO User manual

Electrolux

Electrolux ESF 245 User manual

Electrolux

Electrolux EEA727200L User manual

Electrolux

Electrolux ESL 2435 User manual

Electrolux

Electrolux ESF7540ROX User manual

Popular Dishwasher manuals by other brands

KitchenAid

KitchenAid KUDB230B Use and care guide

Brandt

Brandt BDJ424DB instruction manual

Asko

Asko DSD767UXXL.AU user manual

Beko

Beko DFN26210W instruction manual

NEFF

NEFF S153ITX00E INFORMATION FOR USE

Midea

Midea SV 4.45 wi manual

LG LDF7932 Specifications

Gorenje

Gorenje GV63214 instruction manual

Hotpoint

Hotpoint HDA1100ZWH Installation information

Blomberg

Blomberg LDFN2240W instruction manual

AEG

AEG FFB83836PM user manual

Cylinda

Cylinda DM3220RFD user manual

Atag

Atag DW8214MB manual

GE GLD8000 Series owner's manual

Siemens

Siemens SN23HI02KE INFORMATION FOR USE

Omega

Omega ODW717X instruction manual

BORETTI

BORETTI BVW-683 operating instructions

Siemens

Siemens SN 56N591 operating instructions
