1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance door
when it is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Obey the maximum number of 13 place settings.
ENGLISH 3
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put knives and cutlery with sharp points in the cutlery
basket with the points down or in a horizontal position.
•Do not keep the appliance door open without
supervision to prevent to fall on it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•The ventilation openings in the base (if applicable)
must not be obstructed by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Follow the installation instruction
supplied with the appliance.
• Make sure that the appliance is
installed below and adjacent to safe
structures.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance complies with the
E.E.C. Directives.
• Only for UK and Ireland. The
appliance has a 13 amp mains plug. If
it is necessary to change the fuse in
the mains plug, use fuse: 13 amp
ASTA (BS 1362).
2.3 Water connection
• Do not cause damage to the water
hoses.
www.electrolux.com4
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.

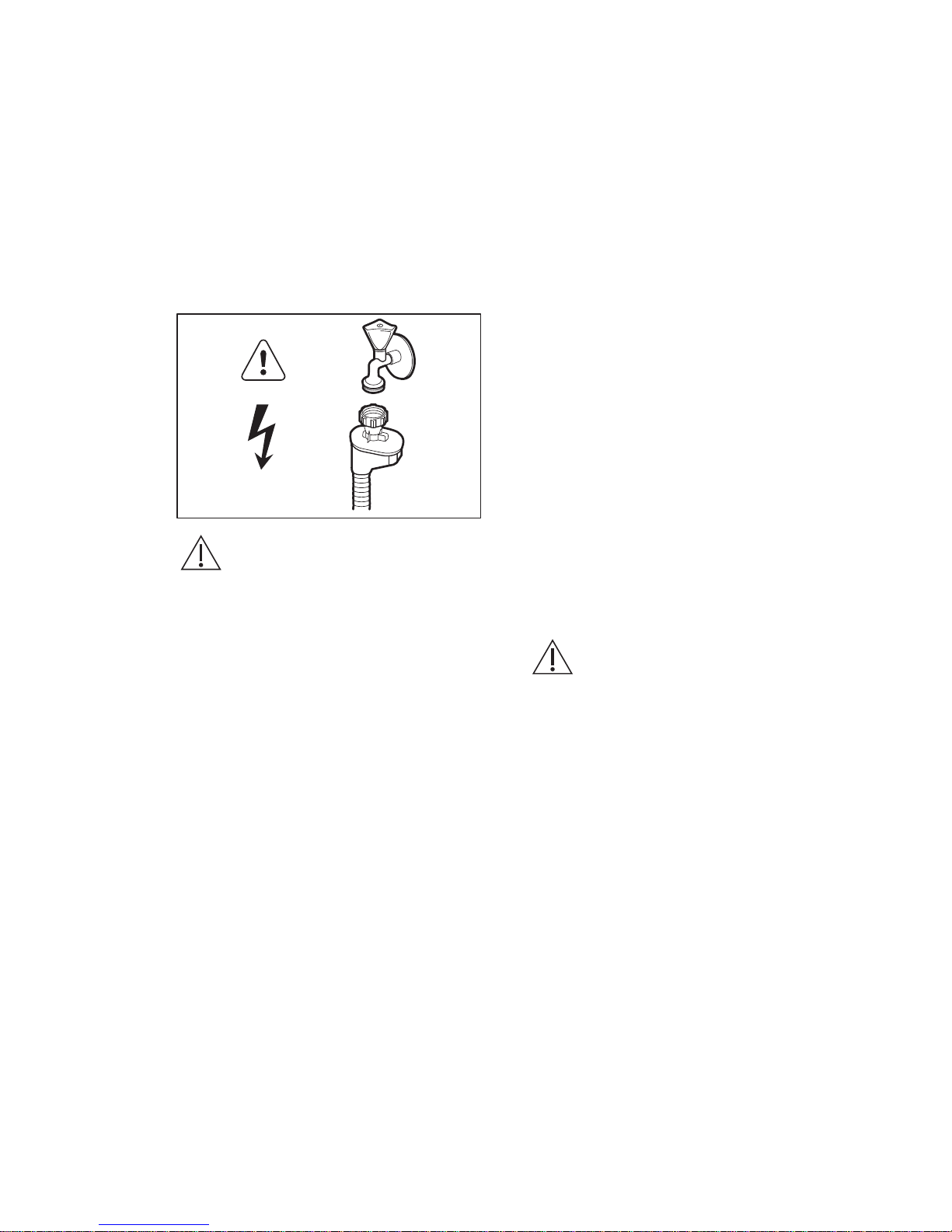

WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not sit or stand on the open door.
• Dishwasher detergents are
dangerous. Obey the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
completed. There can be detergent on
the dishes.
• The appliance can release hot steam
if you open the door while a
programme operates.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
2.5 Service
• Contact the Authorised Service
Centre to repair the appliance. We
recommend only the use of original
spare parts.
• When you contact the Authorised
Service Centre, ensure that you have
the following information that is
available on the rating plate.
Model :
PNC :
Serial Number :
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5

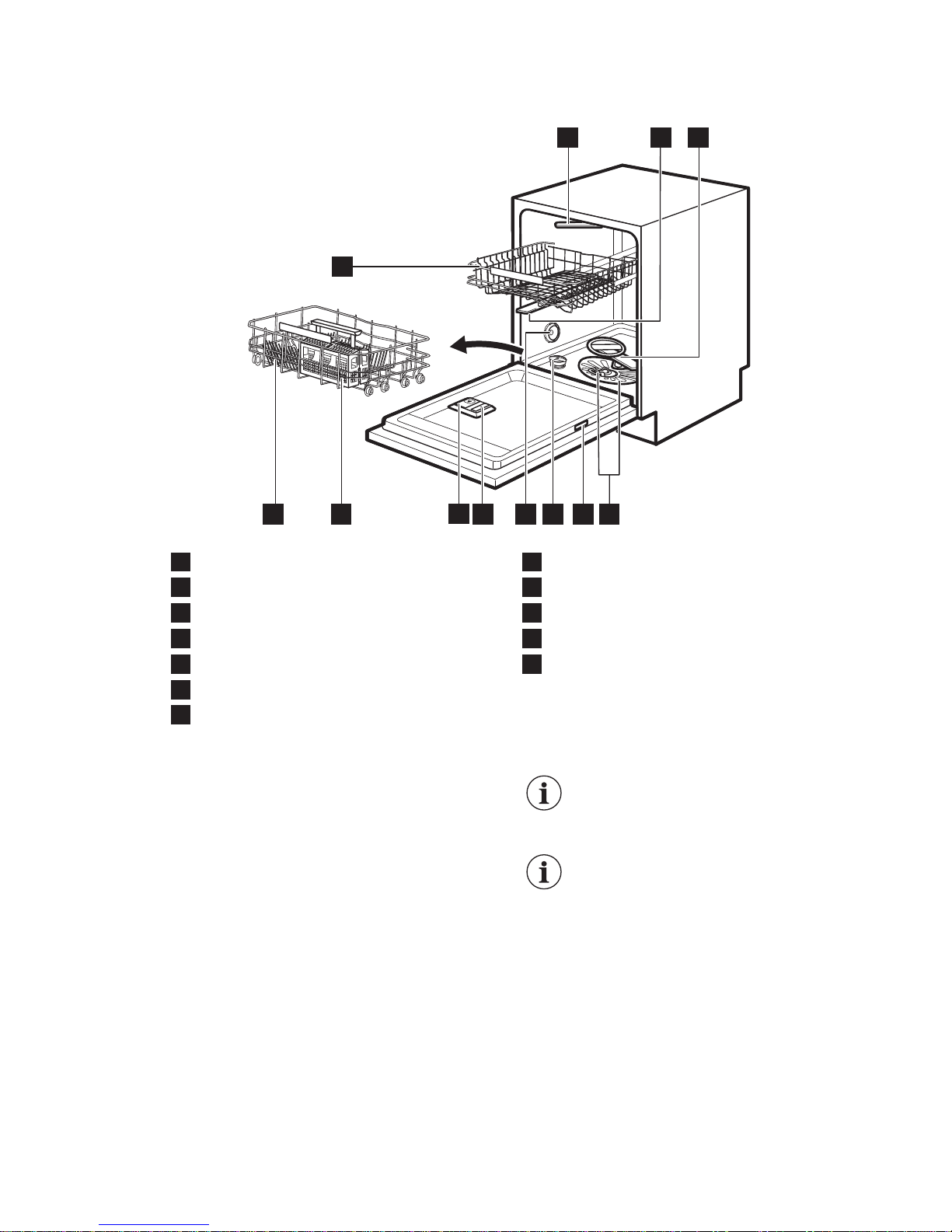

3. PRODUCT DESCRIPTION
54
67
9 8
12
23
11 10
1
1Top spray arm
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• When the programme starts, a red
light comes on and stays on for the
duration of the programme.
• When the programme is completed, a
green light comes on.
• When the appliance has a
malfunction, the red light flashes.
The Beam-on-Floor goes off
when the appliance is
deactivated.
When AirDry is activated
during the drying phase, the
projection on the floor may
not be completely visible. To
see if the cycle has ended,
check the control panel.
www.electrolux.com6
4. CONTROL PANEL

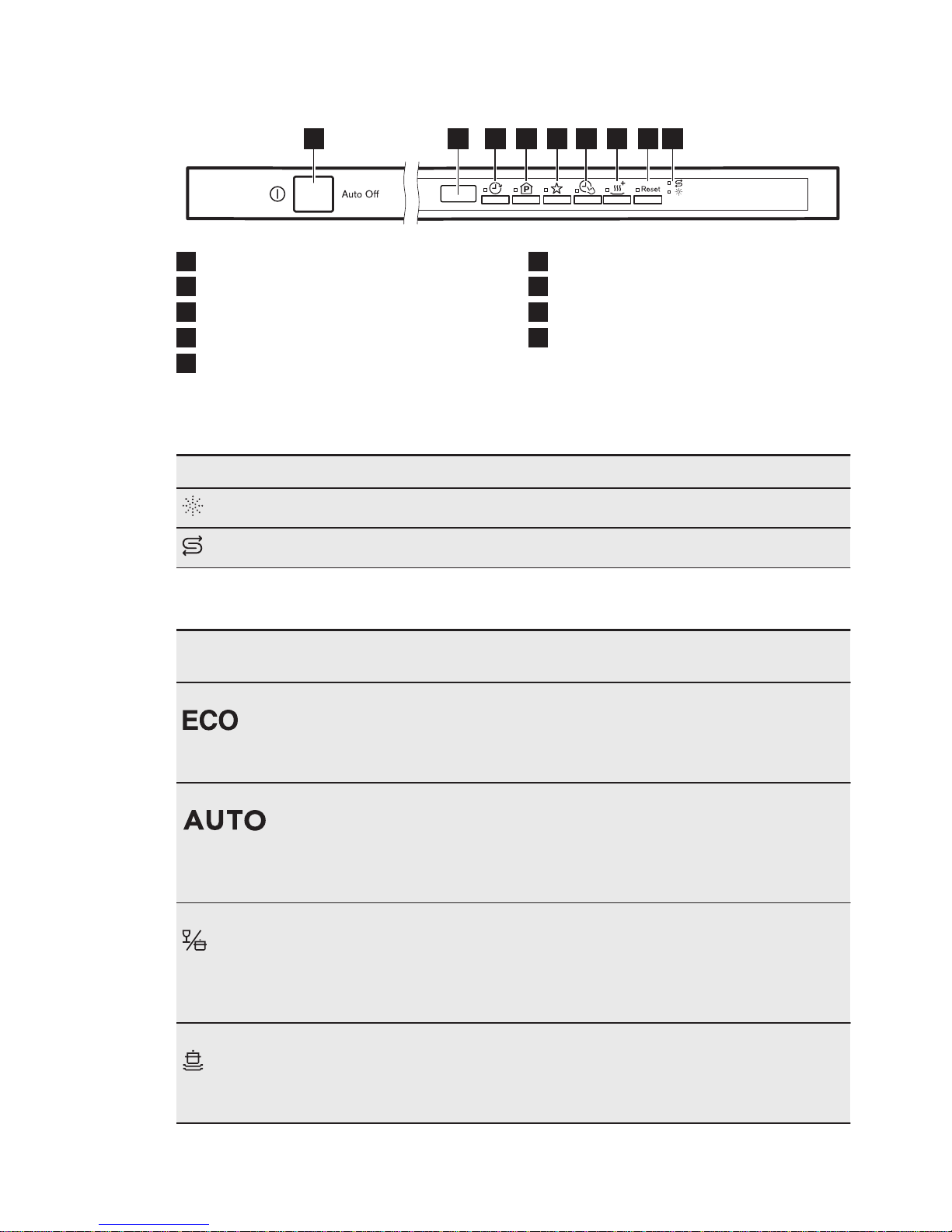

182 3 4 5 6 7 9
1On/off button
2Display
3Delay button
4Program button
5MyFavourite button
6TimeManager button
7XtraDry button
8Reset button
9Indicators
4.1 Indicators
Indicator Description
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
Programme Degree of soil
Type of load
Programme phases Options
P1
1)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• TimeManager
• XtraDry
P2
2)
• All
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash from 45 °C
to 70 °C
• Rinse
• Dry
• XtraDry
P3
3)
• Mixed soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 50 °C and
65 °C
• Rinse
• Dry
• TimeManager
• XtraDry
P4 • Heavy soil
• Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinse
• Dry
• XtraDry
• TimeManager
ENGLISH 7
Programme Degree of soil
Type of load
Programme phases Options
P5
4)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C
• Rinse
• XtraDry
P6
5)
• All • Prewash
1) With this programme you have the most efficient use of water and energy consumption
for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐
matically adjusts the temperature and the quantity of water, the energy consumption and the
programme duration.
3) With this programme you can wash a load with mixed soil. Very heavy soil in the lower
basket and normal soil in the upper basket. The pressure and the temperature of the water
in the lower basket are higher than in the upper basket.
4) With this programme you can wash a load with fresh soil. It gives good washing results in
a short time.
5) With this programme you can quickly rinse dishes to prevent remains of food to bond on
dishes and odours to form in the appliance. Do not use detergent with this programme.
5.1 Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1 10.2 0.832 225
P2 7 - 14 0.6 - 1.6 40 - 154
P3 14 - 16 1.2 - 1.5 140 - 156
P4 12.5 - 14.5 1.4 - 1.7 160 - 170
P5 10 0.9 30
P6 4 0.1 14
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
www.electrolux.com8
5.2 Information for test
institutes
For all the necessary information for test
performance, send an email to:
Write down the product number (PNC)
that is on the rating plate.

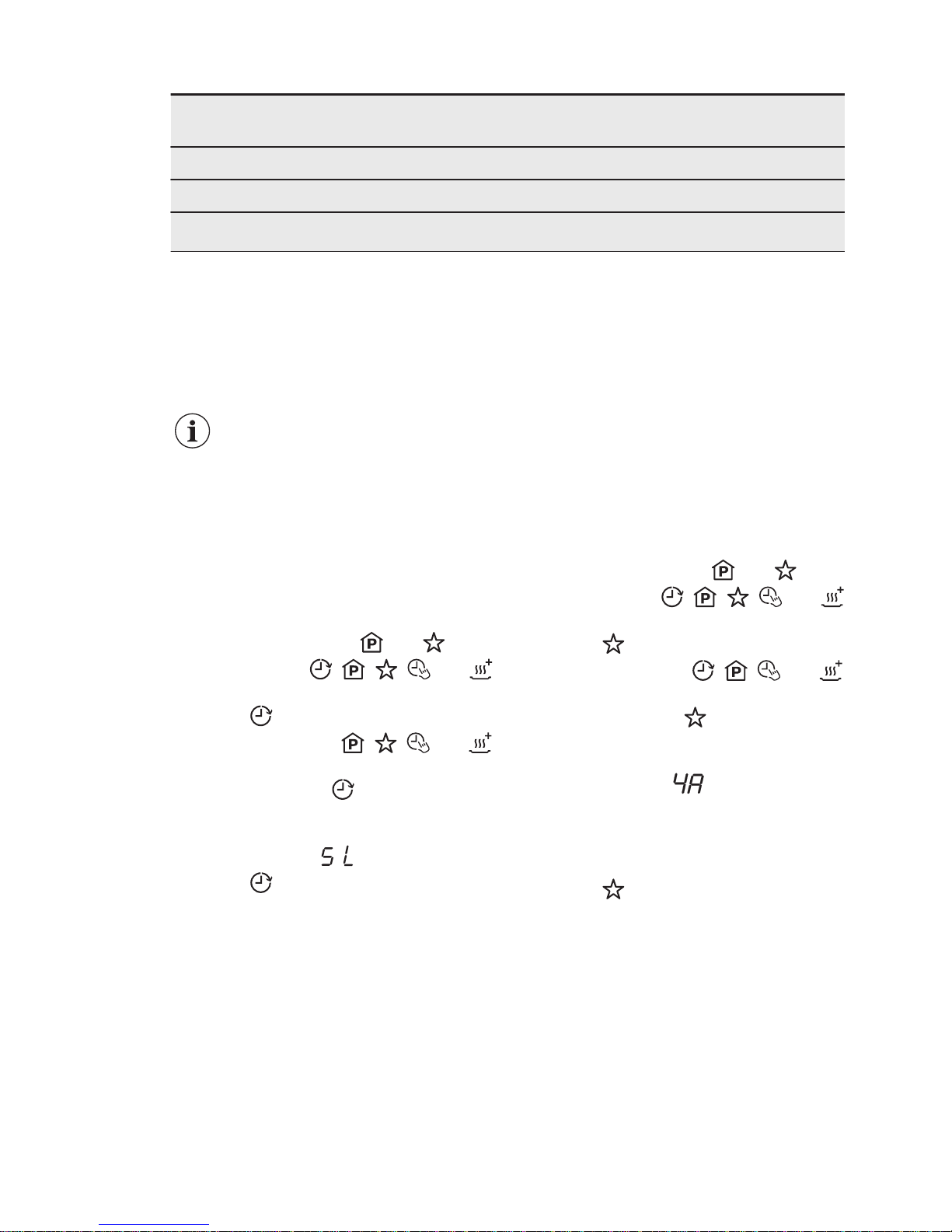

6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
In user mode, the following settings
can be changed:
• The level of the water softener
according to the water hardness.
• The activation or the deactivation of
the acoustic signal for end of
programme.
• The activation or deactivation of the
rinse aid empty notification.
• The level of rinse aid according to the
required dosage.
• The activation or the deactivation of
the option AirDry.
These settings will be saved until you
change them again.
How to set the programme
selection mode
The appliance is in programme selection
mode when the display shows the
programme number P1.
When you activate the appliance, usually
it is in programme selection mode.
However, if this does not happen, you
can set the programme selection mode
in the following way:
Press and hold Reset until the appliance
is in programme selection mode.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a detrimental effect on the washing
results and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Water hardness
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
ENGLISH 9
German de‐
grees (°dH)
French de‐
grees (°fH)
mmol/l Clarke de‐
grees
Water softener
level
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Whether you use a standard detergent
or multi-tabs (with or without salt), set
the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , and
go off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 5.
3. Press again and again to change
the setting.
4. Press the on/off button to confirm the
setting.
6.3 The rinse aid dispenser
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
You can set the released quantity of
rinse aid between level 1 (minimum
quantity) and level 6 (maximum quantity).
Level 0 will deactivate the rinse aid
dispenser and no rinse aid will be
released.
Factory setting: level 4.
How to set the rinse aid level
The appliance must be in programme
selection mode.
1. To enter the user mode, press and
hold simultaneously and until
the indicators , , , and
start to flash and the display is blank.
2. Press .
• The indicators , , and
go off.
• The indicator continues to
flash.
• The display shows the current
setting: e.g. = level 4.
– The levels of rinse aid are
from 0A to 6A.
– Level 0 = no rinse aid is
released.
3. Press again and again to change
the setting.
4. Press the on/off button to confirm the
setting.
6.4 The rinse aid empty
notification
The rinse aid helps to dry the dishes
without streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
www.electrolux.com10
Other manuals for ESL7325RO
1
Table of contents
Languages:
Other Electrolux Dishwasher manuals
Electrolux
Electrolux Zanussi DE 6854 User manual
Electrolux
Electrolux EIDW6105GS0 Operating manual
Electrolux
Electrolux EIDW6405HT - Fully Integrated Dishwasher User manual
Electrolux
Electrolux ESL7325RO User manual
Electrolux
Electrolux GA55LIBR User manual
Electrolux
Electrolux ESI 64010 User manual
Electrolux
Electrolux ESA42110SX User manual
Electrolux
Electrolux 504156 User manual
Electrolux
Electrolux ZDT 5053 User manual
Electrolux
Electrolux ProClean RealLife EDW5xx Series User manual
Electrolux
Electrolux ESF 4160 User manual
Electrolux
Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... User manual
Electrolux
Electrolux ESI 6700RAX User manual
Electrolux
Electrolux ESF8725ROX User manual
Electrolux
Electrolux ESI 66010 User manual
Electrolux
Electrolux ESA47300UX User manual
Electrolux
Electrolux QB 5201 User manual
Electrolux
Electrolux ES I46010 User manual
Electrolux
Electrolux ESF 6248 Operation manual
Electrolux
Electrolux ESF 6152 User manual
