Before leaving the factory, this appliance was tested and regulated by expert and
skilled personnel to give the best operating results. Any repair or regulation that
may subsequently be necessary must be carried out with the greatest care and
attention. For this reason, we recommend you always contact the Dealer you
bought the appliance from or our nearest Service Centre, specifying the type of
problem and the model of your appliance. Please remember as well that the
original spare parts are available only from our Technical Service Centres. Do not
leave the packaging unguarded, both for the safety of children and for the
protection of the environment, but dispose of it in a centre for differentiated waste.
The symbol on the product or on the packaging means that the product must
not be considered as normal household refuse, but must be taken to the
appropriate collection point for the recycling of electric and electronic equipment.
The appropriate disposal of this product helps avoid potential negative
consequences on the environment and for health, which could be caused by
inappropriate disposal of the product. For more detailed information on the
recycling of this product, please contact your municipal offices, the local waste
disposal service or the store where the product was purchased.
TABLE OF CONTENTS
GENERAL WARNINGS
Instructions for use:
Description of the main parts of the appliance
Gas burners (operation, lighting, advice)
Operation of electric hot plates
Maintenance and cleaning
Instructions for installation:
Positioning and gas connection
Electrical connection
Adaptation to different types of gas
Instructions for building in the units
ENGLISH
3 - ENGLISH
General warnings
Dear Customer,
Thank you for having chosen one of our products. This appliance is easy to use,
but you must read this booklet carefully before installing and using it. The booklet
contains instructions that will help you to install, use and service the product in the
best way.
WARNING: This appliance and its accessible
parts become very hot during use. Take care
and do not touch the heating elements. Unless
they are supervised at all times, children
younger than 8 years of age must be kept well
away from the appliance.
WARNING: This appliance may be used by
children from 8 years of age onwards and by
persons with reduced physical, sensorial or
mental capabilities, or who lack experience and
knowledge so long as they are properly
supervised or have been trained on how to use
the appliance safely and are aware of the risks
involved. Children must not play with the
appliance. The appliance must not be cleaned
or serviced by unsupervised children.
WARNING: Do not leave a hob unattended
when fat or oil is being used. This could be
dangerous and cause a fire.
WARNING: NEVER attempt to put out a
fire/flames with water. Switch off the appliance
4 - ENGLISH
General warnings
and cover the flame with a lid or a blanket made
of fire-retardant material for example.
WARNING: Fire risk. Do not leave objects on
the surface of the hob.
WARNING: If the glass or glass-ceramic surface
is cracked, switch off the appliance to prevent
the risk of an electric shock.
The appliance cannot be switched on by an
external timer or a separate remote control.
Do not use jets of steam to clean the appliance.
It is very important for this instruction booklet to be kept with the appliance if it
changes hands.
These instructions are only applicable in countries whose pictograms appear on
the cover and on the appliance itself.
This appliance has been designed for non-professional use by private individuals
in their homes and its purpose is to cook and heat food. Do not use it for other
purposes.
The appliance must be installed by a skilled and qualified installer who is familiar
with the installation rules in force.
Before it is cleaned or serviced, the appliance must be disconnected from the
electric power source and allowed to cool.
Before you switch on the appliance, make sure that it has been correctly regulated
for the type of gas available in your area (consult the relative section).
When you turn on the burners, always make sure that the flame is regular.
If a burner goes out accidentally, turn off the control knob and wait at least one
minute before turning it on again.
It is advisable to switch off the relative heating element before you remove the
saucepans.
5 - ENGLISH
General warnings
The electric power cable of the appliance must not be replaced by the user. It must
only be replaced by a qualified electrician.
When used, gas-fired appliances produce heat and humidity in the room where
they are installed. Make sure that this room is properly ventilated by keeping the
natural air vents open or by installing a extractor hood with exhaust duct.
Additional ventilation may be required (by opening a window or increasing the
degree of forced ventilation) when gas-fired appliances are used for long periods of
time.
Make sure that you do not place unstable or deformed saucepans on the burner or
electric hotplates. They could overturn or overflow and cause accidents.
Always use saucepans with suitable diameters for the cooking zones. Never use
pans with smaller diameters than the cooking zones and never switch on the
cooking zones without pans on them.
Make sure that you do not place unstable or deformed saucepans on the heating
surfaces. They could overturn or overflow and cause accidents. Do not switch on
the cooking zones without saucepans on them.
Always call an authorized Technical Assistance Center and insist on original spare
parts if repairs are required. Repairs made by incompetent persons could cause
damage.
The appliance is switched off when all its knobs have been turned to position 0 / .
-The appliance is conform to the following European Directives and Regulations :
Directive 2014/35/EC ( Low Voltage Appliances )
Directive 2014/30/EC ( ElectroMagnetic Compability )
Directive 2012/19/EC ( WEEE - Waste Electrical and Electronic Equipment )
Directive 2009/125/EC ( ErP - Eco Design )
Directive 2011/65/EC ( RoHS - restriction of hazardous substances)
Regulation 1935/2004/EC ( Materials intended to come into contact with food )
Regulation 1907/2006/EC ( REACH Restriction of Chemicals)
Regulation 2016/426/EC ( GAR - Gas Appliances )
6 - ENGLISH
Instructions for use
2
3
4

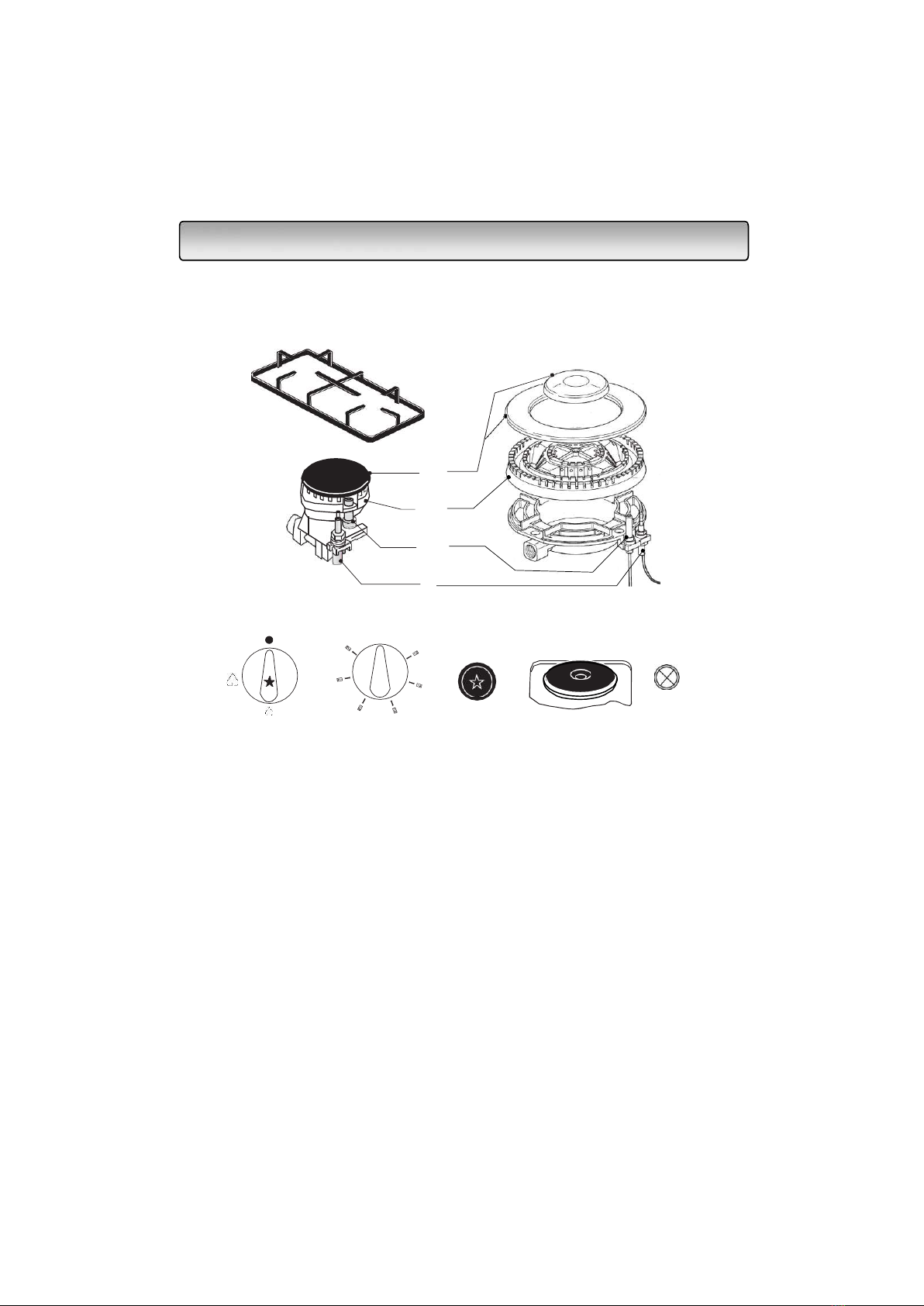

Description of the main parts of the appliance
5
6 7 8910
1 = grid
2 = cover
3 = spreader
4 = ON spark plug (for versions
with lighting)
5 = safety valve (for models
equipped with a safety valve)
6 = knob for burner ignition and
adjustment (* ON switch on
the knob for the versions so
equipped)
7 = electric hot plate control knob
8 = separate ON switch (for the
versions so equipped)
9 = electric hot plate (where
there is one)
10 = electric hot plate operation
pilot lamp
1
0
iI
7 - ENGLISH
Instructions for use
The hob control area houses the devices and knobs for operation of the gas
burners and/or the electric hot plates.

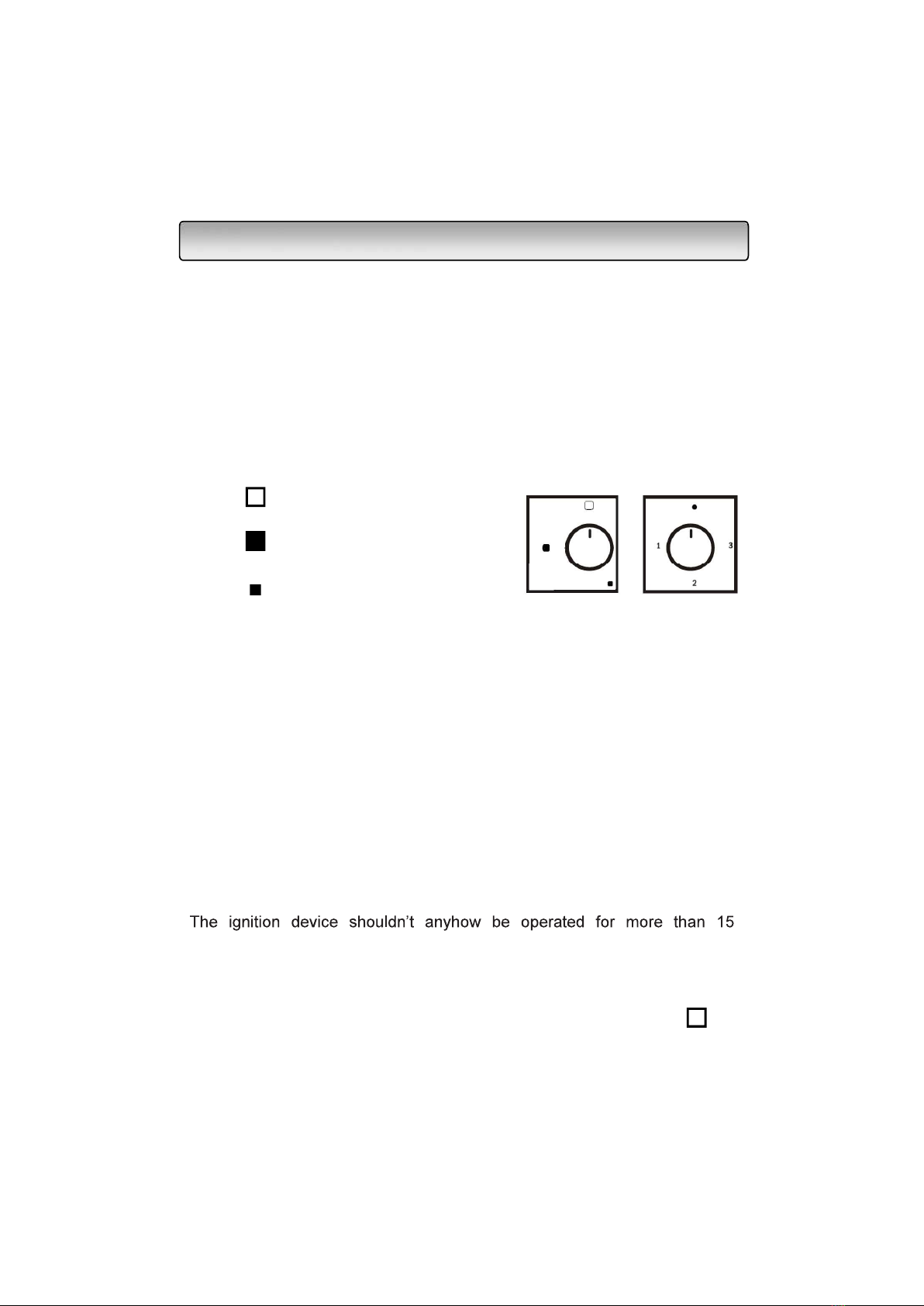

Operation of gas burners
The burner regulation knobs can be turned anticlockwise from the closing
position to the widest open position and vice versa in the opposite direction
(put the needle to the position required):
= no gas/ electric supply
= maximum gas/ electric supply
= minimum gas/ electric supply
Lighting the burners
For models equipped with electrical ignition device, the ignition of burners
takes place by pressing and rotating the knob until the position of maximum
output is reached. In the versions with separate ignition key, only press this
key and at the same time press and rotate the knob proportional to the desi-
red burner, until it reaches the position of maximum output.
For versions without electric lighting (or if there is a power cut) perform the
operations described using a match or lighter to light the gas (in such an
event, pay the utmost attention not to burn yourself).
For models with safety valve keep the knob pressed for about 3-4 seconds
until the device keeps the flame alight automatically.
The safety valve operates when the flame is turned off accidentally, stop-
ping the supply of gas (e.g. in draughts, spills of liquid, etc.).
seconds.
If a burner is turned off accidentally or does not light, turn the control knob
OFF and repeat the lighting after at least 1 minute.
When the burner is lit adjust the flame as required.
To turn the gas supply OFF turn the knob clockwise to the << >>
position.
8 - ENGLISH
Instructions for use
Advice on the use of gas burners
For lower gas consumption and a better yield, use saucepans with diameter suita-
ble for the burners, avoiding the flame coming up round the side of the saucepan
(see the Container Table). Use only flat-bottomed pans.
As soon as a liquid starts to boil, turn the flame down to a level sufficient to maintain
boiling.
During cooking, when using fats and oils, be very careful because if they overheat
they could catch fire.
Take care that the containers don't escape from the edges of the plan and don't
invade the control panel.
Container table (use flat-bottomed saucepans)
Burners
(heights cover)
mm (mm) (mm)
Auxiliary 80 140
Medium quick 140 200
Quick 200 240
Triple ring
240 280
Electric hot Plates ()80 160
Electric hot Plates (5) 160 200
9 - ENGLISH
Instructions for use

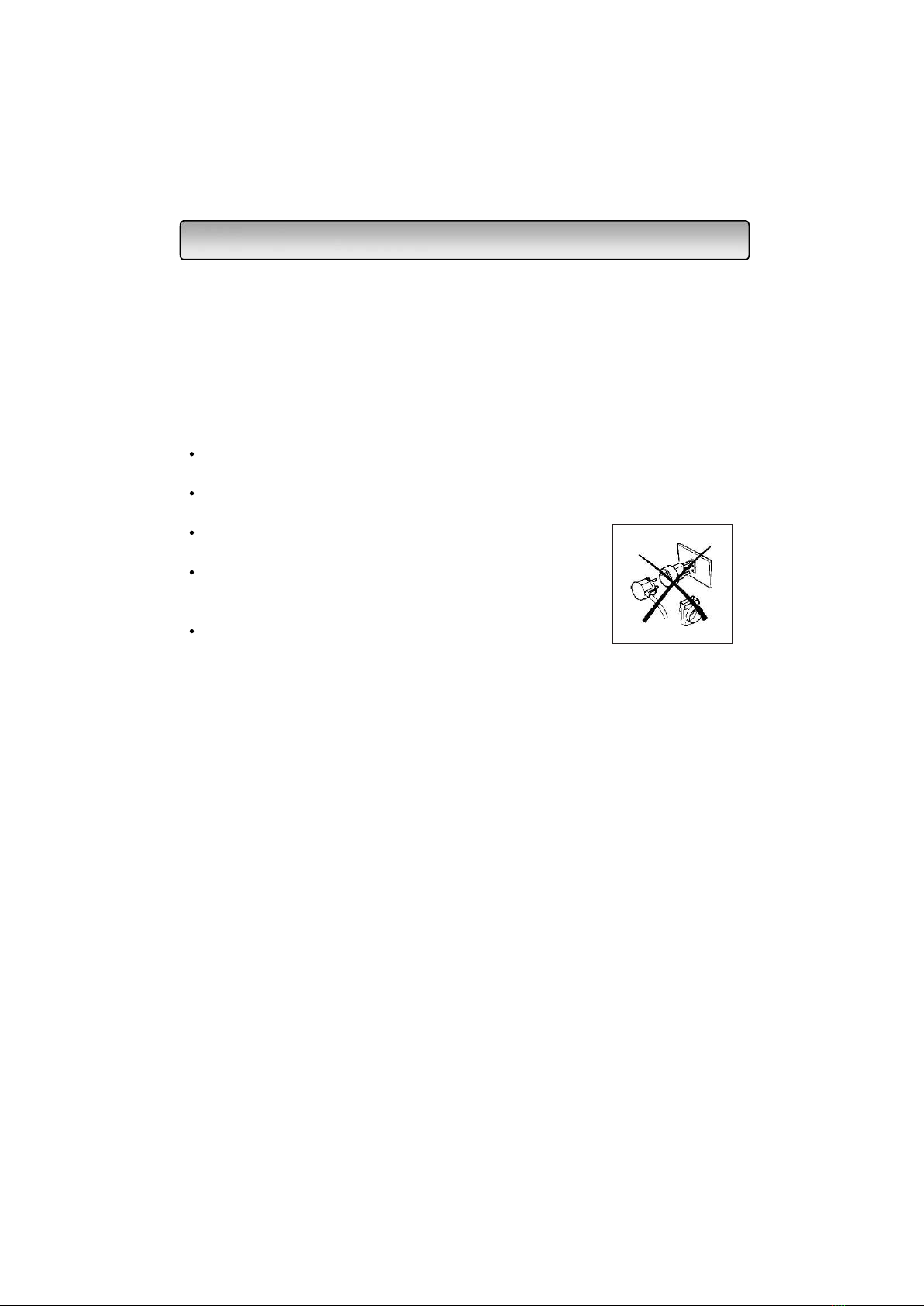

Electrical Connection:
Pay attention to the following points while making the electrical connections.
Make sure that the current carrying capacity of home mains and the socket,
to which the device will be connected, is correct for the maximum power used
by the stove.
Make sure that the operating voltage stated on the type label is the same as
the mains voltage.
Connect the device directly to the socket. There should not be any additional
connections such as transformers etc.
Connect to a grounded socket.
The grounded socket should be near the device. No extension cables should
ever be used.
The supply cable should not touch the hot surface of the device.
In case of any damage to the supply cable, call the Authorized Service. The
cable should be replaced by the Authorized Service.
In case of an incorrect electrical connection, the device may be damaged.
This type of damage is not covered by the warranty.
The device is adjusted to be suitable for 220 - 240 Volt electricity. If the mains
electricity is different from the provided value, call the Authorized Service
immediately. After placing the stove, make sure that the control button is in the
off position then put the plug in the socket.
Unplug the device before each maintenance.
10 - ENGLISH
Instructions for use

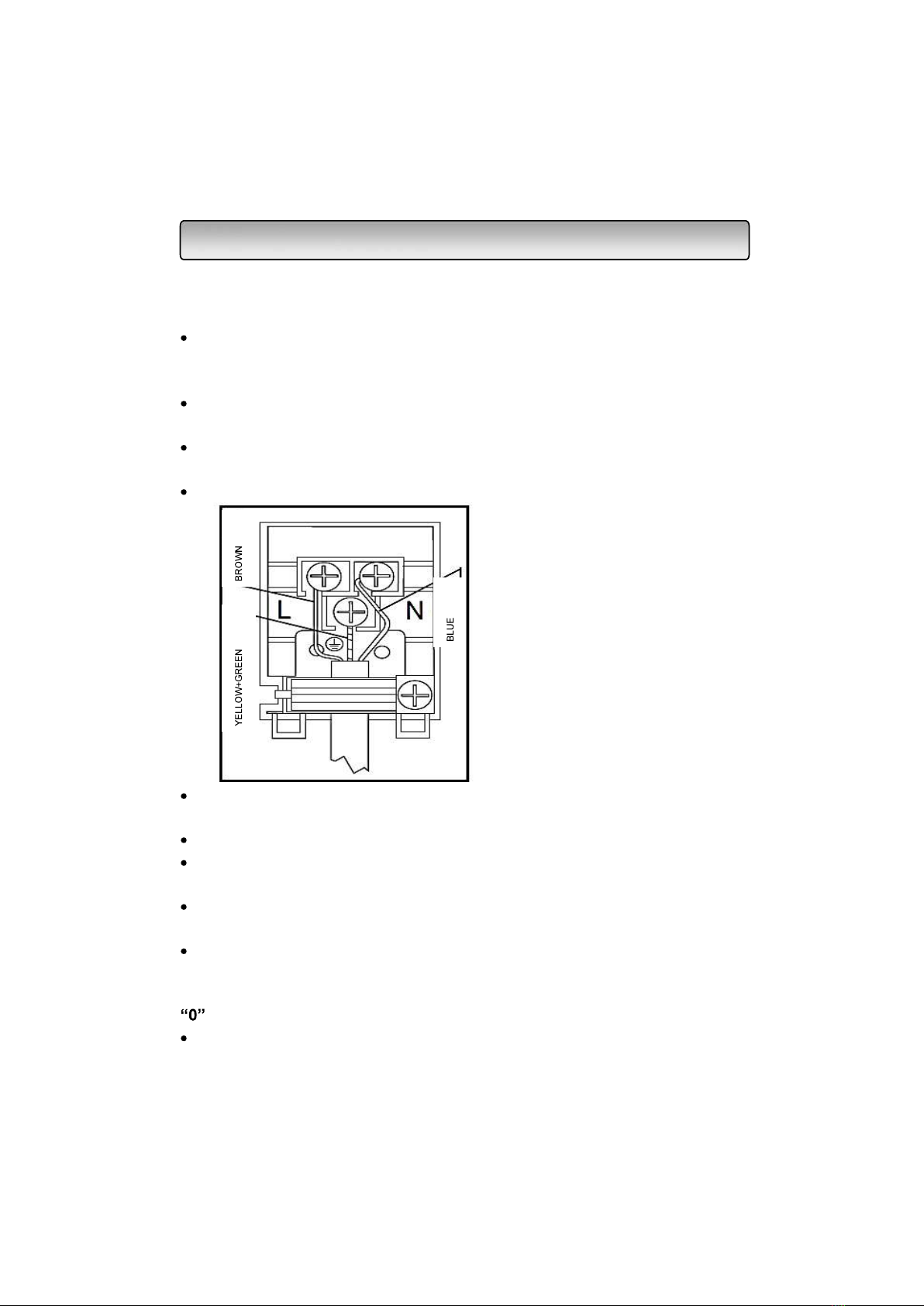

CONNECTION OF THE FEEDING CABLE TO THE MAINS
Connect the feeding cable to a plug suitable for the load indicated on the
rating plate of the product. In case of a direct connection to the mains
(cable without plug), it is necessary to insert a suitable omnipolar switch
before the appliance, with minimum opening between contacts of 3 mm
(the grounding wire should not be interrupted by the switch).
Before connecting to the mains, make sure that:
the electrical counter, the safety valve, the feeding line and the socket are
adequate to withstand the maximum load required (see rating plate).
the supply system is regularly grounded, according to the regulations in
force.
the socket or the omnipolar switch can easily be rea-
ched after the installation.
after carrying out the connection to the mains, check
that the supplying cable does not come into contact
with parts subject to heating.
never use reductions, shunts, adaptors which can
cause overheating or burning.
When the appliance is to be installed above a built-in oven, the two applian-
ces must be connected separately, to make it easier to take the appliances
out and for electrical safety.
The manufacturer is not liable for any direct or indirect damage cau-
sed by faulty installation or connection. It is therefore necessary that
all installation and connection operations are carried out by qualified
personnel complying with the local and general regulations in force.
This manual suits for next models
6
