Ekwb EK-Quantum Reflection2 PC-O11D EVO D5 PWM... User manual

USER GUIDE

DISTRIBUTION PLATE

EKQuantum

Reﬂection2Fractal XL D5 PWM D-RGB

Please note the installation of the product is intended to be

undertaken by an adequately trained and experienced person.

You are installing the product at your own risk. If you are not

properly trained or experienced or feel unsure about the

installation procedure, please refrain from installing the product

yourself and contact our tech support for assistance. We disclaim

our liability for any damages to the product as well as incidental,

consequential, or indirect damages incurred due to improper or

inappropriate installation.

Before you start using this product please follow these basic guidelines:

Please carefully read the manual before beginning with the

installation process!

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for any liquid cooling system. EKWB recommends any of the

EKCryofuel for worry-free usage.

- 3 -

TABLE OF CONTENT

BOX CONTENTS 4

DISTRIBUTION PLATE DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 6

PREPARING THE FRACTAL XL CHASSIS 7

INSTALLING THE DISTRIBUTION PLATE 8

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS 9

INSTALLING THE RADIATORS AND FANS 11

ATTACHING THE PUSH-IN ADAPTER (OPTIONAL) 12

FLOW DIAGRAM 13

CONNECTING THE D-RGB LED STRIP 14

CONNECTING THE PUMP 14

TESTING THE LOOP 15

SUPPORT AND SERVICE 16

SOCIAL MEDIA 16

- 4 -

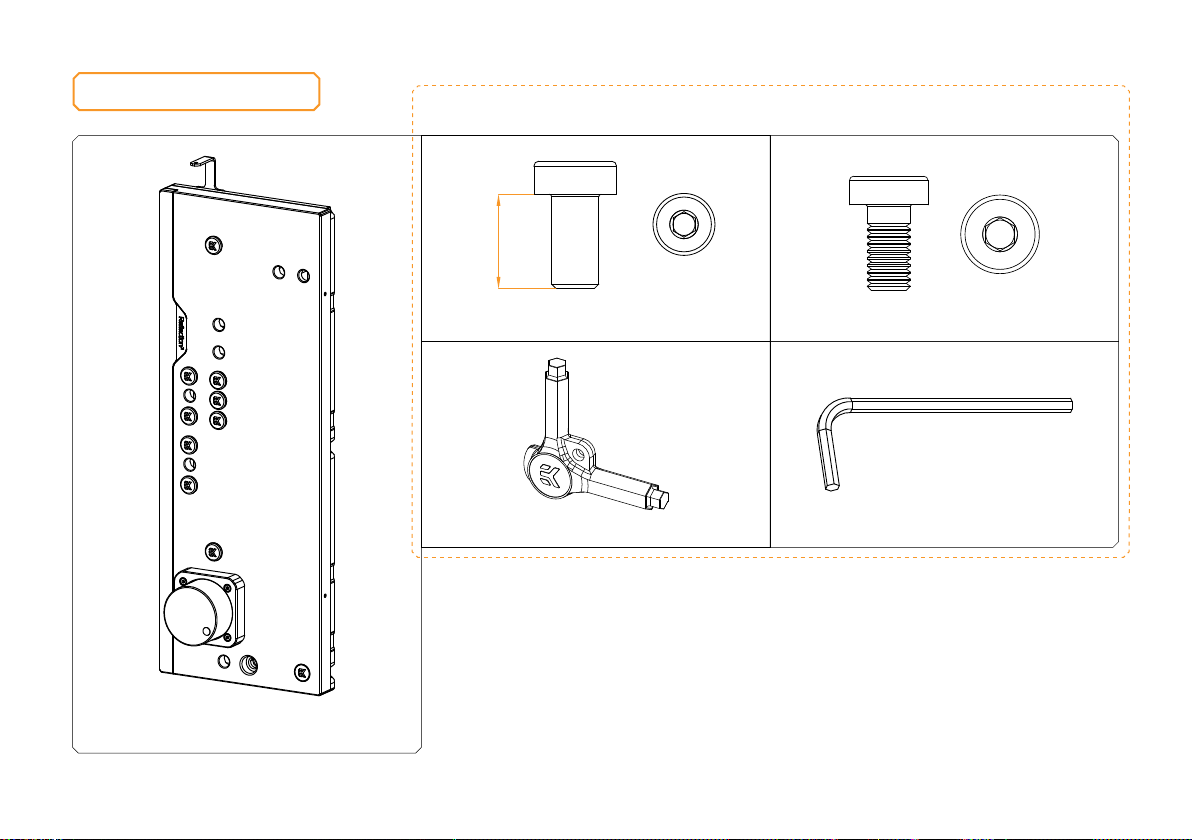

BOX CONTENTS

8 mm

EK-Quantum Reﬂection2Fractal XL D5

PWM D-RGB

Screw M3 x 8 DIN7984 (3 pcs) Screw M3 x 5 DIN7984 (1 pc)

Allen Key 2 mm (1 pc)EK-Loop Multi Allen Key

Mounting Mechanism EAN: 105682

- 5 -

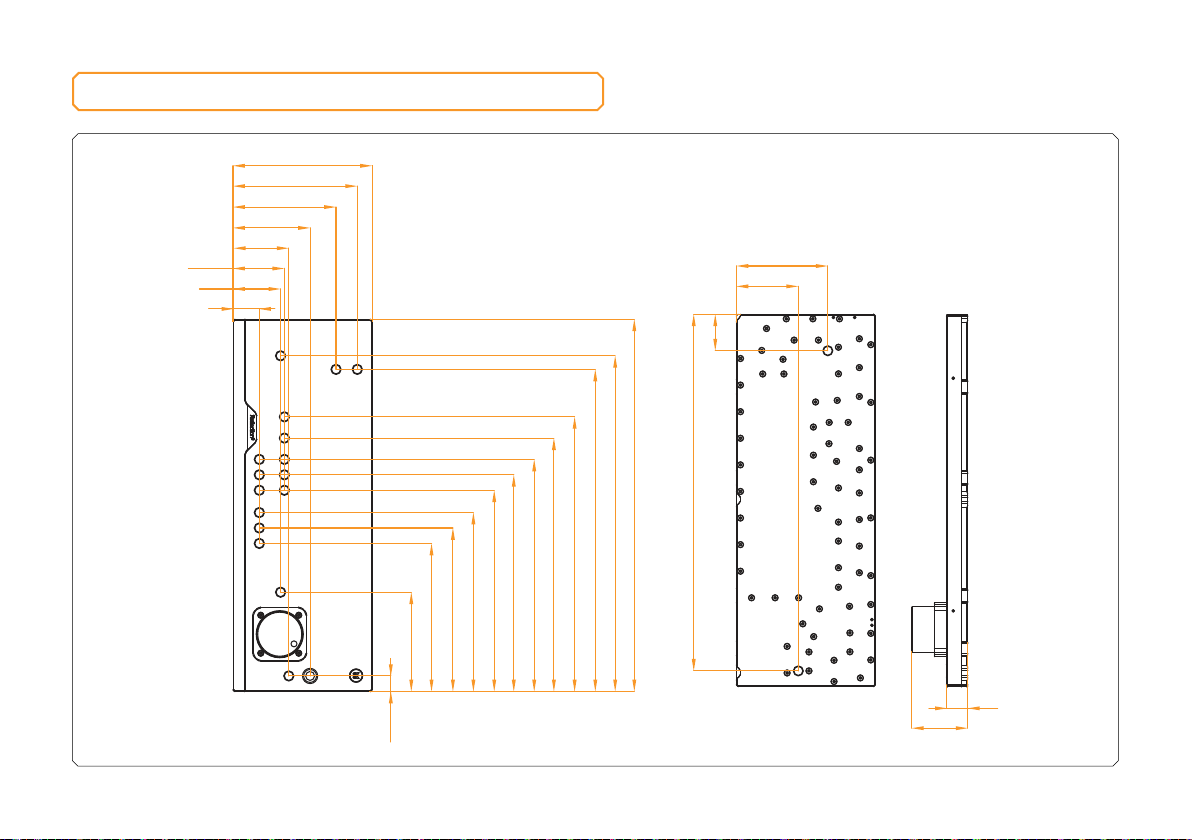

DISTRIBUTION PLATE DIMENSIONS

183.00 mm

490 mm

20.5 mm

130.5 mm

195 mm

215.5 mm

235.5 mm

265 mm

285.5 mm

305.5 mm

333.5 mm

361.5 mm

424 mm

442 mm

34.5 mm

62.5 mm

72.5 mm

67.5 mm

101.5 mm

135.5 mm

163.5 mm

120.5 mm

48 mm

81.5 mm

469.5 mm

74 mm

28 mm

- 6 -

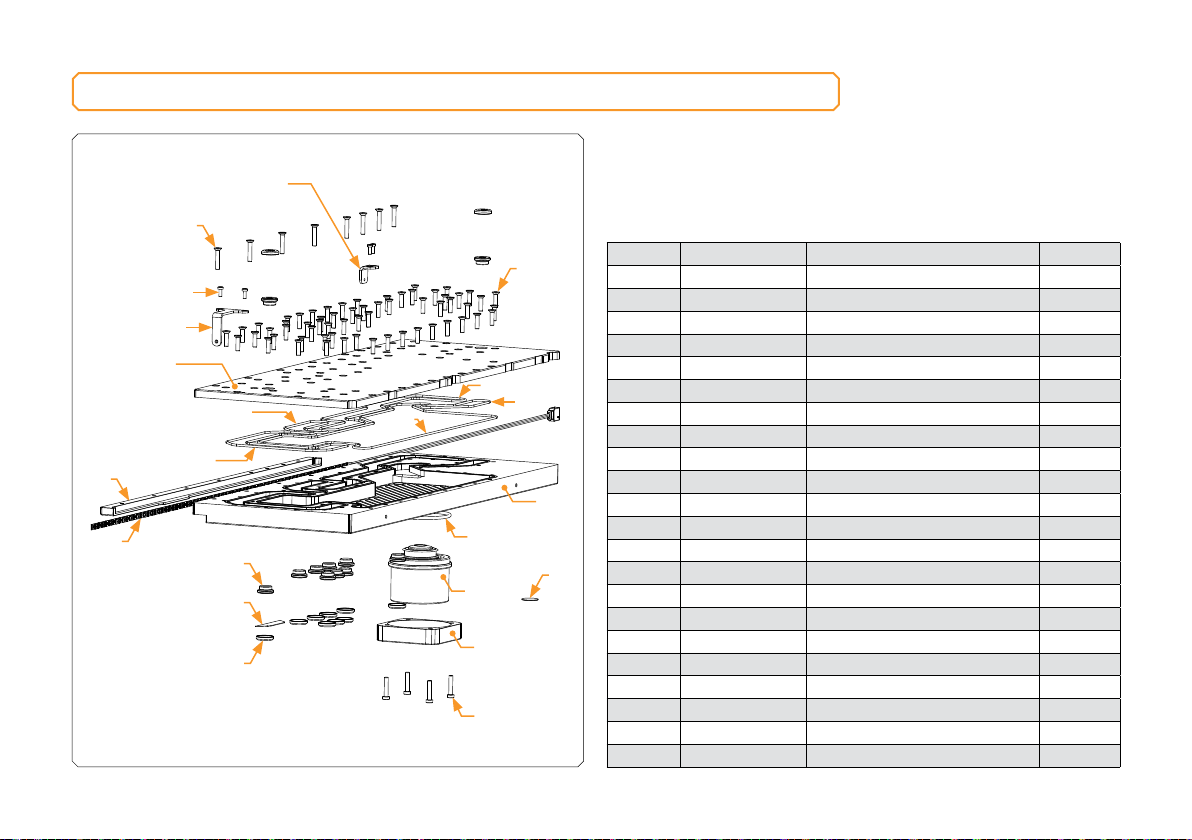

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS

Technical Speciﬁcation:

- Dimensions with the attached pump (W x D x H): 183 x 74 x 490 mm

- D-RGB LED count: 27

- D-RGB cable length: 600 mm

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1105547 Bottom plate (Plexi) 1

2105548 Top plate (Plexi) 1

3105539 Led cover (Black e.) 1

4101803 Pump cover (Acetal) 1

53831109837597 D5 Pump 1

65154 OR 52 x 3 mm 1

7104599 Mylar sticker 1

8105546 Bracket 1 (Black) 1

9105544 Bracket 2 (Black) 1

10 8311 Screw M4 x 20 DIN7984 4

11 3831109834282 Plug Cover 11

12 102639 EK-Plug G1/4 11

13 100663 EK - Badge 1

14 105549 OR 340 x 2 mm 1

15 105550 OR 192 x 2 mm 1

16 105551 OR 77 x 2 mm 1

17 105552 OR 245 x 2 mm 1

18 105553 OR 64 x 2 mm 1

19 8017 Screw M3 x 5 ISO7380 4

20 8251 Screw M4 x 22 7991DIN 8

21 8312 Screw M4 x 16 DIN7991 61

22 102458 LED D-RGB strip 800/600 mm 1

- 7 -

PREPARING THE FRACTAL XL CHASSIS

Before installing the distribution plate, carefully read

the PC case manual.

STEP 1

First, remove the front, side, and top panels from the PC case.

STEP 2

Unscrew the 4 (four) marked factory screws and remove the HDD

panel.

STEP 1

REMOVE

For this step you will need:

Phillips Head Screwdriver

- 8 -

STEP 2

Secure the distribution plate to the chassis with three (3) M3 x 8

DIN7984 and one (1) M3 x 5 DIN7984 screw (as shown in the diagram).

Tighten the screws according to the numerical order shown in the

image!

STEP 2

INSTALLING THE DISTRIBUTION PLATE

STEP 1

Carefully place the EK-Quantum Reﬂection2Fractal XL D5 PWM D-RGB

distribution plate into the PC case and align the mounting holes.

STEP 1

For this step you will need:

Allen Key 2 mm

Screw M3 x 8

DIN7984 (3 pcs)

8 mm

Screw M3 x 5

DIN7984 (1 pc)

M3 x 8 DIN7984

M3 x 5 DIN7984

- 9 -

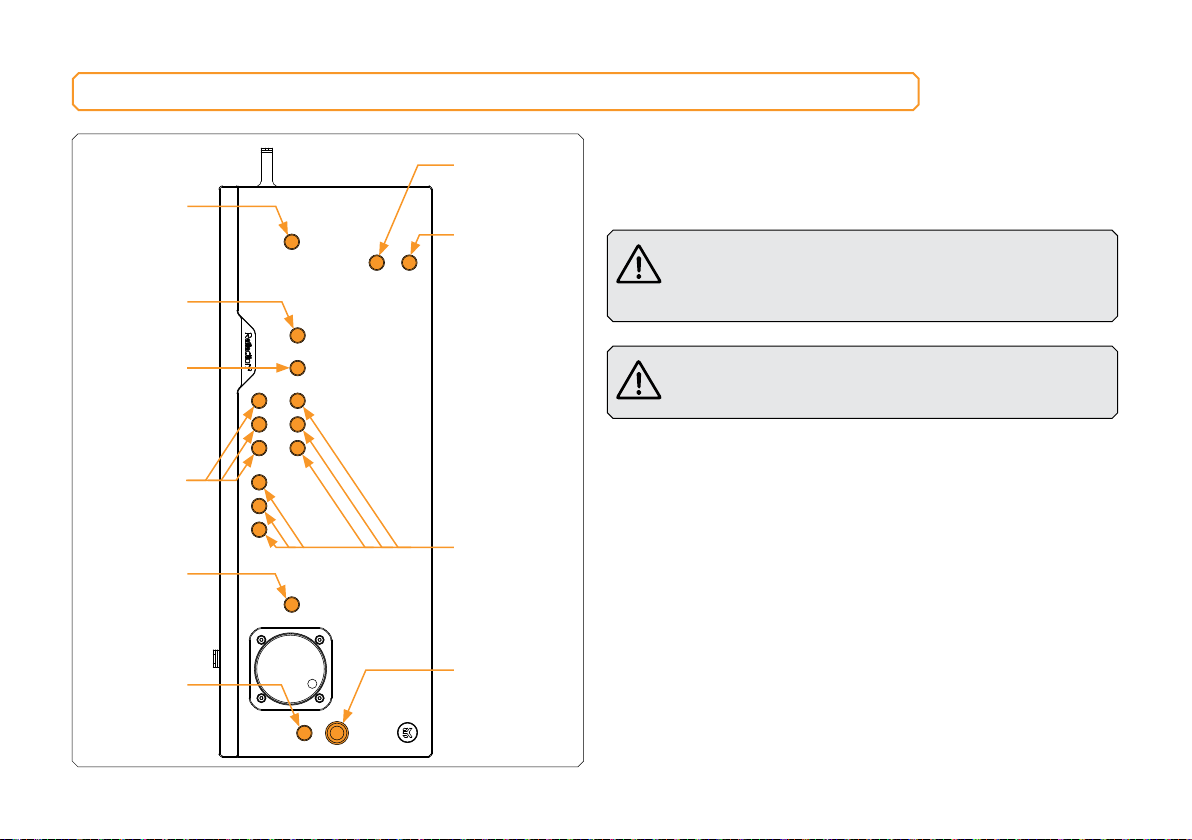

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS

CPU OUTLET

DRAIN

CPU INLET

FILL

TOP RADIATOR

OUTLET

FRONT

RADIATOR

INLET

TOP RADIATOR

INLET

GPU

OUTLET

GPU

INLET

FRONT

RADIATOR

OUTLET

To complete your loop, all ports must be used as marked in the image.

All remaining unused ports must be closed with supplied plugs,

using the EK-Loop Multi Allen Key.

If one of the prescribed components will not be installed

(ie. bottom radiator or GPU block) then one INLET and

one OUTLET port must still be joined together in order

for this distribution plate to function!

Only one INLET and one OUTLET port for the GPU

connection can be used, while all other INLET and

OUTLET GPU ports must be closed with G1/4 plugs.

- 10 -

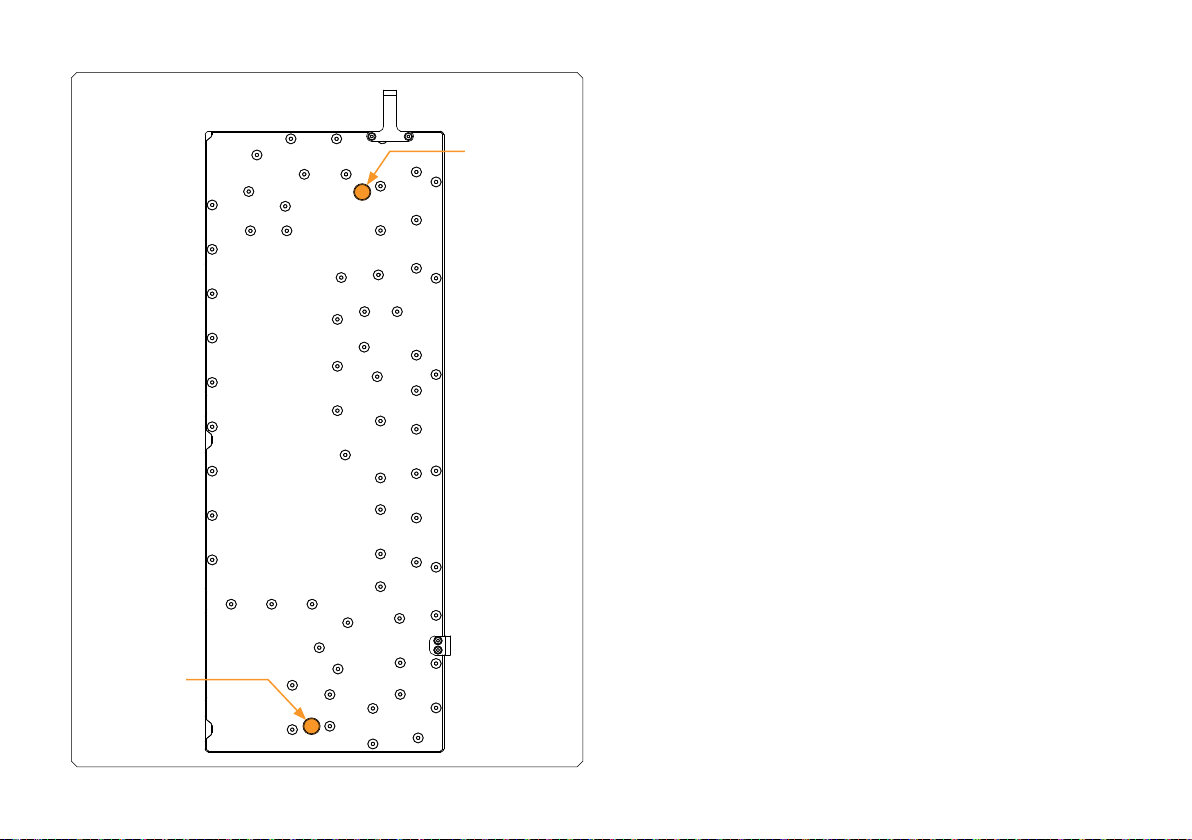

FILL

(EXTERIOR)

DRAIN

(EXTERIOR)
