ekwb EK-Quantum Reflection2 PC-O11D EVO D5 PWM... User manual
USER GUIDE
DISTRIBUTION PLATE
EKQuantum
Reflection2MEG Prospect 700R D-RGB – Plexi
Please note the installation of the product is intended to be
undertaken by an adequately trained and experienced person.
You are installing the product at your own risk. If you are not
properly trained or experienced or feel unsure about the
installation procedure, please refrain from installing the product
yourself and contact our tech support for assistance. We disclaim
our liability for any damages to the product as well as incidental,
consequential, or indirect damages incurred due to improper or
inappropriate installation
Before you start using this product please follow these basic guidelines:
Please carefully read the manual before beginning with the
installation process!
The EK Fittings require only a small amount of force to screw
them firmly in place since the liquid seal is ensured by the
rubber O-ring gaskets.
The use of corrosion inhibiting coolants is always recommended
for any liquid cooling system. EKWB recommends any of the
EKCryofuel for worry-free usage.
- 3 -
TABLE OF CONTENT
BOX CONTENTS 4
DISTRIBUTION PLATE DIMENSIONS 5
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 6
PREPARING THE MEG PROSPECT 700R CASE 7
INSTALLATION OF “EK-Quantum Reflection2MEG Prospect 700R D-RGB – Plexi” DISTRIBUTION PLATE INTO CHASSIS 8
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS 10
FLOW DIAGRAM 12
CONNECTING THE D-RGB LED STRIP 13
CONNECTING THE PUMP 13
TESTING THE LOOP 14
SUPPORT AND SERVICE 15
SOCIAL MEDIA 15
- 4 -

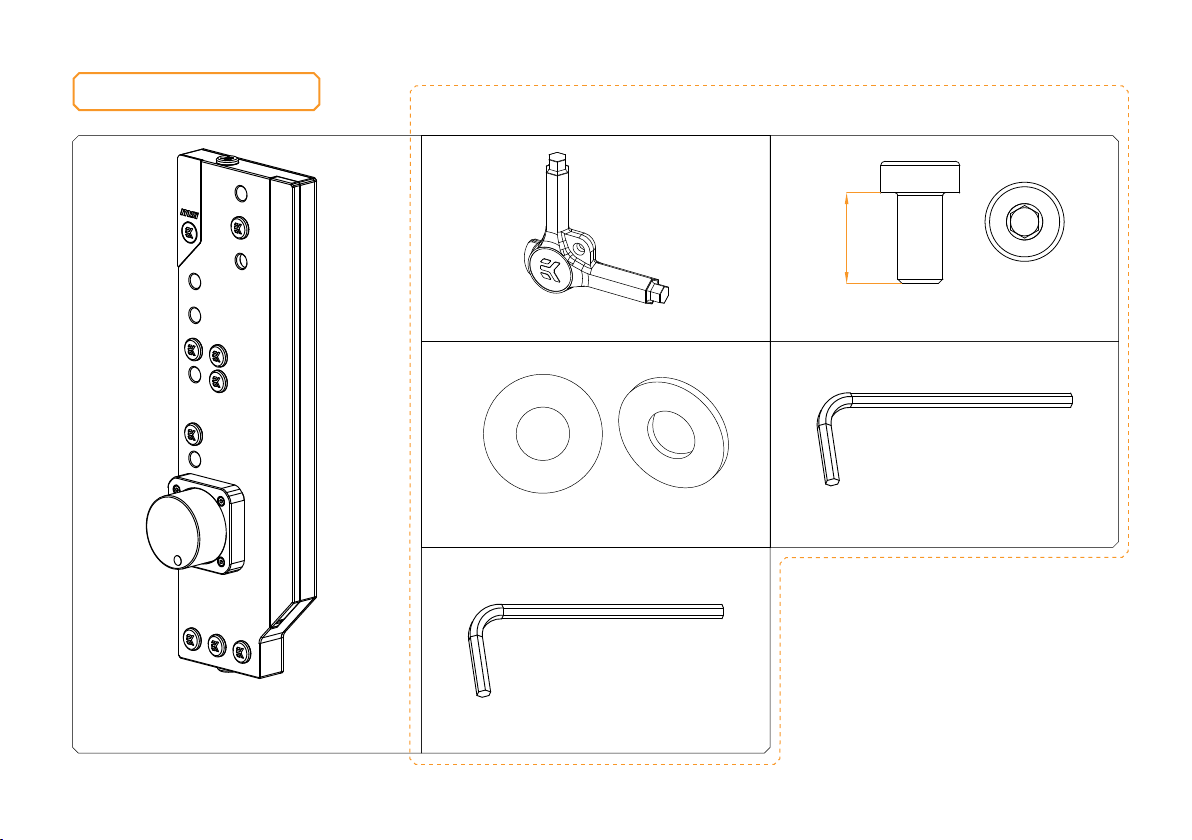

BOX CONTENTS
10 mm
EK-Quantum Reflection2MEG Prospect
700R D-RGB - Plexi, EAN: 3831109859797
Screw M4 x 10 DIN7984 (6 pcs)
Allen Key 2.5 mm (1 pc)
Allen Key 2 mm (1 pc)
EK-Loop Multi Allen Key (1 pc)
Mounting mechanism Reflection2 MEG Prospect 700R EAN: 106447
Metal Washer M4 x 0.8 (6 pcs)
- 5 -
DISTRIBUTION PLATE DIMENSIONS
17.5 mm
45.5 mm
73.5 mm
19 mm
71 mm
71 mm
167.6 mm
188.6 mm
84.1 mm
237.6 mm
258.6 mm
286.6 mm
314.6 mm
341 mm
369 mm
397 mm
416 mm
71.3 mm
19 mm
130 mm
26.8 mm
72.6 mm
30.3 mm
19 mm
369 mm
45.5 mm
45.5 mm
- 6 -
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS
1
3
7
11
12
9
5
13
10
6
4
14
Technical Specification:
Dimensions with the attached pump (W x D x H): 416 x 130 x 72.6 mm
– D-RGB LED count: 19
– D-RGB cable length: 500 mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Position EAN Description Quantity
19061 Screw M3 x 25 DIN7991 3
28311 Screw M4 x 20 DIN7984 4
38206 Screw M4 x 12 7991DIN 41
45154 Pump OR 52 x 3 mm 1
53831109834282 Plug Cover (Black) 10
63831109813898 EK-D5 PWM (12V SATA) 1
7104310 OR Set 1
8104290 Sticker - MSI Branding 1
9104289 LED Cover (Black Elox) 1
10 104287 Backplate 1
11 104286 TOP plate (Plexi) 1
12 102639 EK-Plug G1/4 (Nickel) 12
13 101803 Pump Mount 1
14 100815 LED D-RGB Strip 500/400 mm 1
15 100663 EK-Badge 1
8
2
- 7 -
PREPARING THE MEG PROSPECT 700R CASE
STEP 1
Remove the front and back panel of your MEG PROSPECT 700R
case.
STEP 2
STEP 2
Remove the back cable cover panel, the bottom storage shroud and
front bracket with fans. If there are any additional fans or brackets
blocking insertion of the distribution plate, we suggest you remove
those as well.
STEP 1
- 8 -
STEP 2
Once you have successfully mounted the “EK-Quantum Reflection2
MEG Prospect 700R D-RGB – Plexi “ distribution plate on the bracket
outside the case, place it and tighten it from the back side of the case
after the holes are aligned properly and the orientation is as seen in
STEP 2 picture.
STEP 2
INSTALLATION OF “EK-Quantum Reflection2MEG Prospect 700R D-RGB – Plexi” DISTRIBUTION PLATE INTO CHASSIS
STEP 1
Place the “EK-Quantum Reflection2MEG Prospect 700R D-RGB –
Plexi “distribution plate as high as possible on the bracket and loosely
tighten the screws so you can still barely move the distribution plate.
Bracket and distribution plate must be aligned as seen in STEP 1
picture. This step is crucial if you want to install straight tubing with
MATRIX7 compliance.
STEP 1
M4 x 10 DIN7984
(5x)
MOUNTING
BRACKET
For this step you will need:
Allen Key 2.5 mm
- 9 -
STEP 3
Matrix7 compliance:
When you have secured the “EK-Quantum Reflection2MEG
Prospect 700R D-RGB – Plexi” distribution plate inside the case,
align it with your GPU water block and CPU water block ports for
Matrix7 compliance and tighten the loose screws from STEP 1 on
the back side of the distribution plate bracket.
STEP 3
CPU OUTLET
CPU INTLET
GPU OUTLET
GPU INTLET
- 10 -
RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS
TOP RADIATOR
INLET
USING BOTH RADIATORS
FRONT RADIATOR
OUTLET
GPU OUTLET
FRONT RADIATOR
INLET
Note that the top or front radiator is completely optional and a
closed loop without either one can be completed.
To complete your loop, all ports must be used as marked in the
image.
All remaining unused ports must be closed with supplied plugs,
using the EK-Loop Multi Allen Key.
If one of the prescribed components will not be installed
(ie. The Front radiator or GPU block) then one INLET and
one OUTLET port must still be joined together in order
for this distribution plate to function!
Only one INLET and one OUTLET port for the GPU
connection can be used, while all other INLET and
OUTLET GPU ports must be closed with G1/4 plugs
(enclosed in the package).
TOP RADIATOR
OUTLET
CPU OUTLET
CPU INLET
GPU INLET
