EFFILUX EFFI-RING-HSI User manual

Adjustable beam power ring

USER MANUAL EFFI-RING-HSI

Version 1.2.2022

Last update: February 23, 2022

Mini Parc du Verger –Bâtiment E

1 Rue de Terre Neuve

91940 LES ULIS, FRANCE

Tel: +33 9 72 38 17 80

Fax: +33 9 72 11 21 69

Email: [email protected]

UK Importer: Gardasoft Vision Ltd.

Trinity Court, Buckingway Business Park

Swavesey, Cambrige CB24 4UQ UK

Page 1 / 4

Please take a while to consider and read this brochure before using your new device.

If you have any doubt, please refer to the datasheet on the website or contact EFFILUX.

•Do not look directly or with any optical instrument the light beam

•Avoid any contact with the LED or with the projection lens

•IP65 Classification: Do not immerse the device in water or any other liquids

•Operating environment: 0 to 40°C - Humidity: 20 to 85RH% (without condensation)

•High humidity and high temperature could damage the device

•Do not use the device in an environment with oil fumes and steam

•Do never try to fix any damages to the product by yourself

•Make sure you are using a correct power supply before connecting the device

•The device must be powered by a 24V safety power supply in accordance to local Electrical Safety rules

•Do not inverse electrical polarity –check the conventions before turning on the power supply

•Make sure you consider an adapted connector to link the device to the power supply

Any improper use voids the warranty

User security

Adjustable beam power ring

USER MANUAL EFFI-RING-HSI

Version 1.2.2022

Last update: February 23, 2022

Mini Parc du Verger –Bâtiment E

1 Rue de Terre Neuve

91940 LES ULIS, FRANCE

Tel: +33 9 72 38 17 80

Fax: +33 9 72 11 21 69

Email: [email protected]

UK Importer: Gardasoft Vision Ltd.

Trinity Court, Buckingway Business Park

Swavesey, Cambrige CB24 4UQ UK

Page 2 / 4

EFFI-RING

-HSI

-YY

-ZZ

-…

Wavelength (nm)

Windows

Lens position

Option

Hyperspectral Visible-NIR

TR (Transparent)

SD (Semi-diffusive)

OP (Opaline)

P0 (no lens)

P1 (45°)

P2 (25°)

P3 (10°)

POL (polarizer)

-POL-IP (polarizer glued for IP version)

STR (driving control)

Please note that with the polarizer accessory, the EFFI-Ring is IP50. For IP65 polarized version, choose -POL-IP option.

During any maintenance operation, the product must be switched off.

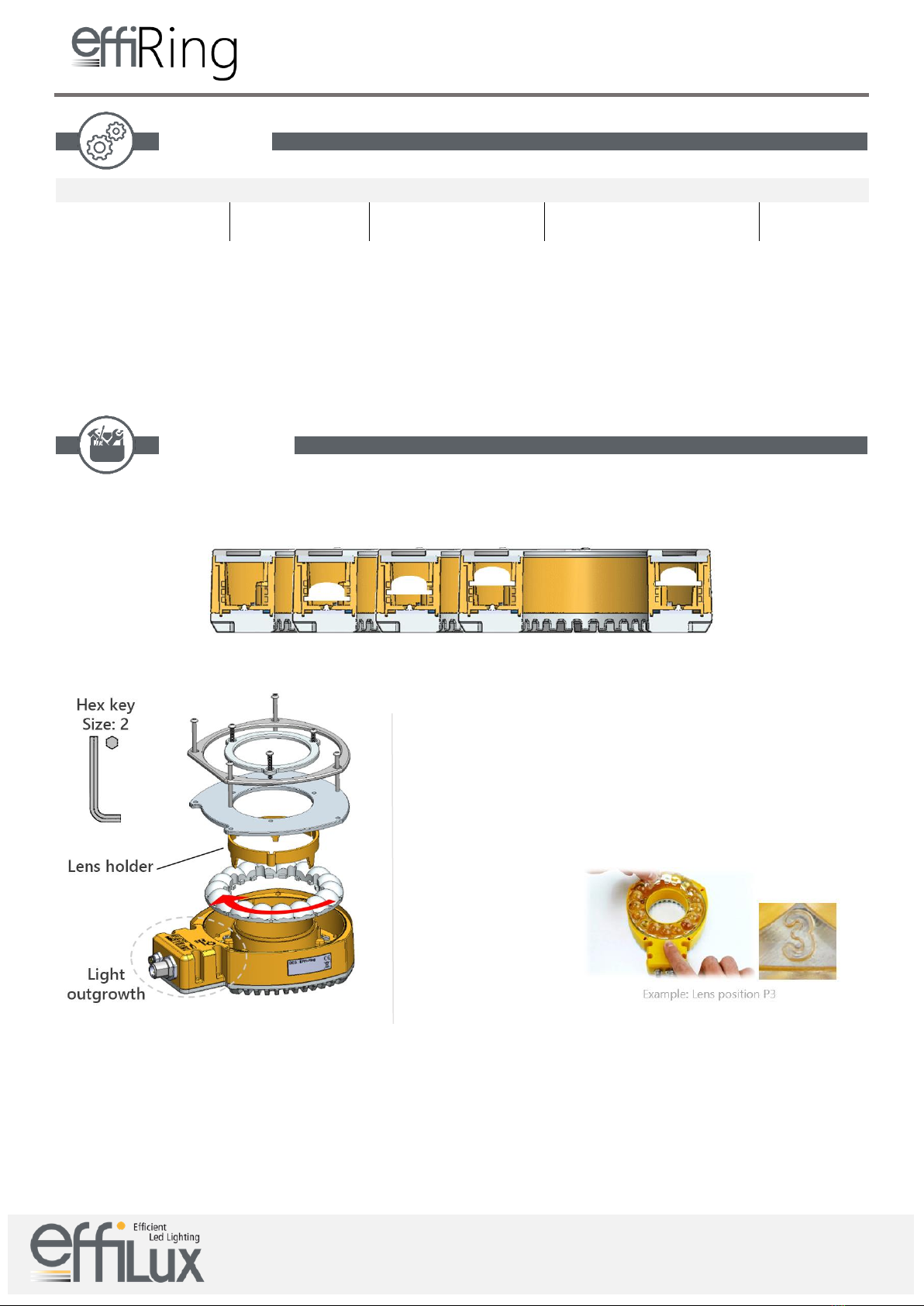

HOW TO CHANGE THE OPTICAL CONFIGURATION

Reference

Maintenance

To handle the optical components, wearing gloves is strongly recommended.

To clean the optical components: Use compressed air duster if there is dust.

To remove marks on the lens or the window, just a drop or two wiped of alcohol-based lens cleaning fluid in a gentle circular motion with a

cleaning tissue. Always apply the fluid to a tissue rather than the lens itself.

P0 P1 P2 P3

Numbers 1, 2 and 3 are inscribed on the edge of the lens plate and

correspond to the lens position.

Rotate the lens to align the number of the desired position with the

outgrowth of the light.

1) Unscrew the M2 screws and separate all parts.

2) Align the lens plate to the desired position and place into the light.

3) Place the lens holder, then the desired diffuser.

4) Close the product.

Adjustable beam power ring

USER MANUAL EFFI-RING-HSI

Version 1.2.2022

Last update: February 23, 2022

Mini Parc du Verger –Bâtiment E

1 Rue de Terre Neuve

91940 LES ULIS, FRANCE

Tel: +33 9 72 38 17 80

Fax: +33 9 72 11 21 69

Email: [email protected]

UK Importer: Gardasoft Vision Ltd.

Trinity Court, Buckingway Business Park

Swavesey, Cambrige CB24 4UQ UK

Page 3 / 4

SPOT DIAMETER VS WORKING DISTANCE

Transparent

Semi-Diffuse

Opaline

ØSpot

SPECTRUM

Measurements done on EFFI-RING-HSI-SD-P2, at 10mm working distance, after 30min of use.

0,2

0,4

0,6

0,8

350 400 450 500 550 600 650 700 750 800 850 900 950 1000

Relative Irradiance (u.a.)

Wavelength (nm)

Optical considerations

Adjustable beam power ring

USER MANUAL EFFI-RING-HSI

Version 1.2.2022

Last update: February 23, 2022

Mini Parc du Verger –Bâtiment E

1 Rue de Terre Neuve

91940 LES ULIS, FRANCE

Tel: +33 9 72 38 17 80

Fax: +33 9 72 11 21 69

Email: [email protected]

UK Importer: Gardasoft Vision Ltd.

Trinity Court, Buckingway Business Park

Swavesey, Cambrige CB24 4UQ UK

Page 4 / 4

POWER CONSUMPTION = 10W

CONTACT ARRANGEMENT

The EFFI-Ring requires 24V DC input power. Note the TRIGGER pin needs to be connected either to the 24V DC signal for Continuous mode or to a

PNP Trigger signal for Strobe mode.

M12 connector –Smart control (Continous or Strobe)

Contact arrangement

Number

Color Contact

Designation

M12 Male connector

Brown

+24V

White

n.a.

Blue

GND

Black

PNP TRIGGER –max 24V

Light on if VPNP > 5V DC

Grey

n.a.

M8 connector –Direct control (expert mode)

Contact arrangement

Number

Color Contact

Designation

M8 Male connector

Brown

+Vcommon

White

GND 1

Blue

GND 2

Black

GND 3

CHARACTERISTICS OF THE PULSE

- M12 CONNECTOR

CHARACTERISTICS OF THE PULSE

- M8 CONNECTOR

500mA max per channel @30% Duty Cycle

Be aware that the maximum current cannot be exceeded.

Electronical considerations

Adjustable beam power ring

USER MANUAL EFFI-RING-HSI

Version 1.2.2022

Last update: February 23, 2022

Mini Parc du Verger –Bâtiment E

1 Rue de Terre Neuve

91940 LES ULIS, FRANCE

Tel: +33 9 72 38 17 80

Fax: +33 9 72 11 21 69

Email: [email protected]

UK Importer: Gardasoft Vision Ltd.

Trinity Court, Buckingway Business Park

Swavesey, Cambrige CB24 4UQ UK

Page 5 / 4

DIMENSIONS [in mm]

FIXING [in mm]

Mechanical consideration
