Edimax USB VoIP Gateway Box None User manual

USB VoIP Gateway Box

Version 1.0 July, 2006

-L

Če

ký

ý: Anglického průvodce rychlou instalací

naleznete na přiloženém CD s ovladači

: Finden Sie bitte das englische QIG

beiliegend in der Treiber CD (German)

añ

ño

l: Incluido en el CD el QIG en Ingles.

nç

ça

:Veuillez trouver l’anglais QIG ci-joint dans

le CD driver

: Incluso nel CD il QIG in Inglese.

Az angol telepítési útmutató megtalálható a

mellékelt CD-n

s: De engelstalige QIG treft u aan op de

bijgesloten CD

i: Skrócona instrukcja instalacji w języku

angielskim znajduje sięna załączonej płycie CD

uê

ês

s: Incluído no CD o QIG em inglês.

Ру

ус

сс

ск

ки

ий

й:

Найдите QIG на анлийском языке на

приложеном CD

Tü

ür

kç

çe

:Ürün ile beraber gelen CD içinde Türkçe Hızlı

Kurulum Kılavuzu'nu bulabilirsiniz

English

System Architecture

PSTN

USB

Modem Dial-Up

ADSL

ROUTER

1. Modem Dial-Up

2. ADSL (Static IP or PPPoE)

3. Behind NAT / Router

4. Wireless or other network

1. Install Software

1.1 Install Skype Software

Step1.

Go to www.skype.com to download Skype install file.

Step2.

Install Skype and open a new Skype account

step by step. After installing Skype, a Skype

icon will be created on your desktop.

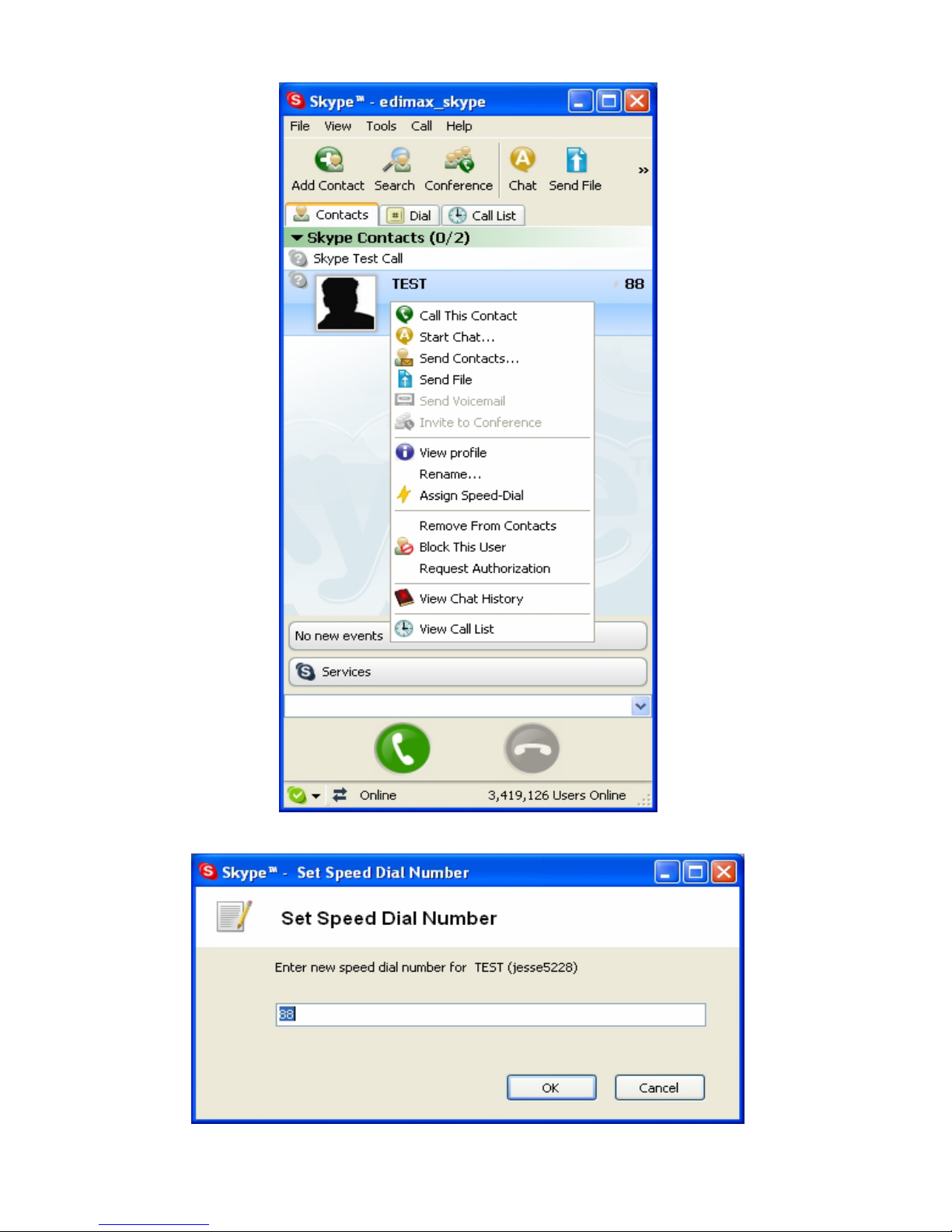

Step3.

After having installed Skype assign a Speed-Dial Number for

your contact.

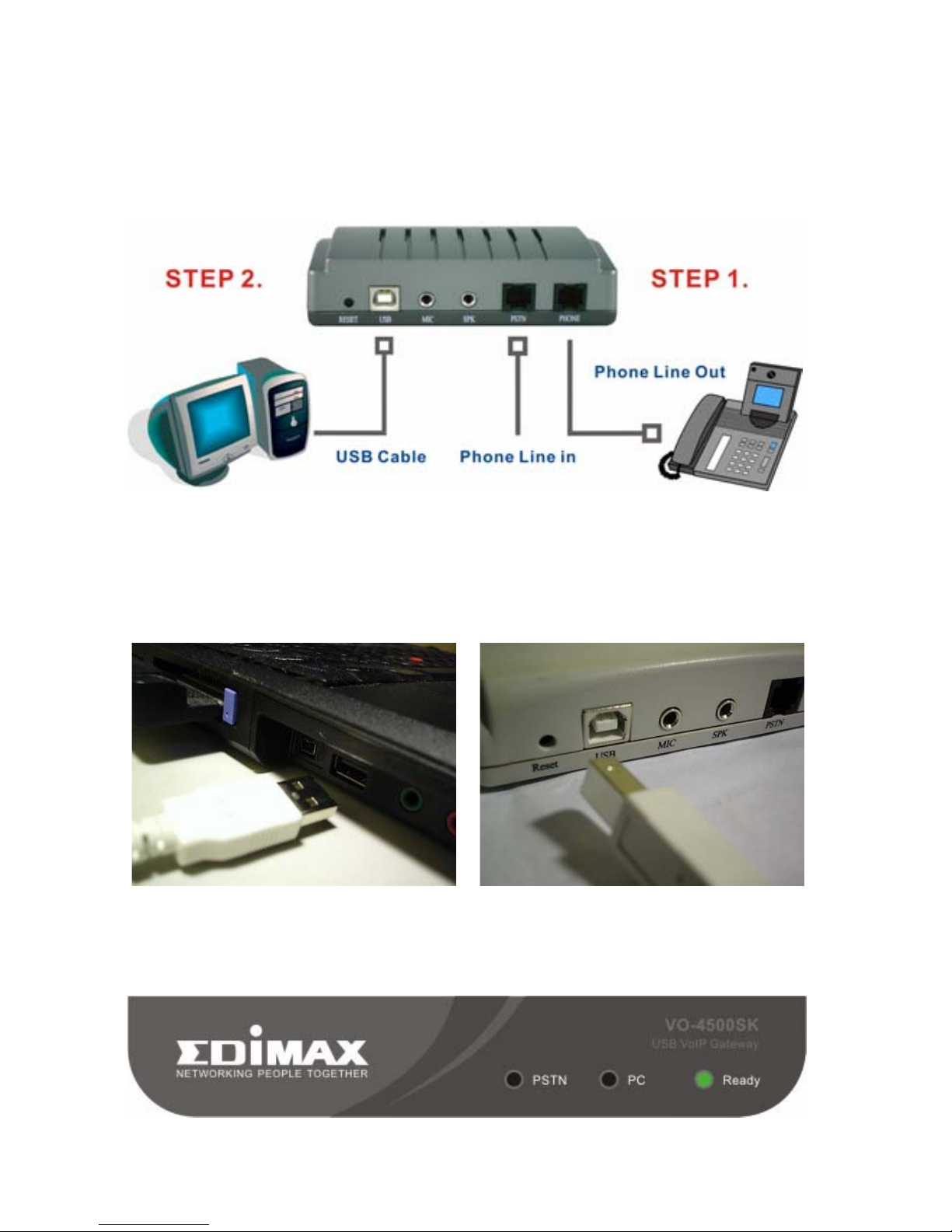

1.2. Install Skype Gateway Box

Step 1.

Connect RJ-11 phone line and USB cable as diagram.

Step 2.

Connect the USB cable to the PC. Windows will start installing

the Skype Gateway Box driver automatically.

If the driver installation is ready, The LED will change from

“Ready” to Green.

1.3 Install Middleware

Step 1.

Insert the “Driver & Utility CD” in to your CD-ROM drive, the

system will auto run the middleware installation program.

Step 2.

Click “Middleware” then select “Click To Setup”, and the PC

will start installing step by step. The system will create an icon of

Middleware.

Step4.

Check the Installation Status. If the Skype Gateway Box is ready,

then the Middleware icon will be with colored, if Skype Gateway

Box is not ready or Skype is not running, the icon will remain

grey.

*Please make sure that Skype was running on your PC.

*Other special applications please check the manual CD.

3. Using Skype Gateway Box

3.1 Call Contact by Speed-Dial

1. Pick up Handset. (Hear Dial Tone Generated from PSTN)

2. Press the ＊key to switch Skype mode. (Hear Dial Tone

Generated from Middleware)

3. Dial speed-dial number. (Eg: 88)

4. Press the ＊key to call.

EX: John’s Speed-Dial Number is “88”, Dial “88＊” to make a

Skype Call.

3.2 Call with Skype Out

1. Pick up handset. (Hear Dial Tone Generated from PSTN)

2. Press the ＊key to switch Skype mode. (Hear Dial Tone

Generated from Middleware)

3. Dial the number

(Format: 00 + Country Code + City Code + Local Phone or

Cell Phone Number)

4. Press ＊key to call.

EX: Hong Kong Number : 852-87654321, Dial

0085287654321＊

3.3 Call a Regular Phone

1. Pick up the handset. (Hear Dial Tone Generated from PSTN)

2. Dial Phone Number.

Note: Please check the user’s manual in CD for more info.
