3Com EtherLink 3C509B User manual
Part No 09-1314-000
Published January 1998
Q
UICK
G
UIDE
FOR
THE
E
THER
L
INK
III ISA
N
ETWORK
I
NTERFACE
C
ARD
This quick guide is for users who choose the Express installation
option within the 3Com Installation Wizard to install and
configure the 3C509B network interface card (NIC). Express
installation is the choice for typical users who want a fast and
easy installation method with minimal user intervention.
Express installation loads the latest drivers from the
EtherDisk
diskette, automatically tests the NIC and your network, and
dynamically binds TCP/IP to the NIC.
If you do not have a DHCP server on your network, or if you have
a static TCP/IP address, you must use the Custom installation
option instead to install and configure the NIC.
To use Express installation, the NIC must be installed in a PC that
is running Windows 95 and supports the Windows 95 Plug and
Play feature.
If your PC is running Windows 95, go to the next section to
determine if your PC supports Plug and Play.
For all other Windows operating systems, see Chapter 1 in the
EtherLink III ISA Network Interface Card User Guide
for procedures
on how to install the NIC.
Performing the Windows 95 Preinstallation Procedure
Before you install the NIC in your PC, you must perform the
following procedure to properly set up your system environment.
This procedure deletes the default .INF file and the default
Windows driver for the NIC. If you do not perform this procedure,
the 3Com Installation Wizard will not run successfully and the NIC
software will not be installed.
Follow these steps to perform the preinstallation procedure:
1 Turn the power on and boot Windows 95.
2 Click
Start
in the Windows 95 taskbar, and then click
Run
.
3 Insert
EtherDisk
diskette 2 in drive A, and then enter:
a:\preinstl
4 Click
OK
.
The Preinstall Software screen appears, displaying a list of
available IRQs. Write down these IRQs. You may need this
information if you have a problem installing the NIC.
If your PC does not support Plug and Play, a different screen
appears, confirming that a Plug and Play BIOS is not installed in
your PC.
If this other screen appears, you cannot use this quick guide.
Instead, you must install the NIC using the Custom installation
option within the 3Com Installation Wizard. See Chapter 2 in the
EtherLink III ISA Network Interface Card User Guide
for the
Custom installation procedure.
5 Click
OK
.
The next step is to install the NIC.
Installing the NIC
The following instructions apply to installing the 3C509B NIC in
most PCs. Refer to the manual that accompanied your PC if the
following instructions are not appropriate for your PC.
You must have either one ISA or one EISA slot available in your PC
in which to install the NIC.
CAUTION:
Each NIC is packed in antistatic packaging to protect it
during shipment. Before handling the NIC, touch the bare metal
case of your PC. While you are handling the NIC, wear a wrist
strap attached to the PC chassis.
Remove all jewelry from your hands and wrists and use only
insulated or nonconducting tools.
Follow these steps to install the NIC in your PC:
1 Turn off power to the PC, and remove the power cord from
the PC.
2 Unscrew the cover screws and remove the cover.
On some PCs, it may be necessary to remove all cables before the
cover can be removed.
3 Locate an available ISA or EISA slot and remove the
screw from the corresponding backplate (Figure 1). Save
the screw.
Some PCs have both ISA and PCI slots. Make sure that you install the
EtherLink III ISA NIC in either an ISA or an EISA slot. See Figure 1.
PCI slots, the shortest of the three types of slots, are white. The
longer ISA slots are black. EISA slots, the longest, are brown.

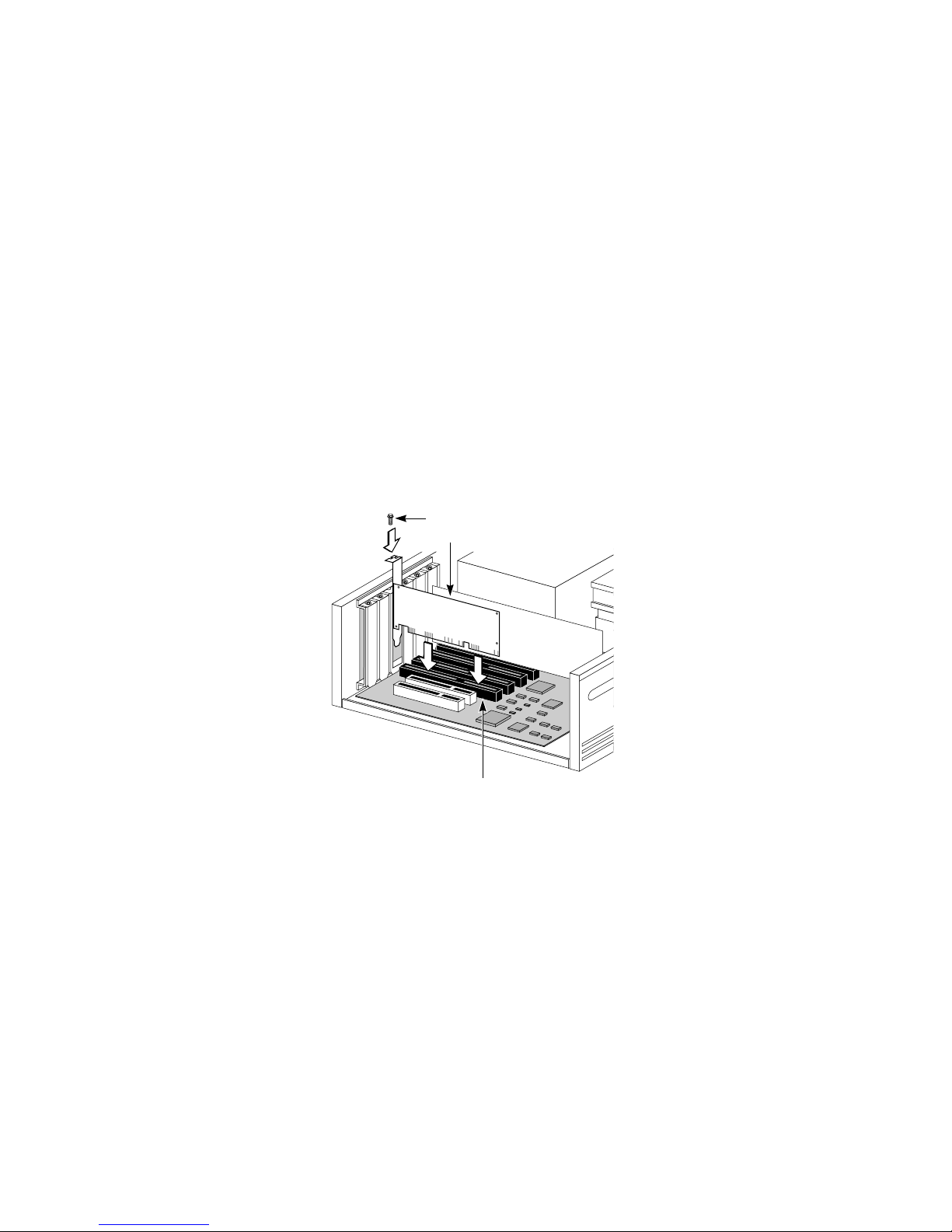

Figure 1
Installing the 3C509B NIC
4 Remove and discard the backplate.
5 Ensure that the shape and length of the edge connector
on the NIC match the slot in the PC that you intend to use
(Figure 1).
Backplate screw
ISA or EISA slot
3C509B NIC
6 Carefully insert the NIC into the slot; press firmly with
steady pressure to ensure that the NIC is fully seated in
the slot.
When the NIC is correctly inserted in the slot, the NIC backplate is
flush with the PC backplate.
7 Secure the NIC with the backplate screw.
8 Replace the PC cover. Reinsert and tighten the cover screws.
9 Reconnect all power and peripheral cables.
10 Turn the power on and boot Windows 95.
11 Connect the NIC port to the network cable.
Make sure the network cable is connected to the network.
The next step is to install the network driver.
Installing the Network Driver
This section describes how to set up your system environment
when installing the NIC in a Windows 95 PC that has a Plug and
Play BIOS installed.
Follow these steps to configure the NIC:
1 Turn the power on and boot Windows 95.
The New Hardware Found screen appears. The Update Device
Driver Wizard then displays the screen shown in Figure 2.

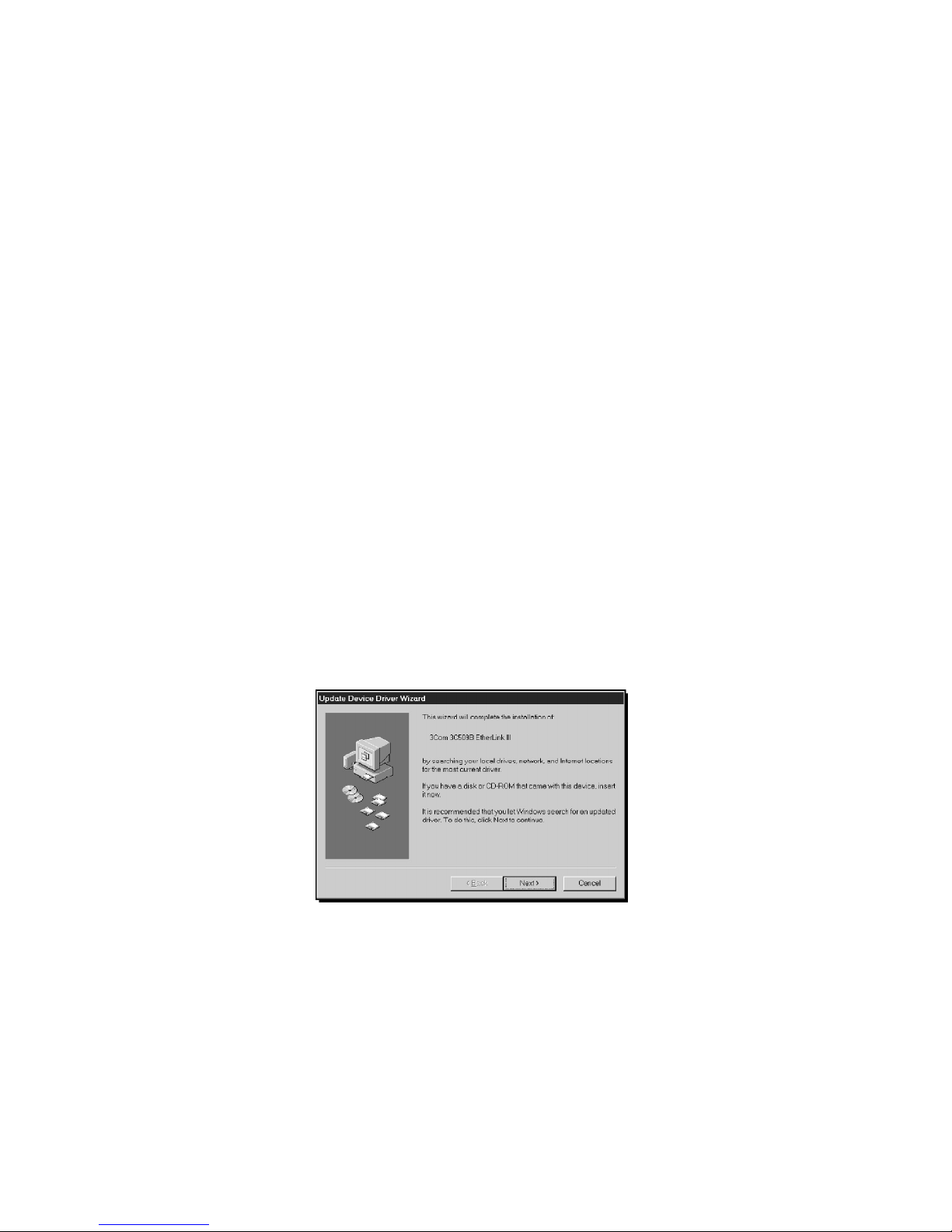

Figure 2
Update Device Driver Wizard Screen
2 Insert
EtherDisk
diskette 1 in drive A.
3 Click
Next
.
Windows 95 displays the Update Device Driver Wizard again,
this time confirming that it has found the updated NIC driver.
See Figure 3.
Figure 3
Updated Driver Found
4 Click
Finish
.
Windows 95 prompts you for
EtherDisk
diskette 1.
5 Click
OK
.
The Copying Files screen appears, prompting you for the location
of the source files.
6 If it is not already displayed in the Copy files from entry
box, type:
a:\
7 Click
OK
.
Windows 95 copies the required files to your hard disk, builds
the driver information database, and then prompts you for the
disk labeled:
3Com NIC Windows 95 Installation Media
8 Click
OK
.
The 3Com Installation Wizard starts.
The next step is to configure the 3C509B NIC. Go to the
next section.
Performing an Express Installation
After copying the installation files to your hard disk, the 3Com
Installation Wizard starts and displays the first screen, as shown in
Figure 4.
Figure 4
Selecting Express Installation
Follow these steps to perform an Express installation:
1 Select the
Express Installation
radio button, as shown in
Figure 4, and then click
Next
.
A number of screens appear, each displaying status messages
about establishing configuration settings and automatically
running tests.
When the tests are completed, you are prompted for the
Windows 95 CD.
2 Click
OK
.
If you have not entered your workgroup name previously, the
screen shown in Figure 5 appears. Otherwise, go to step 4.
3 Type the name of your computer and your workgroup in
the appropriate fields.
Contact your network administrator for this information if you do
not have it.
Figure 5
Specify Your Computer Name and Workgroup
4 Insert the Windows 95 CD in your CD-ROM drive, type the
path to your CD-ROM drive in the Copy files from entry box,
and click
OK
.
The Microsoft Add New Hardware Wizard screen appears.
5 Click
Finish
.
The System Settings Change screen appears, prompting you to
restart your computer.
6 Click
Yes
.
The 3Com NIC Diagnostics program icon appears in the taskbar tray.
To start the diagnostic program, double-click the tray icon. To disable
the tray icon, right-click the icon and select
Disable Tray
Icon
. See
Chapter 5 for more information about the 3Com tray icon.
The NIC software is installed and the NIC is configured.
Copyright © 1998, 3Com Corporation. All rights reserved.
Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or
may not be registered in other countries.
3Com, EtherDisk, and EtherLink are registered trademarks of 3Com Corporation.
Other brand and product names may be registered trademarks or trademarks of their
respective holders.
