EC650C

Setup Guide and Data Variables

EC650C: Setup Guide and Data Variables

ii SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.com

DISCLAIMER OF WARRANTIES AND LIMITATION OF LIABILITY

The information, recommendations, descriptions and safety notations in this document are based on Eaton

Corporation’s (“Eaton”) experience and judgment and may not cover all contingencies. If further information is required,

an Eaton sales office should be consulted. Sale of the product shown in this literature is subject to the terms and condi-

tions outlined in appropriate Eaton selling policies or other contractual agreement between Eaton and the purchaser.

THERE ARE NO UNDERSTANDINGS, AGREEMENTS, WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES

OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, OTHER THAN THOSE SPECIFICALLY SET OUT IN ANY

EXISTING CONTRACT BETWEEN THE PARTIES. ANY SUCH CONTRACT STATES THE ENTIRE OBLIGATION OF EATON. THE

CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES.

In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or

other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to

damage or loss of use of equipment, plant or power system, cost of capital, loss of power, additional expenses in the

use of existing power facilities, or claims against the purchaser or user by its customers resulting from the use of the

information, recommendations and descriptions contained herein. The information contained in this manual is subject

to change without notice.

DO NOT CONDUCT A FACTORY RESET – Conducting a factory reset will clear all pre-set parameters, void the warranty and leave the device

inoperable with Eaton fire systems

iii

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.com

Contents

1.1 SETUP GUIDE .......................................................2

Equipment Requirements.................................................2

Wiring Instructions .......................................................2

Configuration Instructions ................................................3

1.2 LED INDICATIONS ...................................................3

1.3 DATA VARIABLES ....................................................4

EC650C Webpage........................................................4

Command Variables......................................................4

Event Variables ..........................................................4

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.comv

1.1 Setup Guide

1.1.1 Equipment Requirements

• DF6000/CF3000 with LON Network card

• EC650C

• Laptop / Desktop PC

• Null Mode Cable

• Ethernet Cable

• Network Cable

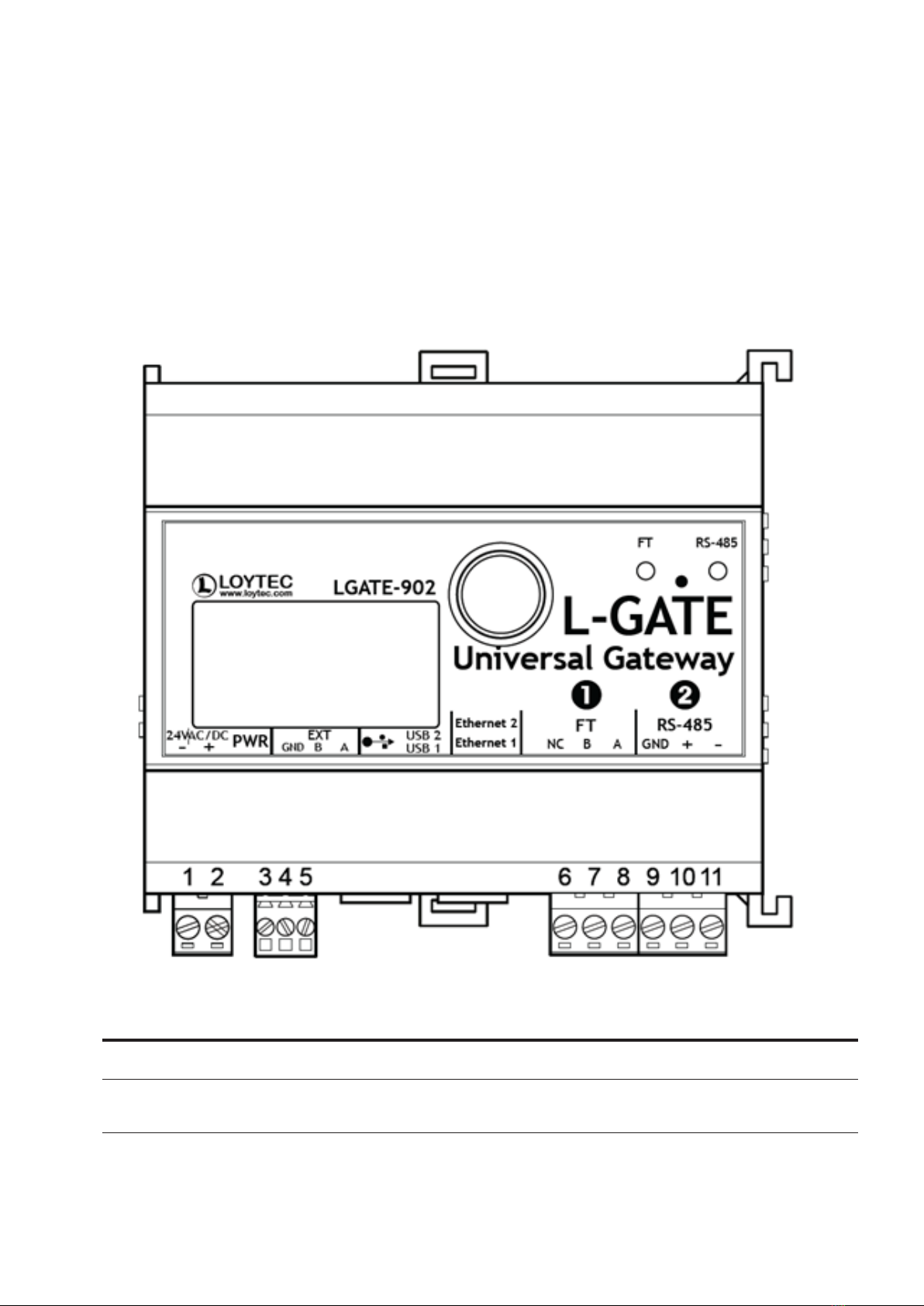

1.1.2 Dimensions

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.com

1.1.3 Wiring Instructions

• Connect “A” of Panel LON network card to input “8” on the EC650C.

• Connect “B” of Panel LON network card to input “7” on the EC650C.

• Connect “+” of Panel 24V output to input “2” on the EC650C.

• Connect “-“of Panel 24V output to input “1” on the EC650C.

• Connect the Ethernet cable to the Ethernet input of the EC650C and to the Ethernet port of the laptop

Connectors

POWER 1

Power supply input MINUS

Power supply input PLUS

TP/FT-10

CEA-709

not connected (NC)

Input B

Input A

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.comv

1.1.1 Conguration Instructions

Obtain the IP of the Laptop / Desktop PC used for monitoring BACnet.

• Launch Windows

• Click “Start” button

• Click “All Programs”

• Click “Accessories”

• Click “Command Prompt” wait for the command window to open.

• Type “ipconfig” then press enter.

• Make a note of the “IP Address”

• Close the command window.

Configuring EC650C

• Click “Start” button

• Click “All Program”

• Click “Accessories”

• Click “Communications”

• Click “HyperTerminal” (if you are running Windows 7 then HyperTerminal will need to be downloaded from the

Internet)

• At the “Connection Description” window enter a name, i.e. EC650C, then click OK.

• At the “Connect To” window select the COM port for the PC serial port.

• At the “COM # Properties” window select the following settings then click OK.

• a) Baud Rate = 38400

• b) Data Bits = 8

• c) Parity = None

• d) Stop Bits = 1

• e) Flow Control = None

• Press “Enter” key to display the configuration menu of the EC650C.

• Press “5” key to open the IP configuration menu.

• Press “2” key to open the IP address entry screen.

• Enter the IP address of the Laptop/Desktop PC changing the last 3 digits to a different number, for example if the IP

address of the Laptop is 192.168.24.1 set the IP address of the EC650C to 192.168.24.100.

• Press the “x” key to save the settings and return to the configuration menu.

• Press the “0” (zero) key to reset the EC650C.

• Close HyperTerminal

The EC650C has all other parameters pre-set by the Supplier at manufacture.

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.com

1.2 LED Indications

1.3 Data Variables

1.3.1 EC650C Webpage

• Launch Internet Explorer (or any other internet browser)

• In the address bar type the IP address of the EC650C (i.e. 192.168.24.100). The webpage of the EC650C will load.

• Click “Config” on the left hand column (if not already selected). Click “Data Points” on the left hand column.

• Click “BACnet Port” in the tree view (if not already selected) Click “Datapoints” in the tree view (if not already selected)

1.3.2 Command Variables

• Click “2” or “Next” at the bottom of the webpage.

1.3.2.1 Soft Reset

• Click “nvoReset” to load the variable data.

• Click the test box next to the Value field.

• Enter “1” and click the “Set” button. This will soft reset all Panels on the network.

• Click “Back” to return to the data points list.

1.3.2.2 Silence

• Click “nvoSilence” to load the variable data.

• Click the test box next to the Value field.

• Enter “1” and click the “Set” button. This will silence the sounders for all Panels on the network.

• Click “Back” to return to the data points list

1.3.2.3 Evacuate

• Click “nvoEvacuate” to load the variable data.

• Click the test box next to the Value field.

• Enter “1” and click the “Set” button. This will evacuate all Panels on the network.

• Click “Back” to return to the data points list.

1.3.3 Event Variables

• Default page, otherwise click “2” or “Next” at the bottom of the webpage.

Status LEDs

FT GREEN flashing fast

GREEN flashing 1 Hz

RED permanent

RED flashing fast

Traffic on CEA-709 port

Not commissioned

CEA-709 port damaged

CEA-709 traffic overload

Variable Name Description

RxPanelData_CmdStatus On = Status

Off = Command

RxPanelData_PanelNumber Panel Network Number

RxPanelData_CmdStatusNumber See table below

RxPanelData_Address This is the loop address of the device

RxPanelData_Analogue This is the analogue value of the device

RxPanelData_Zone This is the zone number the device is in

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.comv

1.3.3.1 ASCII Table

This table can be used to convert the decimal values listed for the Location1 through 25 in the data points into

characters.

Variable Name Description

RxPanelData_Loop This is the loop number the device is on

RxPanelData_Always_1 Not required

RxPanelData_TypeID This is the type ID of the device

RxPanelData_Location_Location1…25 Device Text (use ASCII table for conversion to characters)

Decimal Hexadecimal Character Decimal Hexadecimal Character

32 20 Space 81 51 Q

33 21 !82 52 R

34 22 "83 53 S

35 23 #84 54 T

36 24 $85 55 U

37 25 %86 56 V

38 26 &87 57 W

39 27 ‘88 58 X

40 28 ( 89 59 Y

41 29 )90 5A Z

42 2A *91 5B [

43 2B +92 5C \

44 2C ,93 5D ]

45 2D -94 5E ^

46 2E .95 5F _

47 2F /96 60 `

48 30 097 61 a

49 31 198 62 b

50 32 299 63 c

51 33 3100 64 d

52 34 4101 65 e

53 35 5102 66 f

54 36 6103 67 g

55 37 7104 68 h

56 38 8105 69 i

57 39 9106 6A j

58 3A :107 6B k

59 3B ;108 6C l

60 3C <109 6D m

61 3D =110 6E n

62 3E >111 6F o

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.com

Decimal Hexadecimal Character Decimal Hexadecimal Character

63 3F ?112 70 p

64 40 @113 71 q

65 41 A114 72 r

66 42 B115 73 s

67 43 C116 74 t

68 44 D117 75 u

69 45 E118 76 v

70 46 F119 77 w

71 47 G120 78 x

72 48 H121 79 y

73 49 I122 7A z

74 4A J123 7B {

75 4B K124 7C |

76 4C L125 7D }

77 4D M126 7E ~

78 4E N

79 4F O

80 50 P

1.3.3.2 Type ID List

This table can be used to decode the Type ID data point values.

Type ID Device Type

1Optical Detector

2Ion Detector

3Heat A1R

4Opto/Heat Detector

5Heat BS Detector

6Heat CS Detector

7Carbon Monoxide Detector

8Sounder / Beacon

9Sounder Control Unit

10 Voice Annunciator

11 I/O Unit

12 Call Point

13 Repeater

14 Zone/Shop Monitor

15 Beam Detector

16 Addressable RF Hybrid

EC650C: Setup Guide and Data Variables

SETUP GUIDE AND DATA VARIABLES May 2023 www.eaton.comv

1.3.3.3 Network Packets & Payloads

Type ID Device Type

17 Zonal RF Hybrid

18 Emergency Lighting Module

19 4-20mA Interface Unit

20 SP40S

21 Fan Controller

22 Technical Input

23 Technical Timer

24 Non Fire Input

25 Supervisor Interface

26 Chinese Output

27 MCIM

DISCLAIMER: Some device types may no longer be supported or support may be retracted without prior notice.

Event Cmd

Status

Panel

Number

Cmd Status

Number

Address Analogue Zone Loop Type

Location

1…25

Dec Hex

Global Evacuate Off Panel 10x01 0 0 0 0 0 Panel

Text

Global Silence Off Panel 20x02 0 0 0 0 0 Panel

Text

Global Reset Off Panel 30x03 0 0 0 0 0 Panel

Text

Global Disable Zones

in Fire Off Panel 40x04 0 0 0 0 0 Panel

Text

Global Disable

Addresses in Fire Off Panel 50x05 0 0 0 0 0 Panel

Text

Global Mute Buzzer Off Panel 80x08 0 0 0 0 0 Panel

Text

Global Reset Outputs Off Panel 14 0x0e 0 0 0 0 0 Panel

Text

Global Disable I/O Off Panel 16 0x10 I/O 0 0 0 0 Panel

Text

Global Enable I/O Off Panel 17 0x11 I/O 0 0 0 0 Panel

Text

Global Disable Sounders Off Panel 18 0x12 I/O 0 0 0 0 Panel

Text

Global Enable Sounders Off Panel 19 0x13 I/O 0 0 0 0 Panel

Text

Start Zone Test Off Panel 28 0x1c 0 0 Zone 0 0 0

Request Disables Off Panel 33 0x21 0 0 0 0 0 0

Get Zone Text Off Panel 34 0x22 0 0 Zone 0 0 0

Disable I/O Off Panel 48 0x30 I/O 0 0 0 0 0

Enable I/O Off Panel 49 0x31 I/O 0 0 0 0 0

Disable Sounders Off Panel 50 0x32 0 0 0 0 0 0

Enable Sounders Off Panel 51 0x33 0 0 0 0 0 0

This manual suits for next models

Table of contents

Other Eaton Gateway manuals

Eaton

Eaton Power Xpert Gateway Minislot Programming manual

Eaton

Eaton LumenSafe User manual

Eaton

Eaton PXG950-4G User manual

Eaton

Eaton EG2-NA User manual

Eaton

Eaton SmartWire-DT User manual

Eaton

Eaton XN-312-GW-EC User manual

Eaton

Eaton Power Xpert Meter 2000 User manual

Eaton

Eaton XNE-GWBR-2ETH-MB User manual

Eaton

Eaton Moeller SmartWire-Darwin EU5C-SWD-DP Manual

Eaton

Eaton ProtoAir FPA-W34 User guide

Eaton

Eaton 415U-2 User manual

Eaton

Eaton INDGW-M2 User manual

Eaton

Eaton EG2-NA User manual

Eaton

Eaton SWIRE-GW-MB User manual

Eaton

Eaton SmartWire-DT EU5C-SWD-DP User manual

Eaton

Eaton 415U-2 User manual

Eaton

Eaton Power Xpert Gateway 900 Instruction Manual

Eaton

Eaton POW-R-COMMAND 1000 User manual

Eaton

Eaton EASY209-SE Manual

Eaton

Eaton EU5C-SWD-EIP-MODTCP User manual

Eaton

Eaton ELPRO 415U User manual

Eaton

Eaton Moeller SmartWire-Darwin EU5C-SWD-DP Manual

Eaton

Eaton Power Xpert Gateway 900 User manual

Eaton

Eaton EASY223-SWIRE Manual

Popular Gateway manuals by other brands

LST

LST M500RFE-AS Specification sheet

Kinnex

Kinnex Media Gateway quick start guide

2N Telekomunikace

2N Telekomunikace 2N StarGate user manual

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Original instructions

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE user guide

Telsey

Telsey CPVA 500 - SIP Technical manual

RTA

RTA 460A-NNA4 Product user guide

Shaw

Shaw Gateway HDPVR user manual

ABB

ABB VSN900 Commissioning manual

Commander

Commander Pulse owner's manual

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E manual

NETGEAR

NETGEAR C6300BD installation guide

Amit

Amit CDW531AM user guide

HMS

HMS Netbiter EasyConnect EC150 user manual

Huawei

Huawei EchoLife HG620 user guide

AT&T

AT&T U-verse 3801 Replacement self-installation guide

Logic IO

Logic IO RTCU MX2 turbo Technical manual

Suttle

Suttle MediaMAX MXM-521 installation instructions
