Technical Manual (EN)

XS24… System

This manual describes the interplay of various XS24 components. Accessories such as the busbars, input

terminals, etc., are also described in this document.

For each active component, a separate documentation is available, which also describes the stand-alone

operation, i.e. the use of the component on its own.

Up-to-date information and the most recent version of this document are available at:

Eaton.com/ XS24

We recommend downloading the latest versions of all relevant documents prior to planning.

BUSBAR

HAZARD WARNINGS The XS24 series has been developed specifically for overload-protected and short-circuit proof

24V power supply units, of the type commonly used in automation applications.

lease refer to the technical data of the individual components, particularly the operating

voltage

and the rated current.

THE XS24 SYSTEM There are many different options for combining the various components of the XS24 series. To

avoid restricting this flexibility, two separate series with different functionalities are available.

1.) Economy: XS24E-…

2.) Standard: XS24S-…

Feature Economy Standard

Rated current 0-10A 0-16A

overload protection x x

Modular design x x

3 load outputs x x

ush-in terminals x x

Busbar (+/-) x x

Local status LED x x

Local control (on/off/reset) x x

Subsequent control x

Digital output (OK/tripped) x

Digital input (on/off/reset) x

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA- XS24_System.docx/10.2018e/150501504/IL019139ZU

BUSBAR The XS24-BB… busbar can supply up to 80A.

Assembly:

1. osition the module correctly on the mounting rail

2. Cut the busbar to the required length

3. ush the busbar into the upper (+24V) and lower (0V) busbar support. ushing in the

busbar requires about 15N of force.

Disassembly:

Leverage the busbar out of the support by using an appropriate tool (e.g. a flat screw driv-

er). This requires about 15N of force.

OWER SU LY Live modules that feature the addition “IT” (=input terminal) in their article number can

supply the common busbar with up to 20A each (please refer to the technical data of the

respective modules). Modules that do not feature the addition “IT” in their article number

are only supplied via the common busbar. Dedicated feeder terminals are available for cur-

rents exceeding 20A ( XS24-IT; XS24ACC0001), and a dedicated feeder module is currently

in planning ( XS24-IM; XS24ACC0001).

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA- XS24_System.docx/10.2018e/150501504/IL019139ZU

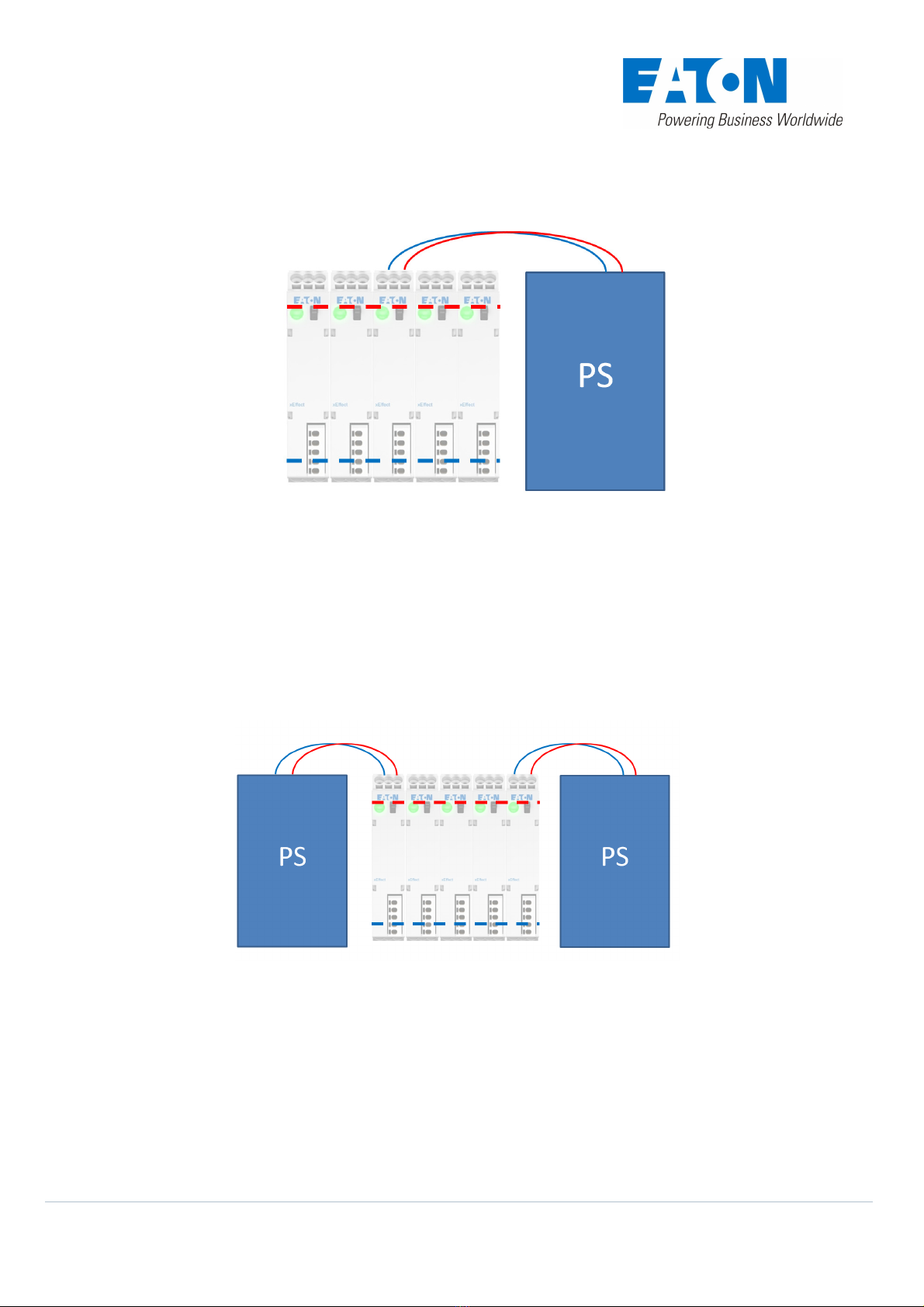

Examples:

1.) ower supply unit up to 20A

S… power supply unit, any position possible

Only one live module with feeder terminals is necessary. ower is distributed via the busbar.

lease also note the cross sections (see documentation of the supplying module)

2.) ower supply units up to 20A each

S...power supply units; recommended: The power supply takes place at two separate points

(ideally at both ends); please check whether the manufacturer of the power supply units per-

mits this type of wiring.

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA- XS24_System.docx/10.2018e/150501504/IL019139ZU

3.) ower supply unit up to 40A

S… power supply unit, any position possible

At least 2 live modules with feeder terminals are necessary. ower is supplied via the busbar.

lease also note the cross sections (see documentation of the supplying module)

4.) 1 power supply unit up to 60A (max. permitted cable cross section 16mm

)

S... power supply unit, IT...dedicated feeder terminals ( XS24ACC0001)

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA- XS24_System.docx/10.2018e/150501504/IL019139ZU

5.) 2 power supply units up to 40A each (max. permitted cable cross section 10mm

)

S… power supply unit, IT...dedicated feeder terminals ( XS24ACC0001)

TEM ERATURE RISE To ensure thermal protection, modules with high amperage should not be placed directly next

to one another, wherever possible. lease also refer to the technical data of the individual com-

ponents.

De-rating: See data of the respective module.

COMMUNICATION

“In” (Connection 7 and 8 /+24VDC) is used for control purposes:

Low: Module is live

High: No voltage at output

Note: The input is equipped with an internal pull-up resistor, so that the module is live without

any external connection.

Reset (remotely): Low > High

Note: An “off” signal always takes precedence (irrespective of whether it originates at the selec-

tor switch at the front or at the “In” input), meaning the module will remain inactive until both

signals have switched to “on”!
