Dynojet POWER COMMANDER III User manual

i509-411 2003 Triumph Daytona 600 - PCIII USB - 1

2003 Triumph Daytona 600

Installation Instructions

Dynojet Research 2191 Mendenhall Drive North Las Vegas, NV 89031 (800) 992-4993 www.powercommander.com

Parts List

1 Power Commander

1 USB Cable

1 CD-ROM

1 Installation Guide

1 Power Adapter

2 Power Commander Decals

2 Dynojet Decals

1 Velcro®Strip

1 Alcohol Swab

You can also download the Power

Commander software and latest maps

from our web site at:

www.powercommander.com

The ignition must be turned off before installation.

After turning off the ignition make sure not to dis-

connect anything for at least one minute. If some-

thing is disconnected while the CDI is powering

down a check engine light may be indicated. Also

do not turn on the ignition while one of the electri-

cal connectors is unplugged. If a check engine

light is indicated the code can only be cleared by

a Triumph dealer.

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

Button Adjustment Display

Faceplate Buttons

Expansion Port USB Port

1 Remove the seat.

2 Remove the fuel tank

Note: The fuel tank does not need to be

removed to perform the install

but it will make it easier.

3 Unplug the connector from the

throttle bodies to the wiring har-

ness (Fig. A).

4 Plug the connectors from the

Power Commander in-line of the

stock connector (Fig. B).

5 Route the Power Commander

wiring harness along the left

side of the frame (Fig C).

6 Connect the ground wire from

the Power Commander to the

negative side of the battery

(Fig. C).

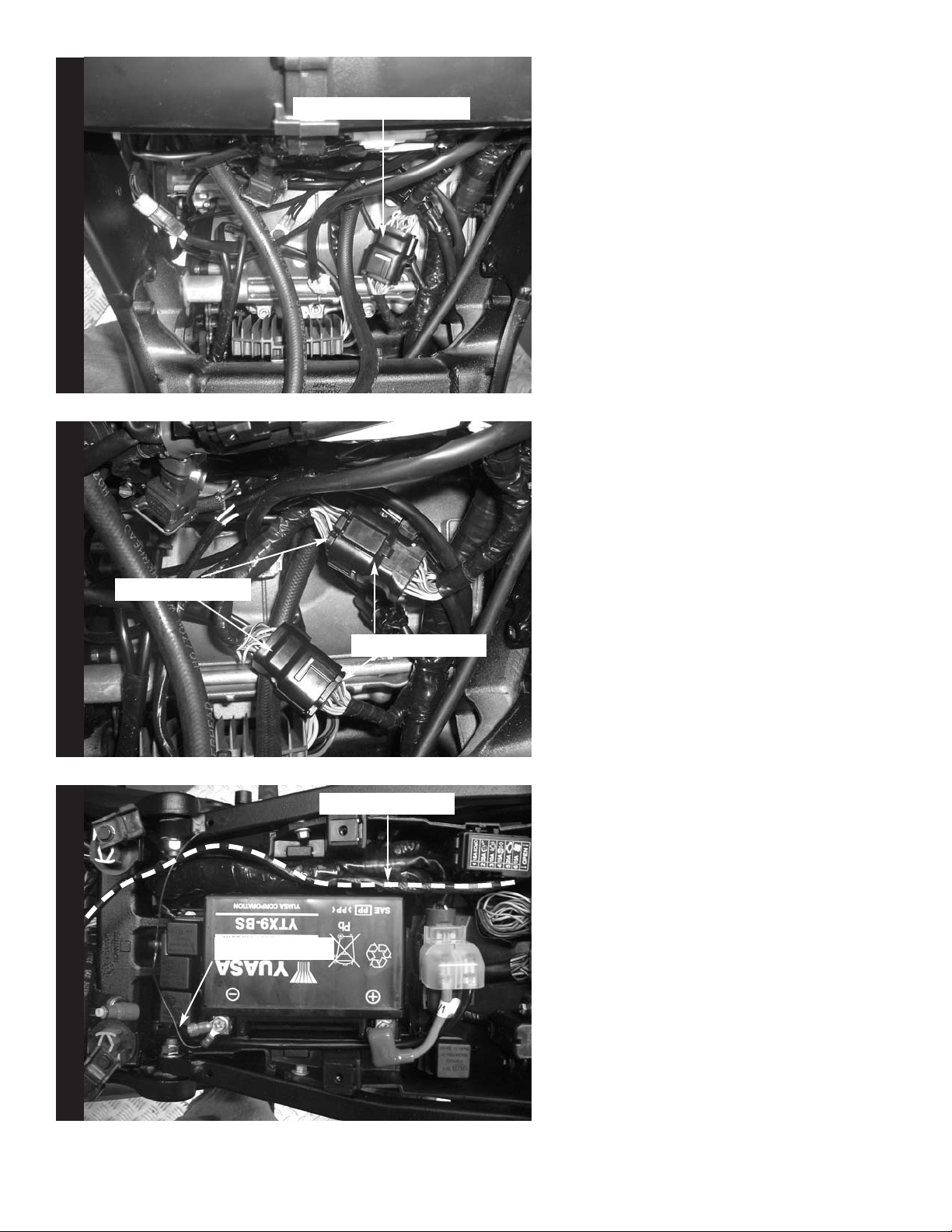

Fig. AFig. BFig. C

i509-411 www.powercommander.com 2003 Triumph Daytona 600 - PCIII USB - 2

Unplug this connector

PCIII connectors

Stock connector

Ground wire

PCIII harness

7 Install the Power Commander in

the tail section. Make sure to

use the supplied alcohol swab to

clean the inner rear fender

before attaching the Power

Commander. Use the supplied

velcro to secure the unit to the

inner rear fender (Fig. D).

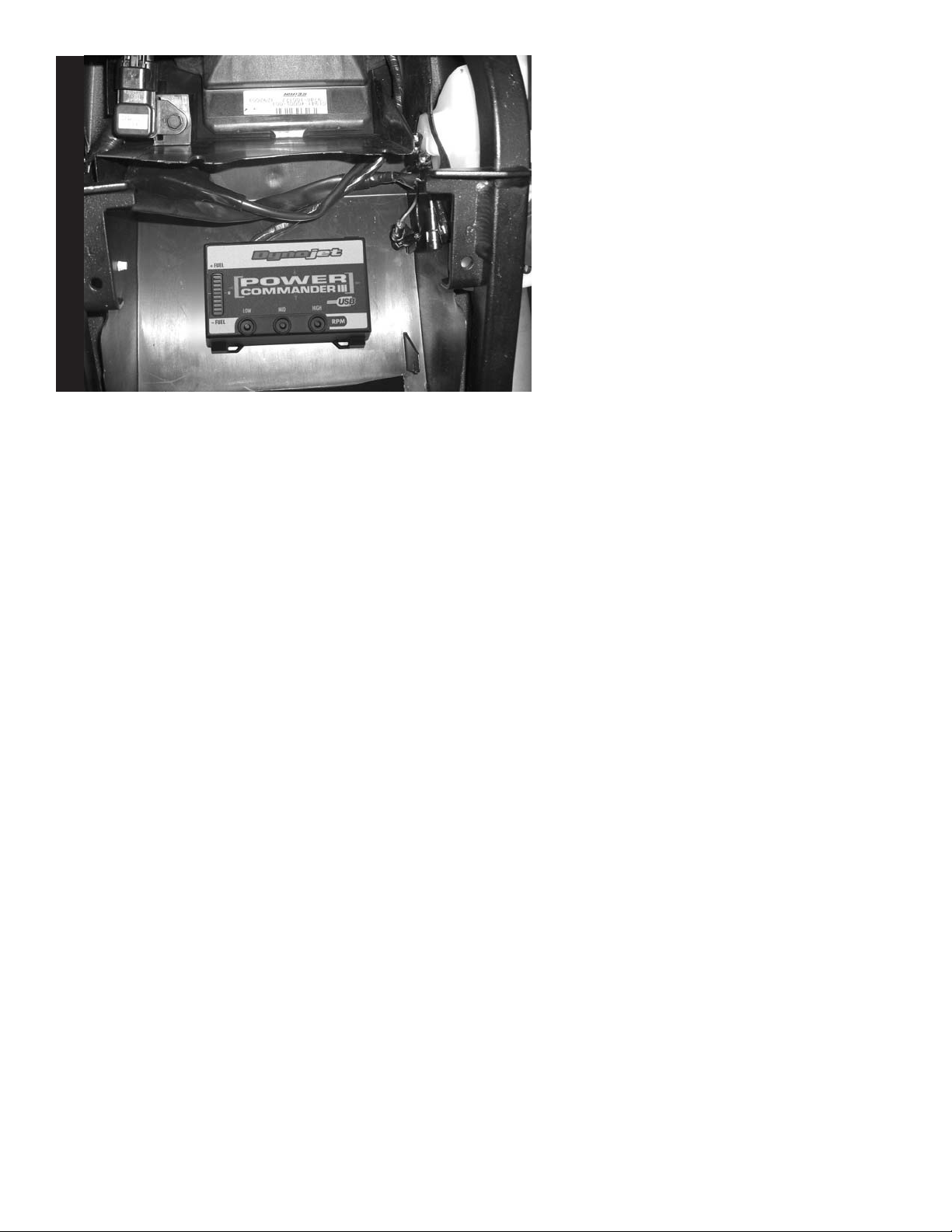

Fig. D
