Dual XHD6425 Operating instructions

INSTALLATION/OWNER'S MANUAL

AM/FM/CD/MP3/WMA/USB/3.5mm Bluetooth® Ready Receiver

with Built-In HD Radio™ and Detachable Face

XHD6425

TYPICAL FRONT-LOAD DIN MOUNTING METHOD

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Getting Started

• Remove trim ring from unit,

• Remove 2 transit screws located

on top of the unit.

• Insert the supplied keys into the

slots as shown, and slide the unit

out of the mounting sleeve.

• Install mounting sleeve into

opening, bending tabs to secure.

• Connect wiring harness and

antenna. Consult a qualified

technician if you are unsure.

• Certain vehicles may require an

installation kit and/or wiring

harness adapter (sold separately).

• Test for correct operation and slide

into mounting sleeve to secure.

• Snap trim ring into place.

XHD6425 INSTALLATION

Preparation

FUSE

When replacing the fuse,

make sure new fuse is the

correct type and amperage.

Using an incorrect fuse

could damage the radio.

The XHD6425 uses one

10 amp ATM fuse located

beside the wiring connector.

XHD6425 INSTALLATION

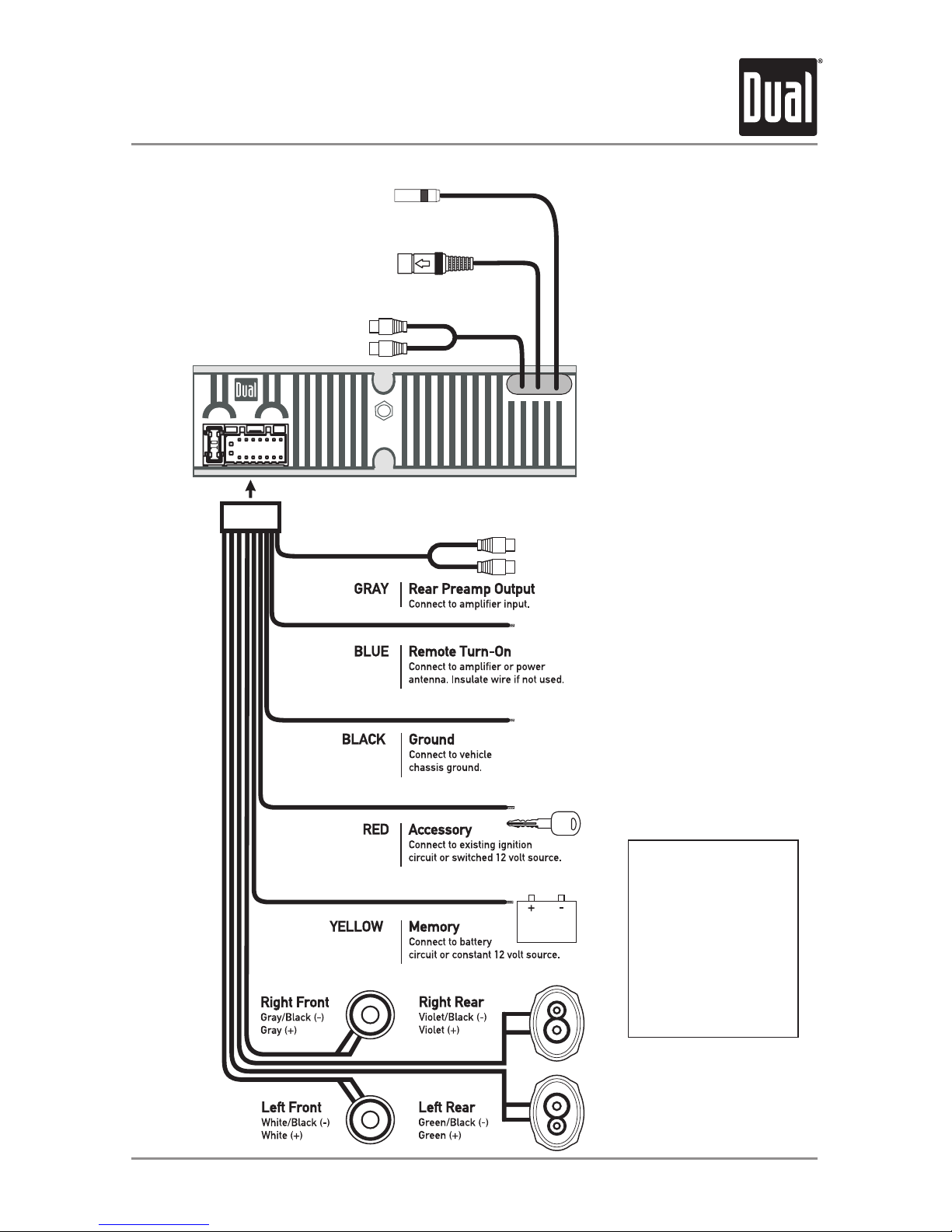

Wiring Diagram

BLACK 8-pin Female Mini-DIN

BTM60 Connection (sold separately)

Antenna Connector

BLACK

Front Preamp Output

The XHD6425 allows playback of your favorite MP3 and WMA files recorded on CD-R and

CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while

maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic

Skip Protection) to virtually eliminate skipping and allows alphanumeric or direct track

search - even while a song is currently playing!

Function keys 7, 8, 9 and 0 apply to Bluetooth, USB and MP3/WMA operation only.

XHD6425 OPERATION

Control Locations - Receiver

Release

Eject

Mode/Search

Volume/Audio/Setup

Tune/Track Up

IR Remote Sensor

Talk/Redial

EQ/Key 9

Display/Key 0

USB Port (Covered)

Auxiliary Input

Tuner Scan/Key 8

Key 7

Preset 6/Folder Up

Preset 5/Folder Down

Preset 4

Preset 3/Intro

Preset 2/Random

Preset 1/Repeat

Auto Store/Preset Scan/Enter/Key #

Band/Play/Pause/Key *

HD Seek

Mute/End Call

Tune/Track Down

Power

2123 20 19 18 17 16 15 14

12357 8 9

22 12 112425

610

XHD6425 OPERATION

Control Locations - Remote

Key 9/EQ

Key 8/Scan

Mute

Talk/Redial

Key 7

Preset 5/Folder Down

Preset 4

Preset 1/Repeat

Mode/Search

Tune/Track Down

Band/Play/Pause/Key *

Power

Volume Up

AS/PS/Enter/Key #

Audio/Setup

Tune/Track Up

Display/Key 0

Volume Down

Preset 3/Intro

Preset 2/Random

Preset 6/Folder Up 20

Faceplate Removal

Semi-Permanent

Faceplate Installation

Power On/Off

Mode

Auxiliary Input

Volume

Programmable

Turn-On Volume

Mute

Preset EQ Curves

Reset

Display

General Operation

XHD6425 OPERATION

Press RELEASE and pull away from the left side to remove.

To re-install, insert right side of faceplate first then push

left side to secure.

Remove trim ring and install supplied #1 x 7/32” Phillips

head screw through left side of mounting frame into faceplate.

Press POWER or any other button (except eject) to turn the

unit on. Inserting a disc will turn the unit on automatically.

Press POWER to turn the unit off.

Press MODE to select between AM/FM, CD player, USB,

auxiliary input and Bluetooth (optional). Modes of operation

are indicated in the display.

NOTE: CD and Bluetooth modes will not appear unless a CD

is inserted or BTM60 (Bluetooth module - sold separately) is

attached.

Insert 3.5 mm plug to connect your portable audio device.

Adjust volume using rotary encoder (00-46).

Press and hold POWER for 3 seconds to program currently

selected volume level. "P-VOL" and the current volume level

will momentarily appear in the display.

Press MUTE to silence the audio. “MUTE” will flash in the

display. Press MUTE again to cancel.

Press EQ to select between POP, JAZZ, CLASSIC, BEAT,

ROCK and OFF (default) equalization curves. Any adjustment

to the Bass or Treble settings automatically cancels the

current EQ curve (if one is selected).

Press to RESET the unit upon initial installation or if

abnormal operation occurs. The reset button is located

behind the faceplate.

Press DISP to select between clock and different types

of information, such as radio frequency, HD Radio song

information, CD track/elapsed time, or MP3/WMA/USB song

information.

With the unit on, press and hold DISP until the clock begins to

flash, then release. Press TUNE

to adjust the hours and

TUNE

to adjust the minutes. Press DISP momentarily to

save the selected time.

Press and hold the rotary encoder for more than 3 seconds to

access the setup menu. Press the rotary encoder momentarily

to select between the menu functions and rotate the rotary

encoder left/right to adjust or activate the desired function.

Set the Clock

Setup Menu

XHD6425 OPERATION

General Operation

Setup Menu

Function

Options Action

Loudness

Curve

LOUD OFF Disables the loudness function.

LOUD ON Enables the loudness function. Activating this feature will

enhance the bass and treble frequencies when listening to

music at low volumes.

Clock

Display

CLK OFF Programs the unit to not display the clock when the power

is off.

CLK ON Programs the unit to display the clock when the power is

off.

Auxiliary

Input

AUX ON Enables the front panel 3.5mm auxiliary input.

AUX OFF Disables the auxiliary input.

Beep

Confirmation

BEEP OFF Disables the confirmation beep.

BEEP ON Enables the confirmation beep.

Local/Distance

Tuning

LOC OFF Activates distance tuning.

LOC ON Activates local tuning for strong station reception only.

Power on

Message

MSG OFF Disables power on message.

MSG ON Enables power on message to be displayed.

Demonstration

Mode

DEMO OFF Disables the demonstration mode.

DEMO ON Enables the "BUILT IN HD RADIO AND BT READY" message.

Display

Scrolling

SCRL ON Programs the unit to scroll display information continuously.

SCRL OFF Disables the display scroll feature.

XHD6425 OPERATION

Press rotary encoder momentarily to select between

Volume (default), Bass, Treble, Balance, & Fader.

Press rotary encoder until BAS appears then rotate encoder

left/right to adjust ( -6 minimum / +6 maximum).

Press rotary encoder until TRE appears then rotate encoder

left/right to adjust ( -6 minimum / +6 maximum).

Press rotary encoder until BAL appears then rotate encoder

left/right to adjust (BAL L 12-BAL 00-BAL R 12).

BAL 00 represents equal balance

Press rotary encoder until FAD appears then rotate encoder

left/right to adjust (FAD F 12-FAD 00-FAD R 12).

FAD 00 represents equal fader

Individual Bass and Treble settings are retained in memory

for AM, FM, CD, AUX, USB and Bluetooth modes. This allows

you to save the Bass and Treble settings separately for each

mode.

Note:

Any adjustment to the Bass or Treble settings automatically

cancels the current EQ curve (if one is selected).

Audio

Bass

Treble

Balance

Fader

Source Audio Memory

General Operation

BASSVOLUME TREBLE BALANCE FADER

XHD6425 OPERATION

Analog and Digital Tuning

Seek Tuning

Manual Tuning

Scan Tuning

Storing and Recalling

Station Presets

The following tuning functions will access both analog and

digital stations. Refer to the HD SEEK mode section on page

10 for instructions on tuning to only digital stations.

Press TUNE

or TUNE

momentarily to seek the

next strong station.

When an HD Radio station is selected, an HD Radio logo will

begin to flash on the display. In about five seconds, HD or

HD1 will illuminate after the radio frequency.

• If "HD" appears, the radio station is broadcasting a higher

quality sound. No additional stations are available.

• If "HD1" appears, additional multicast channels (HD2

and/or HD3) are available. Press TUNE

TUNE

to tune to other available multicast channels.

Press TUNE

or TUNE

for more than two seconds,

then release. "MANUAL" will momentarily appear in the

display. Press TUNE

or TUNE

momentarily to

move radio frequency up or down one step at a time. Press

and hold to advance quickly. If tuning is not adjusted for five

seconds, the unit will return to seek tuning mode (default).

"AUTO" will momentarily appear in the display.

Press SCN to preview strong stations on the current band,

pausing for five seconds at each. Press SCN again to cancel.

Up to 18 FM stations and 12 AM stations can be stored,

including HD Radio stations. To store a station, first select

the desired band and station. Press and hold the desired

preset button (1-6) for more than two seconds. When stored,

the preset number appears in the display. The station can be

recalled by pressing the corresponding preset button.

Note: Function keys 7, 8, 9 and 0 apply to MP3/WMA, USB

and Bluetooth operation only.

HD Radio™ AM/FM Tuner Operation

XHD6425 OPERATION

Automatically Store

Stations

Preset Scan

Band

Display

HD Seek Mode

Press AS/PS for more than two seconds to automatically

store the six strongest stations in the current band.

Automatic local tuning is activated during initial band scan.

Press AS/PS momentarily to scan presets 1-6 on the

current band, pausing for five seconds at each. Press AS/PS

again to cancel.

Press BAND to select FM1, FM2, FM3, AM1 or AM2.

When the unit is tuned to an analog station, press DISP to

toggle the display between the following options:

When the unit is tuned to an HD Radio station, press DISP to

toggle the display between the following options:

When information is unavailable, "NO DATA" appears in the

display.

Press HD SEEK to activate digital-only tuning mode. The HD

SEEK icon will appear on the display, indicating that the unit

will skip over analog stations and tune to HD Radio stations

only. Follow the instructions on page 9 to access seek,

manual and scan tuning.

• Storing and Recalling Station Presets

HD Radio multicast stations (HD2 and HD3) can also

be stored as presets. When a preset multicast station

is recalled, "LINKING" appears in the display until the

download process is complete (approximately 5 seconds).

Note: If the HD radio signal on the preset is unavailable,

the unit reverts to the previous analog or digital station.

• Automatically Store Stations

While in HD SEEK mode, press AS/PS to automatically

store HD Radio stations to presets 1-6. Multicast

channels (HD2 and/or) HD3 are not stored but can be

accessed by pressing TUNE

from the HD1 station.

HD Radio™ AM/FM Tuner Operation

CLOCK

FREQUENCY

STATION

NAME ARTIST SONG

TITLE CLOCK

FREQUENCY

PROGRAM

TYPE

Table of contents

Other Dual Car Receiver manuals

Dual

Dual XML8150 Operating instructions

Dual

Dual iplug XDM6820 Operating instructions

Dual

Dual XD250 User manual

Dual

Dual DSA1007 Operating instructions

Dual

Dual XD5125 Operating instructions

Dual

Dual DMCPA70 Operating instructions

Dual

Dual XD230M Operating instructions

Dual

Dual XDMA760BT Operating instructions

Dual

Dual MXCP44 Operating instructions

Dual

Dual XDMA6438 Operating instructions

Dual

Dual XRM46BT Operating instructions

Dual

Dual XDCPA9BT Operating instructions

Dual

Dual MGH30BT Operating instructions

Dual

Dual XHD7720 Operating instructions

Dual

Dual XRM69RGB Operating instructions

Dual

Dual XHD7714 Operating instructions

Dual

Dual X2DMA400 Operating instructions

Dual

Dual XDVD9101 Operating instructions

Dual

Dual DV605 Operating instructions

Dual

Dual XDVDN8290N Operating instructions

Dual

Dual XDM290BT Operating instructions

Dual

Dual XDVDN8290 Operating instructions

Dual

Dual XDCPA10BT Operating instructions

Dual

Dual XDM6350 Operating instructions

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Sony

Sony MEX-1HD - Audio Library System operating instructions

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

Sony

Sony CDX-4160 - Cd Receiver operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual
