Dual MXD340SXM Operating instructions

INSTALLATION/OWNER'S MANUAL

AM/FM/USB/SiriusXM – Ready Receiver with Bluetooth / Front Panel

(Includes SiriusXM Connect Tuner and Antenna)

MXD340SXM

MXD340SXM INSTALLATION

Preparation

Please read entire manual before installation.

Before You Start

• Disconnect negative battery terminal. Consult a qualified technician for instructions.

• Avoid installing the unit where it would be subject to high temperatures, such as from

direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

Step 3:

Connect all wiring

harnesses and slide

the head unit into the

mounting sleeve until

it clicks into place.

Using the existing

brackets or the brackets

supplied with the

installation kit, mount

the brackets to the sides

of the head unit with the

screws supplied with the

head unit.

Mounting the Head Unit:

ISO mounting

Step 1:

Insert the mounting

sleeve into the

installation kit or

dashboard.

Step 2:

Bend multiple

mounting tabs around

the mounting sleeve

until the mounting

sleeve is secure.

Mounting the Head Unit:

ypical DIN mounting

Mounting Sleeve

Dashboard or

Installation Kit

Single DIN

Mounting Sleeve

Dashboard or Installation Kit

Mounting Tabs

Single DIN

New

Radio

Existing

Brackets

Decorative

Bezel

Single DIN

Mounting Sleeve

Dashboard or Installation Kit

Head Unit

Single DIN

MXD340SXM INSTALLATION

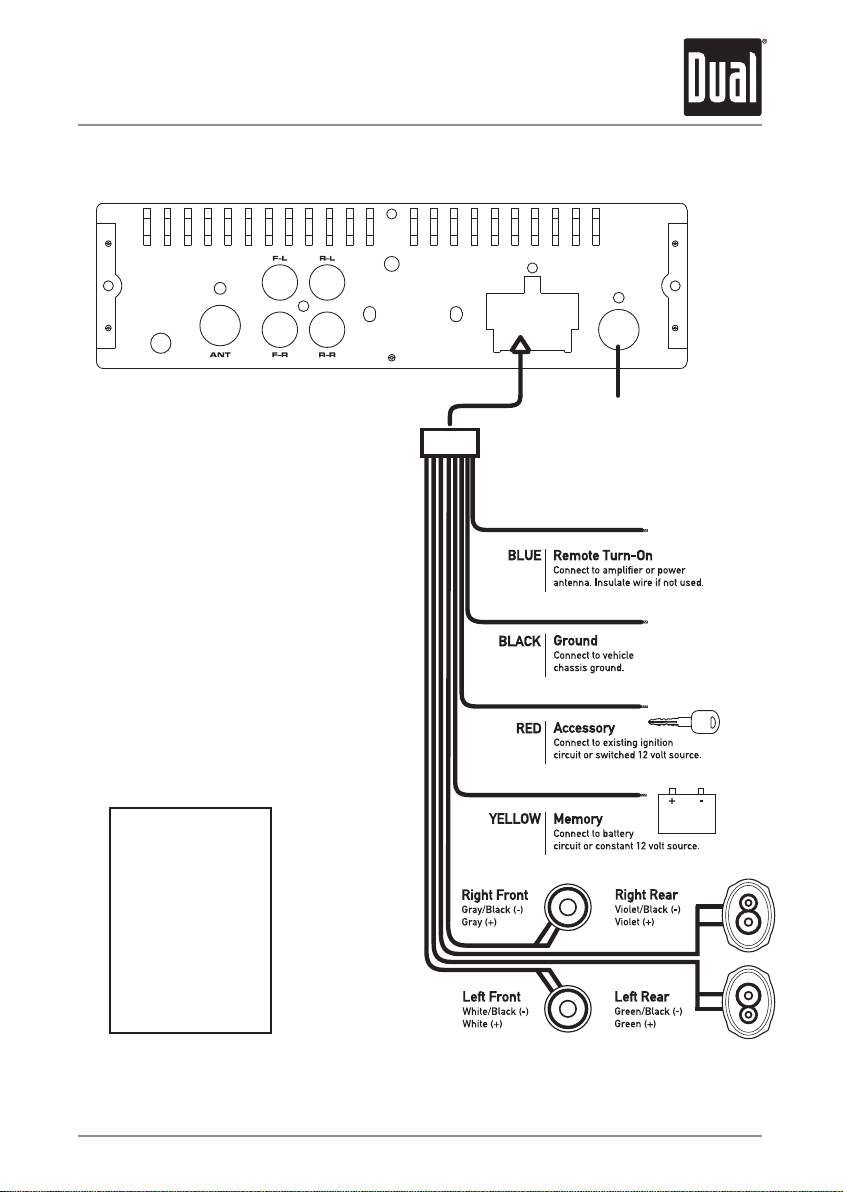

Wiring Diagram

FUSE

When replacing the

fuse, make sure new

fuse is the correct type

and amperage. Using

an incorrect fuse could

damage the radio.

The unit uses

one 10 amp ATC fuse

located beside

the Heat Sink

SXM IN

Includes SiriusXM connect

Tuner and Antenna

SiriusXM

For more information on how to install the SiriusXM Connect Vehicle tuner, consult the installation guide included

with the tuner.

MXD340SXM OPERATION

Control Locations

DISP

Power

18Auxiliary Input 15

Mode

Band / Zone 1

29Preset 6 / Folder up 16

Reset

Mute / Zone 2

310 Preset 5 / Folder down 17

Tune / Track up

Talk

411 Preset 4 / Random 18

Tune / Track down

Volume up / down

512 Preset 3 /Repeat 19

Microphone

AS / CAT

613 Preset 2 / Intro 20

USB port

714 Preset 1 / Play / Pause

1 2 3 4 5 6 20 7

8910111213141516171819

MXD340SXM OPERATION

Press the button to turn the unit on. Press again to

turn the unit off.

Press MODE to select between Radio, USB, SiriusXM ,

and Bluetooth. Modes of operation are shown

in the display.

Adjust volume using the volume knob (00-40).

Press Mute button silence the audio. Press again to resume

listening at the previously selected volume.

Insert a 3.5mm cable in the unit's front AUX port.

Press the RESET button to reset the unit back to the factory

settings if abnormal operation occurs. The reset button is

located on the front panel(Including SiriusXM data reset).

Press knob to select clock setting mode.

Rotate the volume knob to right to adjust hours and rotate

volume knob to left to adjust the minutes.

Press DISP to display clock time for 5 seconds.

MXD340SXM will return to the previous display in 5 seconds.

Press volume knob momentarily to select between the

Audio/Menu functions.

Rotate the volume knob left/right to adjust or activate the

desired function/audio.

Power On/Off

Changing Modes

Volume

Mute

Auxiliary Inputs

Reset

Setting the Clock

Display

Audio / Menu

General Operation

Auxiliary Input

MXD340SXM OPERATION

AM/FM Tuner Operation

Seek Tuning

Manual Tuning

Band

Storing Presets

Recalling Presets

Automatically Store

Press TUNE

or TUNE

to seek to the previous or

next strong station.

Press and hold TUNE

or TUNE

to enter manual

tuning mode, then press TUNE

or TUNE

momentarily to change radio frequency up or down one

step at a time. Press and hold TUNE

or TUNE

advance quickly.

Press BAND to select between FM1, FM2, FM3, AM1 and

AM2 bands. Up to six presets can be programmed

for each band, enabling up to 18 FM stations and 12 AM

stations to be stored in memory.

Up to 18 FM and 12 AM stations can be stored. To store

a station, select the desired band and station. Press and

hold the desired preset button (1-6) for more than two

seconds. When stored, the preset number will appear in

the display.

Preset stations can be recalled any time by pressing the

corresponding preset button.

Press and hold AS/CAT for more than 2 seconds to store

18 FM stations and 12 AM stations automatically.

MXD340SXM OPERATION

To play MP3 files, insert a USB device containing MP3 files.

Press TUNE

to skip to the beginning of the next track.

Press TUNE

to skip to the beginning of the previous

track.

Press

to temporarily stop USB playback.

Press

again to resume playback.

Folders can be found by pressing Folder Up or Folder Down.

About one second after the folder name is displayed, the

first file under the selected folder will be displayed and

playback will begin.

Press RPT to toggle between RPT ALL, RPT FLR and RPT

ONE.

• RPT ALL - Plays all tracks on USB device.

• RPT ONE - Continuously repeats selected track.

• RPT FLR - Continuously repeats all files in current folder.

Press RDM to play tracks in random order; press again to

cancel the RDM function.

Press INT to play the first 10 seconds of each track; press

again to cancel the INT function.

Playing MP3 Files

Track Select

Pause

Folder Access

Repeat

Random

Intro

USB Operation

MXD340SXM OPERATION

Preparation

Pairing a New

Device

Streaming Audio

Troubleshooting

Before using a Bluetooth device, it must be paired and

connected. Ensure that Bluetooth is activated on your

device before beginning the pairing process.

The head unit broadcasts the pairing signal constantly when

no devices are connected. Complete the pairing sequence

from your Bluetooth device. Refer to the owner’s manual for

your device for more details.

The device name is “MXD340SXM”.

The Bluetooth passcode is "1234”.

Note: The head unit can be in any mode of operation when

pairing is performed.

The head unit supports A2DP wireless streaming audio

from a Bluetooth mobile device directly to your head unit.

The following functions can be used to control the music:

• Press

to skip to the next available audio track.

• Press

to skip to the previous audio track.

• Press

to toggle between play and pause during

playback.

Bluetooth Operation

Only SiriusXM Satellite Radio brings you more of what you

love to listen to, all in one place. Get over 140 channels,

including commercial-free music plus the best sports, news,

talk, comedy and entertainment. Welcome to the world of

satellite radio. A SiriusXM Vehicle Tuner and Subscription

are required. For more information,

visit www.siriusxm.com.

After installing your SiriusXM Connect Vehicle Tuner and

antenna, power on your radio and select SiriusXM mode.

You should be able to hear the SiriusXM preview channel on

Channel 1.

After you can hear the Preview channel, tune to Channel 0 to

find the Radio ID of your tuner.

The Radio ID is bottom of the SiriusXM Connect Vehicle

Tuner and its packaging.

Note: SiriusXM Radio ID does not include the letters I, O, S or F.

In the USA, activate online or by calling SiriusXM Listener care:

• Visit www.siriusxm.com/activatenow

• Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions, please contact:

• Visit www.siriusxm.ca/activatexm

• Call XM customer Care at 1-877-438-9677

Activation typically takes 10-15 minutes, but may take up to

one hour. Your radio will need to be powered on and receiving

the SiriusXM signal to receive the activation message

'UPDATED'.

Once activated, you can tune to channels in your subscription

plan.

Pressed Mode Button to access SiriusXM mode and begin

operation.

SiriusXM Radio

Activating

SiriusXM Radio

Accessing

SiriusXM Radio

SiriusXM Satellite Radio Operation

MXD340SXM OPERATION

SiriusXM Satellite Radio Operation

9 7 6 45

Band / Zone 1

Press Band /Zone 1 to select SXM 1, SXM 2, SXM3.

Press and hold Zone 1 to turn the sound from Zone 1 on or off.

Press Mute button to silence the audio. Press Mute button again

to resume listening at the previously selected volume. Press and

hold Zone 2 to turn the sound from Zone 2 on or off.

Press and hold AS/CAT button to category browsing.

Press and hold the desired preset button (1-6) for more than two

seconds. When stored, the preset number will appear in the

display. Recalling Presets Press preset button(1-6) to recall a

stored channel for SXM 1, SXM 2, SXM 3.

1. Press and hold the DISP button go to the display mode setting.

The default display mode is DISP ALL. This mode scrolls all

metadata, one at a time, continuously in a loop.

2. Press and hold the DISP button go to the display mode setting

then short press DISP button several times to cycle through the

metadata labels: DISP ALL, Channel Number, Channel Name,

Artist Name, Song Title, Content Info, Category,

repeat. Stop short pressing the DISP button on a metadata label

and the unit will display just that metadata until changed.

Press MODE to select SiriusXM

volume knob to increase/decrease the Product's volume (0 - 40)

Press the Channel up button to tune channels up.

Press the Channel down button to tune channels down.

Preset Storing

Presets

DISP

8Channel Up

9Channel Down

Mode

7Volume Knob

Rotate

MUTE / Zone 2

AS/CAT
