DTS DIVE/R 18 RGB User manual
GB
User’s Manual Rel 1.3
D.T.S. Illuminazione srl - ITALY
http://www.dts-lighting.it
DIVE 18
DIVE/R 18 RGB
DIVE 18 RGB
Made in Italy
Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia
non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo
documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso
scritto della D.T.S .
DTS si riserva il diritto di apportare senza preavviso cambiamenti e modifiche estetiche , funzionali o di
design a ciascun proprio prodotto. D.T.S non assume alcuna responsabilità sull’uso o sull’applicazione dei
prodotti o dei circuiti descritti.
The information contained in this publication has been carefully prepared and checked. However, no
responsibility will be taken for any errors. All rights are reserved and this document cannot be copied,
photocopied or reproduced, in part or completely, without prior written consent from D.T.S.
D.T.S. reserves the right to make any aesthetic, functional or design modifications to any of its products
without prior notice. D.T.S. assumes no responsibility for the use or application of the products or circuits
described herein.
Les informations contenues dans le présent manuel ont été rédigées et contrôlées avec le plus grand
soin. Nous déclinons toutefois toute responsabilité en cas d'éventuelles inexactitudes. Tous droits
réservés. Ce document ne peut être copié, photocopié ou reproduit, dans sa totalité ou partiellement,
sans le consentement préalable de .
se réserve le droit d'apporter toutes modifications et améliorations esthétiques, fonctionnelles ou
de design, sans préavis, à chacun de ses produits. décline toute responsabilité sur l'utilisation ou
sur l'application des produits ou des circuits décrits.
D.T.S
D.T.S.
D.T.S.
Las informaciones contenidas en este documento han sido cuidadosamenteredactadas y
controladas. Con todo, no se asume ninguna responsabilidad por eventuales inexactitudes.
Todos los derechos han sido reservados y este documento no puede ser copiado, fotocopiado
o reproducido, total o parcialmente, sin previa autorizaciónescrita de
se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter
estético, funcional o de diseño a cada producto suyo. no se asume responsabilidad de
ningún tipo sobre la utilización o sobre la aplicació
n de los productos o de los circuitos descritos.
D.T.S.
D.T.S.
D.T.S.
2DIVE 18
DESCRIPTION
DIVE 18 is a compact LED projector fitted with a fixing bracket, designed for
underwater installation in fountains, swimming pools, etc.
DIVE 18 is made of bronze and stainless steel, offering an IP68 protection level, and
it can be installed at a max depth of 2 m, immersed either in water or sea water.
DIVE 18 is a modern alternative to conventional compact light sources, offering a
new approach to underwater lighting in terms of light quality, flexibility of use, energy
savings and component duration.
DIVE 18 features 18 x 1W P4 LEDs (6 x Red, 6 x Green, 6 x Blue). The even
distribution pattern featuring the same quantity of red, green and blue LED’s
guarantees high mixing quality for colours and a uniform projection on objects and
surfaces. Up to 16 million colours can be generated.
Luminosity at 2 m, with spot lenses, is 2.500 Lux.
Colour temperature can also be regulated with linear variations between 3200°K and
6500°K, passing progressively from warmer tones to cooler ones.
16 different whites are also selectable by the user.
Three interchangeable lens fittings are available: Spot, Medium Flood and Wide
Flood. These three lenses offer different aperture angles for the light beam, always
ensuring constantly regular and uniform projection on objects and surfaces.
The DIVE 18 can be remotely powered and controlled by two dedicated external
power suppliers / controllers: Z60 (up to 10 units) or Z30 (up to 5 units). DIVE 18
units connected to Z60 or Z30 can also be remote-controlled using the USITT DMX
512 standard digital communication protocol.
If you use the DIVE 18 out of water or immersion in not public areas, ONLY in this
case you can use the Z1 or Z4.
DIVE 18 is available in two models:
DIVE/R 18 ( recessed ) is compact LED projector designed for underwater recessed
installation in fountains, swimming pools, etc.
( 03.LP010.T10 ) DIVE/R 18 RGB P4 NARROW
( 03.LP010.T25 )
( 03.LP010.T40 )
DIVE 18 ( bracket ) is compact LED projector designed for underwater installation
in fountains, swimming pools, etc.
( 03.LP002.T10 ) DIVE 18 RGB P4 NARROW C/STAFFA
( 03.LP002.T25 )
( 03.LP002.T40 ) DIVE 18 RGB P4 WIDE C/STAFFA
DIVE/R 18 RGB P4 MEDIUM
DIVE/R 18 RGB P4 WIDE
DIVE 18 RGB P4 MEDIUM C/STAFFA
3DIVE 18
LED technology
LED technology 18 x 1 W P4 LEDs (6 x Red, 6 x Green, 6 x Blue); 2.500 Lux / 2 m
No infrared emission; no ultraviolet emission; LEDs average lifespan: 100.000 hours
Optical units 3 lenses sets available (Spot, Medium flood, Wide flood)
Control Via any DMX lighting console
Protection IP68 protection level (max immersion depth: 2 m)
For IP68 applications in public areas, the only allowed power supplies are Z60 and Z30.
Construction Bronze and stainless steel
Power suppliers / LED controllers Z60 (max 10 units) or Z30 (max 5 units)
Connection Provided with 5 mt of cable and with a RJ12 connector
Weight 6,3 Kg
ACCESSORIES
Lenses sets
• Spot (Cod. 02LK046)
• Medium flood (Cod. 02LK047)
• Wide flood (Cod. 02LK048)
Power supply / LED controllers
• Z60 with R12 connectors (Cod. 03.LA.053)
• Z60 with screws connectors (Cod. 03.LA.076)
• Z30 with R12 connectors(Cod.03.LA.072)
• Z30 with screws connectors (Cod. 03.LA.077)
IR receiver for Z60 / Z30
IR remote control for Z60 / Z30
Connectors / tools • RJ12 6-pole male connector (Cod. 0508B058)
• Crimping tool for RJ connectors (Cod. 0508A036)
Outer case IP65 (Cod. 03.LA.059)
MAIN ELECTRICAL CHARACTERISTICS
Input: Constant current power supply (350-500 mA)
Power Consumption: 18-30 W
4DIVE 18
IMPORTANT SAFETY INFORMATION
Fire prevention:
Never locate the fixture on any flammable surface.
Minimum distance from flammable materials: 10 cm
Safety:
The external surface of the unit may exeed 50°C; never handle the unit until at least 5
minutes have elapsed since the unit was turned off.
The ambient temperature should not exeed 40°C and should not be lower than -10°C

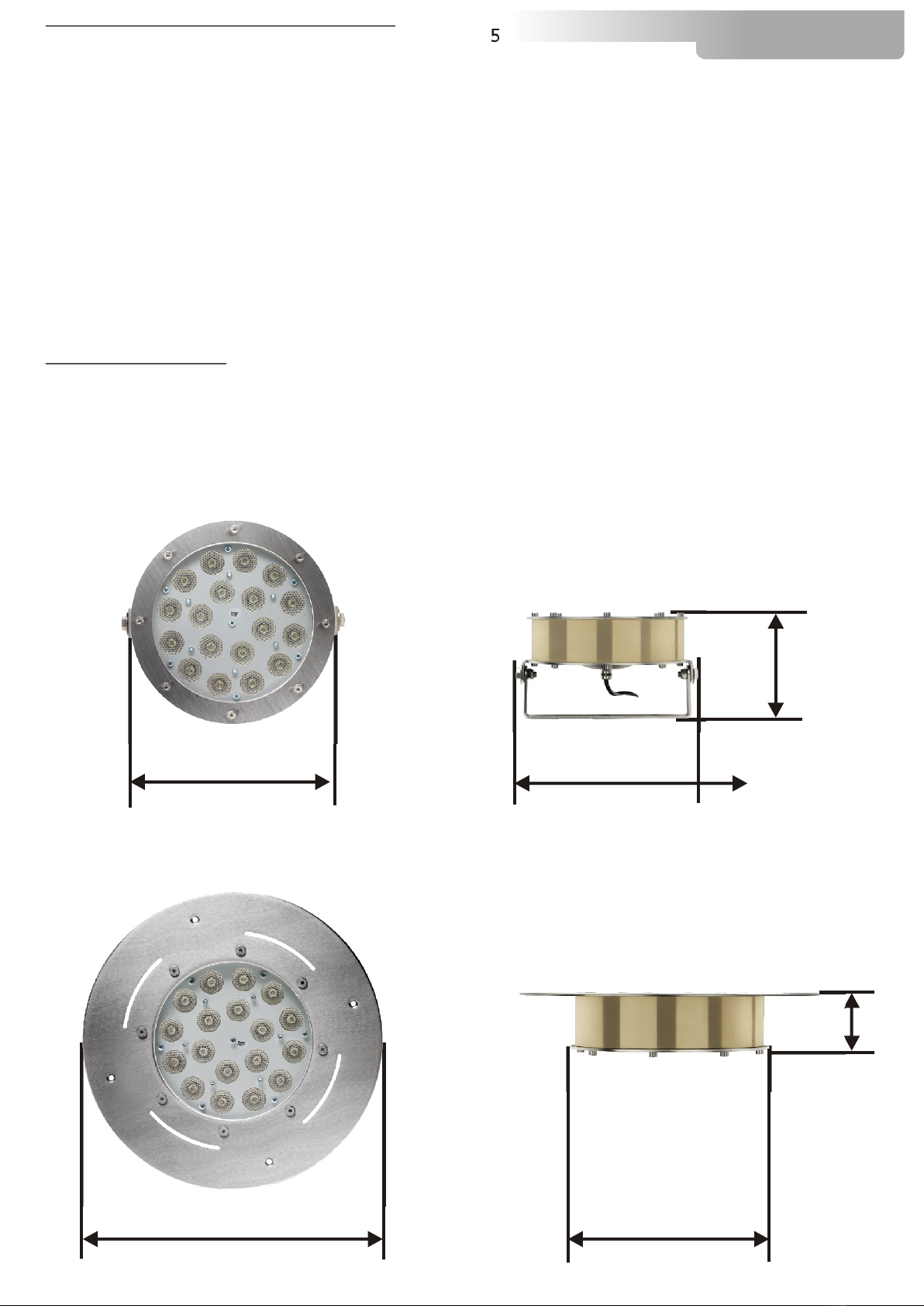

UNIT DIMENSIONS
5
300 mm 190 mm
83 mm
200mm
138 mm
224 mm
DIVE 18 RGB
DIVE R 18 RGB
DIVE 18
WIRING DIAGRAM
DIVE 18 LED PROJECTOR is provided with 2 x RJ12 male cable connectors
Pin 1 = RED +
Pin 2 = RED -
Pin 3 = GREEN +
Pin 4 = GREEN -
Pin 5 = BLUE +
Pin 6 = BLUE -

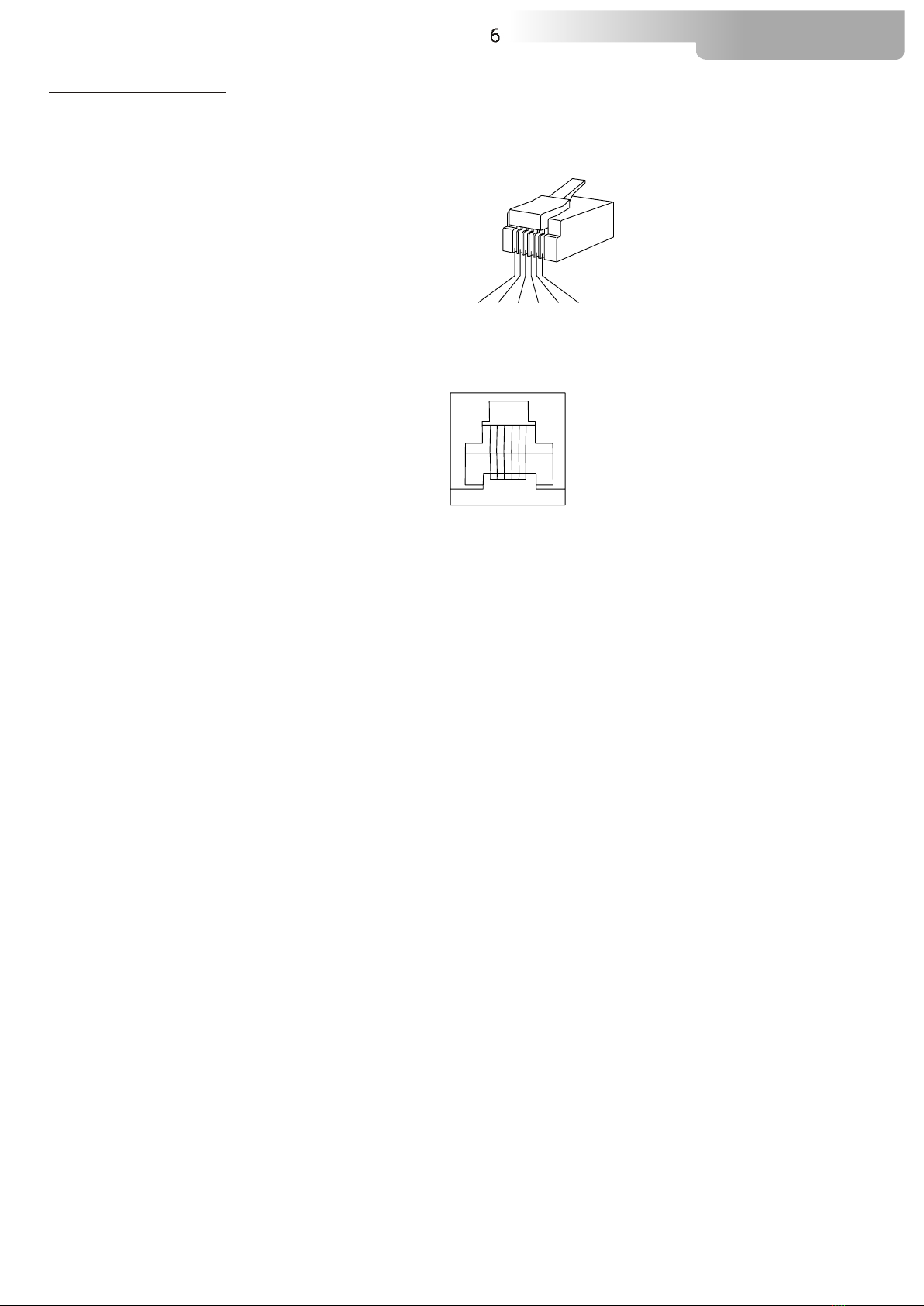

6-pin Male (RJ12)
Modular Plug
1 2 3 4 5 6
6-pin Female (RJ12)
RJ12 : 6P6C
6P6C indicates 6 positions 6 cables
For application where IP68 2m. rating is not necessary, DIVE 18 LED PROJECTOR cabling
connection can be done with a standard UTP B2 category 5E cable.
The maximum distance between power supply and the DIVE 18 unit should not exceed 100 meters.
For IP68 2m. rating application, D.T.S. reccomed the use of a IP68 cable as the 10XAWG26
multipolar black outdoor cable (D.T.S. Code: 0509C061).
The maximum distance between power supply and the DIVE 18 unit should not exceed 100 meters.
TIA/EIA 568-
1
6
Power supply LED output connector
6DIVE 18
7
DIVE 18 RGB
DIVE R 18 RGB
LEDs OUT 7
DIVE R 18 RGB
6-pin Female (RJ12)
1
6
03.LA.053 (RJ12 OUTPUT)

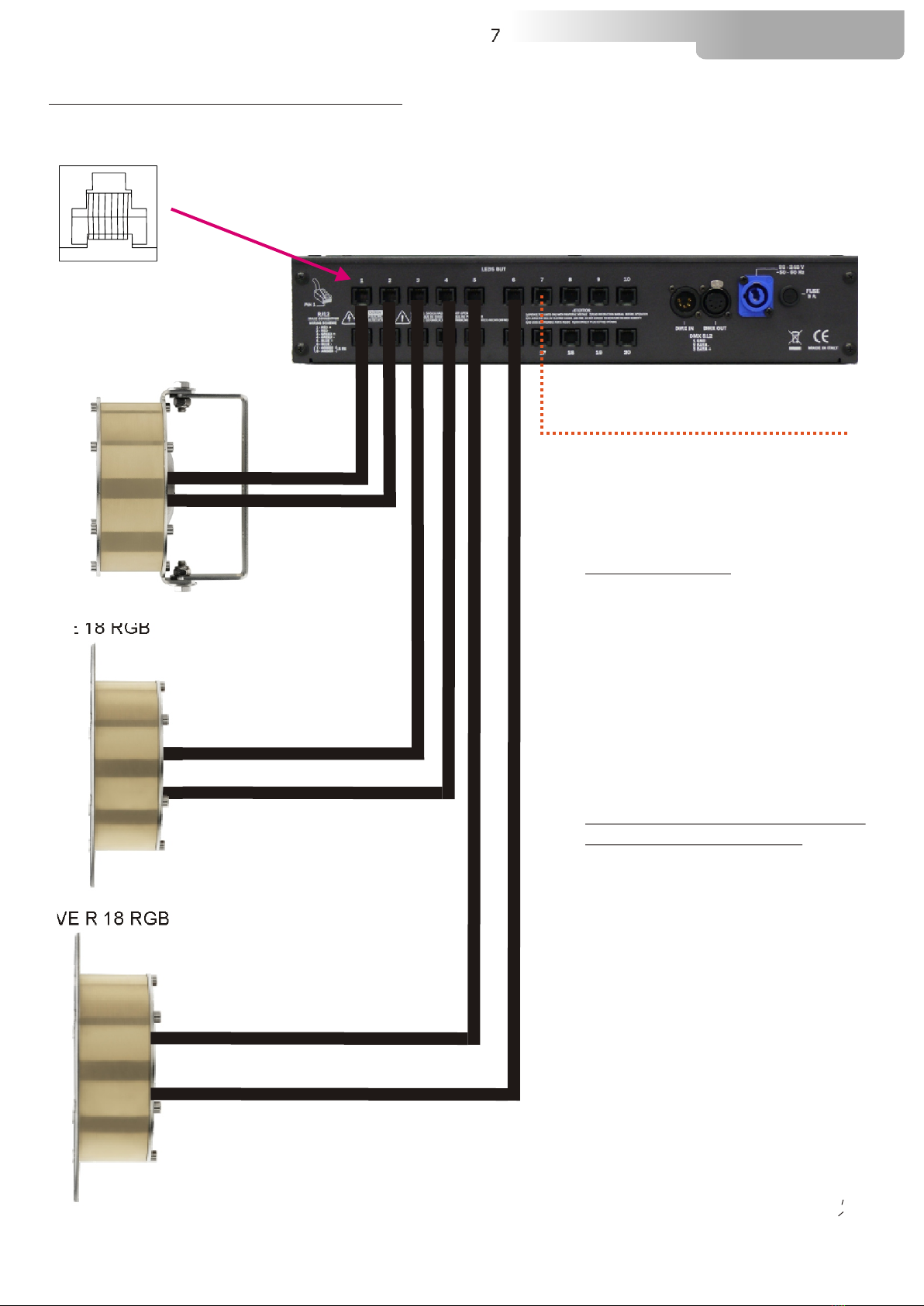

LED UNITS WIRING CONNECTION
DIVE 18
IMPORTANT:
Each DIVE 18 UNIT need 2 x Z60
outputs in order to be properly
controlled.
The Total number of DIVE 18
connectable to Z60 is 10 pcs
The Total number of DIVE 18
connectable to Z30 is 5 pcs
Never plug in a new unit when the
power supply is turned on.

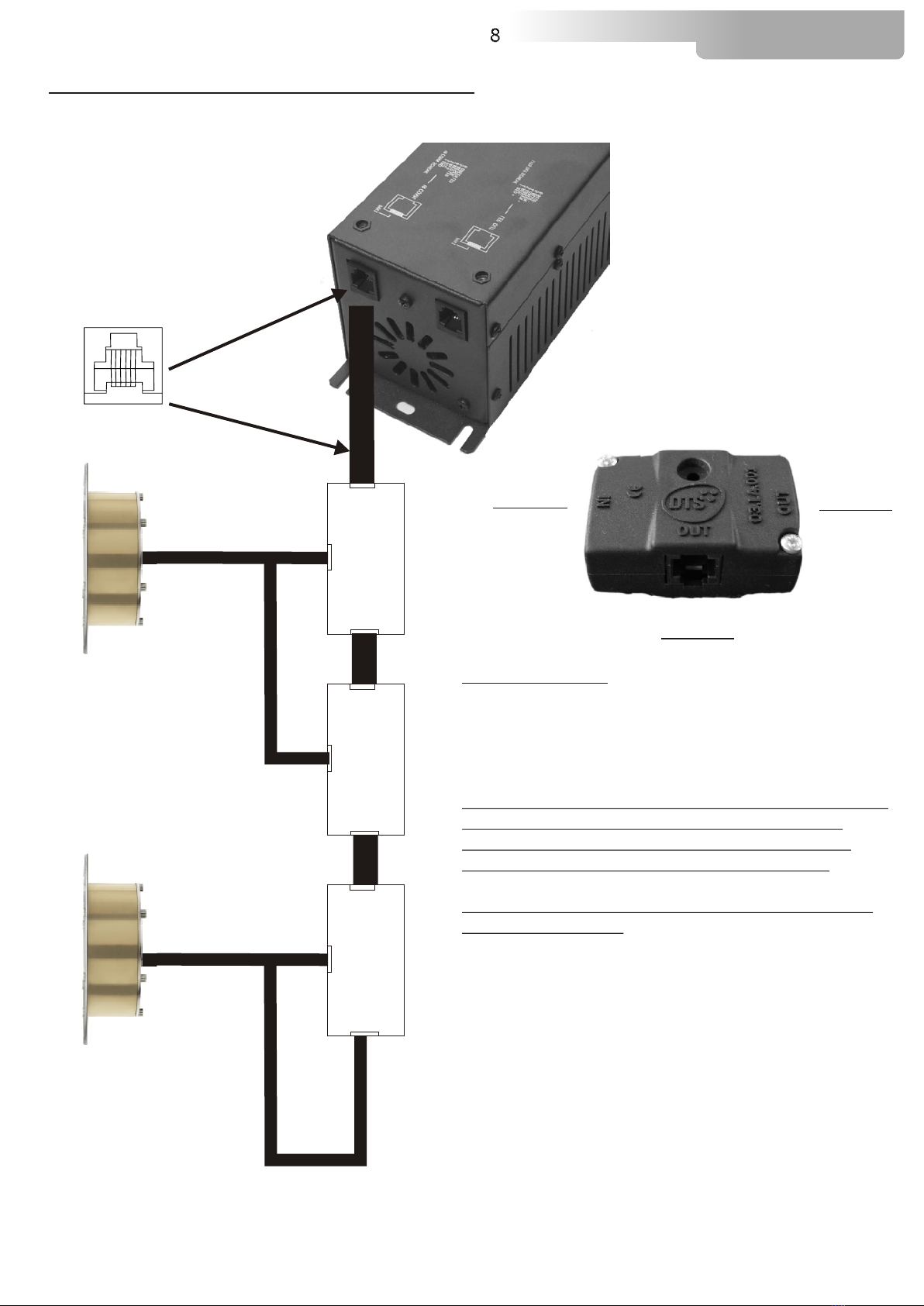

POWER SUPPLY WIRING CONNECTIONS
D.T.S. T-BOX
CODE 03.LA001
INPUT
OUT 1
OUT 2
6-pin Female (RJ12)
1
6
8DIVE 18
1
INPUT
OUT 1
OUT 2
T BOX
INPUT
OUT 1
OUT 2
T BOX
INPUT
OUT 1
OUT 2
T BOX
2
DIVE R 18 RGB
DIVE R 18 RGB
IMPORTANT:
The maximum number of DIVE 18 UNIT
connectable to the Z1 Power supply is 2 pcs.
Never plug the cable coming from the Power supply
into OUT 1 or OUT 2 of the T-BOX when other
DIVE 18 units are connected, because a wrong
connection can seriously damage the lamps.
Never plug in a new DIVE 18 unit when the power
supply is turned on.

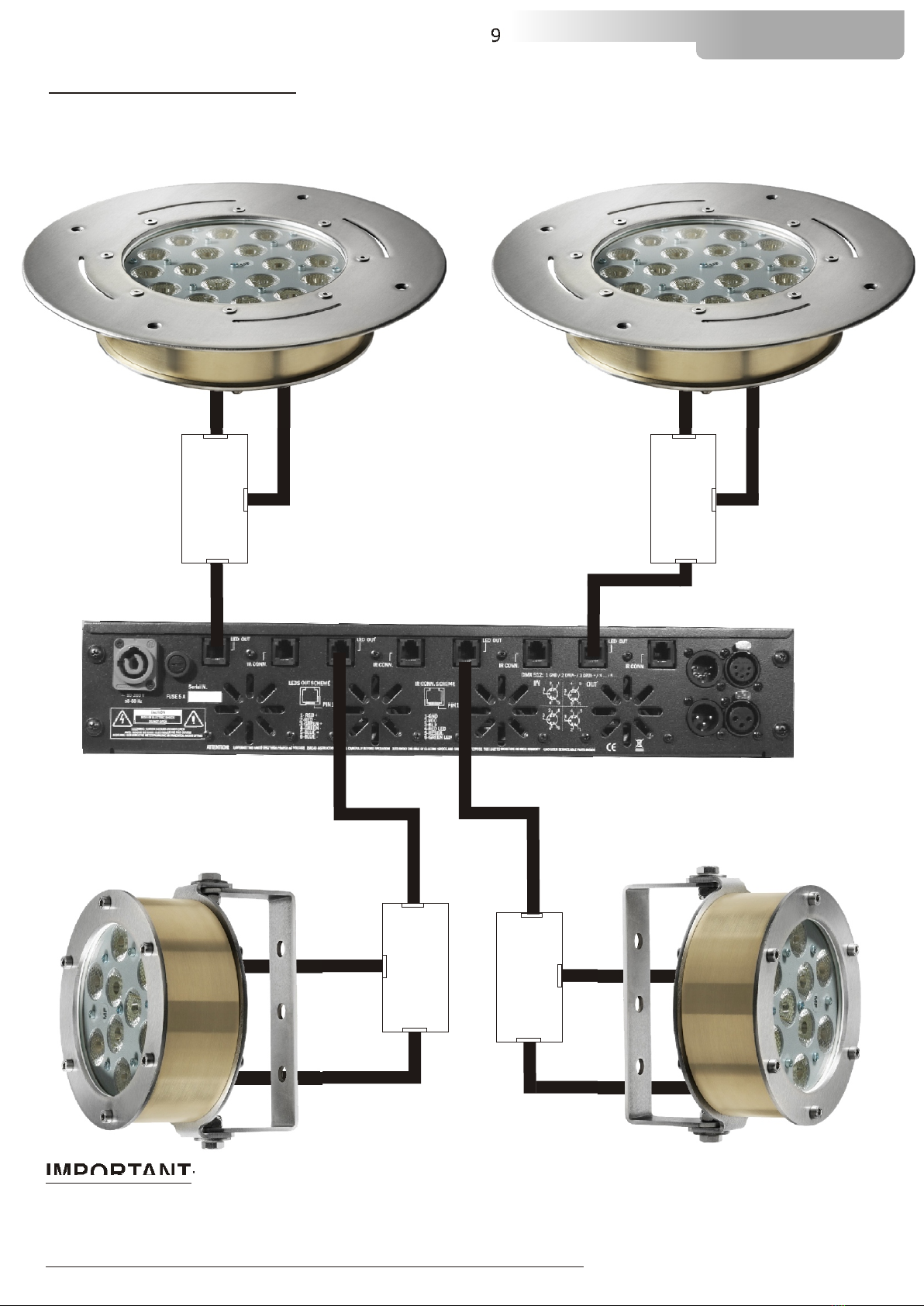

WIRING CONNECTIONS
Z4 DMX-512 LED driver
Code 03.LA.014
IMPORTANT:
The maximum number of DIVE 18 LED PROJECTOR connectable to the Z4 Power supply is 2 pcs
each LED output (8 pcs totally).
Never plug in a DIVE 18 unit when the power supply is turned on.
9
INPUT
OUT 1
OUT 2
T BOX
INPUT
OUT 1
OUT 2
T BOX
INPUT
OUT 1
OUT 2
T BOX
INPUT
OUT 1
OUT 2
T BOX
DIVE 18
DIVE R 18 RGB DIVE R 18 RGB
DIVE 18 RGB DIVE 18 RGB
NOTES
10 DIVE 18
This manual suits for next models
