Drive CE 1000 XL User manual

bariatric anterior

safety roller

with adjustable anterior safety roller

item#

CE 1000 XL - Bariatric Anterior Safety Roller

PE 1000 XL - Pediatric Anterior Safety Roller

Your Drive brand product is warranted to be free

of defects in materials and workmanship for the

lifetime of the original consumer purchaser.

This device was built to exacting standards

and carefully inspected prior to shipment. This

Lifetime Limited Warranty is an expression of our

confidence in the materials and workmanship of

our products and our assurance to the consumer

of years of dependable service.

In the event of a defect covered by this warranty, we

will, at our option, repair or replace the device.

This warranty does not cover device failure due to

owner misuse or negligence, or normal wear and

tear. The warranty does not extend to non-durable

components, such as rubber accessories, casters,

and grips, which are subject to normal wear and

need periodic replacement.

If you have a question about your Drive device

or this warranty, please contact an authorized

Drive dealer.

lifetime limited

warranty

© 2006 Medical Depot, Inc. All rights reserved.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

EU Authorized Representative

Drive International, LLC

Globe Lane - Stockport

DUKINFIELD SK16 4RE, GB

assembly

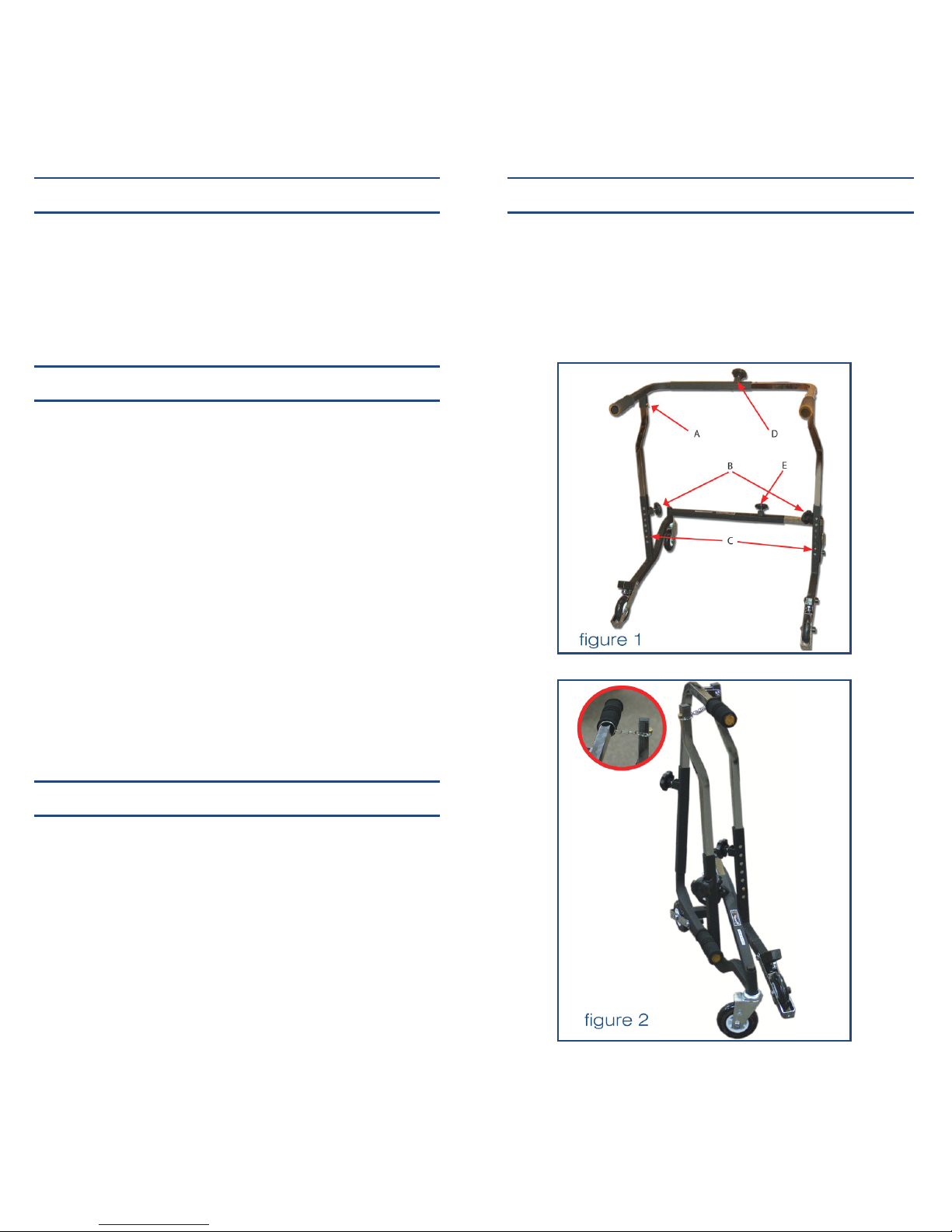

1. Remove Safety Roller from carton.

2. Unfold Safety Roller by lifting ring (Fig 2) from left

upright and open frame.

3. Lift handlebar and position over left upright. Guide

handlebar into cradles (F).

4. Make sure spring button (A) snaps into hole on the

handlebar underside.

adjustments

Recommended handlebar height is at the wrist with arms fully

extended. With your hand placed on the handgrip, your elbow

should be flexed 20° - 30°.

HEIGHT

1. Open both height adjustment knobs (B).

2. Push in spring button (C), one side at a time and

raise or lower uprights to desired height.

3. Tighten knobs.

WIDTH

1. Open knob on handlebar (D) and on crossbar (E).

2. Extend telescoping tubing on handlebar and crossbar to

desired width.

3. Tighten knobs (D & E).

NOTE: When Safety Roller is fully extended, spring buttons on

the underside of handlebar and crossbar will snap into position.

Press in both spring buttons if narrower width is desired.

folding instructions

1. Press spring button (A) on left side of handlebar and lift

handlebar.

2. Hold handlebar in right hand and with left hand, swing

left upright outward and squeeze into Z position until

fully folded.

3. Drop handlebar over folded Safety Roller.

4. Secure the uprights by putting the ring over the left

upright and under the spring button.

accessories

Adjustable forearm platforms, seat, variable resistance tabs

on rear wheels, swivel wheel locking brackets, ankle prompts,

trunk support, extended uprights for additional height, IV pole

and oxygen tank holder.

Call an authorized Drive dealer for detailed information about

our accessories.

This manual suits for next models

1
