Dreamline BUTTERFLY User manual
BUTTERFLY
SHOWER DOOR INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.BathAuthority.com web page.
Please carefully read the instructions before installing. If you have any questions
regarding installation, please call our technical support specialists Monday through
Friday 9:00 AM – 5:00 PM EST at 1-866-731-8378, ext. 3 or e-mail our technical
support group at
For more information on DreamLineTM Shower Door please visit www.BathAuthority.com
Rev 1.1 1
Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of
the needed parts are included in the package, by marking all the components on the
“Detailed Diagram of Shower Door Components”. Examine boxes and packages for
shipping damage. If the unit has been damaged, has a finishing defect, or has missing
parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine TM will not replace any damaged products
or missing parts free of charge after 3 business days or if the product has been
installed. Feel free to contact DreamLineTM if you have any questions.
2. If this unit is going to be installed in a new construction, please, install all of the required
plumbing and drainage before installing the shower. Use a competent and licensed (if
required by local code) plumber for all plumbing installation.
3. Please note that you should consult your local building codes on questions on
installation compliance standards. Building and plumbing codes may vary by location,
and DreamLine is not responsible for code compliance standards for your project.
4. Please insure that prior to the installation the installation surface is leveled and solid and
will be able to support the total weight of the unit. Also make sure the walls are at right
angles. While some adjustment in leveling of the door is possible, irregular installation
surface level or improper angle of side walls will result in serious problems for your
installation. Please, note that some adjustments and drilling might be necessary during
the installation process.
5. Please, NOTE! This door has an out-of-plumb adjustment of up to 1” on each side.

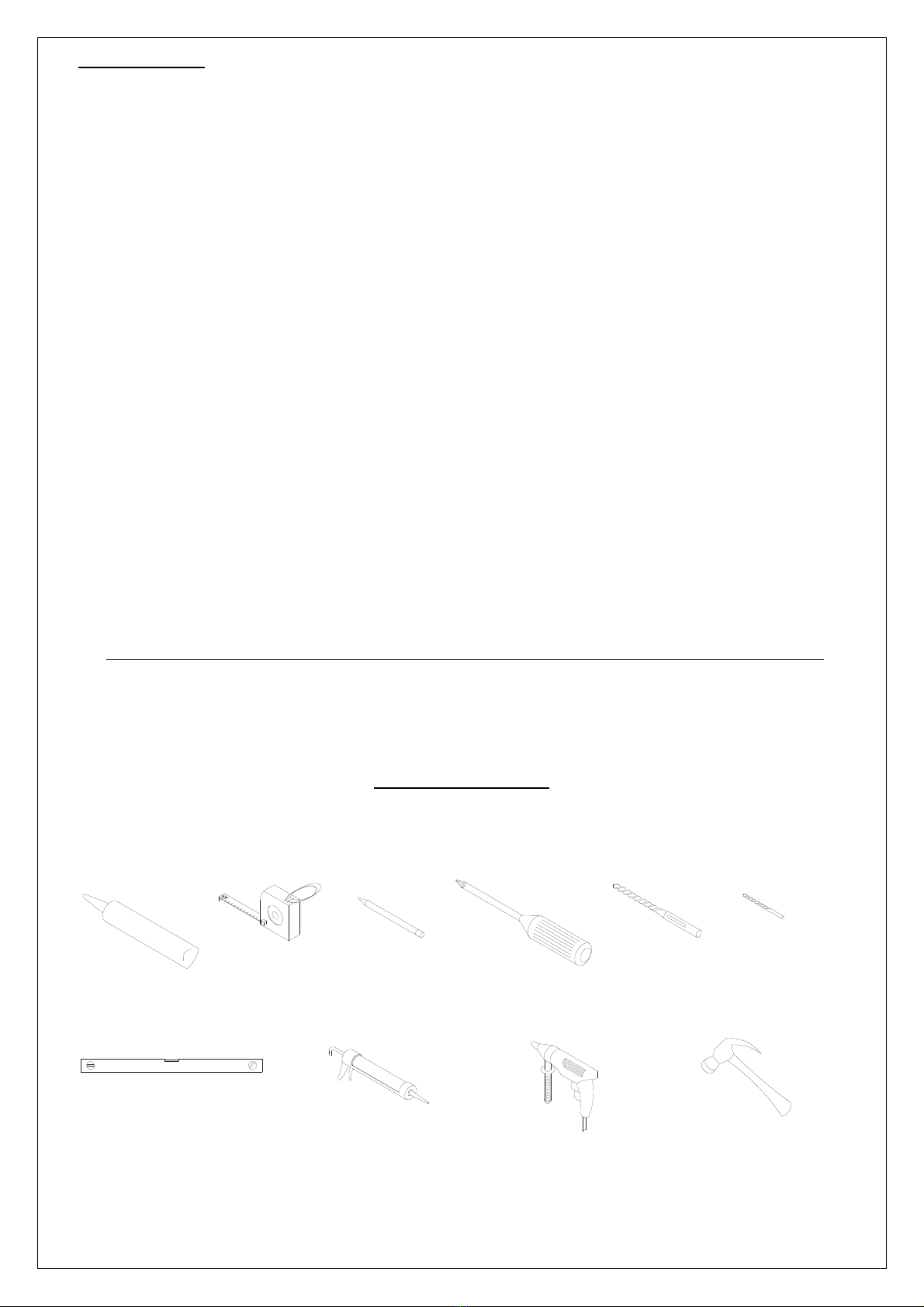

Tools Required
Caulk Tape
Measure Pencil Screwdriver
Phillips
Level Gun
Caulk Drill
Electric Hammer
Drill bit Drill bit
(Ø=5/16") (Ø=1/8")
Rev 1.1 2
Detailed Diagram of Shower Door Components
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
B
A
18
1
2
Packing List
01 Wall profile 2pcs 10 Decorative cover 4pcs
02 Glass profile 2pcs 11 Middle hinge (top & bottom) 1set
03 Guide rail 2pcs 12 Roller (top & bottom) 1set
04 Glass door A 1pc 13 Hinge (top & bottom) 1set
05 Glass door B 1pc 14 Seal strip (pre-installed on part #2) 2pcs
06 Wall anchor 8pcs 15 Anti-water strip 1pc
07 Round head screw ST4.2×10 4pcs 16 Roller stopper 2pcs
08 Round head screw ST4.2×12 6pcs 17 Handle 1set
09 Round head screw ST4.2×30 16pcs 18 Hex wrench 1set
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the
detailed diagram and packing list in your manual as a reference. Before discarding the carton,
check for small hardware bags that tend to fall to the bottom of the box. If any parts are
damaged or missing, please contact DreamLineTM for replacement.
Rev 1.1 3
Shower Door Assembly
NOTICE:
T
he installation presented here is for the left door
opening. For the right door opening, you will need
to rotate the frame 180 degrees.
1. Place the Glass door A (04) and the Glass door B (05)
on a flat surface. The distances from the glass edge to the
paired holes on both sides of the Glass doors are
different. The side of each Glass door where the paired
holes are closer to the edges should be facing each other.
See Fig. 1 for details.
Fig. 1
2. Attach the top and the bottom Hinges (13) to the
left edge of the Glass Door A (04).
See Fig. 2 and Fig. 5 for details.
Fig. 2
AB
A
2
1
Rev 1.1 4
B
3. Attach the top and the bottom Rollers (12) to
the right edge of the Glass Door B (05). Mind
the position of the rollers on the glass.
See Fig. 3 and Fig. 5 for details.
1
2
Fig. 3
4. Connect the Glass door A (04) to the
Glass door B (05) using the top and the
bottom Middle hinges (11). Mind the
position of the middle hinges on the
glass.
See Fig. 4 and Fig. 5 for details.
Fig. 4
A
AB
B
A
AB
4
3
2
1
Rev 1.1 5
Fig. 5
5. Locate the Guide rails (03) and the Glass profile (02).
Connect the left end of the Guide rails to the Glass
profile using the Round head screws ST4.2×30 (09).
See fig. 6 for details.
NOTICE:
Make sure that the Seal strip flange on the Glass profile,
pointing inside the Shower.
Fig. 6
AB
2
1
Rev 1.1 6
6. Slide the glass unit into the channel of
the Guide rails (03) from the right
side.
See Fig. 7 and Fig. 8 for details.
Fig. 7
Fig. 8
4
3
2
1
Rev 1.1 7
7. Secure the Hinges (13) inside the Guide rails (03)
using the Round head screws ST4.2×12 (08).
See Fig. 9 for details.
Fig. 9
8. Attach another Glass profile (02) at the right side of
the glass unit and fasten it to the Guide rails (03)
with the Round head screws ST4.2×30 (09).
See Fig. 10 and Fig. 11 for details.
NOTICE:
Make sure that the Seal strip flange on the Glass
profile is pointing inside the Shower.
Fig. 10
2
1
2
1
Rev 1.1 8
Fig. 11
9. Secure the Roller stoppers (16) inside the top and
the bottom Guide rails (03) with the Round head
screw ST4.2×12 (08).
See Fig. 12 for details.
Fig. 12
2
1
Rev 1.1 9
10. Install the Shower base according to the
Shower base installation manual
See Fig. 13 for details.
Fig. 13
11. Locate the Wall profiles (01) in the package.
See fig. 14 for details.
Fig. 14
Rev 1.1 10
