Dormakaba RTS Series User manual

RTS Series Package 26 (8812/Y)

Offset slide arm aluminum door and frame - pivots

Installation instructions

08279241 – 02-2020

| EN |

2RTS88 Closers 02-2020

08279241

dormakaba RTS88 Package 26 (8812/Y) Installation Instructions Table of Contents

Table of contents

1 Installation instructions 3

1.1 Prepare frame and install closer 3

1.2 Prepare top of door 4

2 Adjustments 5

2.1 Adjust closing speeds 5

2.2 Optional 8511 applied stop (or stop by others) 5

dormakaba RTS88 Package 26 (8812/Y) Installation Instructions

08279241 02-2020RTS88 Closers 3

Frame

Closer

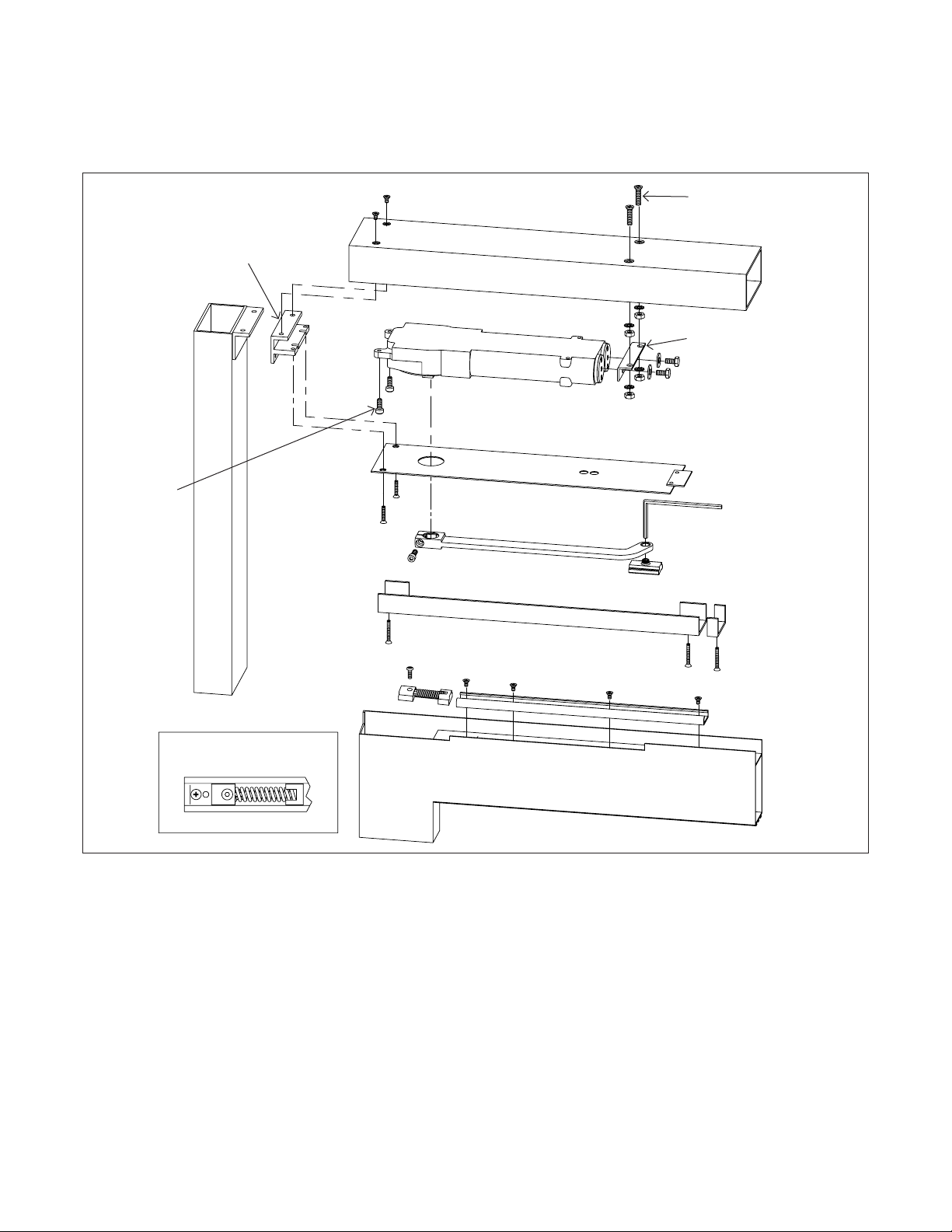

. Prepare frame and install closer

1 Installation instructions

Fig.

1.1.1 Prepare header and side jamb according to

template.

1.1.2 Fasten mounting bracket to header with two

10-32 flat head machine screws.

1.1.3 Fasten two 1/4-20 flat head machine screws to

header with lock washers and nuts.

1.1.4 Fasten angle bracket to closer with two hex

head machine screws and flat washers.

1.1.5 Install 2 fillister head machine screws into

mounting tabs on closer; make approximately 3

turns.

1.1.6 Install closer into header by inserting

mounting tabs into mounting bracket.

1.1.7 Raise end of closer with angle bracket onto

the two 1/4-20 screws.

1.1.8 Fasten angle bracket with the two remaining

1/4-20 nuts and lock washers.

1.1.9 Tighten the 2 fillister head machine screws

securely.

1.1.10 Install cover plate by sliding tab into frame.

1.1.11 Fasten opposite end to mounting bracket with

two No. 8-32 flat head machine screws

provided.

105

Header

Side

jamb

Mounting

bracket

1/4-20 flat

head machine

screws

Angle bracket

Fillister head

machine

screws

Closer

Cover plate

dormakaba RTS88 Package 26 (8812/Y) Installation Instructions

08279241 02-2020RTS88 Closers

Top of door

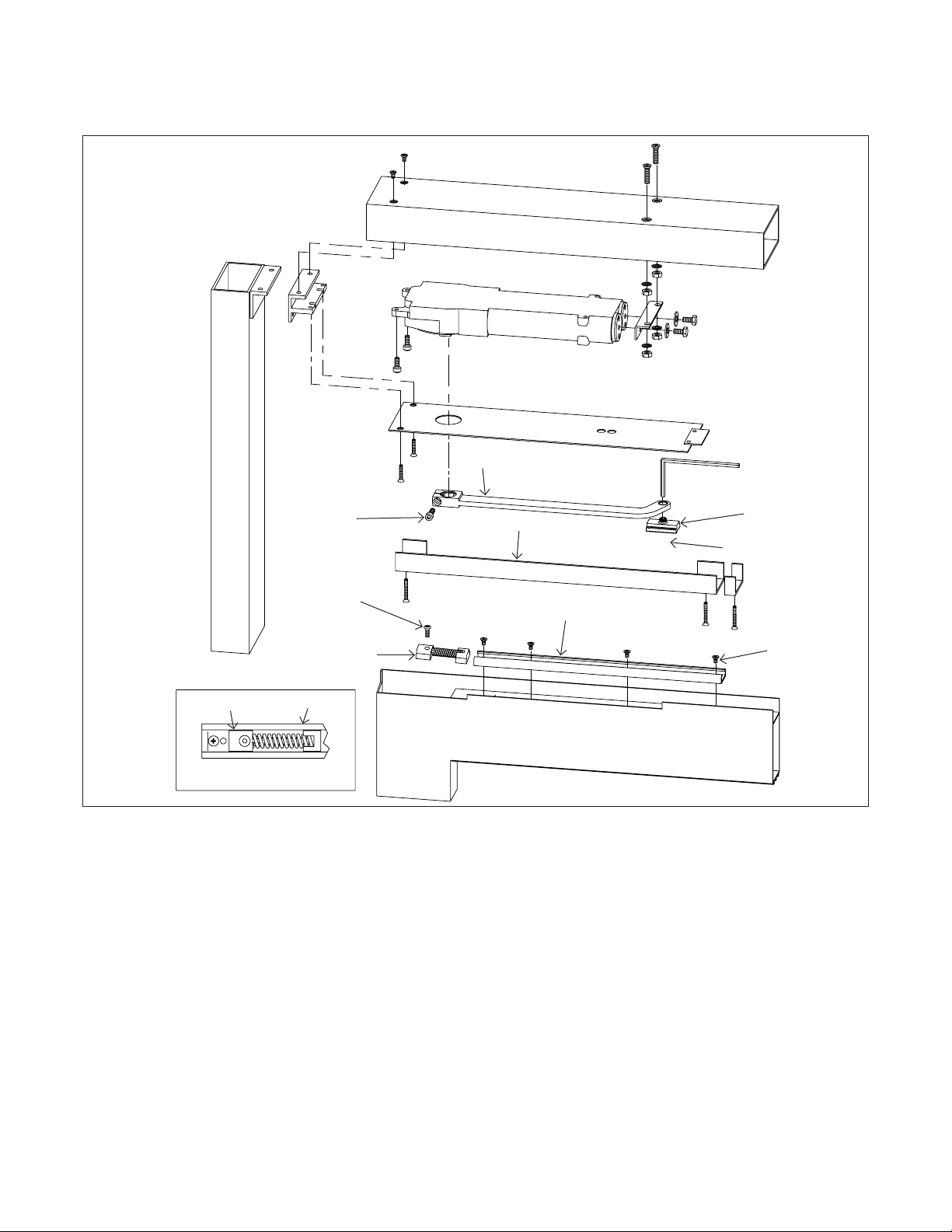

. Prepare top of door

Fig.

1.2.1 Prepare top of door according to template.

1.2.2 Assemble shock spring.

1.2.3 Slide assembled shock spring into track so end

with screw faces the 90° and 105° markings on

the track.

1.2.4 Align edge of shock spring assembly to coincide

with 90° or 105° deadstop in closer.

1.2.5 Secure shock spring assembly to track with

button head machine screw and 1/8” hex

wrench.

1.2.6 Insert slide block pin through slide block before

inserting slide block into track.

1.2.7 Fasten track to door with four No. 10-32 flat

head machine screws.

1.2.8 Slide arm onto spindle as shown, and tighten

the 1/4-20 socket head cap screw securely.

1.2.9 Position door at approximately 45° of opening.

1.2.10 Preload arm to a position where the hole in

arm aligns with slide block pin.

1.2.11 Thread slide block pin into arm wiht 3/16” hex

wrench.

1.2.12 TIGHTEN SECURELY!

105

Header

Side

jamb

Button

head

machine

screw

Shock spring

Closer

Cover plate

Track

Slide block pin

(not shown)

Slide block

No. 10-32 flat

head machine

screws

Arm

1/4-20

socket head

cap screw

Shock spring

Track

Applied stop

90° shock spring

setting shown

dormakaba RTS88 Package 26 (8812/Y) Installation Instructions

08279241 02-2020RTS88 Closers 5

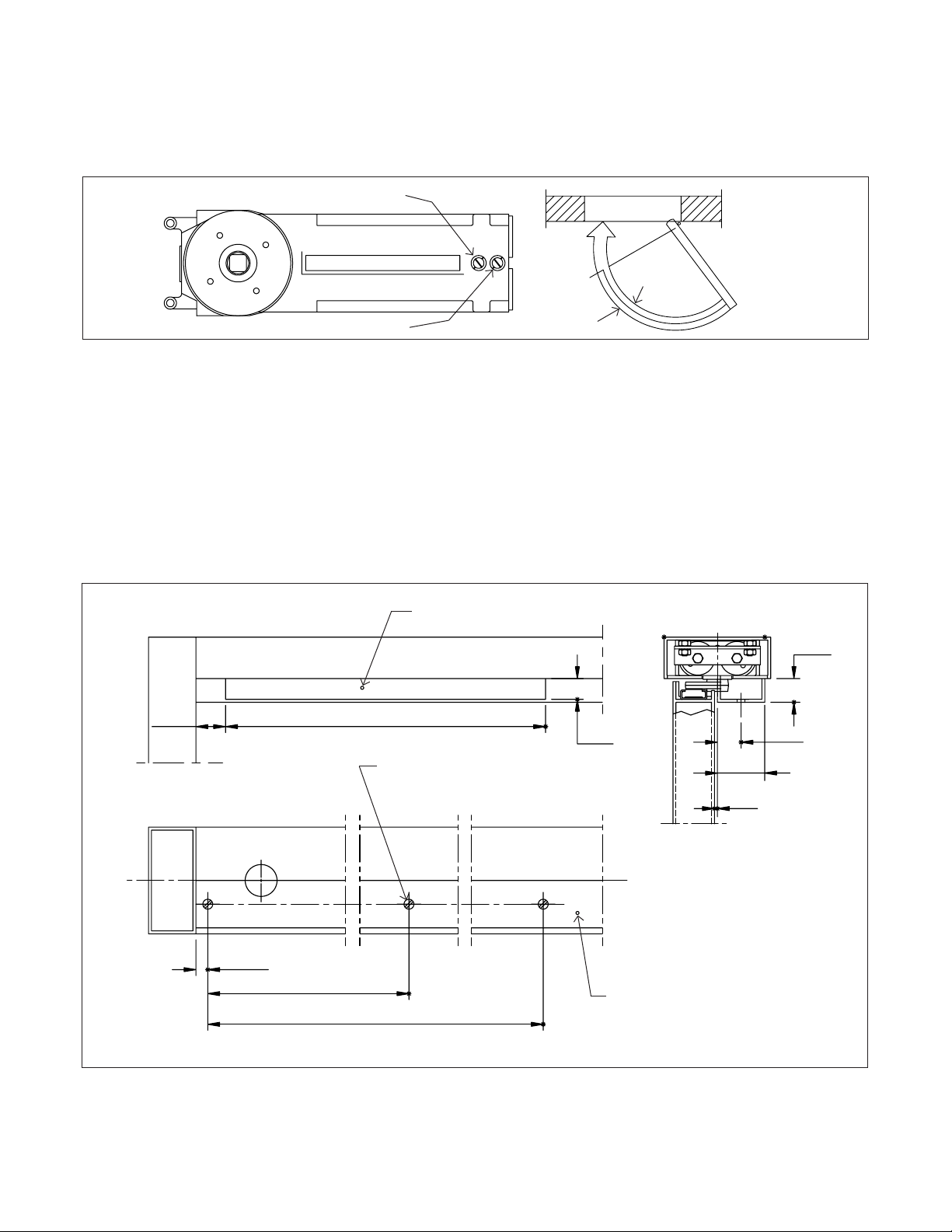

Adjustments - closing speeds

8511 applied stop

2 Adjustments

2.1.1 Valve “A” - controls closing speed from

maximum opening angle to 0°.

• Clockwise - decreases closing speed

• Counter-clockwise - increases closing speed

2.1.2 Valve “B” - increased closing speed from

maximum openig angle to 20°.

Counter-clockwise - increases closing speed.

Valve “B”

“A”

“B”

Valve “A”

. Adjust closing speeds

Fig.

. Optional  applied stop (or stop by others)

Fig.

2.1.1 Prepare header according to template above. 2.1.2 Install applied stop as shown in Fig 2. with

three No.10-32 flat head machine screws.

1”

[25]

1”

[25]

1/8”

[3]

2”

[51]

Clearance

Front view

Bottom view

Cutout in stop

For 10-32 machine screws use No.21

drill and tap

One hole in cover plate

Two holes in frame

8511 applied stop

1-1/4”

[32] 7/8”

[22]

14-1/4”

[362]

1/2”

[13] 17-1/2”

[445]

35”

[889]

Side view
