dormakaba ED900 Setup and Troubleshooting Instructions Chapter 1

.. Installation Instructions.

This manual provides setup and troubleshooting

instructions for ED low energy swing door

operators used in single, double, double egress and

companion door installations.

.. ED fine cover installation.

NOTICE

Installation on an interior building surface.

The ED with fine cover must be installed

on an interior building surface.

.. Manual storage.

This document must be kept in a secure place, and

accessible for reference as required.

If the door system should be transferred to another

facility, insure that this document is transferred as well.

.. dormakaba.us website.

Manuals are available for review, download, and printing

on the dormakaba.us website.

.. Dimensions

Unless otherwise specified, all dimensions are given in

both inches (“) and [mm].

 General information

. General information

.. Symbols used in these instructions.

WARNING

This symbol warns of hazards which could result

in personal injury or threat to health.

CAUTION

This symbol warns of a potentially unsafe

procedure or situation.

NOTICE

Draws attention to important information

presented in this document.

TIPS AND RECOMMENDATIONS

Clarifies instructions or other information

presented in this document.

4ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapter 2

. Safety instructions.

This document contains important instructions for

setup and troubleshooting instructions for ED fine

cover swing door operators.

Review these instructions thoroughly prior to setup, and

follow them carefully during installation, setup,

troubleshooting and maintenance.

. Door signage requirements.

Proper signs and labels shall be applied and maintained on

the door controlled by an ED fine cover swing door

operator.

• Reference ED Installation Instructions.

. Safety warnings.

WARNING

An incorrect installation may result in damage to

equipment or incorrect equipment operation.

WARNING

Hazard to mechanical processes by use of

control settings, elements, or procedures not

documented in this manual!

WARNING

Electric shock hazard!

By use of control elements, settings, or

procedures not documented in this manual!

WARNING

Work on electrical equipment and  Vac

wiring installation must be only be performed

by qualified personnel!

WARNING

Metallic doors must be grounded per national

and local codes!

 Safety information

WARNING

Hand pinch point and crushing hazards at door

closing edges!

WARNING

Crushing hazards at door closing edges!

. Residual hazards.

WARNING

After installation, hazards such as minor

crushing, impact with limited force, and risk to

unsupervised children may exist depending on

structural design of door area, type of door,

and any safeguards that have been

implemented.

WARNING

Hand pinch point and crushing hazards at arm

and track!

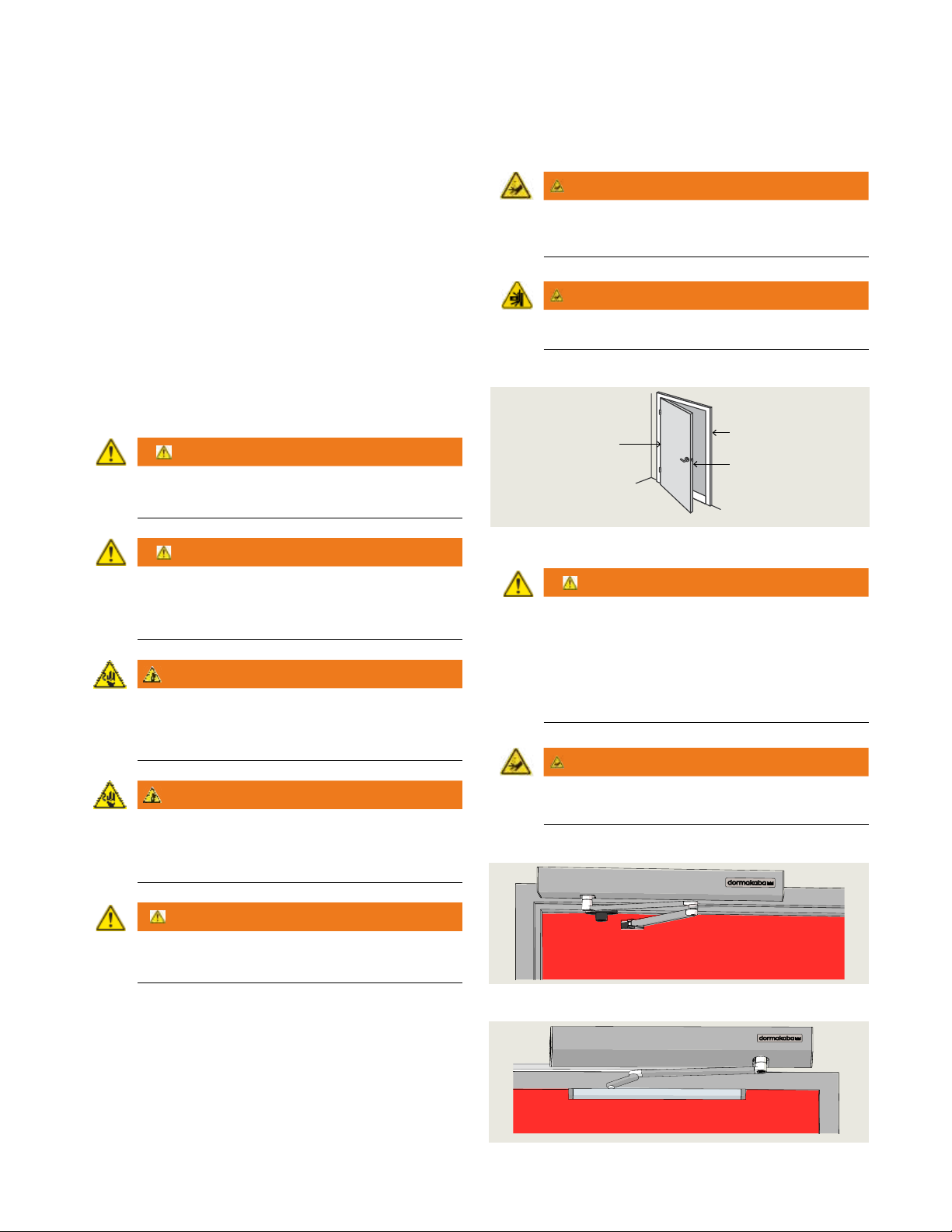

Fig. 2.1 Door closing edges

Fig. 2.3 Pull arm

Fig. 2.2 Push arm

Opposing

closing edge

Main

closing edge

Secondary

closing edge

ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapter 3

 Technical data

Maximum wire size

Connector plug

screw size

 AWG

/”

Door

status

X

,,

Sr parameter

Door closed

Door open

Door closed, locked

Com, N.O., N.C.

contacts

.. Integrated functions.

Hold open time

Automatic opening dd parameter  to  s

Optional  -  s.

Hold open time

NIght / bank dn parameter  to  s

Hold open time

Manual opening do parameter  to  s

Door blocking

behavior hd parameter Automatic, manual

door modes

Electric strike

delayed opening for

locking mechanism

Ud parameter  to  s

Locking

device

feedback

X

,  Para. . Motor lock

Wind load control,

maximum Fo, Fc parameters . lb f

 N

Voltage independent

braking circuit Para. . Adjustable with

potentiometer

LED status indicators

Green, Red, Yellow

Chapter 

 Vdc power

Error codes

Service interval

Mode and Exit Only

switches

Auto, Close, Open

Exit only; Off, On

User interface  button keypad,

 digit display

Slot for upgrade

cards Not used. Extension of

functional range.

Firmware update Firmware update

TMP, temperature

management program

Overload

protection

IDC, initial drive control Driving phase optimization

Cycle counter CC parameter  to ,,

Power assist function hA, hF, hS

parameters

Drive support for

manual opening of

door

Push & go function PG parameter Auto opening of

door at ° open

. ED technical data

.. Required operating conditions.

Ambient temperature  to  °F [- to  C]

Suitable for dry

rooms only

Relative air humidity:

% maximum, non-condensing

Power supply  Vac ±%, / Hz

. A maximum

Branch circuit

protection (provided

by others)

 A maximum,

dedicated branch circuit

Protection class NEMA  [IP]

Power wiring:

black, white, bare

copper (ground)

 AWG

maximum

Operating noise Maximum  db(A)

.. General specifications.

Operator dimensions

(W x H x D)

" x  / x  /" [ x  x  mm]

" cover standard

Operator weight . lb [. kg]

ED power supply

for accessories External power supply must be supplied.

Maximum door

opening angle  to ° depending on installation type

.. Inputs

Wire size

Connector plug

screw size

 AWG

/”

Activation

inputs X* Interior, exterior N. O. contact

Safety

sensors X Swing, approach sides.

Night-bank

(intercom

system)

X

,

a

- Vdc/Vac +%

Night-bank

(key switch)

X

,  d parameter Configure for N.O.

or N.C. contact

Deactivation

of drive

function

X

, a d parameter Configure for N.O.

or N.C. contact

.. Outputs

*X:terminal board numbers, reference Chapter ,

System accessories.

6ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapters 3 and 4

. Operating specifications; ED operators

Maximum power

consumption  watts

Opening force

lbf - N

Fo parameter

Minimum

. []

Maximum

. []

Manual closing force

lbf - N

Fc parameter

Minimum

. []

Maximum

. []

Maximum door

weight, lb [kg]  [ kg) Depending on door

width and application.

Door width Minimum

"

Maximum

"

.. ED

Maximum opening

speed, °/s  May be limited by

door weight after

learning cycle.

Maximum closing

speed, °/s 

Axle extensions

/" [ mm]

 /" [ mm]

 /" [ mm]

Reveal depth for pull

arm with CPD lever  to  /" [ to . mm]

Reveal depth for

standard J push

arm

 to " [ to  mm]

 Operational mode overview

. ED manual and automatic

modes

.. Automatic mode.

Manual mode/automatic mode parameter hd=.

Designed if door is preferably opened automatically

following pulse generation by a knowing act device.

.. Manual mode.

Manual mode/automatic mode parameter hd=.

Designed if door is opened manually most of the time

and only rarely automatically.

.. Power assist.

• Available only in manual mode (hd=), manual

opening. Drive support is automatically adjusted to

operator size.

• Parameter hA sets door activation angle for power

assist function. Once angle reached, drive support

provides easier manual opening of the door.

• Parameter hF, power assist function. Parameter

decreases the amount of force required to open the

door.

• Parameter hS, power assist function support for

door in closed position.

TIPS AND RECOMMENDATIONS

Parameter descriptions can be found in

Appendix A, Parameters.

. Low energy product

.. ANSI/BHMA ..

ED operators are configured to meet requirements

of a low energy application per ANSI/BHMA A.,

Standard for Power Assist and Low Energy Power

Operated Swinging Doors.

.. Low energy power operated door.

A door with a power mechanism that opens the door

upon receipt of a knowing act activating signal, does

not generate more kinetic energy than specified in

ANSI 156.19, and is closed by a power mechanism or by

other means.

Required system safety, as a low energy application, is

achieved utilizing the following design factors:

• Reduced dynamic door panel contact forces

• Reduced static door panel contact forces

• Low driving speeds

• Force limitation

.. Knowing act definition.

Any conscious action with the expected result of

opening a door. This includes but is not limited to:

• Wall or jamb mounted contact or non contact

switches such as pushplates.

• The action of of manually opening (pushing or

pulling) a door.

• Controlled access devices such as keypads, card

readers, wireless transmitters and key switches.

ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapter 5

 User interface

. Overview

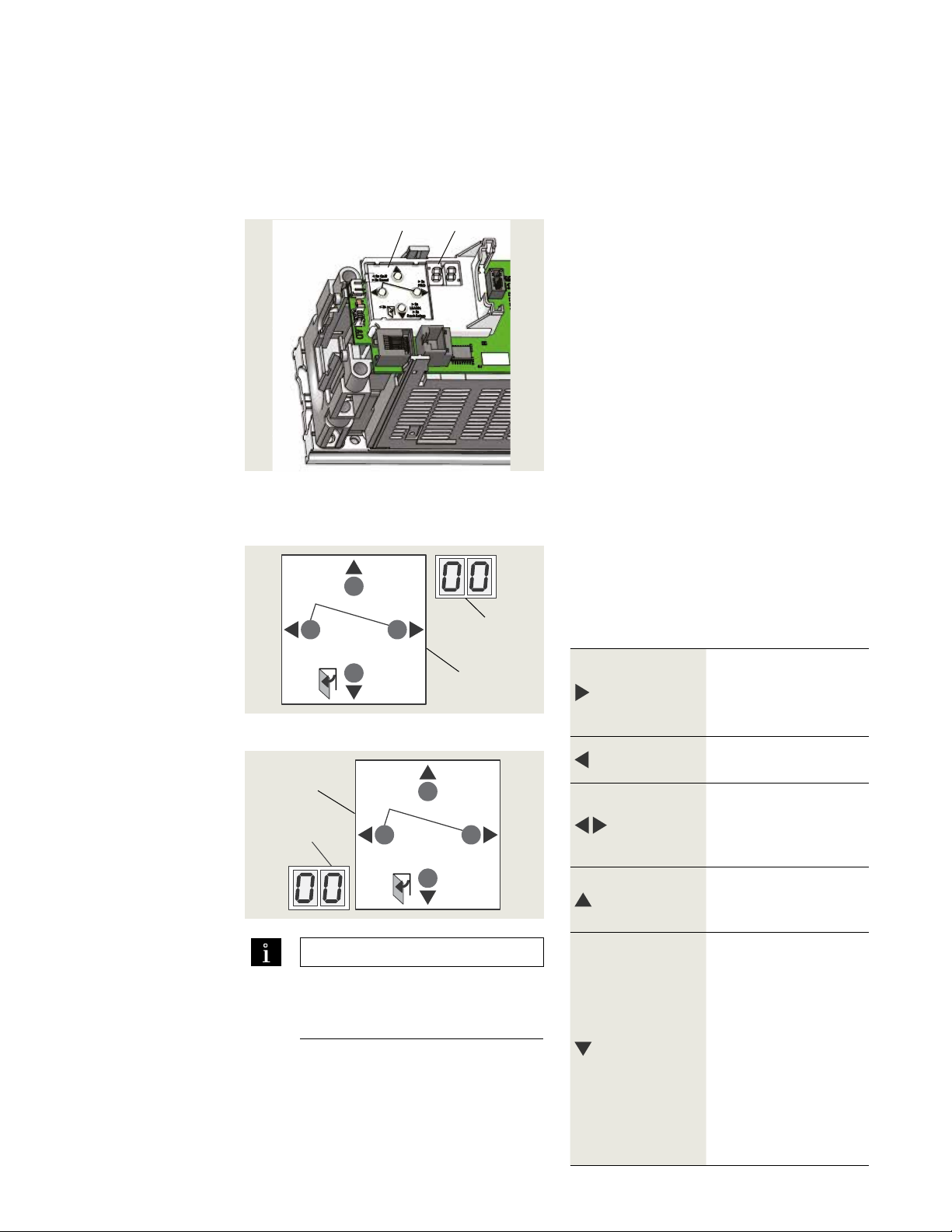

Fig. 5.1.1 Operator keypad and display

12 digit display

24 button keypad

.. Operator user interfaces.

.  button keypad and  digit display.

•  button keypad; to select, input and

adjust door parameter values.

•  digit display; parameter values, error

and information codes.

Fig. 5.2.1 Door hinge side on right

22 digit display

5Button legend

Fig. 5.2.2 Door hinge side on left

.  button keypad and display

Right button

. Access parameter menu,

press button >  seconds.

. Edit selected parameter.

. Save changed value.

Left button . Reset, > s

. Quit process, <  s.

Both buttons

together

. Acknowledge errors,

press both buttons <  s.

. Reset, press both

buttons >  s.

Up button

. Scroll through parameters

and error messages.

. Increase parameter value.

Down button

. Scroll through parameters

and error messages.

. Reduce parameter value.

. Opening pulse, press

button <  s.

. Learning cycle, press

button >  s.

. Reset with factory setting,

press button >  s (program

switches off).

. Identify operator

orientation for display

22 digit display

6Button legend

rotated 180°

..  button keypad.

 button legend is orientated so buttons

have same function and position regardless

of operator orientation. Button legend can

be removed and rotated.

..  button keypad functions.

TIPS AND RECOMMENDATIONS

Symbols

• "<", Less than

• ">", Greater than

> 3s Reset

< 3s Quit

> 3s

PRG

< 3s LEARN

Fact-Setup

> 3s

> 8s

> 3s Reset

< 3s Quit

LEARN

< 3s

> 3s

Fact-Setup

PRG

> 3s

> 8s

8ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapter 5

. Mode switch and Exit Only switch panels

.. Mode switch position descriptions.

Auto

. Door opens automatically when one of the

activators is actuated or triggered.

Door closes on expiration of adjustable hold open

time with no activators or actuators triggered.

. With knowing act device actuation (Para. ..).

Door will remain at full open position for not less

than  seconds.

. With push/pull actuation of door (Para. .).

Door will remain at full open position for not less than

 seconds.

. Door will remain closed, or if door is open door will

close.

Open

. Door opens automatically and remains open.

.. Exit Only switch position descriptions.

. Exterior activation sensor or knowing act device

disabled when door fully closed.

• Only interior activation sensor or knowing act device

will enable door opening.

Off

. Both interior and exterior activation sensors or

knowing act devices will enable door opening.

.. Exit Only switch

positions.

Auto

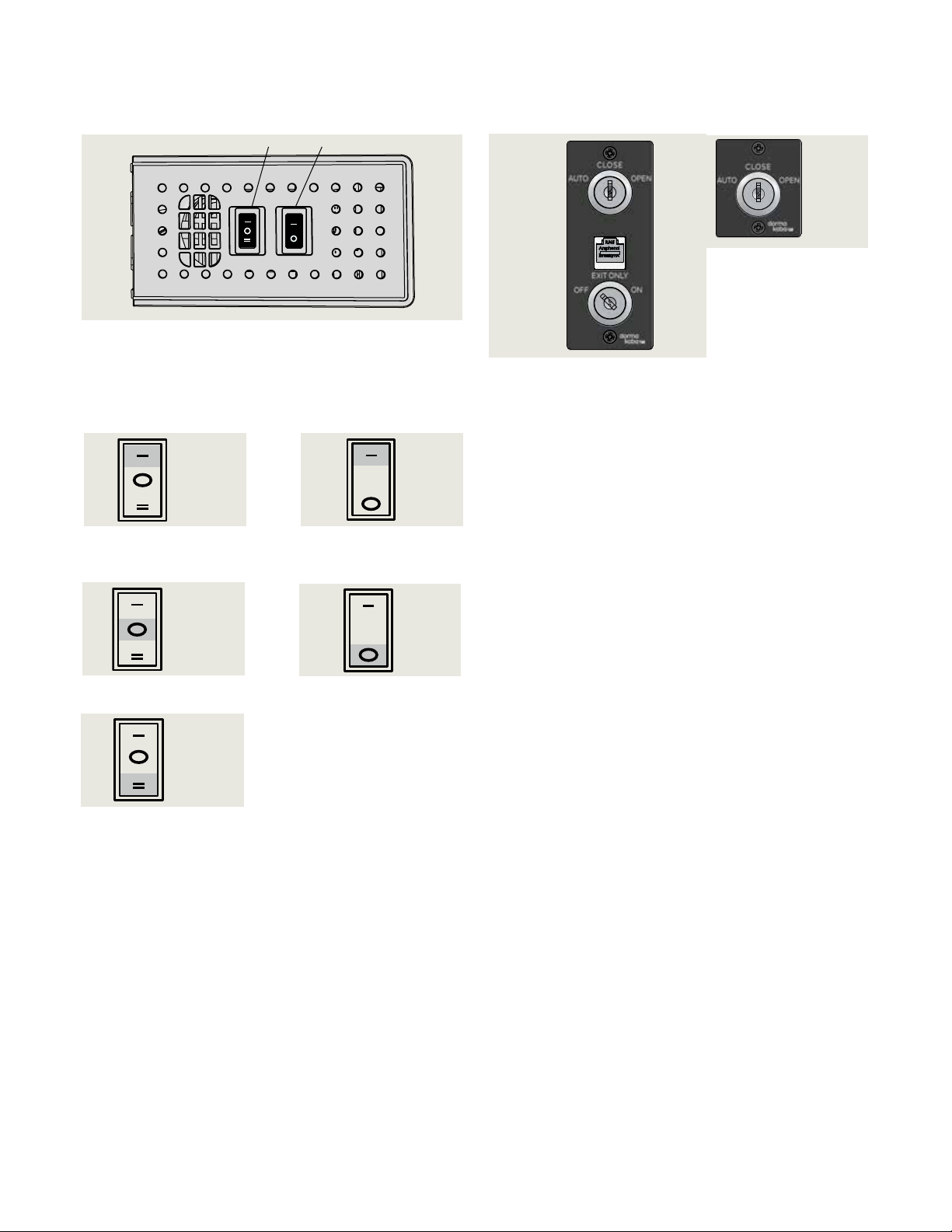

Fig. 5.3.3 Auto

.. Mode switch

positions.

Fig. 5.3.4 Close

Fig. 5.3.5 Open

Fig. 5.3.6 On

Off

Fig. 5.3.7 Off

Fig. 5.3.1 Fine cover

2Exit Only switch,

2 position

1Mode switch,

3 position

1 2

Open

Fig. 5.3.8 Optional key switch panels

ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapter 5

. Operator status LEDs

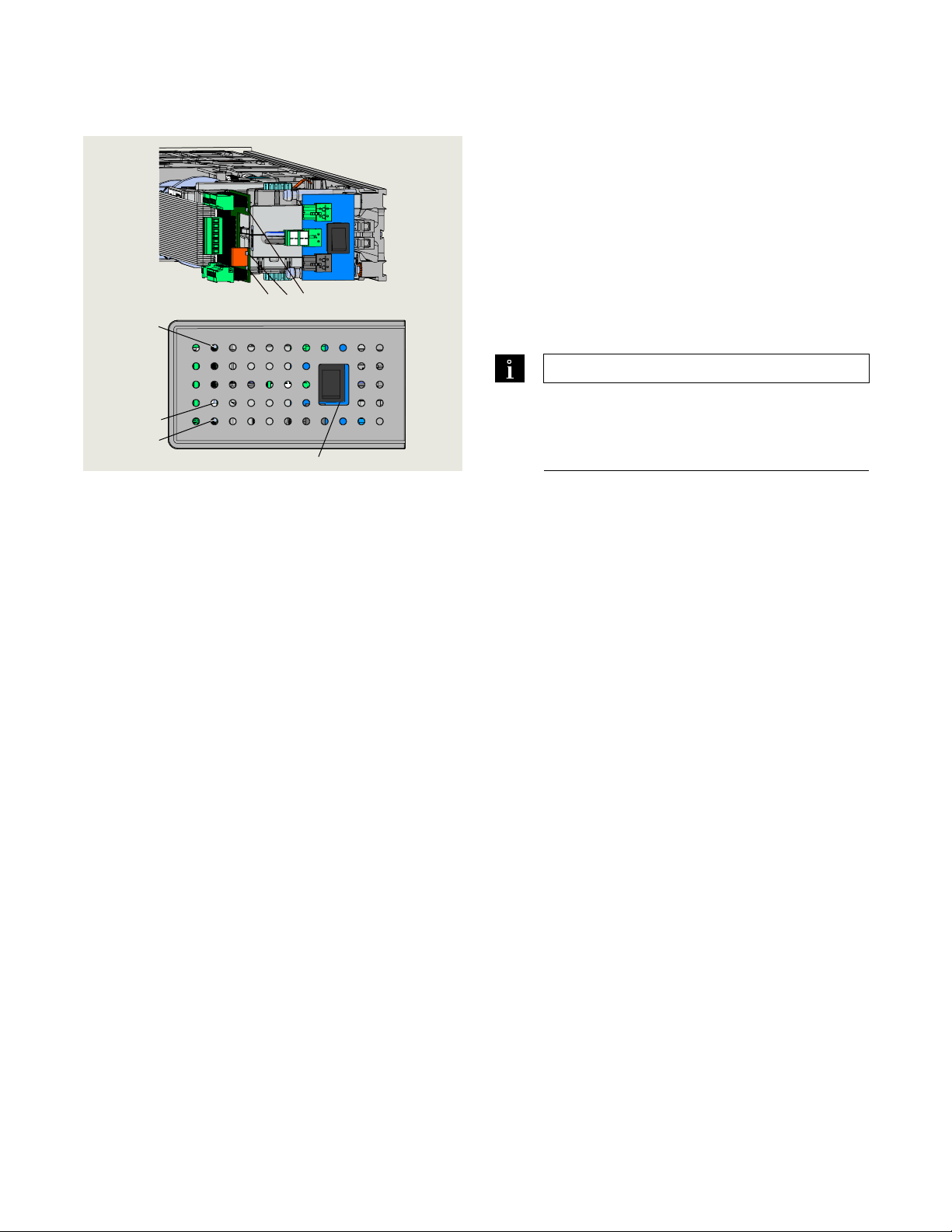

Fig. 5.4.1 Operator status LEDs .. Operator status LEDs.

. Red LED

Blinking codes are used to indicate "ln__" information

(system status or operating conditions) or certain

error codes "E__".

. Yellow LED

Maintenance interval indicator. When illuminated, an

indication the operator system has to be serviced.

. Green LED

• On, internal  Vdc power is On.

• Off, internal  Vdc power is Off.

TIPS AND RECOMMENDATIONS

Information on LED status codes and

maintenance intervals can be found in

Appendix B, Troubleshooting.

1Red LED

2Yellow LED

3Green LED

4Power switch

1 2 3

10 ED900 09-2021DL4617-001

dormakaba ED900 Setup and Troubleshooting Instructions Chapter 6

 System accessories

. System accessory electrical connections

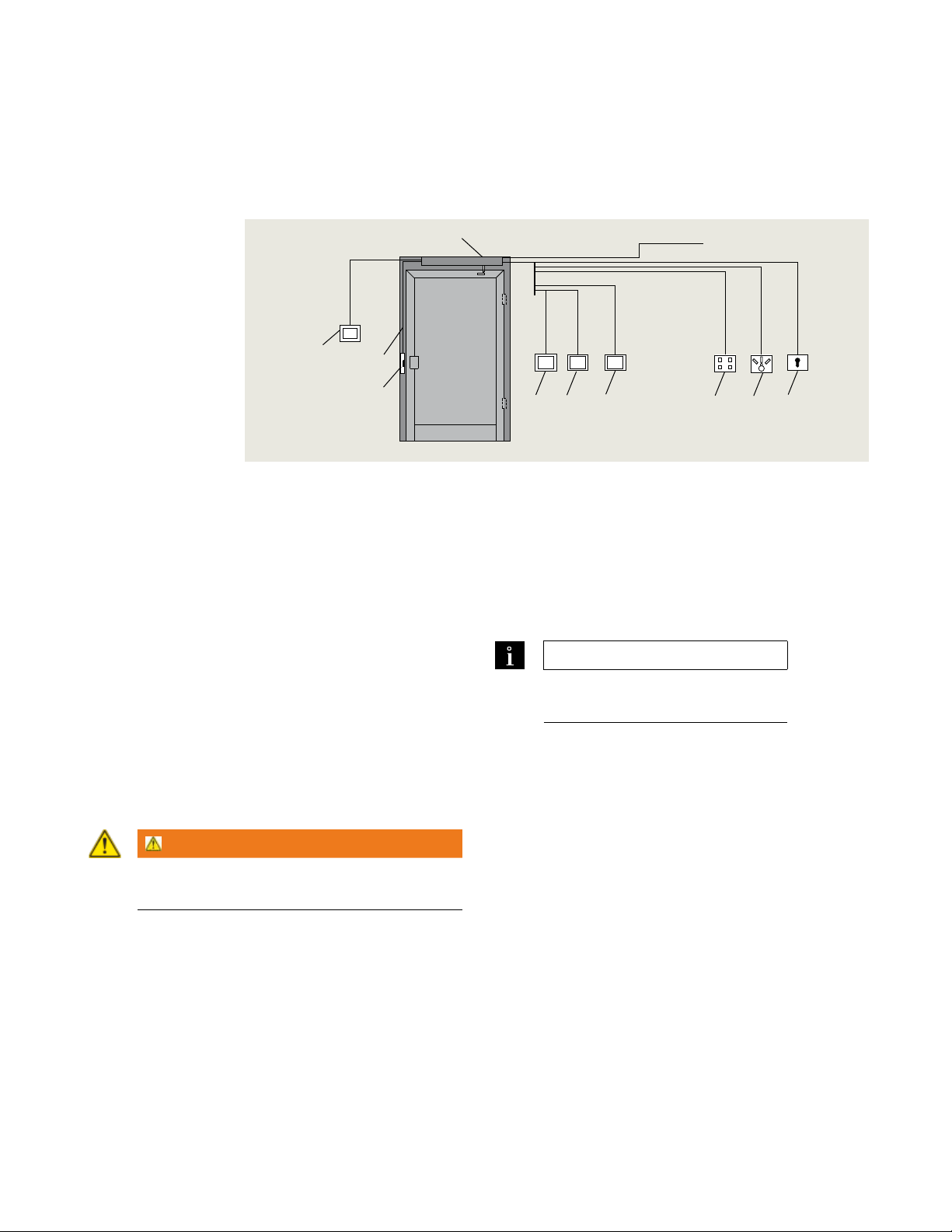

Fig. 6.1.1 Electrical connections, single door

.. Overview

ED operators are normally used with system

accessories available from dormakaba USA, Inc. or other

manufacturers.

.. Accessory electrical installation.

Electrical interfaces from system accessories used with

operator must be planned for. This includes routing of

wiring from accessories to operator.

.. System accessories, other

manufacturers.

dormakaba USA cannot guarantee compatibility for

other manufacturer's accessories. If any of these

accessories are used despite this caution, the operator's

full range of functions may be unavailable, or the

accessories may not function properly.

WARNING

Damage to operator or to connected device is

also possible!

.. Power for accessories.

An external power supply must be used for accessories.

. System accessories

1External Mode

switch, mechanical

2External Mode

switch, electronic

3Key switch

4Pushbutton, night /

bank

5Pushbutton, interior

6Pushbutton, exterior

7Door locking device

8Manual release

switch

9ED900

.. Activators

Typical activators:

. Pushbuttons, key switches

. Access control systems

. Telephone systems

. Intercoms

TIPS AND RECOMMENDATIONS

Refer to Chapter 3, Technical data

for electrical interface requirements.

.. Locking devices.

Typical locking devices:

. Electric strike plates

. Electromagnetic locks

. Electric locks

To insure that operator and locking device work safely

when connected together, locking device mus comply

with following:

. Operating voltage, power supply from operator, 

Vdc, ± %.

. Operating voltage, external power supply,  Vdc/

Vac maximum.

. Locking device relay contact, maximum load,  A.

. Electric strike plate duty factor, % minimum.

. Motor lock duty factor, %.

8 x 18 AWG

8 x 0.8 mm2

2 x 18 AWG

2 x 0.8 mm2

2 x 18 AWG

2 x 0.8 mm2

2 x 18 AWG

2 x 0.8 mm2

4 x 18 AWG

4 x 0.8 mm2

2 x 18 AWG

2 x 0.8 mm2

2 x 18 AWG

2 x 0.8 mm2

2 x 18 AWG

2 x 0.8 mm2

3 x 12 AWG

3 x 4.0 mm2115 VAC power

4563

Other manuals for ED900

Table of contents

Other Dormakaba Door Opening System manuals

Dormakaba

Dormakaba Muto Premium XL120 User manual

Dormakaba

Dormakaba TS 92 G BASIC EN 1-4 User manual

Dormakaba

Dormakaba ED50LE User manual

Dormakaba

Dormakaba ED50 User manual

Dormakaba

Dormakaba ED100 User manual

Dormakaba

Dormakaba ED100 Installation and operation manual

Dormakaba

Dormakaba ITS9613 User manual

Dormakaba

Dormakaba CS 80 MAGNEO User manual

Dormakaba

Dormakaba Best SL6000 SIS User manual

Dormakaba

Dormakaba ALVARADO WATCHMAN User manual

Dormakaba

Dormakaba TS93 Series User manual

Dormakaba

Dormakaba TS 98 XEA User manual

Dormakaba

Dormakaba ED250 User manual

Dormakaba

Dormakaba TS 93 G EN 2-5 User manual

Dormakaba

Dormakaba ED2227 User manual

Dormakaba

Dormakaba ED900 User manual

Dormakaba

Dormakaba PT 22 User manual

Dormakaba

Dormakaba UNIVERSAL PT 60 User manual

Dormakaba

Dormakaba C800 User manual

Dormakaba

Dormakaba GSR-EMR XEA BG User manual

Dormakaba

Dormakaba 8956 T PKT90 User manual

Dormakaba

Dormakaba GSR-EMR XEA BG User manual

Dormakaba

Dormakaba G-EMF Series User manual

Dormakaba

Dormakaba ED250 User manual

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

Assa Abloy

Assa Abloy SARGENT 1431 Series instructions

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual
