GENERAL DESCRIPTION

Each 8600 EMR series unit contains a door closer, hold

open electromagnet and smoke detector. The unit can be

used as a single installation or as a series of singles

powered from one or more power supplies. When a

series of 8600 EMR units are wired together in a run,

groups of up to 5 units may be interconnected.

Interconnection is accomplished through terminals #4

and #15 and results in all units alarming when any one

of them senses smoke. In turn, all associated hold

open electromagnets are de-energized. Within any run of

detectored units, it is permissible to form as many

interconnected groups as the total power supply

amperage will allow; but, again no more than 5 units

can be interconnected together.

Any detectored 8600 EMR series unit can be connected

to an auxiliary EMF non-detectored unit, or remote

detector, or both. It can be a single installation or part

of any of the multiple arrangements described above.

An auxiliary unit (double door applications) is a

companion to the main unit, and its electromagnet

de-energizes along with the main unit. A remote open

area detector sensing smoke alarms the 8600 EMR to

which it is connected and any other 8600 EMR to which

it is interconnected.

Single installations or groups of installations can be

connected to the alarm initiation circuit of a compatible

UL/ULC listed fire alarm control unit in 4-wire or 6-wire

configurations.

Additional functions are provided to separately power

the hold open electromagnet directly from the alarm control

panel as well as connections for a remote alarm

indicator lamp.

INSTALLATION

1. Read entire instruction sheet prior to installation

and refer to NFPA 72E. Standards may be obtained

from THE NATIONAL FIRE PROTECTION

ASSOCIATION, Batterymarch Park, Quincy,

MA 02269.

2. Reference unit carton for unit mounting type.

3. Prepare door and frame for fasteners using the

appropriate template. Mark, drill, and tap holes as

indicated. If surface wiring is used, omit 7/8" hole

for wire access.

8600 EMR SERIES

INSPK NO. 08280580 Rev.06/11

INS NO.

Rev.

08281010

08/13

PAGE

1 of 14

www.dorma-usa.com 1-800-523-8483

and attach with (4) screws.

the installation type.

Remove (1) wire access plug according to

T & DE (RH)

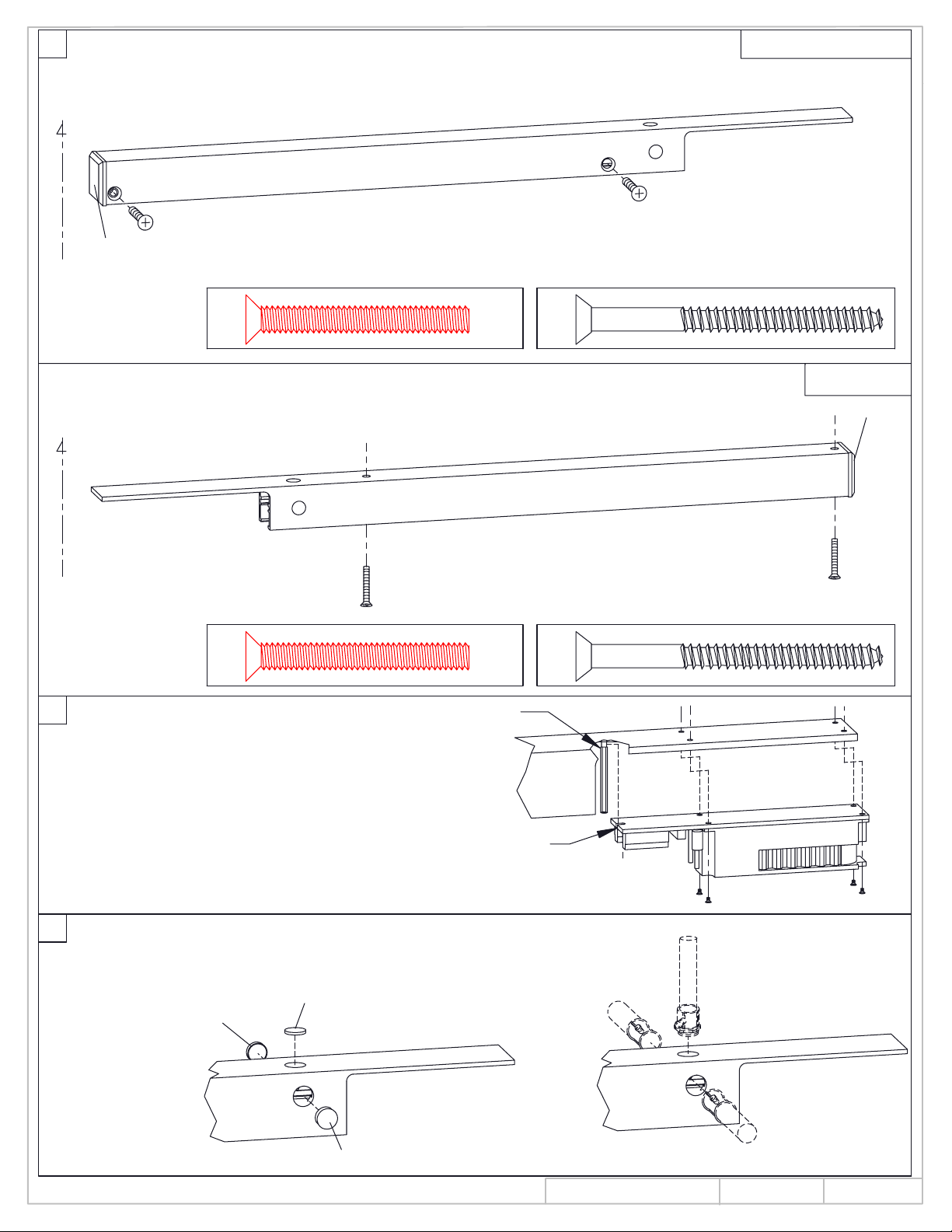

Slide detector slot under standoff

Install detector.

T & DE (LH)

NOTE: NO TOP PLUG

ON PT MOUNTS

SLOT

STANDOFF

(2) 1/4-20 x 2" metal or (2) No. 14 x 2-3/4" wood screws.

Install with detector cutout toward hinge edge of door using

Install track to frame.

Install with detector cut out toward latch edge of door using

(2) 1/4-20 x 2" metal or (2) No. 14 x 2-3/4" wood screws.

C HINGE

END CAP

C HINGE

(SURFACE CONDUIT)

END CAP

8600PT

8600T and 86160DE

NOTE:

Three access wire

holes on optional

surface wired units only.

NOTE:

If construction is still being completed near detector installation "DO NOT"

install detector at this time or protect the detector from construction dust

contaminants.

QTY

(2) (2)

QTY

(2) (2)

QTY

INS NO.

PAGE

Rev.

08281010

2 of 14

08/13

(LEFT HAND DOOR)

8600PT

(RIGHT HAND DOOR)

(LEFT HAND DOOR)

8600T AND 8600DE

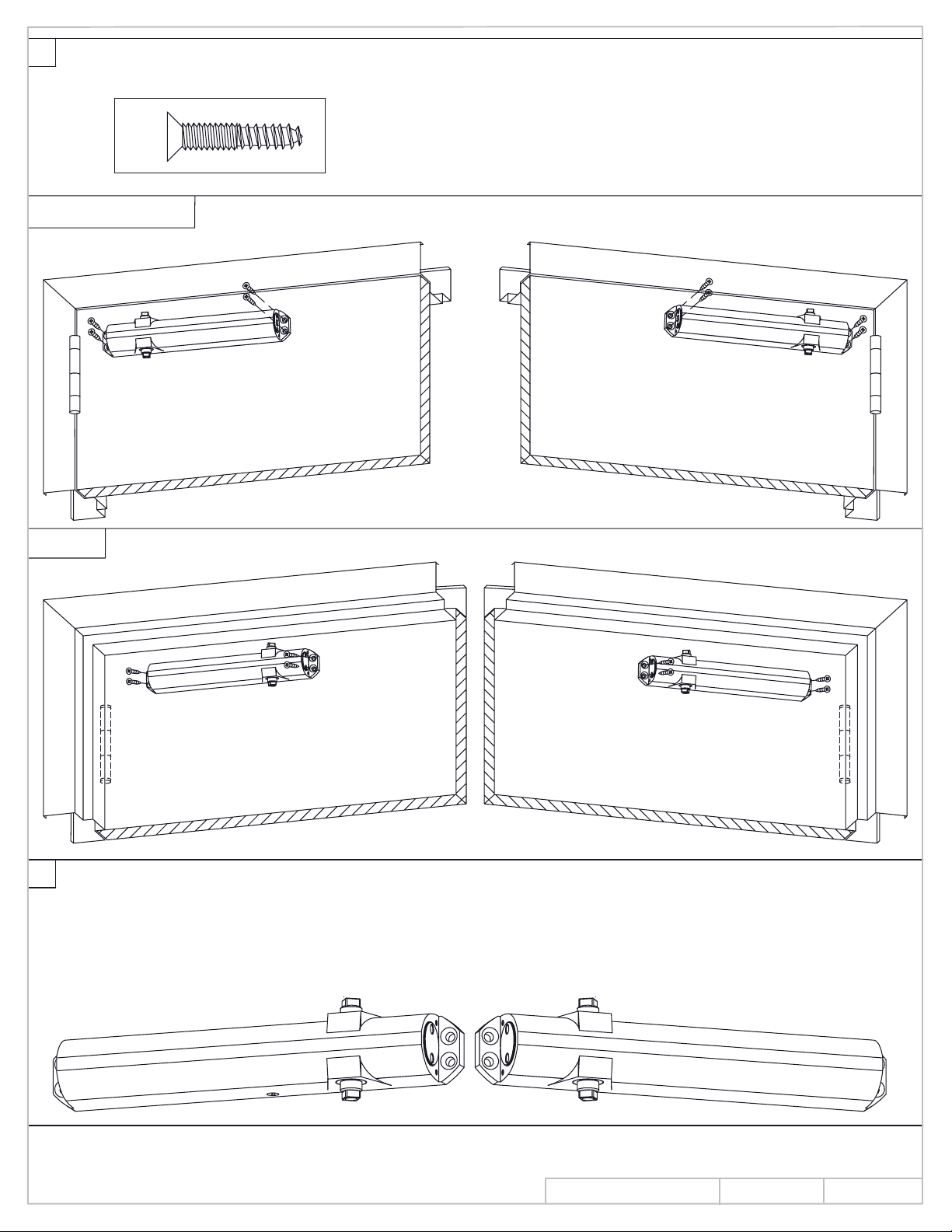

Install closer to door.

QTY

(4)

INS NO.

PAGE

Rev.

08281010

3 of 14

08/13

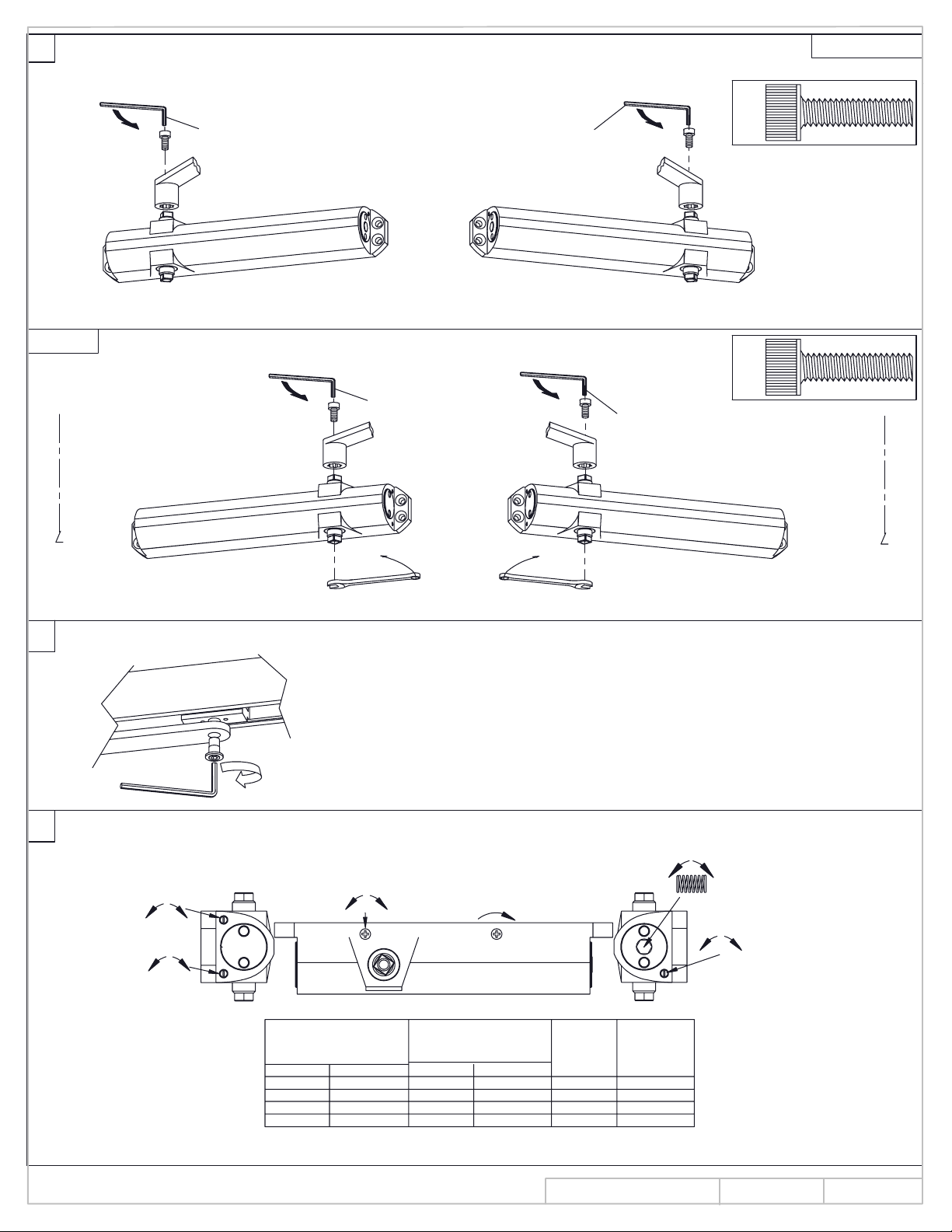

Place arm on top pinion as shown @ 45° angle. Secure with pinion screw and washer.

Attach arm to slide shoe. Use 3/16 inch hex head wrench.

Open door and secure with pinion screw and washer.

With door in closed position, rotate spindle 45° with wrench. Place arm on spindle.

(LEFT HAND DOOR)

C HINGE

8600PT

Attach main arm to door closer.

(RIGHT HAND DOOR)

HINGE C

8600T& 8600DE

3'-0" (914)

2'-6" (762)

Exterior

3'-6" (1067)

3'-0" (914)

2'-6" (762)

Interior

-11

100

125

150

3'-6" (1067) 4'-0" (1219)

+13

6200

3/16 HEX KEY 3/16 HEX KEY

(1)

QTY

(LEFT HAND DOOR)

(RIGHT HAND DOOR)

QTY

(1)

45°

PINION

ROTATE

3/16 HEX KEY

PINION

ROTATE

45°

3/16 HEX KEY

-7

86568616

Max.

Door Weight

ULC LABELED

UNITS ONLY

BACKCHECK POSITIONING

Spring Size

Door Width

Adjuster

Full Turns

DO NOT REMOVE VALVES

INS NO.

PAGE

Rev.

08281010

4 of 14

08/13

The following six pages contain wiring options. Wire the units according to building and system

DETECTOR CONNECTION LIST

FUNCTION

AC/DC 24V INPUT

ALARM CONTACTS (NORMALLY OPEN)

ELECTROMAGNET

REMOTE ALARM INDICATOR LAMP +

REMOTE ALARM INDICATOR LAMP -

INTERCONNECT +

INTERCONNECT -

TROUBLE CONTACTS (NORMALLY CLOSED)

24 VDC OUTPUT (UNFILTERED) +

IF JUMPER WIRE J11/J12 IS CUT,

TERMINALS 8, 9 AND 10 ARE

CHANGED TO FORM C RELAY

CONTACTS, RAIL OUTPUT IS

LOST, AND HOLD OPEN ELECTROMAGNETS

MUST BE POWERED FROM A SEPARATE

SOURCE. CONSULT FACTORY

IF REMOTE DETECTORS ARE USED

IN THIS APPLICATION.

TERMINAL

3, 14

1, 2

6, 9

5,13

N.O. 8

N.C. 9

COM 10

ELECTRICAL SPECIFICATIONS

Voltage input:

Maximum input current:

Maximum output to Remote

Contact ratings:

24 VDC +10% - 15%

24 VAC +10% - 15%

@24 VDC- 161 mA (1 electromagnet), 310 mA (2 electromagnets)

@24 VAC- 161 mA (1 electromagnet), 310 mA (2 electromagnets)

300 mA

Alarm and or accessory contacts-

1.25 A at 24 VDC or .3 A at 120 VAC

resistive, maximum.

resistive maximum .

Trouble contacts- 500 mA at 24VDC

requirements. Observe all applicable codes.

NOTE: Excludes accessories

NOTE: 120 Volt applications requires external step down

transformer.

Alarm Indicator Lamp:

LED & TEST

SD2

INS NO.

PAGE

Rev.

08281010

5 of 14

08/13

SD2

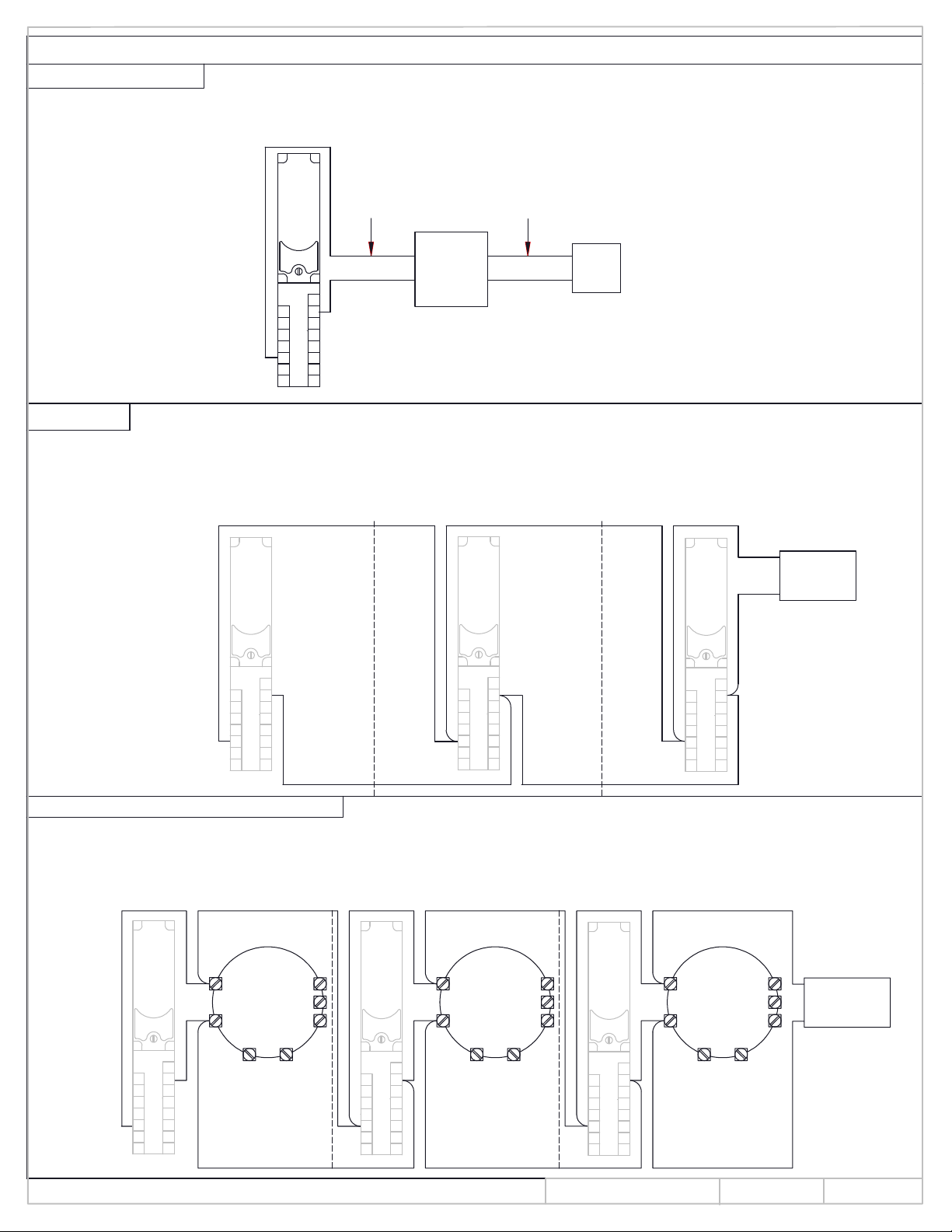

POWER SUPPLY

Insulate all connections. Observe all local codes.

120 VAC, 50/60 HZ

24V AC/DC

24V AC/DC WITH REMOTE DETECTORS

NOTE: FOR ULC INSTALLATIONS, TRANSFORMER

MUST INSTALL IN 4" X 4" ELECTRICAL

BOX X 3" DEEP MINIMUM.

EXTERNAL

(OPTIONAL)

120 VAC, 50/60 HZ: Connect the 120 VAC incoming voltage wires to the primary wires of the transformer.

Connect the secondary transformer wires to terminals #3 and #14 of the detector module.

This connection is not polarity dependent.

PRIMARY

TRANSFORMER

WIRES

STEP

DOWN

TRANSFORMER

120VAC

POWER

INPUT

SECONDARY

TRANSFORMER

WIRES

24V AC/DC NOTE: The step down transformer is not used in this connection. Connect 24V AC/DC

power to terminals #3 and #14 on the detectors. These connections are not polarity dependent.

If the unit is connected to a second unit, connect terminal #3 of the first unit to terminal #3 of the

second unit and connect terminal #14 of the first unit to terminal #14 of the second unit.

Continue this process for any subsequent units to be powered from the same power supply.

24 V AC/DC

POWER SUPPLY

(1)(2)

(3)

SD2

REMOTE

DETECTOR

24VAC/DC

POWER SUPPLY

REMOTE

DETECTOR

REMOTE

DETECTOR

24V AC/DC WITH REMOTE DETECTORS NOTE: The step down transformer is not used in this connection. Connect wires as

illustrated below. Additional units are wired in the same manner as unit #2. Installations using a combination of SD2 modules

with and without remote area detectors can be wired accordingly by substituting the wiring diagram section from unit #1, #2, or

#3 in step #3 above instead of unit #1, #2, or #3 below with remote detector. The vertical dashed lines indicate where one

diagram would be exchanged for another.

NOTE: Input voltage must match detector voltage.

(1)(2)

(3)

INS NO.

PAGE

Rev.

08281010

6 of 14

08/13

SD2

WIRE GAUGE

SD2 DETECTOR TO MAIN ELECTROMAGNET CONNECTION

MAIN

HOLD OPEN

ELECTROMAGNET

Strip approximately 1/4" of plastic insulation from the end of the two electromagnet wires supplied. Connect

one end each of the electromagnet wires to terminals 6 & 9 of the SD2 detector as shown.

No. OF

ELECTRO-

MAGNET

(E4)

No. OF

ELECTRO-

MAGNET

(E3)

No. OF

ELECTRO-

MAGNET

(E2)

No. OF

ELECTRO-

MAGNET

(E1)

POWER

SUPPLY

TO NEXT HOLD

OPEN SOLENOID

WIRE LENGTH

TO E4

(D4)

WIRE LENGTH

TO E3

(D3)

WIRE LENGTH

TO E2

(D2)

WIRE LENGTH

TO E1

(D1)

WIRE GAUGE: The maximum wire gauge for wiring the SD2 detector module is #18 AWG. The method for

determining wire gauge is given below. NOTE: A minimum of 20.4 VDC must be supplied to each electromagnet

in the run.

E1, E2, E3 etc. are the number of electromagnets at each subsequent station. D1 is the distance from the

power supply to the first solenoid station. D2, D3, D4 etc. are the distances from the previous solenoid

station to the next solenoid station in the run. To determine the correct wire gauge multiply E1 times D1.

Add that quantity to E2 times D2. Repeat the same procedure for each solenoid to test the last unit in

the run. Compare the quantity calculated to the chart below. The calculated value must be less than or

equal to the value corresponding to the appropriate wire gauge.

10 GAUGE-11,788 12 GAUGE-7,407 14 GAUGE-4,669 16 GAUGE-2,997 18 GAUGE-1,843

The procedure described above can be expressed in the following equation: (E1xD1) + (E2xD2) + (E3xD3)

....(EnxDn) The above values correspond to the wire gauge to be used. If the calculated value is 1,843

#18 AWG wire can be run and connected directly to the detector module. If the calculated value exceeds

1,843 larger wiring will be required. Since the detector will only accept #18 AWG wire, a wiring splice will

be necessary as illustrated below.

#16-#12#16-#12

#18

NOTE: FOR ULC INSTALLATIONS, 18 GAUGE

WIRE IS REQUIRED TO DETECTOR

INS NO.

PAGE

Rev.

08281010

7 of 14

08/13

SD2

SD2 DETECTOR TO AUXILIARY SOLENOID CONNECTION

SOLENOID ATTACHMENT TO UL/ULC LISTED ALARM CONTROL PANEL

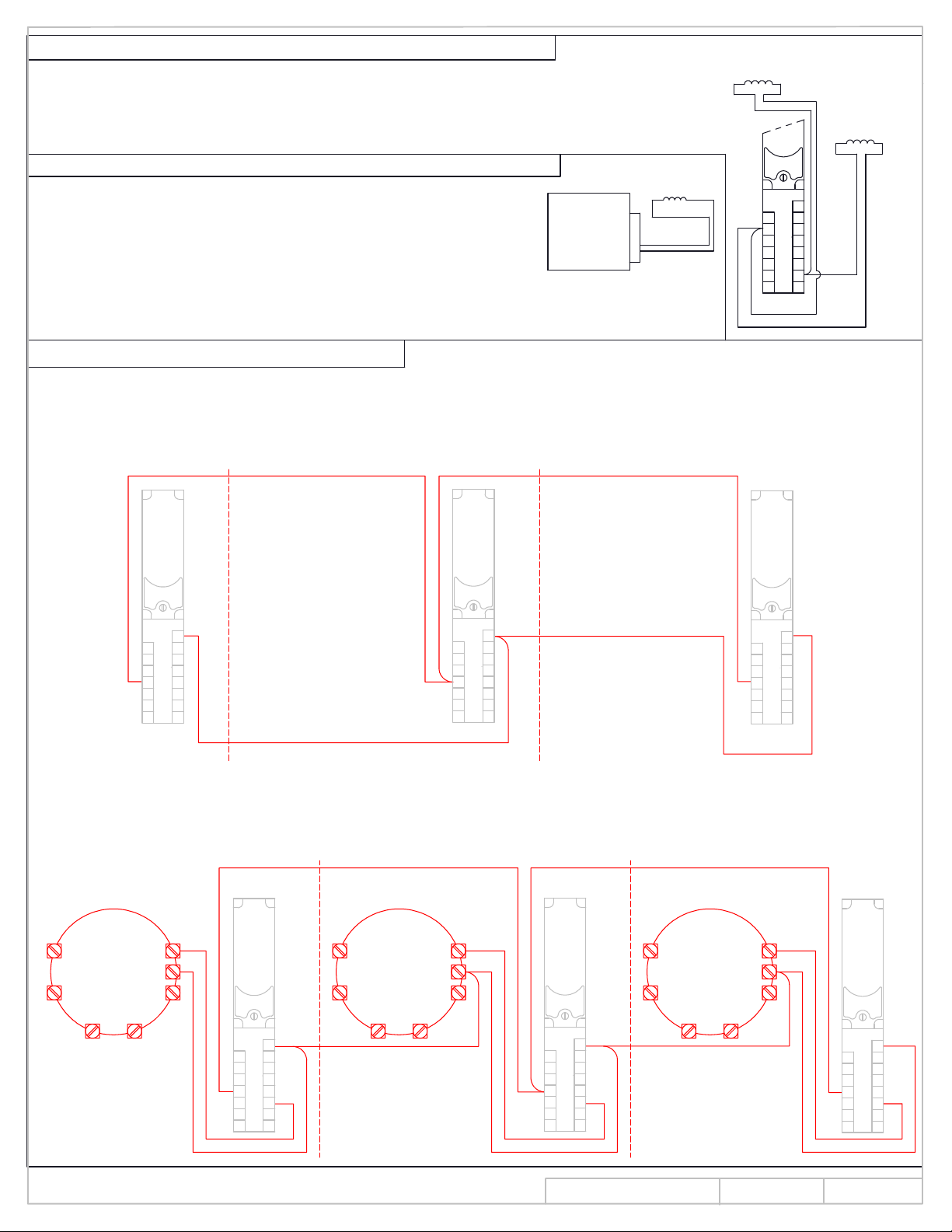

SD2 DETECTOR INTERCONNECTION

NOTE: Make this connection the same time as the main hold open electromagnet

connection. Strip approximately 1/4" of plastic insulation from the ends

of the wires. Connect auxilliary hold open electromagnet wires to

9&6 of SD2 detector.

Some applications may require input power to the hold open

electromagnet to be supplied through a UL/ULC listed alarm control

panel so the hold open electromagnet functions separately from the

internal detector module. This application requires the alarm

contacts of the SD2 detector and any remote detectors

to be connected to the alarm contacts of the control panel. An alarm indication to

the panel results in the loss of power to the hold open electromagnets in the related

zone, which allows the doors to close. Wire main electromagnet to alarm control panel as

illustrated.

POWER IN

PANEL

CONTROL

LISTED ALARM

UL/ULC

24VOLT ONLY

ELECTROMAGNET

HOLD OPEN

OPEN ELECTROMAGNET

AUXILIARY HOLD

SD-1

ELECTROMAGNET

MAIN HOLD

OPEN

SD2

1. Up to (5) SD2 detectors, with or without connection to an auxiliary unit or remote area detector may be interconnected. This limitation applies

only to interconnected units and assumes a power supply large enough to handle this load if the power supply is common to all units

interconnected. Separate power

supplies may be used for each SD2 detector while permitting the units to be interconnected.

2a. For units without connection to remote detectors, connect terminal #15 (+) between the units to be interconnected. Connect terminal #4 (-)

between the units to provide a common for the interconnection. Additional units are wired in the same manner as unit #2 but no more than

five (5) units can be interconnected.

2b. For units used in conjunction with remote area detectors, complete wiring connections as illustrated

below. Heed caution note in SD2 DETECTOR TO REMOTE AREA DETECTOR section of instruction sheet.

Additional units are wired in the same manner as unit #2 but no more than five (5) units can be

interconnected. Installations using a combination of SD2 detector modules with or without remote area

detectors can be wired accordingly by substituting the wiring diagram from unit 1, 2, or 3 in step 2a.

above for unit 1, 2, or 3 below. The vertical dashed lines indicate where one (1) diagram would be

exchanged for another.

NO NO

REMOTE

DETECTOR

REMOTE

DETECTOR

REMOTE

DETECTOR

(1)

(2)

(3)

(1)

(2)

(3)

INS NO.

PAGE

Rev.

08281010

8 of 14

08/13

SD2

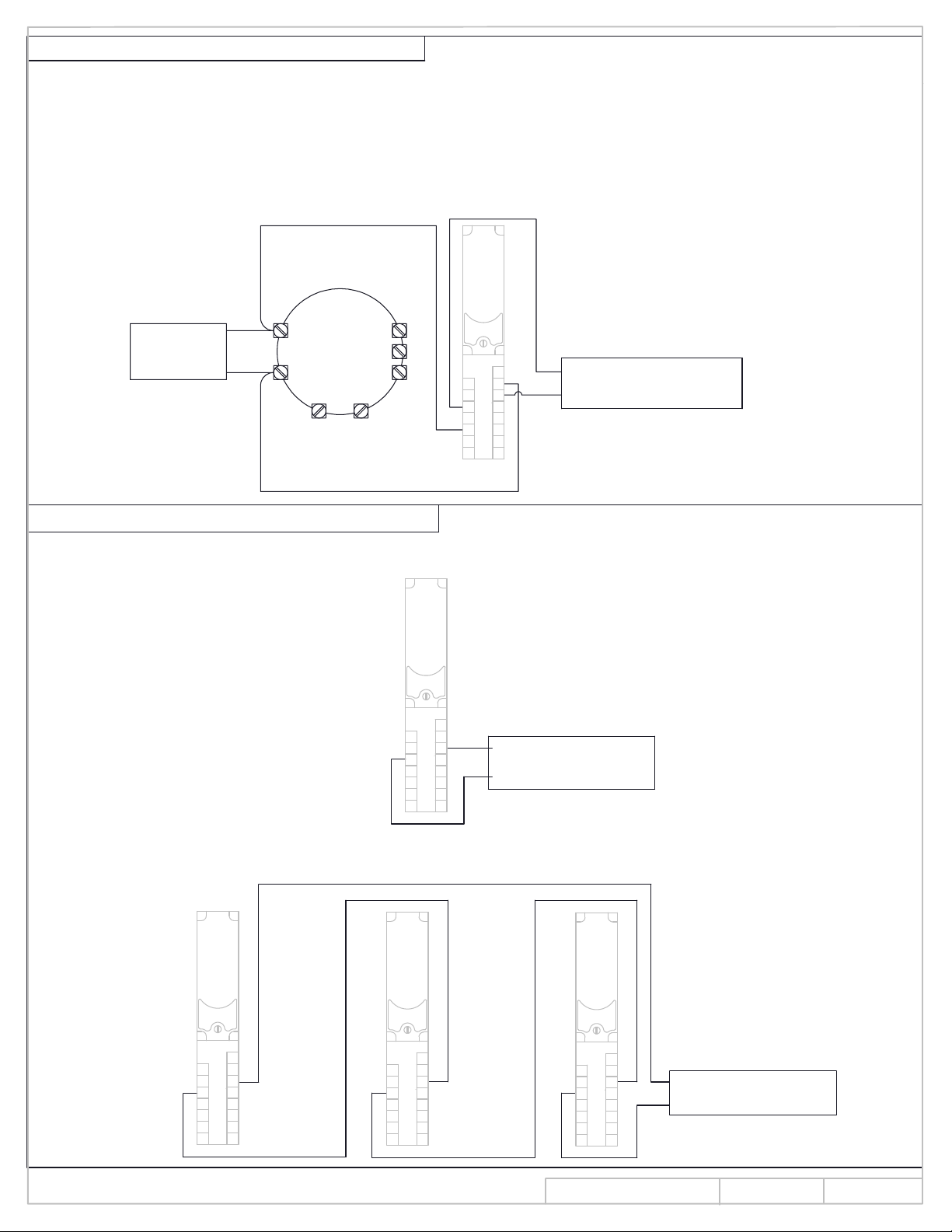

SD2 DETECTOR TO REMOTE AREA DETECTOR

SD2 DETECTOR TO AUDIBLE SIGNAL APPLIANCE

A remote open area detector can only be connected to a unit whose trouble relay contacts

(#5 & #13) are connected in a circuit for the purpose of obtaining an audible trouble signal

in the event of a circuit fault. In the event that the unit is used for releasing service only,

the trouble contacts are connected to the trouble circuit of a UL/ULC listed alarm control

panel. This condition is satisfied by the four (4) and six (6) wire supervisory connections in

the alarm initiation wiring section. Perform wiring connections as illustrated below. NOTE: The

SD2 is wired as the E.O.L. (end of line) device for the remote detector. Therefore, it

must act as the last item in the loop.

CONTROL UNIT

24VAC/DC

POWER SUPPLY

UL/ULC LISTED AUDIBLE

SIGNAL APPLIANCE OR

REMOTE

DETECTOR

CAUTION:

SD2

1. Connect terminals #5 & #13 of a singular unit directly to a UL/ULC listed audible signal

appliance or alarm control panel.

CONTROL UNIT

UL/ULC LISTED AUDIBLE

SIGNAL APPLIANCE OR

2. Installations with multiple units in a run must be connected to a UL/ULC listed audible signal

appliance or alarm control panel as illustrated below.

SIGNAL APPLIANCE OR

UL/ULC LISTED AUDIBLE

CONTROL UNIT

INS NO.

PAGE

Rev.

08281010

9 of 14

08/13

SD2

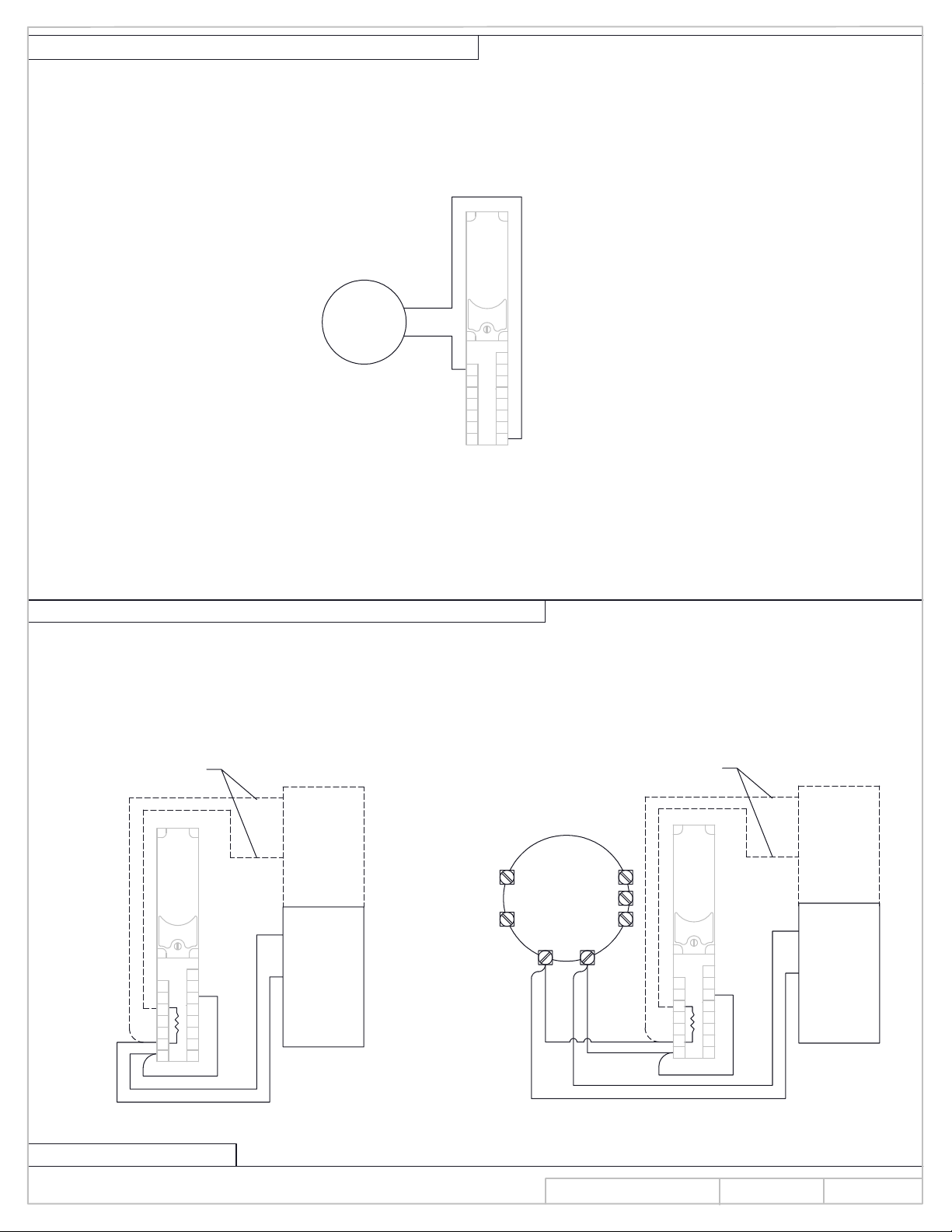

SD2 DETECTOR TO REMOTE ALARM INDICATOR LAMP

ALARM INITIATION WIRING (4 WIRE CLASS B & 6 WIRE CLASS A)

CONTINUED ON PAGE 11

REMOTE

ALARM

INDICATOR

LAMP

Connect the positive wire of the remote alarm indicator lamp to terminal #8 of the detector module.

Connect the negative terminal of the indicator lamp to terminal #7 of the SD2 detector.

*EOL

*EOL USED IN 4 WIRE APPLICATIONS ONLY

UL/ULC

LISTED

INITIATING

CIRCUIT

CONNECTIONS FOR SIX (6)

WIRE INSTALLATION

RETURN

LOOP

ALARM RELAY

*EOL USED IN 4 WIRE APPLICATIONS ONLY

REMOTE

DETECTOR

INITIATING

CIRCUIT

UL/ULC

LISTED

1. Make all connections as outlined previously for all units required by the job specifications.

2. Make all signal initiating connections as illustrated in the appropriate figure below. Note wiring differences

for units with remote detectors vs. units without remote detectors. Dashed lines to return loop represent

wires required for six (6) wire applications. These wires are omitted in four (4) wire applications.

3. Connections to only one (1) SD2 are shown below.

LOOP

RETURN

WIRE INSTALLATION

CONNECTIONS FOR SIX (6)

*EOL

INS NO.

PAGE

Rev.

08281010

10 of 14

08/13

This manual suits for next models

Table of contents

Popular Door Opening System manuals by other brands

Pamex

Pamex KT-INP35 Installation instruction

Label

Label NEPTIS/LE installation manual

Cal-Royal

Cal-Royal N-F77CVR Installation instruction

Scrigno

Scrigno OPEN1000 Assembly manual

TriMark

TriMark UM 34 instructions

BFT

BFT WIND RMB 130B 200 installation manual

Alecto

Alecto ADI-250 user manual

Besam

Besam Swingmaster MP Installation, adjustment and maintenance instructions

CRL

CRL SENIOR PRIMA manual

Assa Abloy

Assa Abloy SARGENT 1431 Series instructions

GAL

GAL MOVFR Quick setup

Olide

Olide 120B installation manual

Normstahl

Normstahl IDO7 installation manual

Häfele

Häfele Finetta T 70 VF manual

AGS

AGS D-PL Instructions for fitting, operating and maintenance

Stanley

Stanley MA900ñ Installation and owner's manual

WITTUR

WITTUR Hydra Plus UD300 Instruction handbook

Alutech

Alutech TR-3019-230E-ICU Assembly and operation manual
