Dometic TCX Series User manual

TCX 14, TCX 21, TCX 35

Thermoelectric cooler

Operating manual . . . . . . . . . . . . . . . . . . . . . 5

MOBILE COOLING

TCX14-TCX35-OPM-EMEA16.book Seite 1 Montag, 6. Mai 2019 1:17 13

TCX SERIES

TCX14, TCX21, TCX35

1 2 3 4 5 6

TCX14-TCX35-OPM-EMEA16.book Seite 2 Montag, 6. Mai 2019 1:17 13

TCX14, TCX21, TCX35

12/24 Vg

2. 1.

A B

TCX14-TCX35-OPM-EMEA16.book Seite 3 Montag, 6. Mai 2019 1:17 13

TCX14, TCX21, TCX35

1,5/2 L

450

323

250

303

208

201

260

328

1, 5/2 L

550

340

460

376

265

350

TCX14

TCX21

TCX35

1,5/2 L

450

319

250

420

303

198

208

352

TCX14-TCX35-OPM-EMEA16.book Seite 4 Montag, 6. Mai 2019 1:17 13

TCX14, TCX21, TCX35 Explanation of symbols

Please read this manual carefully before starting the device. Keep it in a

safe place for future reference. If the device is passed on to another

person, this manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

2 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

4 Use as intended. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

7 Cleaning and servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

1 Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided,

could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided,

could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

TCX14-TCX35-OPM-EMEA16.book Seite 5 Montag, 6. Mai 2019 1:17 13

Safety notes TCX14, TCX21, TCX35

2Safetynotes

2.1 General safety

!WARNING! Failure to obey these warnings could result in death

or serious injury.

Electrocution hazard

•Do not operate the cooling device if it is visibly damaged.

•If this cooling device's power cable is damaged, it must be replaced

by the manufacturer, customer service or a similarly qualified person in

order to prevent safety hazards.

•This cooling device may only be repaired by qualified personnel.

Improper repairs can lead to considerable hazards.

Health hazard

•This device is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruc-

tion concerning use of the device by a person responsible for their

safety.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must not play with the cooling device.

•Children must be supervised to ensure that they do not play with the

cooling device.

•Always keep and use the cooling device out of the reach of children

under the age of 8 years.

Explosion hazard

•Do not store any explosive substances such as spray cans with a

flammable propellant in the cooling device.

NOTE

Supplementary information for operating the product.

TCX14-TCX35-OPM-EMEA16.book Seite 6 Montag, 6. Mai 2019 1:17 13

TCX14, TCX21, TCX35 Safety notes

!CAUTION! Failure to obey these cautions could result in minor or

moderate injury.

Electrocution hazard

•Disconnect the cooling device from the power supply

– before each cleaning and maintenance

– after every use

Health hazard

•Food may only be stored in its original packaging or in suitable

containers.

ANOTICE! Damage hazard

•Check that the voltage specification on the type plate corresponds to

that of the energy supply.

•Only connect the cooling device as follows:

– With the DC connection cable to a DC power supply in the vehicle

– Or with the AC connection cable to an AC power supply

•Never pull the plug out of the socket by the cable.

•If the cooling device is connected to a DC outlet: Disconnect the

cooling device and other power consuming devices from the battery

before connecting a quick charging device.

•If the cooling device is connected to a DC outlet: Disconnect the

cooling device or switch it off when you turn off the engine. Otherwise

you may discharge the battery.

•The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

•The insulation of the cooling device contains flammable cyclopentane

and requires special disposal procedures. Deliver the cooling device

at the end of its life-cycle to an appropriate recycling center.

2.2 Operating the cooling device safely

!CAUTION! Failure to obey these cautions could result in minor or

moderate injury.

Electrocution hazard

•Before starting the cooling device, ensure that the power supply line

and the plug are dry.

TCX14-TCX35-OPM-EMEA16.book Seite 7 Montag, 6. Mai 2019 1:17 13

Safety notes TCX14, TCX21, TCX35

Health hazard

•Opening the door for long periods can cause significant increase of

the temperature in the compartments of the device.

•Clean regularly surfaces that can come in contact with food and

accessible drainage systems.

•Store raw meat and fish in suitable containers in the device, so that it is

not in contact with or drip onto other food.

•If the device is left empty for long periods:

– Switch off the device.

– Defrost the device.

– Clean and dry the device.

– Leave the door open to prevent mould developing within the

device.

ANOTICE! Damage hazard

•Do not use electrical devices inside the cooling device unless they are

recommended by the manufacturer for the purpose.

•Do not place the cooling device near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Ensure at all times that there is a minimum of 50 mm ventilation on all

four sides of the cooling device. Keep the ventilation area free of any

objects that could restrict the air flow to the cooling components.

Do not place the cooling device in closed compartments or areas with

none or minimal air flow.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluids.

•Never immerse the cooling device in water.

•Protect the cooling device and cables against heat and moisture.

TCX14-TCX35-OPM-EMEA16.book Seite 8 Montag, 6. Mai 2019 1:17 13

TCX14, TCX21, TCX35 Scope of delivery

3Scopeofdelivery

Check before starting up the device that all parts are available belonging to the

scope of delivery.

4Useasintended

The cooler can be used to cool and keep foodstuffs warm. The device can be also

used for camping purposes.

All materials processed in the refrigerator are safe for foodstuffs.

5 Technical description

The cooling device is suitable for mobile use. It can cool goods up to max. 27 °C

under ambient temperature (thermostatic switch-off at approx. 2 °C) or keep them

warm up to max. 65 °C.

If the device has reached the set temperature range, it will automatically switch over

to the energy save mode. In this mode only the energy which is required to reach the

temperature inside the box is consumed.

The cooling device is a low-wear thermo-electric cooler with fan-assisted heat

removal.

The cooling device is equipped with an automatic priority circuit. Thus it is ensured

that with simultaneous connection to the AC mains supply and to a 12/24 V battery,

the AC mains supply will be used.

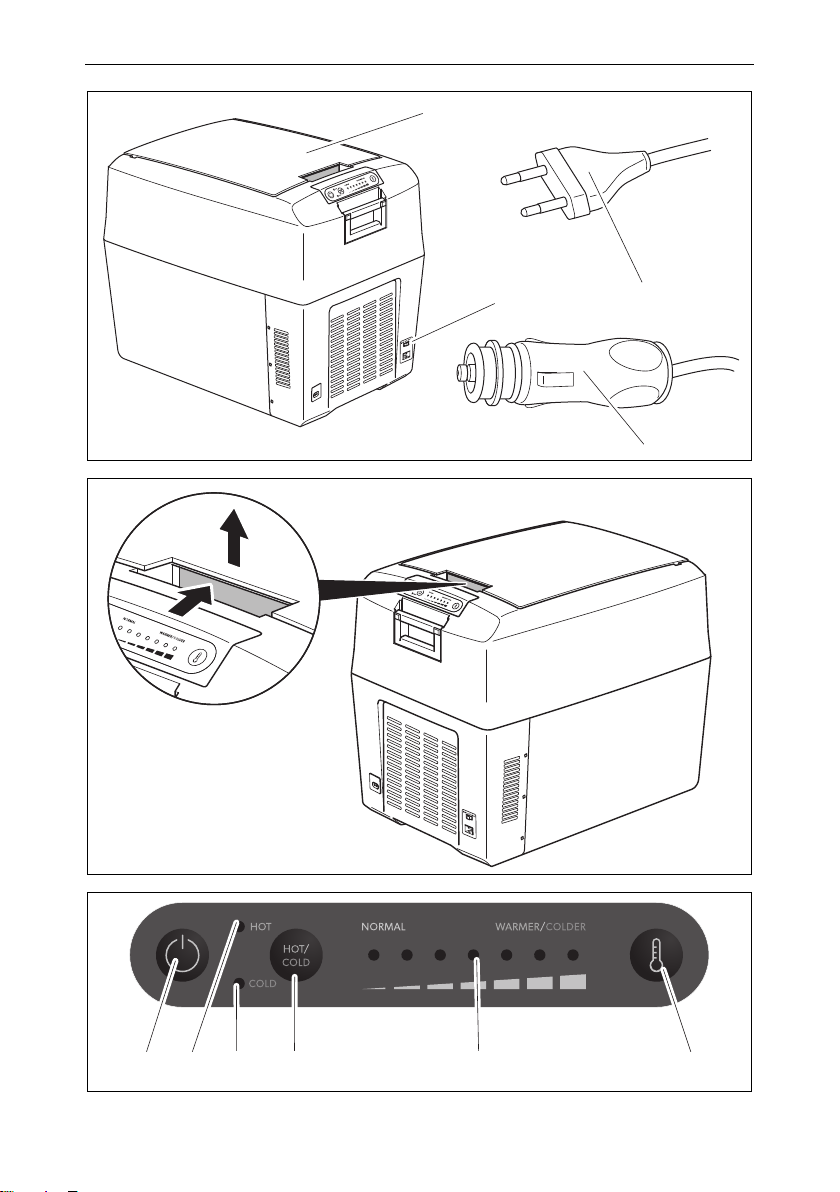

No. in

fig. 1, page 2 Quantity Description

1 1 Thermoelectric cooler

2 1 Connection cable for AC connection

3 1 Connection cable for DC connection

– 1 Instruction manual

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for storing

the food or medicine you wish to cool.

TCX14-TCX35-OPM-EMEA16.book Seite 9 Montag, 6. Mai 2019 1:17 13

Operation TCX14, TCX21, TCX35

6Operation

6.1 Tips to save energy

•Choose a well ventilated location which is protected from direct sunlight.

•If you want to set an increased energy efficiency and a limited cooling capacity for

the cooler device, use the device’s ECO mode.

•Allow warm food to cool down first before placing it in the cooling device to

keep cool.

•Do not open the cooling device more often than necessary.

•Do not leave the cooling device open for longer than necessary.

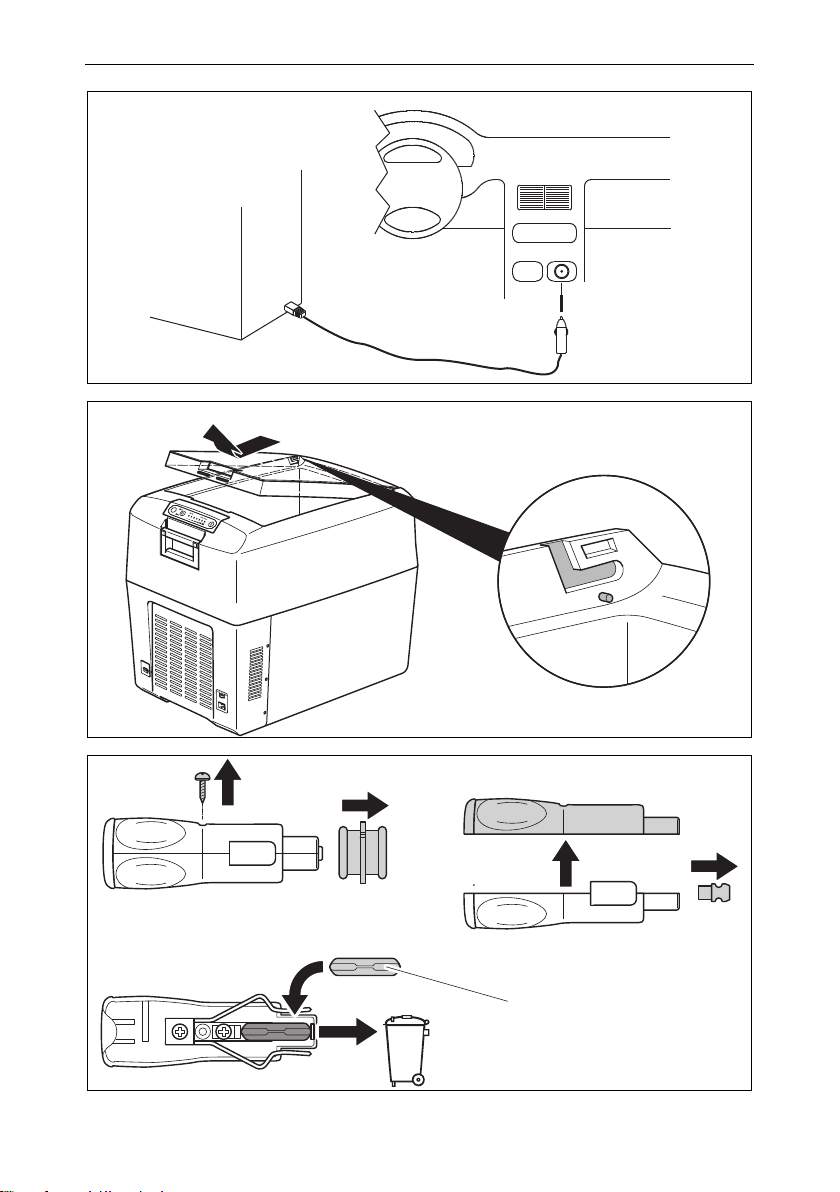

6.2 Connecting to vehicle power

For safety reasons the cooler is equipped with an electronic system to prevent

polarity reversal. This protects the cooler against short-circuiting when connecting to

a battery.

NOTE

Before you put the new cooling device into operation, you should clean

it inside and outside with a damp cloth for hygienic reasons (see also

chapter “Cleaning and servicing” on page 13).

NOTE

A ventilator in the interior space of the cooling device provides for the

circulation of the cold air within the box. Thus a better cooling capacity

will be achieved. In order that the cold air cannot reach the outside

when opening the cooling device, it is equipped with a switch which

turns off the ventilator as soon as the lid is opened.

NOTE

If you connect the cooling device to the vehicle power, remember that

you may have to turn on the ignition to supply it with power.
