Dimplex LAGsu User manual

08/51850/0 ISS 1

In keeping with our policy of continuous product development, we reserve the right to make changes without notice.

LAGUNA SURROUND

LAGsu

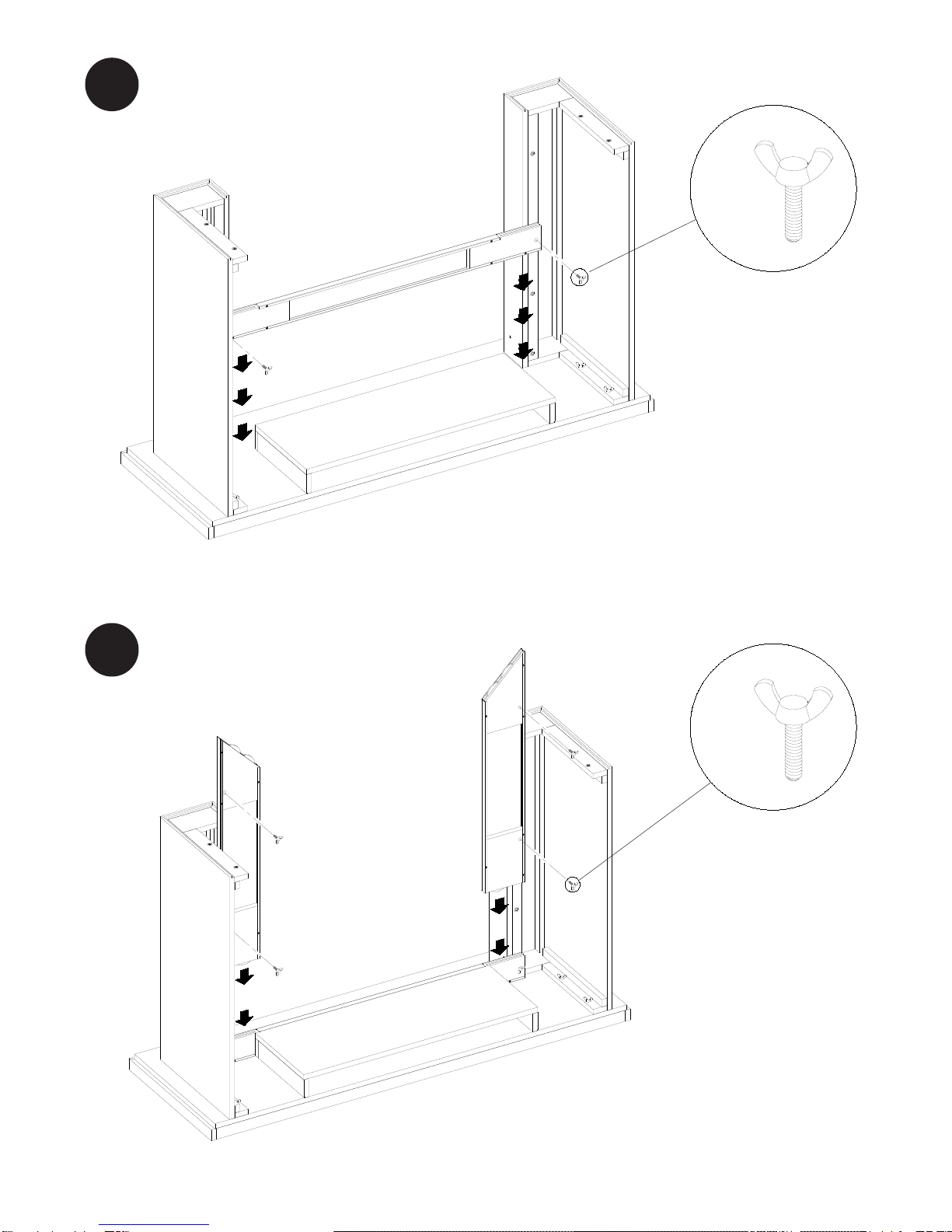

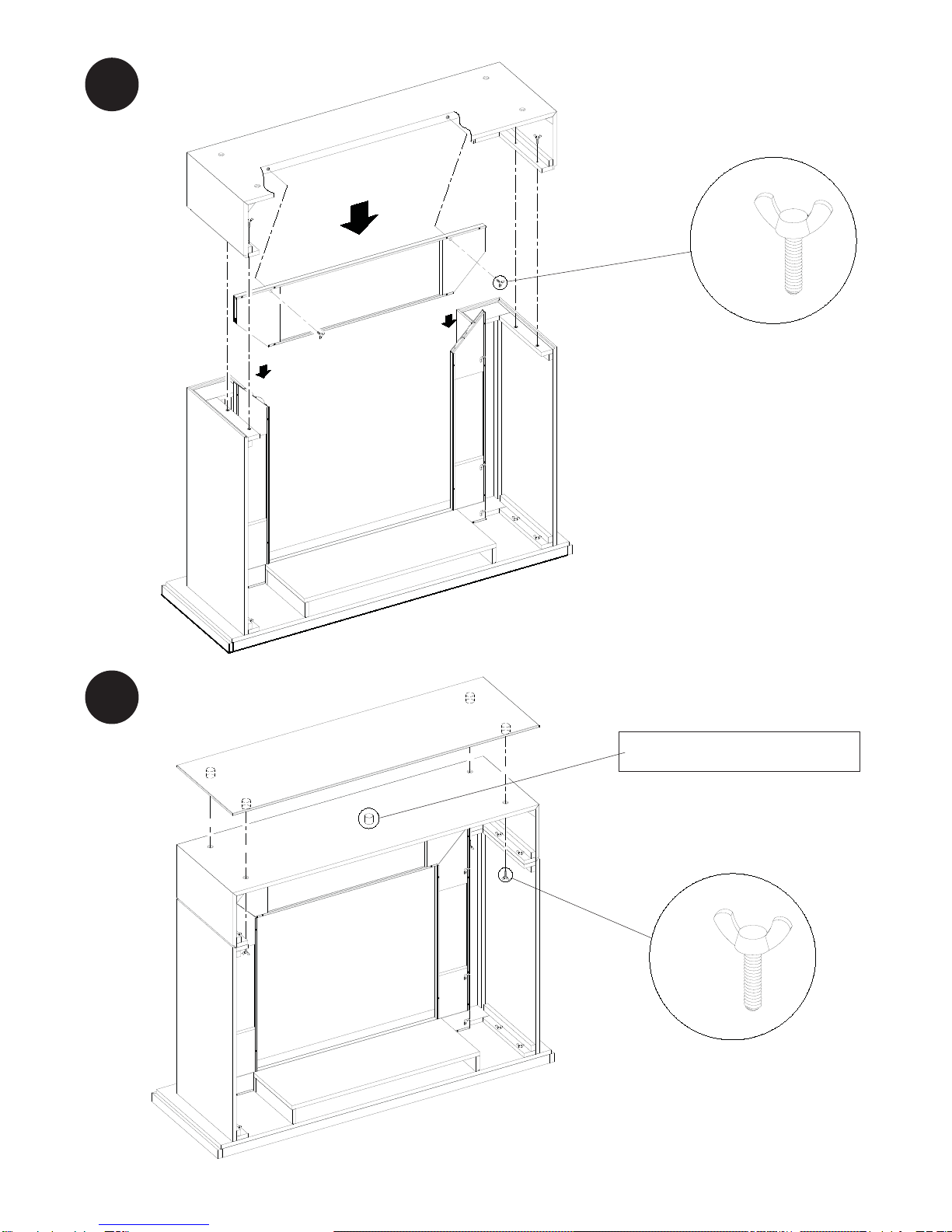

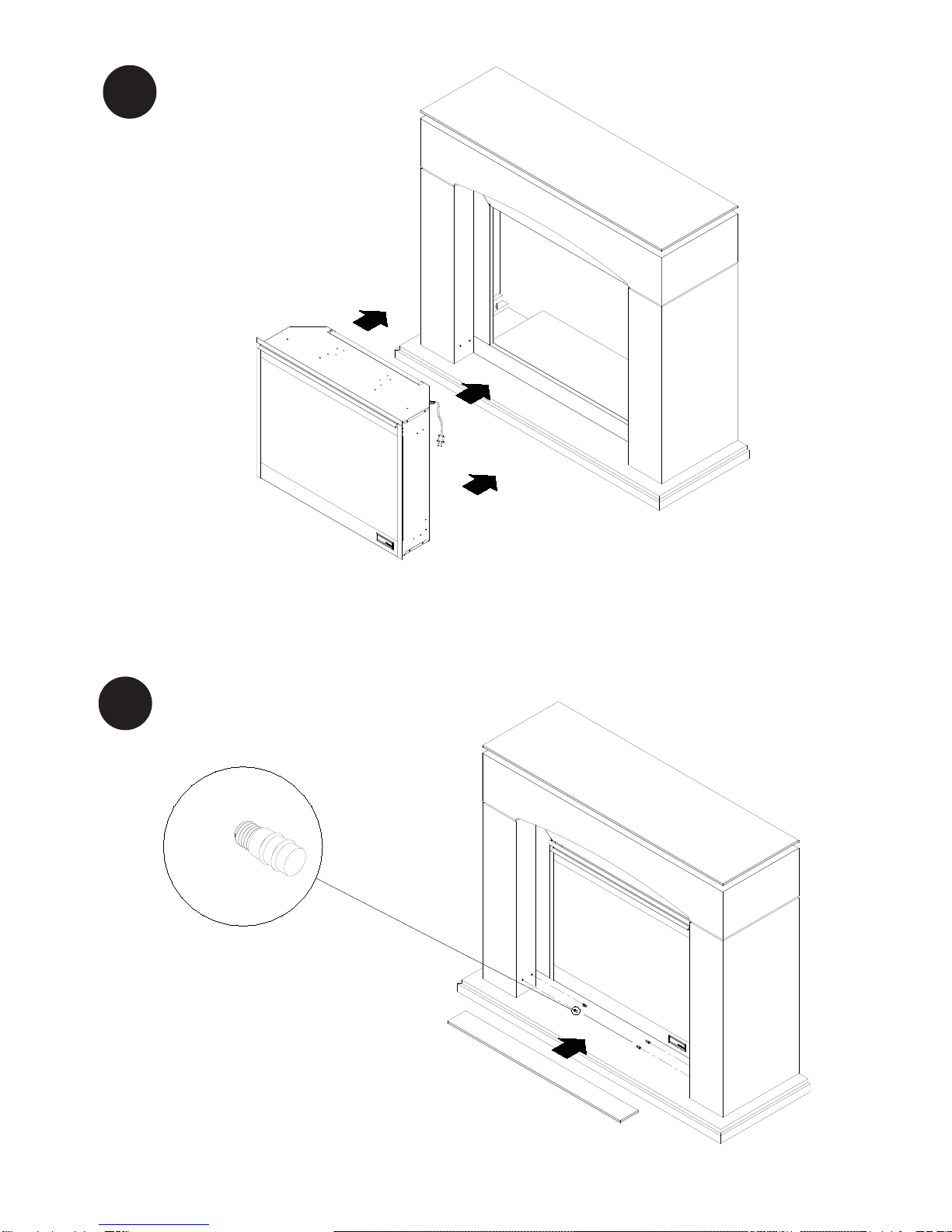

ASSEMBLY INSTRUCTIONS

CONTENTS

1 X BASE

1 X LH SIDE

1 X RH SIDE

1 X BASE INFILL

1 X LH SIDE INFILL

1 X RH SIDE INFILL

1 X TOP INFILL

1 X TOP PANEL

4 X WING BOLTS

4 X GLASS STUDS

20 X THREADED STUDS

24 X WASHERS

20 X WING NUTS

1 X GLASS SHELF LARGE

1 x GLASS SHELF SMALL

Note: For service removal of the ﬁrebox, ﬁrstly remove this glass shelf.

Optional Support•

After Sales Service

Your product is guaranteed for one year from the date of purchase.

Within this period, we undertake to repair or exchange this product free of charge (excluding lamps or

batteries and subject to availibility) provided it has been installed and operated in accordance with these

instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are not affect by this

guarantee.

Should you require after sales service you should contact our customer services help desk on 0844 879

3588. It would assist us if you can quote the model number, series, date of purchase and the nature of the

fault at the time of your call. The customer services helpdesk will also be able to advise you should you

need to purchase any spares.

Please do not return any faullty product to us in the ﬁrst instance as this may result in loss or damge and

delay in providing you with a staisfactory service.

Please retain your receipt as proof of purchase.

SERVICE

Contact your local dealer for service or warranty information.

RECYCLING

For electrical products sold in the European Community.

At the end of the electrical product’s useful life it should not be disposed of with household waste.

Please recycle where facilities exist. Check with your Local Authority or retailer for recycling

advice in your country.

The product complies with the European Safety Standard EN60335-2-30 and the

European Standard for Electromagnetic Compatibility (EMC) EN55014, EN61000

and EN50366 which cover the essential requirements of EEC Directives 2006/95

and 2004/108.

1. Warranty Card 2. Guarantee

Period (in Years) 3. Model(s) 4. Date of Purchase

5. Stamp & Signature of retailer 6. Fault/Defect

7. Contact Number & Address

Dimplex

A Division of GDC Group Ltd.

Millbrook House

Grange Drive

Hedge End

Southampton

Hampshire. SO30 2DF

TEL: 0844 879 3588

Fax. 0844 879 3582

WEBSITE: www.dimplex.co.uk

Republic of Ireland

TEL: 01 8424833
