Dimplex EWM-COPPER Quick start guide

PARTS AND SERVICE MANUAL

FOR THE WALL MOUNTED FIREPLACE

MODEL NUMBER:

EWM-COPPER

EWM-SS

EWM-SS-BLK

TABLE OF CONTENTS

OPERATION PAGE1

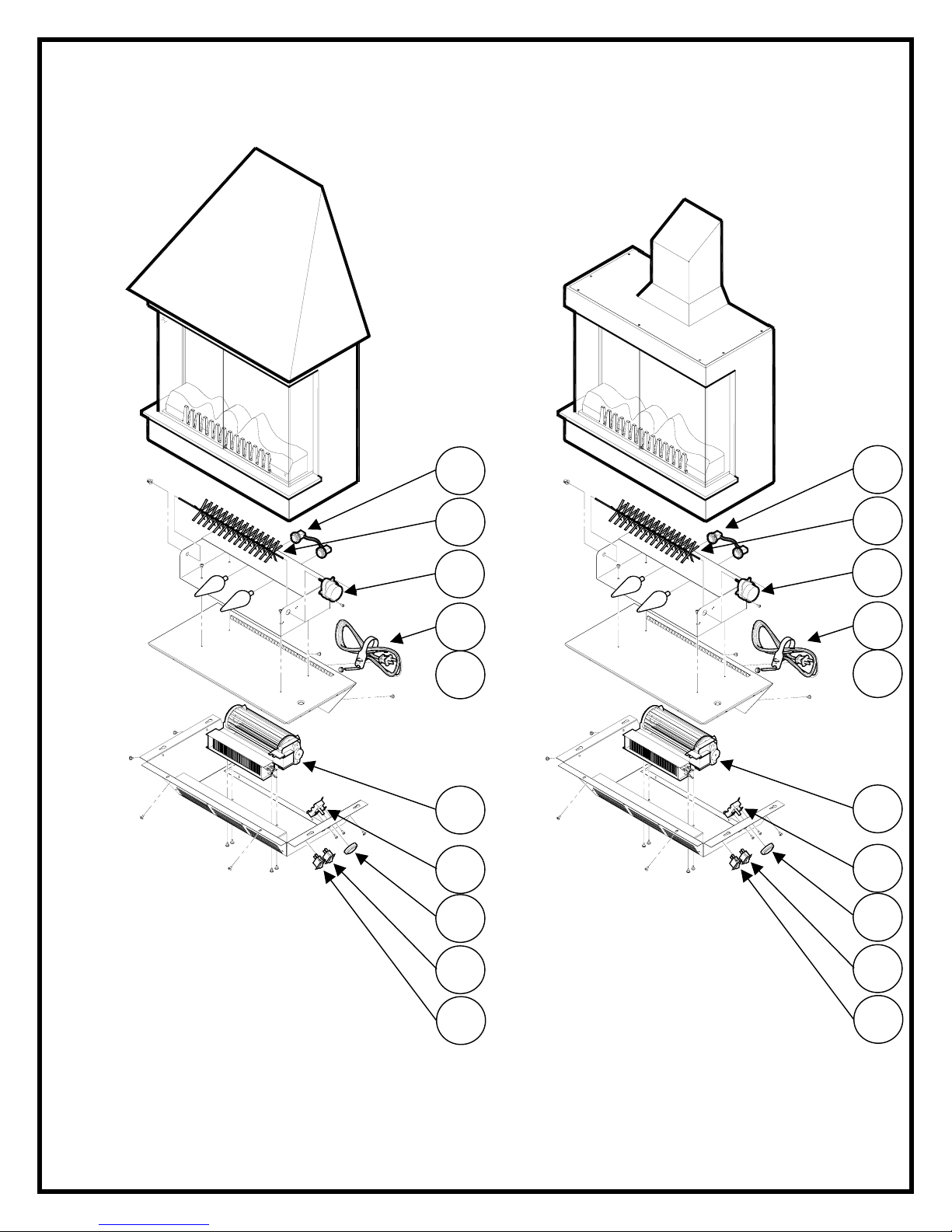

PARTS DRAWING PAGE 2

WIRING SCHEMATICS PAGE 3

PARTSLIST PAGE4

LIGHT BULB REPLACEMENT PAGE 5

MAIN POWER ON/OFF SWITCH REPLACEMENT PAGE 6

FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 7

HEATER ON/OFF SWITCH REPLACEMENT PAGE 8

HEATER ASSEMBLY REPLACEMENT PAGE 9

HEATER THERMOSTAT REPLACEMENT PAGE 10

POWER CORD REPLACEMENT PAGE 11

EWM-COPPER, EWM-SS, EWM-SS-BLK

OPERATION

The controls are located on the lower right side of the wall mounted electric fireplace.

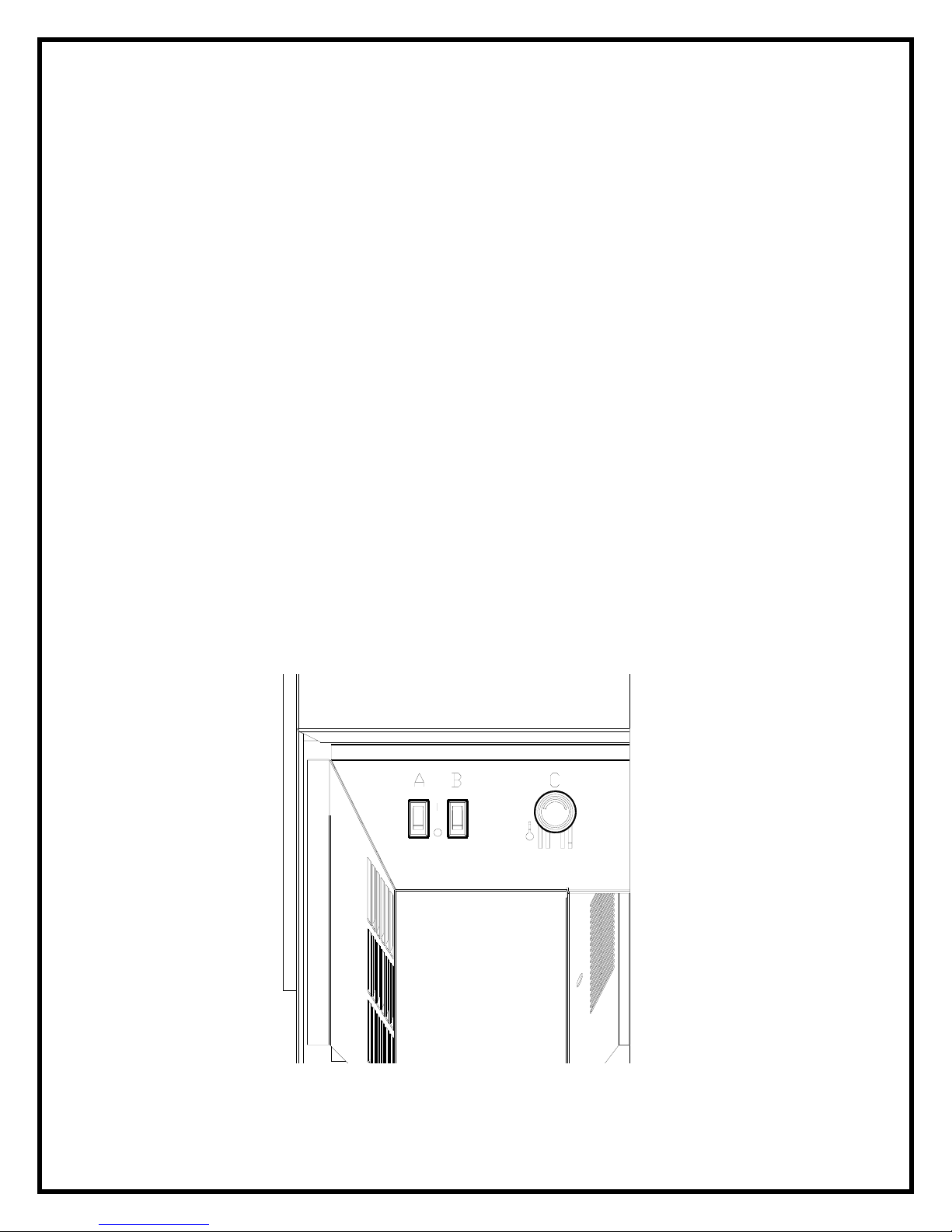

(FIGURE 1)

A. MAIN ON/OFF SWITCH

The MAIN ON/OFF SWITCH supplies power to all unit functions (heat/flame)

B. HEATER ON/OFF SWITCH

The HEATER ON/OFF SWITCH supplies power to the heater fan and the heater element.

C. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual requirements, turn the thermostat control

clockwise all the way to turn on the heater. When the room reaches the desired

temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in

this position to maintain the room temperature at this setting. For additional heat, turn

clockwise until you hear the click again and the heater will turn on. To turn the heater off,

switch the HEATER ON/OFF SWITCH to the OFF position.

NOTE: When the heater is switched ON, the heater fan will operate. The heater element

may or may not be on, depending on the thermostat control setting (SEE “HEATER

THERMOSTAT CONTROL”).

RESETTING THE TEMPERATURE CUTOUT SWITCH

The heater is protected with a safety device to prevent overheating. Should the heater

overheat, an automatic cut out will turn the heater off and it will not come back on without

being reset. Switching the main power switch OFF and waiting 5 minutes before

switching it ON can reset the temperature cutout switch.

FIGURE 1

EWM-COPPER, EWM-SS, EWM-SS-BLK

WIRING DIAGRAM

EWM-COPPER, EWM-SS, EWM-SS-BLK

REPLACEMENT PARTS

WALL MOUNT FIREPLACE

MOD LEVEL MOD A

REPLACEMENT PART EWM-COPPER EWM-COPPER

1. MAIN ON/OFF SWITCH 2800070200RP 2800070200RP

2. HEATER ON/OFF SWITCH 2800070200RP 2800070200RP

3. THERMOSTAT KNOB 8800000300RP 8800000300RP

4. THERMOSTAT 2300150100RP 2300150100RP

5. HEATER ASSEMBLY 2000230100RP 2000230100RP

6. CORDSET 4100040200RP 4100040200RP

7. FLICKER MOTOR 2000140300RP 2000140300RP

8. REFLECTOR ROD 5900080600RP 5900080600RP

9. LOWER LIGHT HARNESS 2500170100RP 2500280100RP

10.GROMMET 8500260003RP 8500260003RP

MOD LEVEL MOD A

REPLACEMENT PART EWM-SS EWM-SS

1. MAIN ON/OFF SWITCH 2800070200RP 2800070200RP

2. HEATER ON/OFF SWITCH 2800070200RP 2800070200RP

3. THERMOSTAT KNOB 8800000300RP 8800000300RP

4. THERMOSTAT 2300150100RP 2300150100RP

5. HEATER ASSEMBLY 2000230100RP 2000230100RP

6. CORDSET 4100040200RP 4100040200RP

7. FLICKER MOTOR 2000140300RP 2000140300RP

8. REFLECTOR ROD 5900080600RP 5900080600RP

9. LOWER LIGHT HARNESS 2500170100RP 2500280100RP

10.GROMMET 8500260003RP 8500260003RP

MOD LEVEL MOD A

REPLACEMENT PART EWM-SS-BLK EWM-SS-BLK

1. MAIN ON/OFF SWITCH 2800070200RP 2800070200RP

2. HEATER ON/OFF SWITCH 2800070200RP 2800070200RP

3. THERMOSTAT KNOB 8800000300RP 8800000300RP

4. THERMOSTAT 2300150100RP 2300150100RP

5. HEATER ASSEMBLY 2000230100RP 2000230100RP

6. CORDSET 4100040200RP 4100040200RP

7. FLICKER MOTOR 2000140300RP 2000140300RP

8. REFLECTOR ROD 5900080600RP 5900080600RP

9. LOWER LIGHT HARNESS 2500170100RP 2500280100RP

10.GROMMET 8500260003RP 8500260003RP

EWM-COPPER, EWM-SS, EWM-SS-BLK

LIGHT BULB REPLACEMENT

Light bulbs need to be replaced when you notice a dark section in the flame or when the

clarity and detail of the log exterior disappears. There are 2 light bulbs under the log set

which generate the flames and embers.

WARNING

Allow at least 10 minutes for light bulbs to cool off before touching bulbs to avoid

accidental burning of skin.

LIGHT BULB REQUIREMENTS

Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60

watt rating.

DO NOT EXCEED 60 WATTS PER BULB

HELPFUL HINTS

It is a good idea to replace all light bulbs at one time if they are close to the end of their

rated life. Group replacement will reduce the number of times you need to open the unit

to replace light bulbs.

TOOL REQUIREMENTS

Slot screwdriver

LOWER BULB REPLACEMENT

1. Unplug the unit from the outlet.

2. Remove the two mounting screws from the bottom front of the heater assembly.

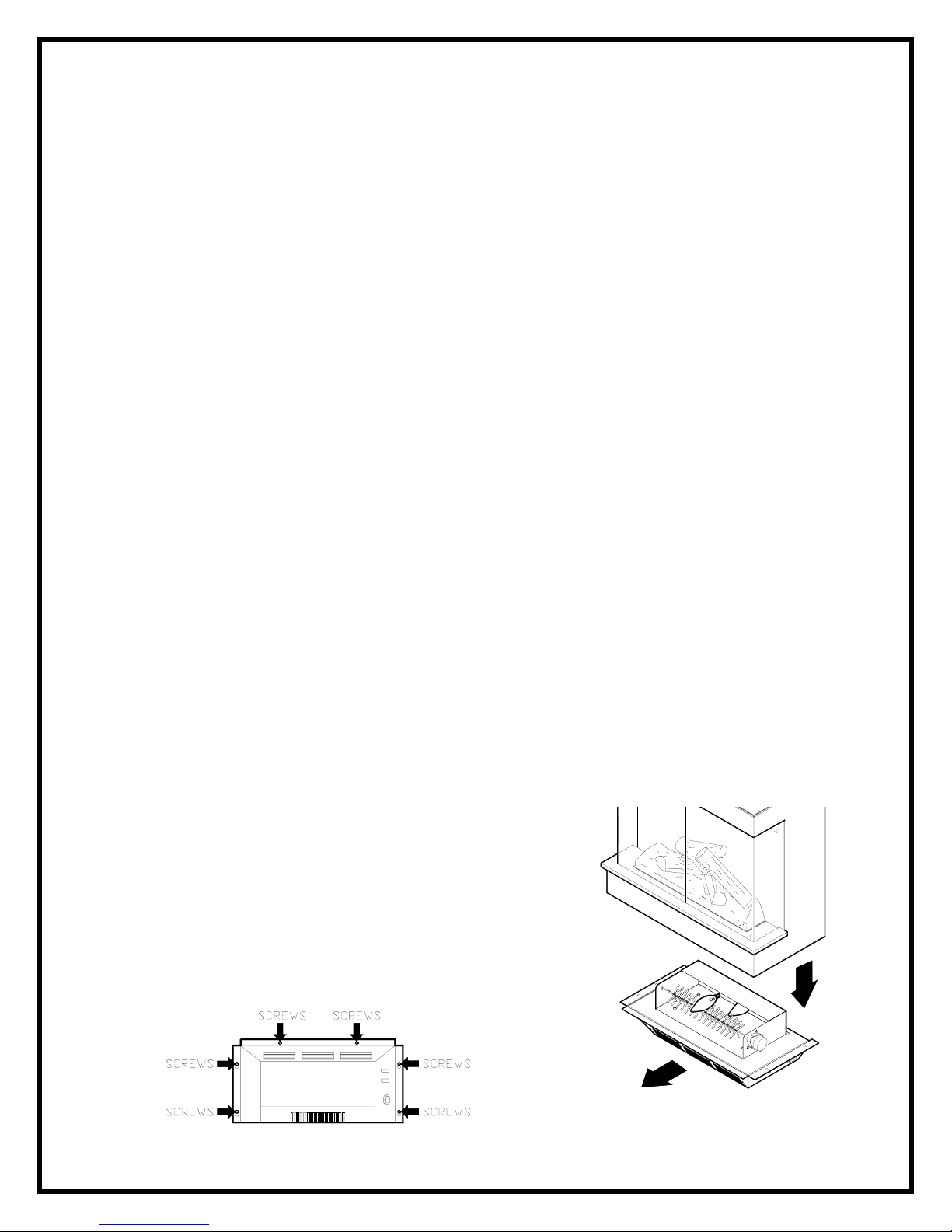

(FIGURE 2)

3. Loosen, but do not remove, the four heater / light assembly mounting screws located

on the bottom sides of the wall mounted electric fireplace. (FIGURE 2)

4. Slide the heater and light assembly forward to release it from the bottom of the wall

mounted electric fireplace (FIGURE 1).

5. Place heater and light assembly on a flat surface and examine the bulbs to determine

which bulb(s) require(s) replacement.

6. Unscrew the bulb(s) counter clockwise.

7. Insert new bulb(s).

8. Install the heater and light assembly onto the

four mounting screws.

9. Slide the assembly backwards to lock it into

position.

10.Tighten the four heater / light assembly mounting

screws.

11.Install the two front mounting screws.

12.Plug in the wall mounted electric fireplace.

FIGURE 1

FIGURE 2

EWM-COPPER, EWM-SS, EWM-SS-BLK

If the unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE MAIN ON/OFF SWITCH

1. Unplug the unit from the outlet.

2. Remove the two mounting screws from the bottom front of the heater assembly.

3. Loosen but do not remove the four heater / light assembly mounting screws

located on the bottom sides of the wall mounted electric fireplace.

4. Slide the heater and light assembly forward to release it from the bottom of the

wall mounted electric fireplace.

5. Place heater and light assembly on a flat surface and remove the six screws from

the upper sides and back of the assembly.

6. Separate the flicker motor and light assembly from the lower assembly.

7. Locate the main on/off switch mounted in the lower cover and disconnect the

wiring clips and connections noting their original locations.

8. Properly orientate the new switch and connect all of the wiring clips and

connections.

9. Reassemble in the reverse order as above.

EWM-COPPER, EWM-SS, EWM-SS-BLK

If the unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE FLAME MOTOR/FLAME ROD

1. Unplug the unit from the outlet.

2. Remove the two mounting screws from the bottom front of the heater assembly.

3. Loosen but do not remove the four heater / light assembly mounting screws

located on the bottom sides of the wall mounted electric fireplace.

4. Slide the heater and light assembly forward to release it from the bottom of the

wall mounted electric fireplace.

5. Place heater and light assembly on a flat surface and remove the six screws from

the upper sides and back of the assembly.

6. Separate the flicker motor and light assembly from the lower assembly.

7. Locate and disconnect the wiring connections for the flame motor noting their

original locations.

8. Remove the flame motor mounting bracket screws and pull the assembly out of

the mounting bracket.

NOTE: When removing the flame motor some damage may occur to the flame

rod. If flame rod is damaged replace to insure proper operation.

9. To remove the flame rod attach needle nose pliers to the spring on the motor

shaft and pull while rotating in the same direction of the spring winding.

10.To replace the flame rod attach needle nose pliers to the flame rod spring and

push onto the flame motor shaft while rotating in the same direction of the spring

winding.

11. Properly orientate the flame motor and connect all of the wiring clips connections

in their original locations.

12. Reassemble in the reverse order as above.

EWM-COPPER, EWM-SS, EWM-SS-BLK

If the unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE HEATER ON/OFF SWITCH

1. Unplug the unit from the outlet.

2. Remove the two mounting screws from the bottom front of the heater assembly.

3. Loosen but do not remove the four heater / light assembly mounting screws

located on the bottom sides of the wall mounted electric fireplace.

4. Slide the heater and light assembly forward to release it from the bottom of the

wall mounted electric fireplace.

5. Place heater and light assembly on a flat surface and remove the six screws from

the upper sides and back of the assembly.

6. Separate the flicker motor and light assembly from the lower assembly.

7. Locate the heater on/off switch mounted in the lower cover and disconnect the

wiring clips and connections noting their original locations.

8. Properly orientate the new switch and connect all of the wiring clips and

connections.

9. Reassemble in the reverse order as above.
