Dimplex DHPH20F User manual
INSTRUCTION MANUAL
For domestic household use
1.8kW Panel Heater
Model: DHPH20F
only.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE
INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your product
for the first time and keep them in a safe place.
• When using electrical appliances, basic precautions should always be
followed to reduce the risk of fire, electrical shock and injury to persons,
including the following:
• If the appliance is damaged, check with the supplier before installation
and operation.
- Do not use outdoors.
- Do not use in the immediate surroundings of a bath, shower or
a swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface, or fix it to
the wall, as applicable.
• Do not locate the appliance immediately below a fixed socket outlet or
connection box.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Do not use this appliance in series with a thermal control, a program
controller, a timer or any other device that switches on the heat
automatically, since a fire risk exists when the appliance is accidentally
covered or dis-placed.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is only intended for INDOOR RESIDENTIAL applications
only.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar
coverings.
• DO NOT route cord under furniture or appliances. Take care to position
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED
FOR FUTURE REFERENCE. Note also the information presented on the
appliance
2
the cord away from traffic areas and where it will not be a tripping
hazard.
• This appliance must not be used in a bathroom.
• Although this appliance complies with safety standards, we do not
recommend its use on deep pile carpets or on long hair type of rugs
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged it must be replaced by the manufacturer
or service agent or a similarly qualified person in order to avoid a hazard.
• Keep the supply cord away from the front of the appliance.
• Do not use this heater in small rooms when they are occupied by
persons not capable of leaving the room on their own, unless constant
supervision is provided.
• To reduce the risk of fire, keep textiles, curtains and or flammable material
a minimum distance of 1m from the air outlet.
• In order to avoid overheating, DO NOT COVER the appliance. Do
not place material or garments on the appliance, or obstruct the air
circulation around the appliance, for instance by curtains or furniture, as
this could cause overheating and a fire risk.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-
out, this appliance must not be supplied through an external switching
device, such as a timer, or connected to a circuit that is regularly switched
on and off by the utility.
• DO NOT use the unit with an extension lead or power board.
• CAUTION: Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and vulnerable
people are present.
• Do not use this appliance in series with a thermal control, a program
controller, a timer or any other device that switches on the heat
automatically, since a fire risk exists when the appliance is accidentally
covered or dis-placed.
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED
FOR FUTURE REFERENCE. Note also the information presented on the
appliance
3
Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
No extension leads or
power boards
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
4
Model no. DHPH20F
Power supply
220-240V~50-60Hz
Rated power
1800W
Heat settings
2
Thermostat Y
Wall mountable N
Castors Y
Tilt Switch Y
Timer N
Turbo Fan N
Weight (net) 3.8kg
Dimensions (w x d x h) 651 x 89.4 x 504mm
Specifications
For greater precision, please always refer to the rating label placed on the product.
5
Parts
Grille
Feet
Controls
Low Heat
High Heat
Off
6
Assembly
1. Place the unit upside down and remove the pre-installed screws on the bottom of
the unit.
2. Insert each foot into the opening slots, ensuring they align correctly.
3. Place the screws back into position through the holes in the foot, and tighten to
secure to the unit.
4. Place the unit back into its upright position.
Clip here
7
Operation
Note: Before plugging in for use, ensure the thermostat is set anti-clockwise to the
MIN setting, and the heater switch is set to OFF.
1. Rotate the thermostat completely clockwise, until it reaches the MAX position.
2. To turn on the heating function, set the controls to your desired heat setting,
either LOW HEAT or HIGH HEAT. An indicator light will illuminate, showing that
the heater is on.
3. When your room reaches the desired temperature, slowly rotate the
THERMOSTAT anti-clockwise until you hear a click. The THERMOSTAT can now
be left at this setting. As soon as the room temperature has dropped below
the set temperature , the unit will switch itself on automatically until the set
temperature has been reached again. This allows the room temperature to remain
constant and perform economically.
4. To change the room temperature setting, rotate the thermostat clockwise to raise
the temperature, and anti-clockwise to lower it.
5. To switch the heater off, set the THERMOSTAT to MIN and the control to OFF.
Then switch the power off at the mains and remove the plug from the outlet.
Min
Max
8
Positioning
Select the position for the heater ensuring there is clearance from any furniture and
fittings of at least 300mm each side. The heater should only be operated on a flat
stable surface.
NOTE: The Panel heater is designed for operation on an AC electricity supply, and is
only suitable for domestic use and similar indoor locations.
Tips
• The Panel heater is fitted with castors and handles for ease of movement.
• A power switch provides the ability to choose an available heat output and
an adjustable thermostat enables the room temperature to be controlled
accordingly.
• Once the castors have been correctly fitted, no other assembly is required, just
plug in and play!
Safety Features
This appliance incorporates a number of safety devices. In addition to the ‘Important
Safety Advice’ section your attention is drawn to the following;
Tilt Switch
The tilt switch will prevent the heater from working if it is accidentally tipped over on
its side.
If the radiator is tipped over while it is hot, disconnect the power and allow it to cool,
then stand the radiator back upright. Reconnect the power - normal operation should
be resumed.
9
WARNING - ALWAYS DISCONNECT THE POWER SUPPLY BEFORE CLEANING THE
HEATER.
• Do not use detergents, abrasive cleaning powder or polish of any kind on the
body of the panel heater.
• Allow the panel heater to cool, then wipe with a dry cloth to remove dust and
a damp cloth (not wet) to clean off any marks. Be careful not to allow moisture
into to the heater.
Storage
If the heater is not required for long periods, for example during the summer, it should
be stored in a dry place and preferably covered to prevent the accumulation of dirt
and dust. The supply cord should be neatly coiled around the cable wrap ensuring that
the plug does not trail on the floor.
Cleaning
10
Table of contents
Other Dimplex Heater manuals
Dimplex
Dimplex TDTR 175C User manual
Dimplex
Dimplex Studio G DXSTG25 User manual
Dimplex
Dimplex ROF2T User manual
Dimplex
Dimplex DTX Series Installation instructions manual
Dimplex

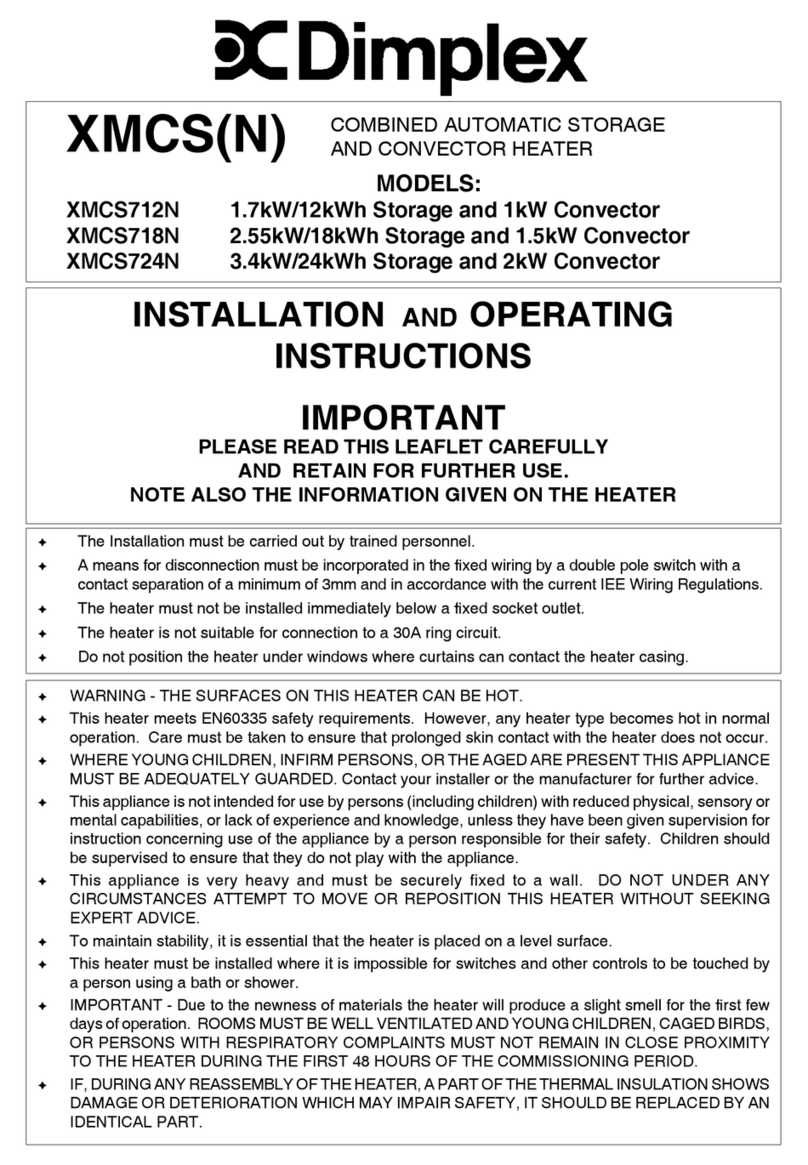

Dimplex XMCS712N User manual
