Digitus DS-55517 User manual
HDMI IP Extender Set,
Full HD
Quick Installation Guide
DS-55517 - DS-55518
2
Table of Contents
1. Introduction ..............................................3
2. Feature......................................................4
3. Package Content .......................................4
4. Specifications ............................................5
5. Product Overview .....................................6
5.1 Transmitter Panel ...............................6
5.2 Receiver Panel ....................................6
6. Application Example .................................7
6.1 Note: ...................................................8
3
1. Introduction
DS-55517:
The HDMI Extender Set is a powerful video distribution
system that consists of one transmitter/receiver unit. It
extends Full HD AV signals using a CAT6 network cable
(point-to-point connection) up to 120 m. In addition, using
network switches and the individual receiver units
(DS-55518), you can distribute your video content over up
to 253 displays via the already existing network
(IP connection) and extend them over an unlimited
distance. The additional integrated unidirectional IR
interface enables remote control of the input source from
the output screen (receiver side).
DS-55518:
Expand the HDMI IP Extender Set (DS-55517) with
additional receiver units to reproduce your AV content on
multiple monitors at the same time. The set extends Full
HD AV signals using a CAT6 network cable (point-to-point
connection) up to 120 m. In addition, using network
switches and the individual receiver units (DS-55518), you
can distribute your video content over up to 253 displays
via the already existing network (IP connection) and
extend them over an unlimited distance.
4
2. Feature
1. Extends Full HD AV signals with a CAT6 cable over an
unlimited distance via the existing local network
infrastructure or commercial network switches
2. Extends Full HD AV signals with a CAT6 cable up to
120 m (point-to-point connection)
3. Supports resolutions of up to 1080p/60Hz, Full HD
4. Supports CAT 5e, 6, 6A, 7, 8 network cables
5. IR interface enables remote control of the input
source from the output screen
6. HDCP 1.3
7. Video bandwidth: 1.65 Gbps
3. Package Content
1x Transmitter unit
1x Receiver unit
1x IR transmission cable (1.5 m)
1x IR receiver cable (1.5 m)
2x Power adapter (DC 5V/2A, 1.15 m)
1x Mounting material
1x User manual
5
4. Specifications
Signal Input HDMI Signal
Input Video Signal
0.5-1.0volts/p-p
Output Video HDMI Signal
Transmission Distance
(via Cat6 cable)
120m@1080p
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth
Max up to
1.65Gbps/165MHz
Interlaced (50&60Hz)
1080i
Progressive(50&60Hz) 720p,1080p
Limited Warranty 1 Year Parts and Labor
Operating Temperature 0°C to +50°C
Operating Humidity
10% to 85 % RH (no
condensation)
Storage Temperature -10°C to +80°C
Storage Humidity
5% to 90 % RH
(no condensation)
Power Supply 5V DC @2A
Power Consumption (Max) 8W
Extender Unit Cert. FCC, CE, RoHS
Power Supply Cert CE,FCC, RoHS
Power Adapter
US,UK,EU,AUS
Standard etc
6

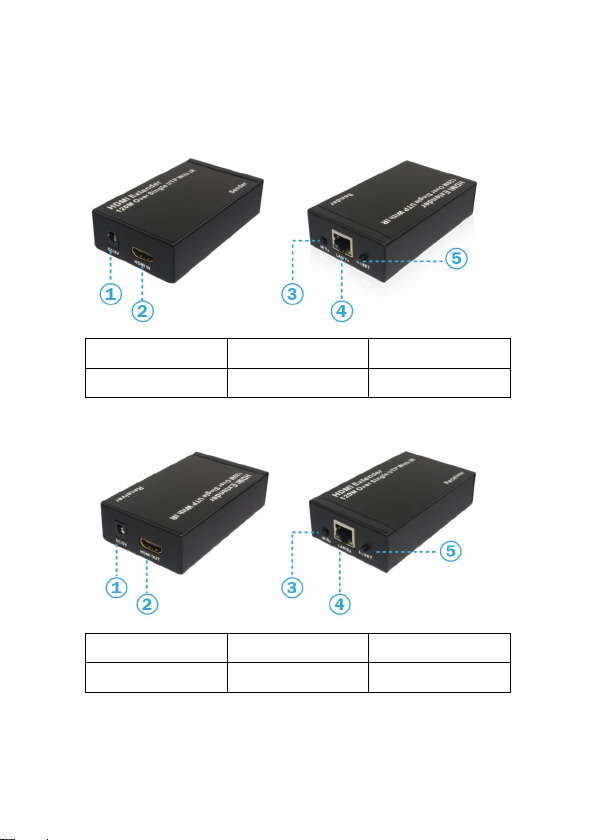

5. Product Overview
5.1 Transmitter Panel
1. DC/5V
2. HDMI IN
3. IR Tx
4. LAN Tx 5. RESET
5.2 Receiver Panel
1. DC/5V 2. HDMI OUT 3. IR Rx
4. LAN Rx
5. RESET
7
6. Application Example
1. Simple Mode:
2. Allocation Mode:
3. Infinity Mode:
1. DVD 2. HDMI Cable 3. CAT 5e/6 Cable
4.
HDTV 5.
IR Tx 6.
IR Rx
8
6.1 Note:
The IP address of the sender is fix to 192.168.101.110, the
customers use the same IP segment PC host to enter the
IP address to sign in the background to change the IP
address and MAC address of the product via web
browser; and the IP address of the receiver is random.
IP address setting:
Note: The terms HDM and HDMI High-definition
Multimedia Interface, and the HDMI logo are trademarks
oregistered trademarks of HDMI Licensing LLC in the
United States and other countries.
9
Hereby Assmann Electronic GmbH, declares that the
Declaration of Conformity is part of the shipping content.
If the Declaration of Conformity is missing, you can request
it by post under the below mentioned manufacturer
address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
