Digi-Pas DWL5000XY Owner's manual
Digi-Pas®
Installation and Operation Guidelines for
DWL5000XY, DWL5500XY and DWL5800XY
Tilt Sensor Modules
Rev. 2.3
www.digipas.com
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
TOC 1
DWL-5x000XY DATA SHEET
1. Introduction ............................................................................................................................... 1
1.1. Overview............................................................................................................................. 1
1.2. Technical Specication......................................................................................................1
1.3. Dimension of the Tilt Sensor Module .................................................................................2
1.4. Pinout if the Tilt Sensor Module and Sensor Cord ............................................................3
2. Installation ...................................................................................................................................4
2.1. Securing Tilt Sensor Module with Sensor Cord .................................................................4
2.2. Mounting the Tilt Sensor Module .......................................................................................4
3. Conguration..............................................................................................................................5
3.1. Conguration of Single Tilt Sensor Module with Converter ............................................5
3.1.1. Materials for the Conguration .............................................................................5
3.1.2. Conguration Setup Procedure............................................................................5
3.2. Conguration of Sensor Module(s) with Control Box ......................................................6
3.2.1. Materials for the Conguration .............................................................................7
3.2.2. Conguration Setup Procedure............................................................................7
4. Operation..................................................................................................................................10
4.1. Installation of the DWL5X00XY Pc Sync Software ..........................................................10
4.2. Operation of Single Tilt Sensor Module with Converter ................................................11
4.3. Operation of Sensor Module(s) with Control Box ..........................................................12
4.4. Operation of the Single-Axis and Dual-Axis Measured Angle .....................................13
5. Dynamic-Link Libraries For DWL5X00XY Tilt Sensor Module Notes.......................................14
5.1. Introduction .......................................................................................................................14
5.1.1. Using the DWL5000XY Library.dll..........................................................................14
5.2. Serial Communication......................................................................................................14
5.2.1. DWL5000XYLibrary.SerialComm.Serial_Initialization ..........................................14
5.2.2. DWL5000XYLibrary.SerialComm.Mode...............................................................15
5.2.3. DWL5000XYLibrary.SerialComm.Sensor_Correction_Status..............................15
CONTENT
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
TOC 2
DWL-5x000XY DATA SHEET
5.2.4. DWL5000XYLibrary.SerialComm.Stand ...............................................................16
5.2.5. DWL5000XYLibrary.SerialComm.Dual_X_Value .................................................16
5.2.6. DWL5000XYLibrary.SerialComm.Dual_Y_Value ................................................16
5.2.7. DWL5000XYLibrary.SerialComm.Vibro_Value ....................................................16
5.2.8. DWL5000XYLibrary.SerialComm.Single_Alt_Zero_Value ...................................17
5.2.9. DWL5000XYLibrary.SerialComm.Dual_X_Alt_Zero_Value..................................17
5.2.10. DWL5000XYLibrary.SerialComm.Dual_Y_Alt_Zero_ValueSingle Axis Mode ....17
6. RS485 Serial Communication Protocol for Single DWL5x00XY Tilt Sensor ...........................18
6.1. Serial Port Settings .............................................................................................................18
6.2. Buffer Frame Format .........................................................................................................18
6.3. Initialization Command ....................................................................................................18
6.4. Commands for Source and Destination ........................................................................19
6.5. Commands for Mode Selection......................................................................................19
6.5.1. Single Axis Mode ...................................................................................................20
6.5.2. Dual Axis Mode .....................................................................................................21
6.5.3. Vibro Mode............................................................................................................22
6.5.4. Calibration Mode .................................................................................................23
6.5.4.1. Detailed Calibration Steps....................................................................... 24
6.5.5. Alternate Zero in Single Axis Mode .....................................................................28
6.5.6. Alternate Zero in Dual Axis Mode .......................................................................28
6.5.7. Location Setting....................................................................................................29
7. Serial Communication Protocol for Control Box...................................................................30
7.1. Serial Port Settings .............................................................................................................30
7.2. Buffer Frame Format .........................................................................................................30
7.3. Commands for Source and Destination ........................................................................31
7.4. Commands for Mode Selection......................................................................................31
7.4.1. Single Axis Mide.....................................................................................................32
7.4.2. Dual Axis Mode .....................................................................................................33
7.4.3. Vibro Mode............................................................................................................34
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
TOC 3
DWL-5x000XY DATA SHEET
7.4.4. Calibration Mode .................................................................................................35
7.4.4.1. Detailed Calibration Steps....................................................................... 37
7.4.5. Alternate Zero in Single Axis Mode ..........................................................41
7.4.6. Alternate Zero in Dual Axis Mode ............................................................41
7.4.7. Relay Mode ................................................................................................42
8. Warranty....................................................................................................................................43
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
DWL-5x000XY DATA SHEET
APPLICATION DIAGRAM
Application diagram 1 - Multiple sensors
Application diagram 2 - Single Sensor
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 1
DWL-5x000XY DATA SHEET
1. Introduction
1.1. Overview
Digi-Pas® DWL5000XY, DWL5500XY & DWL-5800XY are 2-Axis Precision tilt Sensor Modules
that specically designed to be integrated into a machine/equipment/structure for real-
time simultaneous monitoring, data acquisition & logging of a plane levelling state, 2D tilt
angles & vibration measurements.
1.2. Technical Specication
DWL-5000XY DWL-5500XY DWL-5800XY
Dimension 90mm × 60mm × 30mm 120 x 80 x 43
Weight (Approx.) 400g 600g 1200g
Measuring Range 0° ~ ±90.00° (Single-Axis)
0° ~ ±15.00° (Dual-Axis)
0° ~ ±10.000° (Single-Axis)
0° ~ ±5.000° (Dual-Axis)
0° ~ ±14400arcsec
(Single-Axis)
0° ~ ±3600 arcsec (Dual-
Axis)
Resolution 0.01°
(175 µm/M)
(0.002 in/feet)
0.001°
(18 μm/M)
(0.0002 in/feet)
1 arcsec; (≤5 µm/M)
Accuracy ± 0.01° at 0° to 2.00°
± 0.03° at other angles
± 0.001° at 0° to 2.000°
± 0.003° at other angles
± 1 arcsec; at 0 to ±1080
arcsec.; 3 arcsec at
other angles
Vibrometer 1.0g 2.0g 2.0g
Input Voltage Regulated 9V - 12V DC
Maximum Load 150mA
Output Mode RS485
*USB, RS232, RS485 and SPDT Relay
*Wireless Bluetooth connectivity (optional)
Waterproof Rating IP65
Operating -20°C to +70°C 10°C to +40°C
Storage -30°C to +80°C -30°C to +80°C
Table 1. Technical specication of DWL5000XY, DWL5500XY & DWL5800XY tilt sensor module
Notes:
-Product specication and appearance are subject to change for product improvement without prior notice.
-*Control Box is required
Figure 1. (a) DWL5000XY (b) DWL5500XY (c) tilt sensor module
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 2
DWL-5x000XY DATA SHEET
1.3. Dimension of the Tilt Sensor Module
90
60
78
5.1x 2 holes
44
M4x
8mmx2holes
14.5
32.8
80
108
120
5.1X 2 holes
60
19.5
M4X8mm depth
43
Figure 2. DWL-5000XY & DWL 5500XY Tilt Sensor Dimension
Figure 3. DWL 5800XY Tilt Sensor Dimension
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 3
DWL-5x000XY DATA SHEET
1.4. Pinout of the Tilt Sensor Module and Sensor Cord
Pinout of the circular multipole connector from tilt sensor module is shown in Figure 4
Pinout of the sensor cord is shown in Figure 5
*Please verify the connection before power on the device. Wrong connection will lead to
device failure and may void your warranty.
Pin No. Description
1 GND
2N.C (No Connection)
3GND (without Control Box) or Signal 1 (For Control Box only)
4GND (without Control Box) or Signal 2 (For Control Box only)
5Power Input (Regulated 9V)
6RS485 - A (Non-inverting Receiver Input/Tx+)
7RS485 - B (Inverting Receiver Input/Tx-)
8RS485 - Z (Inverting Driver Output)/Rx-)
9RS485 - Y (Noninverting Driver Output / Rx+)
Figure 4. Pinout of the circular multipole connector of the tilt sensor module
Figure 5. Pinout of the sensor cord (DB-9)
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 4
DWL-5x000XY DATA SHEET
2.2. Mounting the Tilt Sensor Module
1. Two threaded holes (M4) are provided to mount the tilt sensor module in Single
Axis onto user-dened xtures/machinery.
2. Installation
2.1. Securing Tilt Sensor Module with Sensor Cord
1. Ensure the circular multipole connector is aligned to the receptacle on the sen-
sor module as illustrated on Figure 6(a).
2. Secure the rotatable ring by turning it clockwise as in Figure 6(b).
Figure 6. Steps to secure the tilt sensor module with sensor cord
a b
Figure 7. Two threaded holes (M4) is provided to mount the tilt sensor module in Single Axis
2. Two threaded holes (M4) are provided to mount the tilt sensor module in Single
Axis onto user-dened xtures/machinery.
44
14.5
60
M4x
8mmx2holes
19.5
80
108
120
90
60
78
5.1x 2 holes
Figure 8. Two 5.1mm diameter holes is provided to mount the tilt sensor module in Single Axis
DWL-5000XY & DWL-5500XY DWL-5800XY
DWL-5000XY & DWL-5500XY DWL-5800XY
Digi-Pas®
© 2018 Digipas Technologies Inc. All Rights Reserved.
www.digipas.com
Page 5
DWL-5x000XY DATA SHEET
3. Conguration
This section deliberates how to congure the tilt sensor module to communicate with PC,
machine or equipment. To congure the tilt sensor module with RS485 converter,
user can refer to 3.1 Conguration of Single Tilt Sensor Module with Converter. To cong-
ure the tilt sensor module with DigiPas Control Box, user can refer to 3.2 Conguration of
Sensor Module(s) with Control Box.
3.1. Conguration of Single Tilt Sensor Module with Converter
3.1.1. Materials for the Conguration
• 1 × DWL5000XY or DWL5500XY tilt sensor module secured with sensor cord
• 1 × RS485 converter (4 wires)
• In this example, EasySync Converter (Model number: ES-U-3001-M) is used.
• 1 × 9-12V Power Source
• 1 × custom cable with DB9 (Female) connector
3.1.2. Conguration Setup Procedure

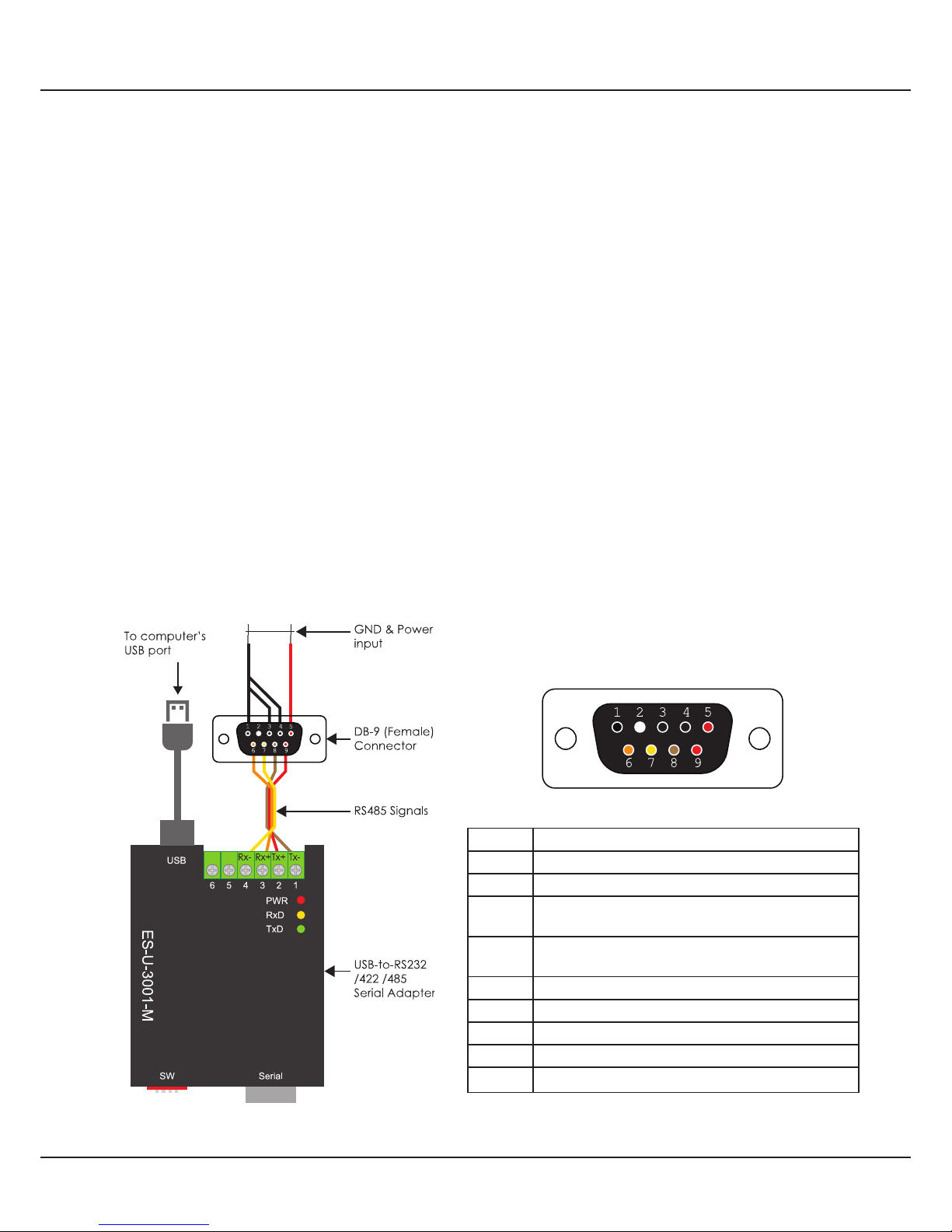

1. Prepare the custom cable. The constructed custom cable and the pinout of the
DB9 (Female) connector is shown in Figure 9.
Pin No. Description
1 GND
2N.C (No Connection)
3GND (without Control Box) or Signal 1 (For
Control Box only)
4GND (without Control Box) or Signal 2 (For
Control Box only)
5Power Input (Regulated 9V)
6RS485 - A (Non-inverting Receiver Input/Tx+)
7RS485 - B (Inverting Receiver Input/Tx-)
8RS485 - Z (Inverting Driver Output)/Rx-)
9RS485 - Y (Noninverting Driver Output / Rx+)
Figure 9. Constructed custom cable and pinout of the DB9 (Female) connector
DB-9 (Female) Connector
