Denver LED-5570T2CS User manual
4K UHD LED TV with DVB-T2/S2/DVB-C
and H.265/HEVC Support
Model: LED-557 0 T2CS
User’s Guide
NOTE:
Read all of the instructions before using this TV and keep the instruction
manual in a safe place for future reference.
Contents
Auto Installation Setup 8
1.Channel Setting 9-13
OSD MENU 9-15
2.Picture menu 13
3.Sound menu 14
4.Time menu 14
5.Setup menu 14
Media Player 16
6.Lock menu 15
1
2
3

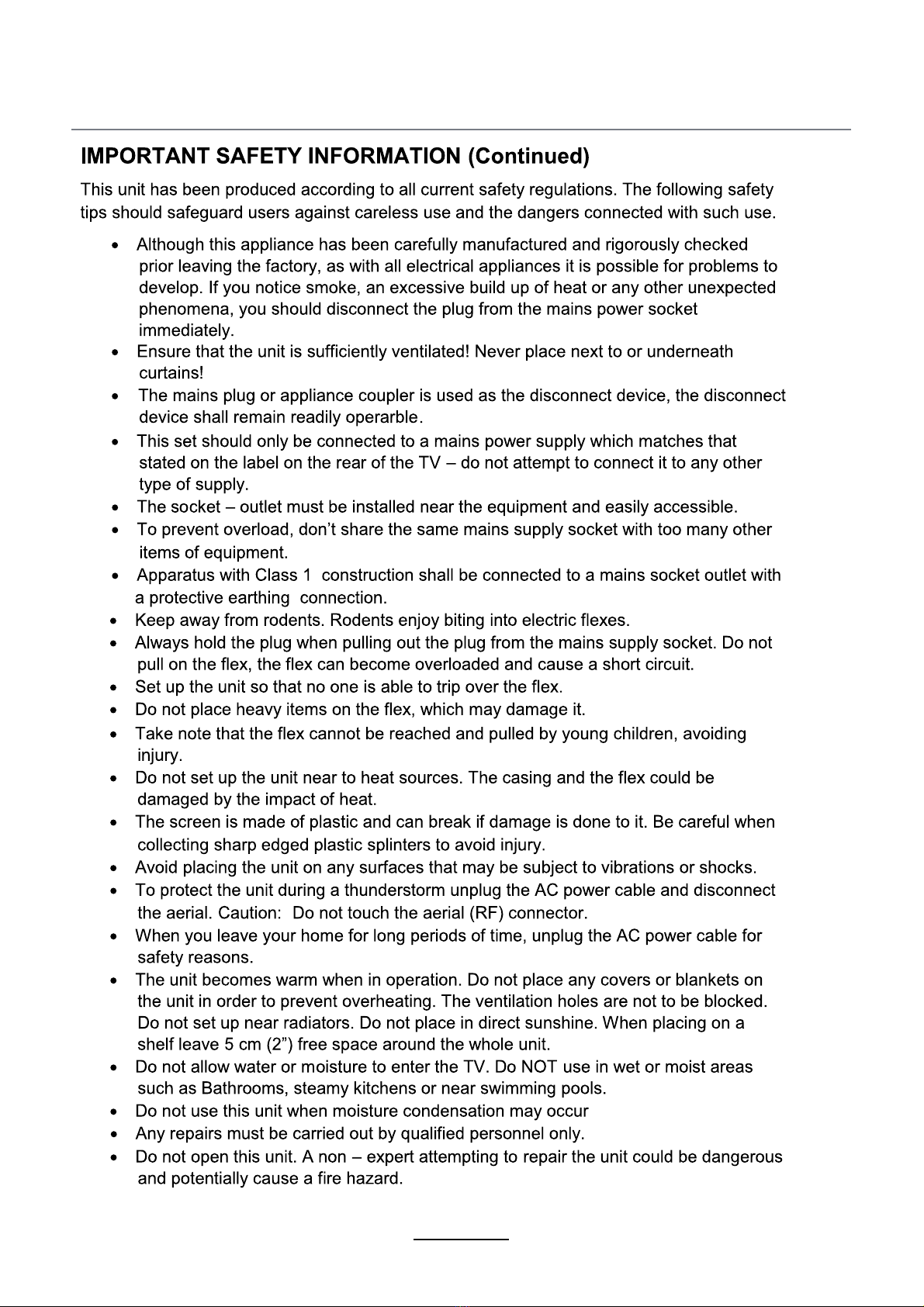

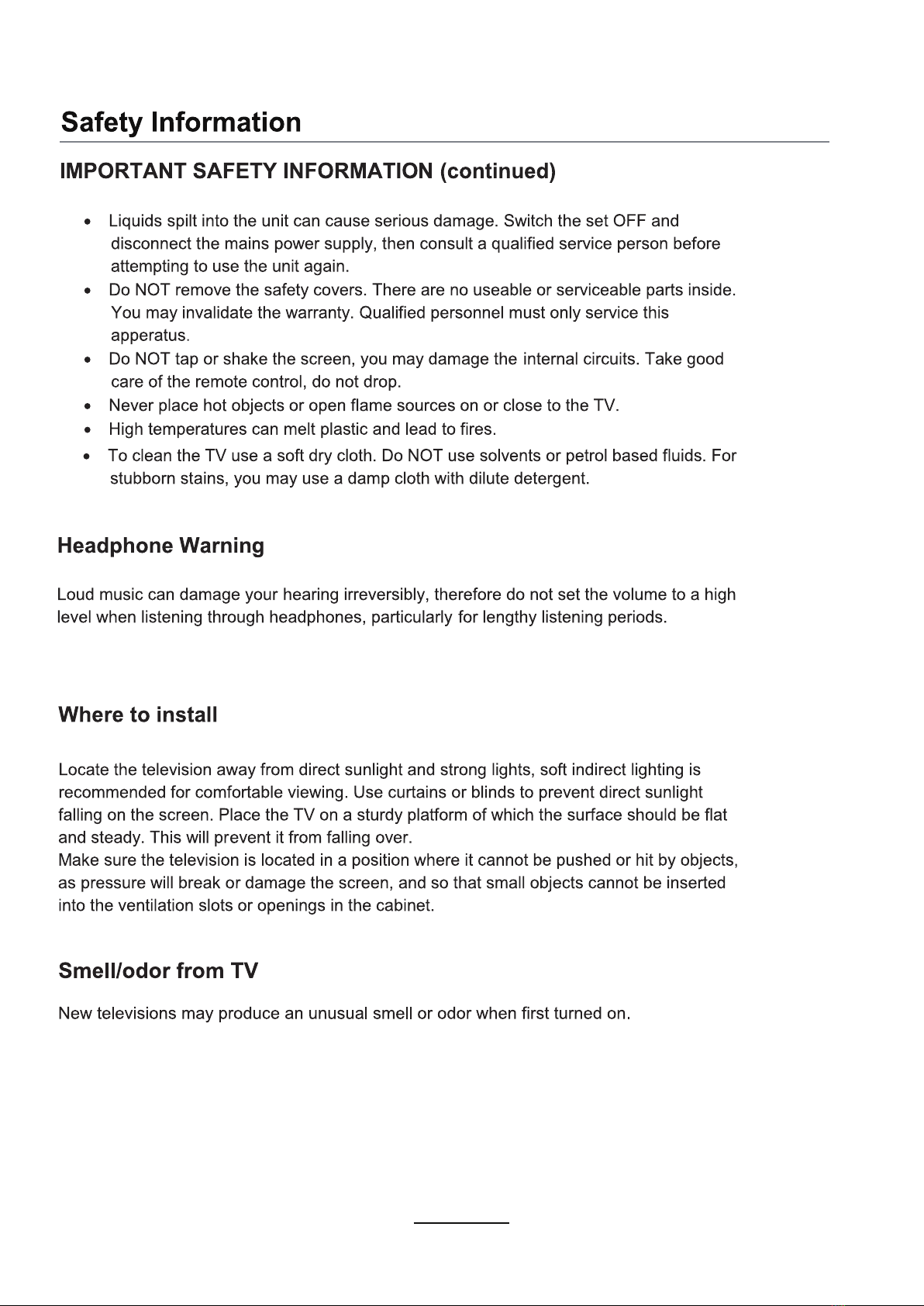

Due to the manufacturing process of components, televisions and other electronic products
can have parts that may produce a smell after the product is first turned on and warms up.
The smell will usually dissipate within a few days of use and does not return.
This is normal and occurs with many electronic products. Please ensure there is sufficient
ventilation around the TV and in the room and the odor will dissipate.
POWER/STANDBY:
CH+/CH-
VOL+/VOL-
POWER/STANDBY
4
HDMI: Connect DVD/Blu-ray player or other equipment.
HDMI 1/2: HDMI 2.0 (HDCP 2.2). Supports UHD 4K (2180P) resolution.
HDMI 3: HDMI 1.4a (HDCP 1.4). Supports 1080P resolution only.
PC AUDIO
Coax: Digital output to AV receiver.
USB: Connect to USB device for multimedia (up to 1080P).
TV2(T2/C):
USB
HDMI3 TV1(S2) TV2( )T2/C Comm on Inte rface
Mi ni YP bPr M ini AV
COAXSCARTVGA
PC
AUDIO
HDMI2HDMI1
5
6
The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CH.LIST: Display the programs list.
EPG: To show the Electronic Program Guide during no-
menu state only in DTV mode.
FAV: Display the favorite program list.
SLEEP: StandbyTimer
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
POWER(red button): Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
Buttons for Basic operating
MENU: Press to display the OSD menu.
INPUT : Display the input source menu.
EXIT: Press to exit the OSD menu.
THUMBSTICK( OK): Allows you to navigate
the on-screen menus and adjust the system settings to your
preference.
NUMBER BUTTONS: Choose channel directly. Press
number buttons and press OK button to play the channel.
: Return to the previous channel viewed.
ASPECT: Adjust picture size
SUBTITLE: Turn on/off the subtitle display in DTV mode
TV/RADIO: Switch to TV/RADIO.
DISPLAY: Press to display the current mode’s information.
ETUMREWOP
DISPLAY
MENU
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
EXIT
HCLOV
1 2 3 4
5 6 7 8
9 0
INPUTTV/RADIO
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
OK
7
ETUMREWOP
DISPLAY
MENU
TV/TXT CANCEL REVEAL NICAM/A2
INDEX HOLD SIZE SUBPAGE
EXIT
HCLOV
1 2 3 4
5 6 7 8
9 0
INPUTTV/RADIO
PICTURE SOUND ASPECT SLEEP
SUBTITLE CH.LIST EPG FAV
OK
Buttons for TELETEXT operating
You could use the buttons only in TELETEXT .
TV/TXT: Turn off/on the Teletext display.
REVEAL: Reveal any hidden text.
HOLD: Hold or carry on the current subpage.
Colour buttons : Short cuts-follow the coloured links in the text.
INDEX: Go to index.
CH / : Channel/Program +/-.
VOL +/- : Volume +/-.
: Fast forward.
: Fast reverse.
: Previous chapter.
: Next chapter.
: Stop program.
: Play/pause program.
SIZE: Press to see top half of page double size. Press again to
see the bottom half of page double size. Press again for
normal size.
CANCEL: Cancel the Teletext display.
NICAM/A2: TV Nicam/A2 select.
SUBPAGE: Press to enter subpages, press again to cancel.
blue
Use the Left/Right/Down keys to select your Language,
Country and Energy Model.
First Time Installation
Language < English >
Country < Germany >
Energy Mode < Home Mode >
Auto Standby < 4H >
OK Auto Tuning
Tune Type < DTV+ATV >
Tuning Setup
MENU Back OK Start
Digital Type < DVB-C >
Scan Type <Network Scan >
Network ID < Auto >
Frequency < Auto >
Sysmbol Rate < Auto >
Sorting by LCN < Off >
1.Press the Menu button on the remote control on your
LED TV to select the Setup menu.
2.Press the buttons to select the First Time
Installation.
