Denon DNP-F109 User manual

DNP-F109

NETWORK AUDIO PLAYER

Getting Started

SVENSKA ESpAñol FrANçAiSNEDErlANDS itAliANo DEutSch ENGliSh

РУССКИЙ

POLSKI

Erste Schritte / Mise en route / Guida introduttiva / Antes de empezar / Aan de slag / Att komma igång / Начало работы / Skrócona instrukcja obsługi

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

Welcome

Thank you for choosing a DENON network audio player. This

guide provides step-by-step instructions for setting up your

network audio player.

If you have setup problems:

If you need additional help in solving problems, contact

DENON customer service in your area.

See the address sheet included in the box.

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

Before You Begin

What’s In the Box

Coaxial digital

cable

Network audio player

Remote control unit (With battery) System cable

Safety

Instructions

Getting

Started

Owner’s

manual

Service

network list

Required for F109 system connections

DRA-F109

Receiver Speaker systems Speaker cables

Required for Network connections

Modem Router

(or Wi-Fi router)

Network cable

(For Wired connection only)

These drawings are for illustrative purposes only and may not represent

the actual product(s).

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

Setup Steps

There are eight steps to the setup process.

1Before using the remote control unit

2Connect to the ampliﬁer

3Selecting to your home network

4Quick Setup (Auto Scan)

5Quick Setup (WPS)

6Quick Setup (Wired)

7Listen to Internet Radio

8Enjoying music using Apple AirPlay

1Before using the

remote control unit

Insulating sheet

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

Wi-Fi connection

Auto Scan v4

Use this connection method

when using an ordinary Wi-Fi

router.

WPS v5

Use this connection

method when using a

Wi-Fi router that supports

the WPS function.

WPS

Wired connection

Wired v6

Use this connection

method when using a

network cable.

Connect to the ampliﬁer

DRA-F109

Refer to the DRA-F109 owner’s manual to connect the power cord.

System

cable

Coaxial digital

cable

3Selecting to your home

network

DNP-F109

When the DNP-F109 and DRA-F109 are connected using the system

cable , the DNP-F109 can be controlled using the remote control unit

included with the DRA-F109.

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

4Quick Setup (Auto Scan)

Power on.

Select language.

English

[Select Language]

:enter:select

Select “Auto Scan”.

Auto Scan

[Wi-Fi Setup Method]

:enter :back

Select your network.

5AB6789C1D23(...

[Select Network]

:enter :back

100%

If your network name is not listed, select “Scan Again”.

Select “Password” and enter

your network password

using the number keys on the

remote control unit.

abcd1234

[Enter Wi-Fi Password]

:move:select

Select Network Control.

[Network Control]

Press ENTER to use the D...

•Select ON to control DNP-F109 from your smartphone, use Apple AirPlay®and

maintain constant network access.

Power consumption during standby power will be slightly higher.

•Select OFF to reduce power consumption during standby.

You can not turn on DNP-F109 or use Apple AirPlay from your smartphone until

DNP-F109 is powered on manually and then connects to your network.

Setup is complete.

Setup Complete!

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

5Quick Setup (WPS)

Power on.

Select language.

English

[Select Language]

:enter:select

Select “WPS (Wi-Fi- Protected

Setup)”.

WPS (Wi-Fi Protect

[Wi-Fi Setup Method]

:enter :back

Press the WPS button on

your Wi-Fi router.

WPS

Select “Push Button”.

Push Button

[WPS Setup Method]

:enter :back

Select Network Control.

[Network Control]

Press ENTER to use the D...

•Select ON to control DNP-F109 from your smartphone, use Apple AirPlay®and

maintain constant network access.

Power consumption during standby power will be slightly higher.

•Select OFF to reduce power consumption during standby.

You can not turn on DNP-F109 or use Apple AirPlay from your smartphone until

DNP-F109 is powered on manually and then connects to your network.

Setup is complete.

Setup Complete!

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

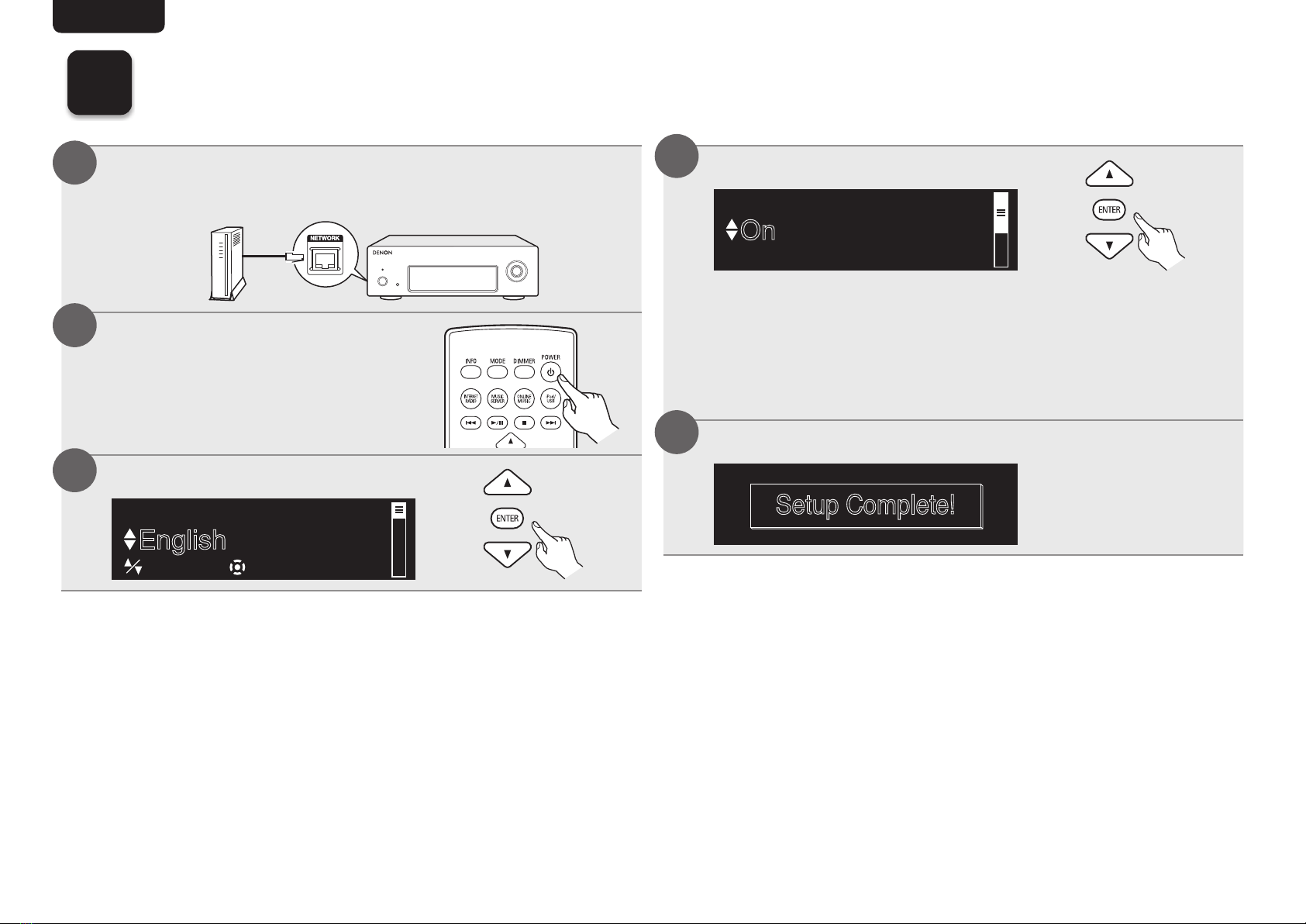

6Quick Setup (Wired)

Connect a Network Cable between the DNP-F109

and your router.

Power on.

Select language.

English

[Select Language]

:enter:select

Select Network Control.

[Network Control]

Press ENTER to use the D...

•Select ON to control DNP-F109 from your smartphone, use Apple AirPlay®and

maintain constant network access.

Power consumption during standby power will be slightly higher.

•Select OFF to reduce power consumption during standby.

You can not turn on DNP-F109 or use Apple AirPlay from your smartphone until

DNP-F109 is powered on manually and then connects to your network.

Setup is complete.

Setup Complete!

ENGliShDEutSchFrANçAiSitAliANoESpAñolNEDErlANDSSVENSKA

7Listen to Internet Radio

233

Press INTERNET RADIO.

Select the item, then press

ENTER.

Repeat step 2to select the

station, then press 1/3.

DRA-F109

DNP-F109

ENGliSh DEutSch FrANçAiS itAliANo ESpAñol NEDErlANDS SVENSKA

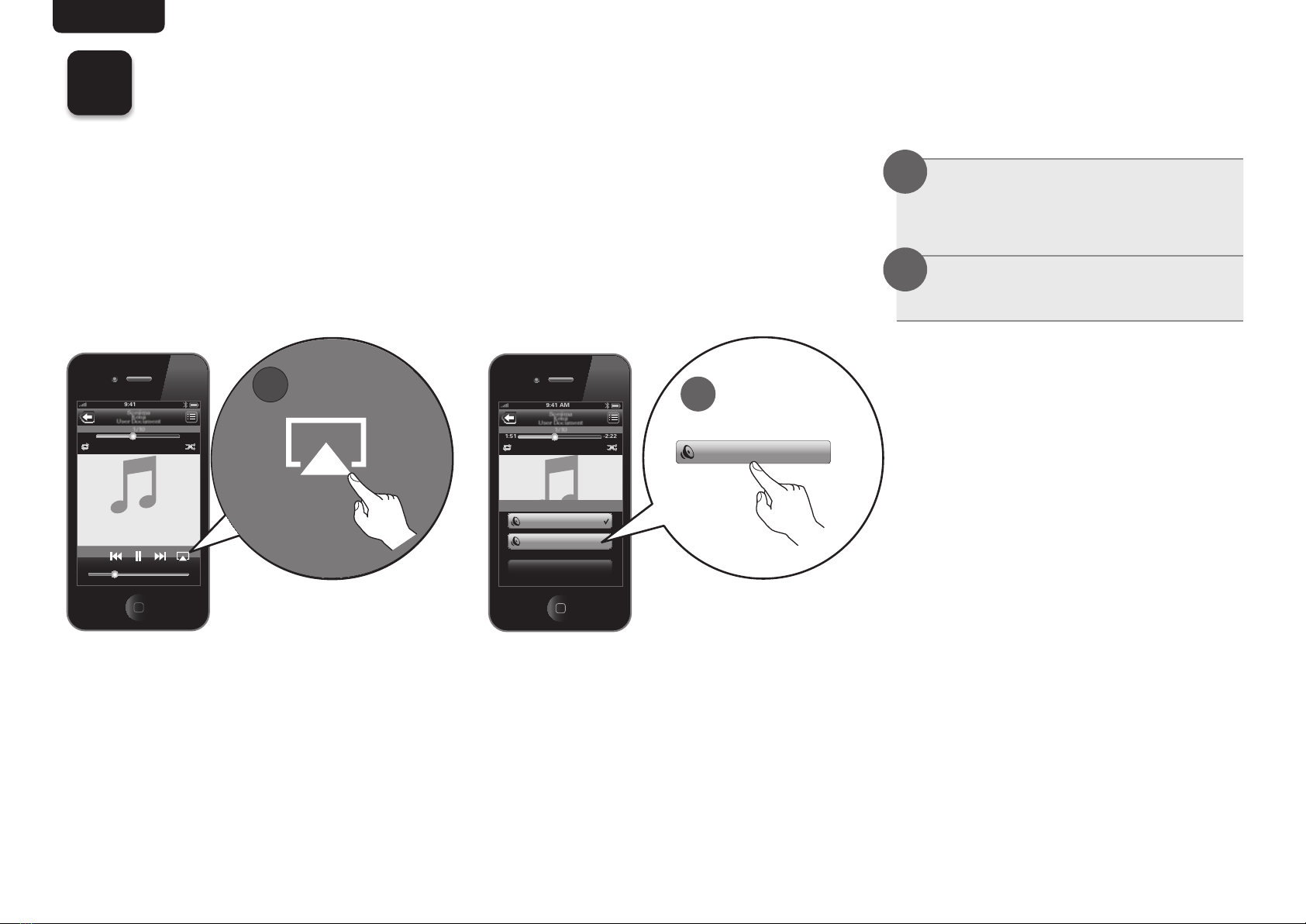

Tap the AirPlay Icon from

within any music app

that supports AirPlay.

Select the “DNP-F109”

from the AirPlay Device list.

8Enjoying music using Apple AirPlay

9:41

1:51 -2:22

DENON DNP-F109

iPhone

Cancel

DENON DNP-F109

9:41

1:51 -2:22

Note:

Make sure your iOS device is on the same

network as the DNP-F109.
